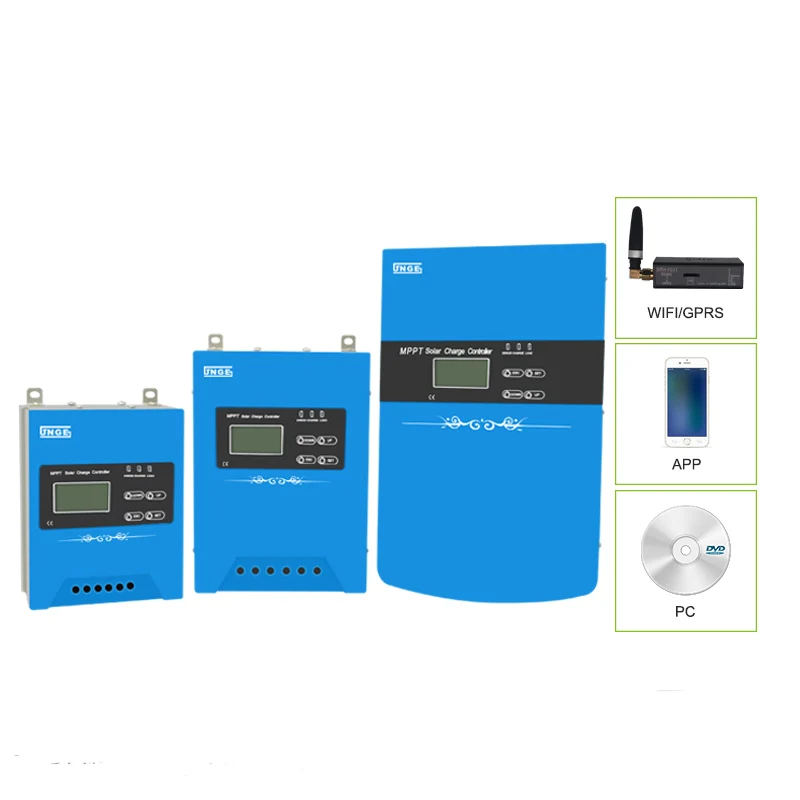

Высокое качество 30A-120A 12V/24V/48V Солнечное зарядное устройство контроллер с поддержкой Wi-Fi модуль 99.5% со слежением за максимальной точкой мощности
- Категория товара: Solar Energy Products >>>
- Поставщик (Оптовый магазин): Anhui,Jnge,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

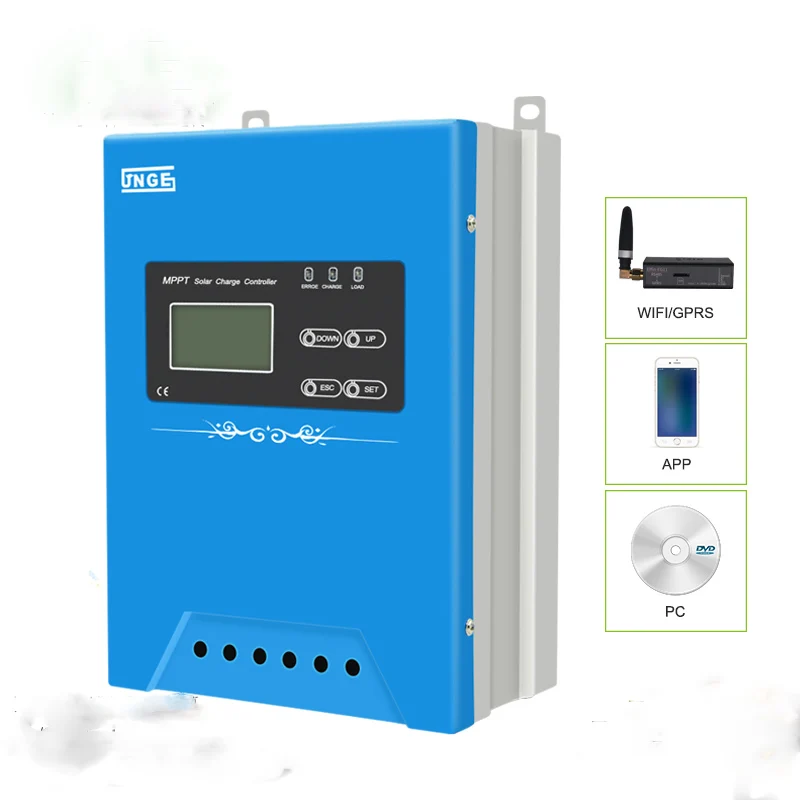

JN-MPPT-MINI/AL/BL/CL Solar Charger Controller
Thank you for choosing the JN-MPPT-MINI/AL/BL/CL buck type solar charge controller. Based on multi-phase synchronous rectification technology and common anode design, this series of products adopts advanced high-speed processor and MPPT control algorithm, featuring high response speed, high reliability and high industrial standard.
FEATURES AT A GLANCE
* 12V/24V/48V battery system automatic identification function.
* Advanced multi-phase synchronous rectification technology also has high conversion efficiency in low power charging environment.
* Has an ultra-wide PV array operating voltage range.
* Advanced MPPT maximum power point tracking technology, the tracking efficiency is not less than 99.5%, compared with the ordinary PWM algorithm, the efficiency is increased by 15 to 20%.
* RS485 communication can provide communication protocol to facilitate unified management and secondary development for customers.
* Has an ultra-wide PV array operating voltage range.
* Advanced MPPT maximum power point tracking technology, the tracking efficiency is not less than 99.5%, compared with the ordinary PWM algorithm, the efficiency is increased by 15 to 20%.
* RS485 communication can provide communication protocol to facilitate unified management and secondary development for customers.

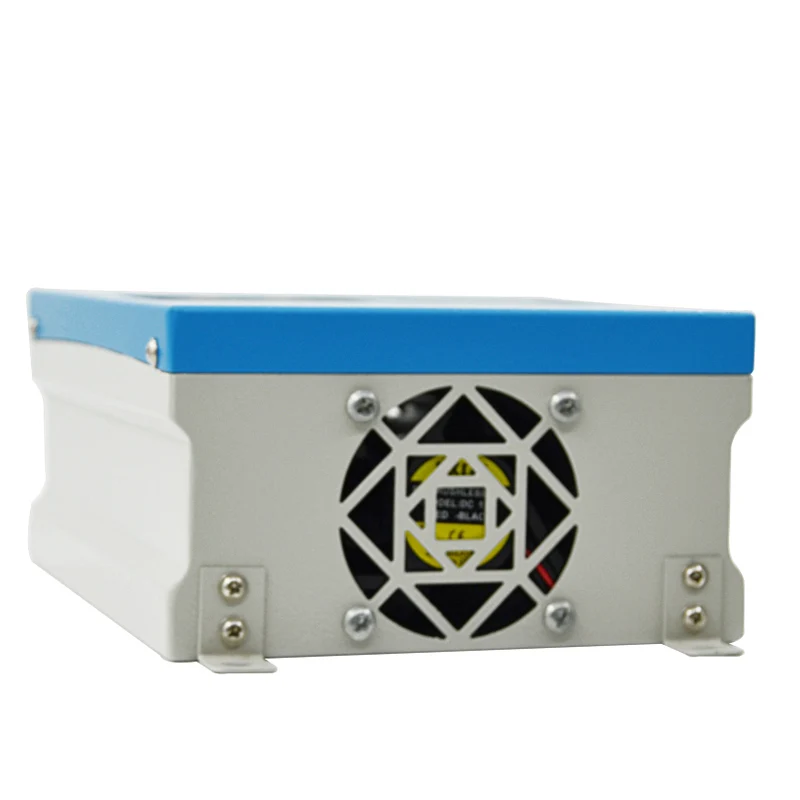

Right elevation

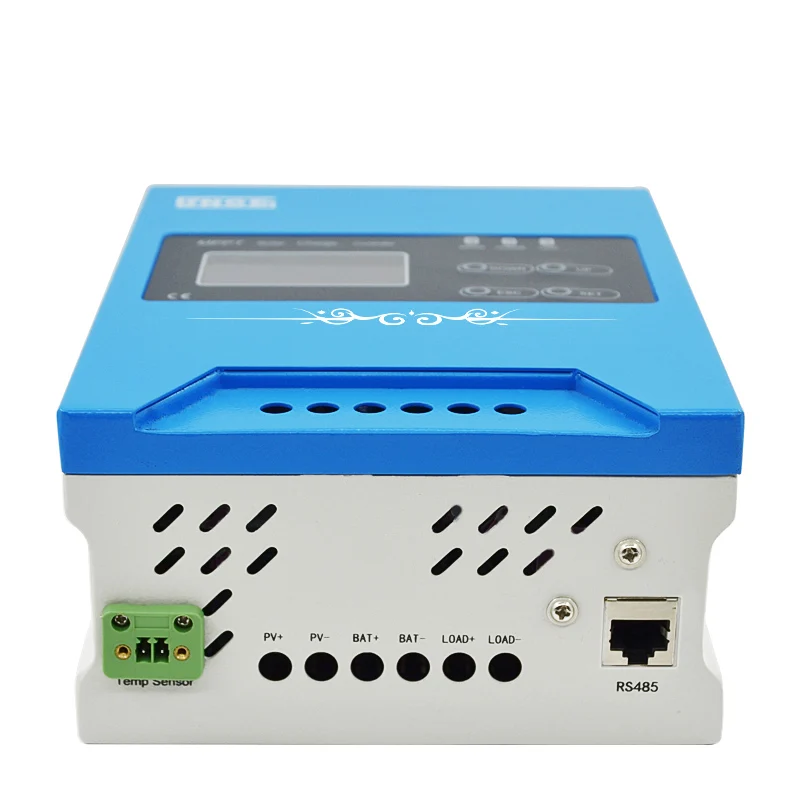

Bottom elevation

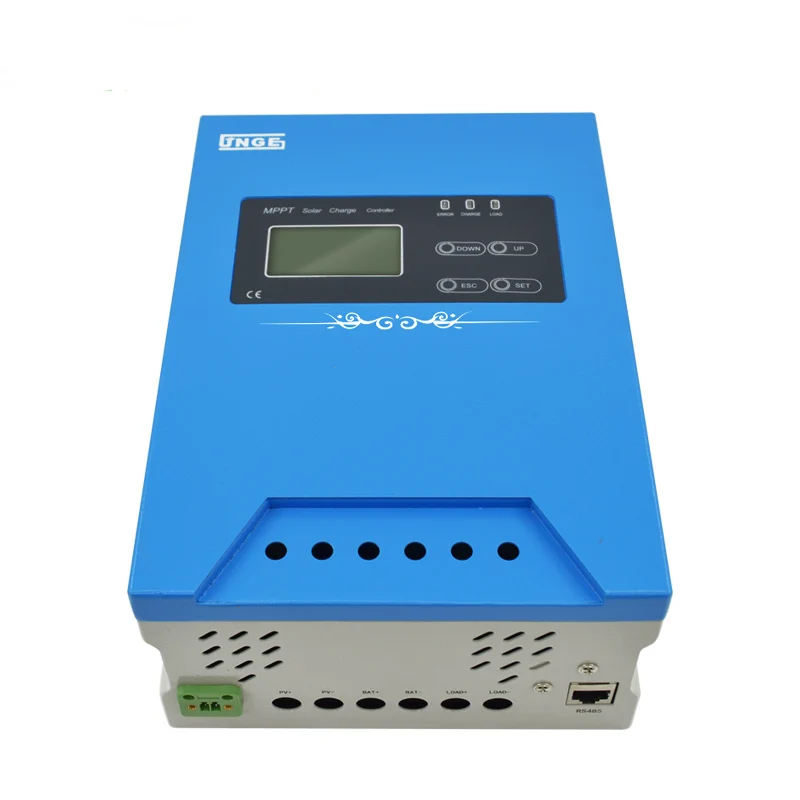

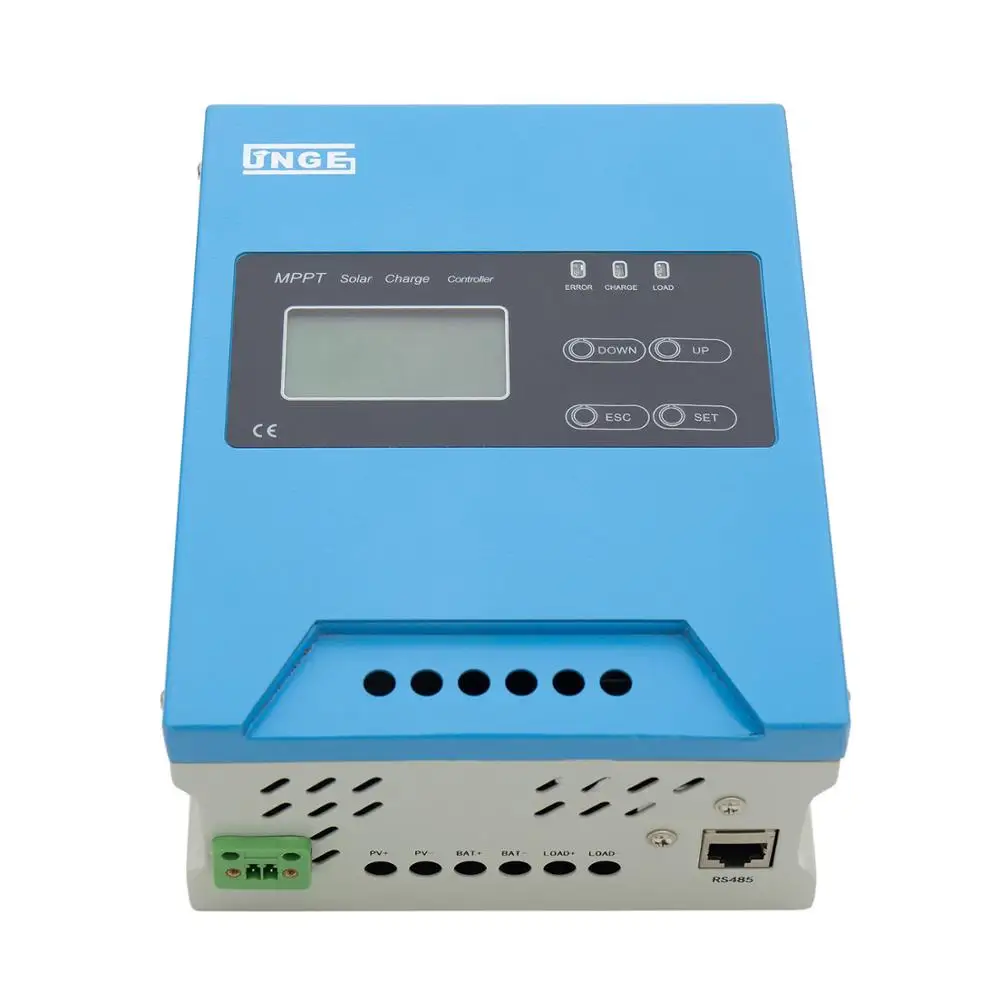

Front elevation
PRODUCT SPECIFICATIONS
Parameter name | Parameter value(and adjustable range) | ||||||||||
Model | JN-MPPT-MINI | JN-MPPT-AL | |||||||||
Current(A) | 10 | 20 | 30 | 30 | 40 | 50 | |||||
Maximum charging cccurrent | 10 | 20 | 30 | 30 | 40 | 50 | |||||
PV maximum input power(12V)(W) | 150 | 310 | 460 | 460 | 620 | 780 | |||||
PV maximum input power(24V)(W) | 310 | 620 | 930 | 930 | 1240 | 1560 | |||||
PV maximum input power(48V)(W) | -- | -- | -- | 1870 | 2490 | 3120 | |||||
PV maximum input power(96V)(W) | -- | -- | -- | -- | -- | -- | |||||
Output maximum current(A) | 7 | 14 | 21 | 21 | 28 | 35 | |||||
PV panel open circuit input voltage range(V) | 20V-100V(12V battery system) 40V-100V(24V battery system) | 20V-100V(12V battery system) 40V-145V(24V battery system) 80V-145V(48V battery system) 160V-240V(96V battery system) | |||||||||
Size(mm) | 156*134*81mm 1.25kg | 186*146*81mm 1.5kg | |||||||||
Model | JN-MPPT-BL | JN-MPPT-CL | |||||||||||||||
Current (A) | 30 | 40 | 50 | 60 | 70 | 60 | 80 | 100 | 120 | ||||||||
Maximum charging current(A) | 30 | 40 | 50 | 60 | 70 | 60 | 80 | 100 | 120 | ||||||||
PV maximum input power(12V)(W) | 460 | 620 | 780 | 930 | 1090 | 930 | 1240 | 1560 | 1870 | ||||||||
PV maximum input power(24V)(W） | 930 | 1240 | 1560 | 1870 | 2180 | 1870 | 2490 | 3120 | 3740 | ||||||||
PV maximum input power(48V)(W) | 1870 | 2490 | 3120 | 3740 | 4360 | 3740 | 4990 | 6240 | 7480 | ||||||||
PV maximum input power(96V)(W) | -- | -- | -- | -- | -- | 5760 | 7680 | 9600 | -- | ||||||||
Output maximum current(A) | 21 | 28 | 35 | 42 | 49 | -- | -- | -- | -- | ||||||||
PV open circuit input voltage range(W) | 20V-100V(12V battery system) 40V-145V(24V battery system) 80V-145V(48V battery system) 160V-240V(96V battery system) | ||||||||||||||||
System identification voltage range(V) | 12V battery system DC9V-DC16V 24V battery system DC18V-DC32V 48V battery system DC42V-DC60V 96V battery system 96V is a stand alone system | ||||||||||||||||
MPPT efficiency | ＞99.5% | ||||||||||||||||
Conversion efficiency | ＞98% | ||||||||||||||||
Size(mm) | 240*170*97mm 2.3kg | 340*208*95mm 3.6kg | |||||||||||||||

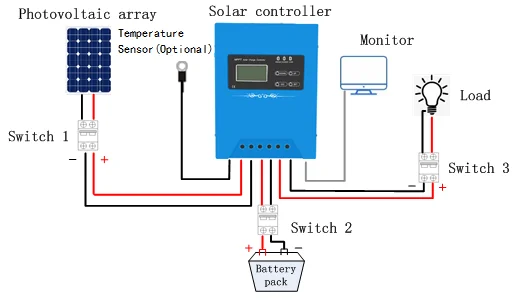

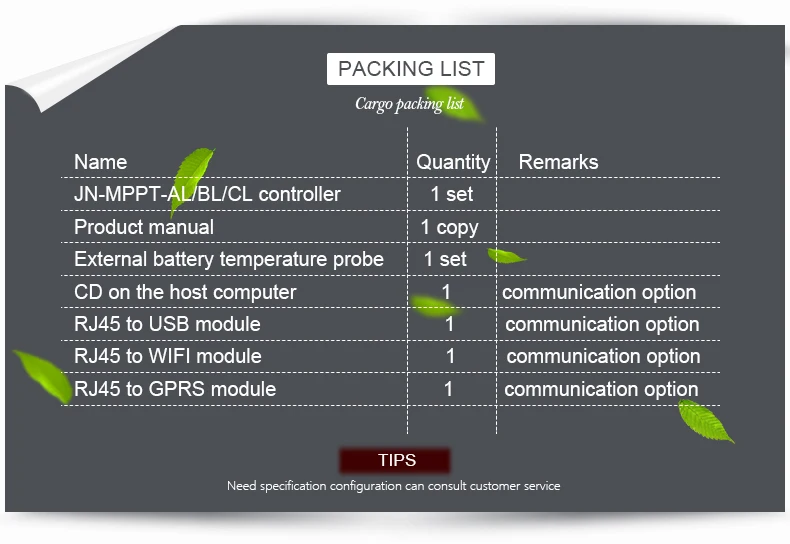

PRODUCT CONFIGURATION
