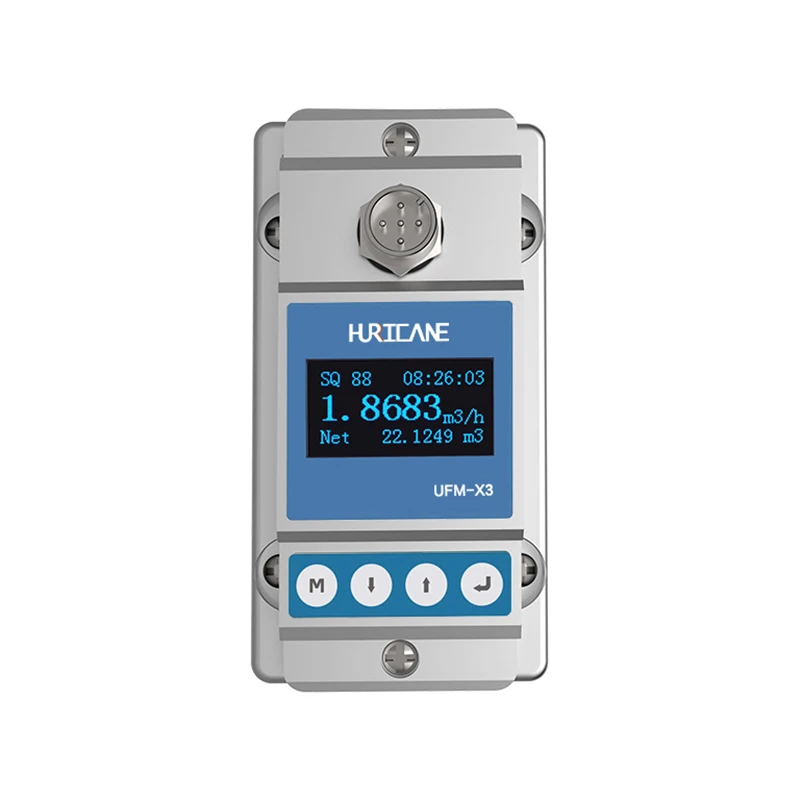

Зажим на ультразвуковой расходомер OCT импульсный выход 1 дюйм
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shenzhen,Hurricane,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

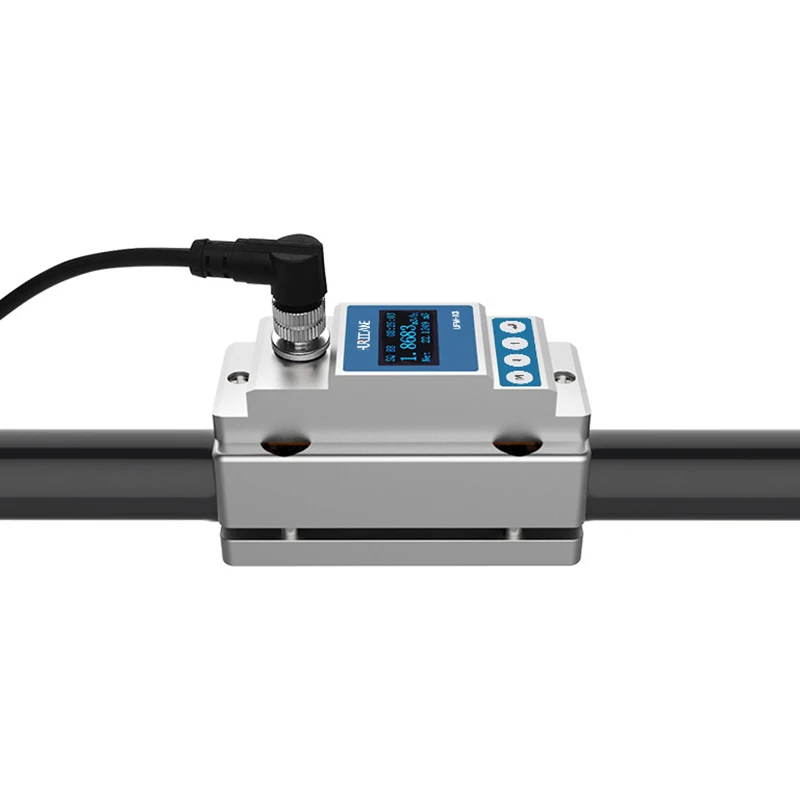

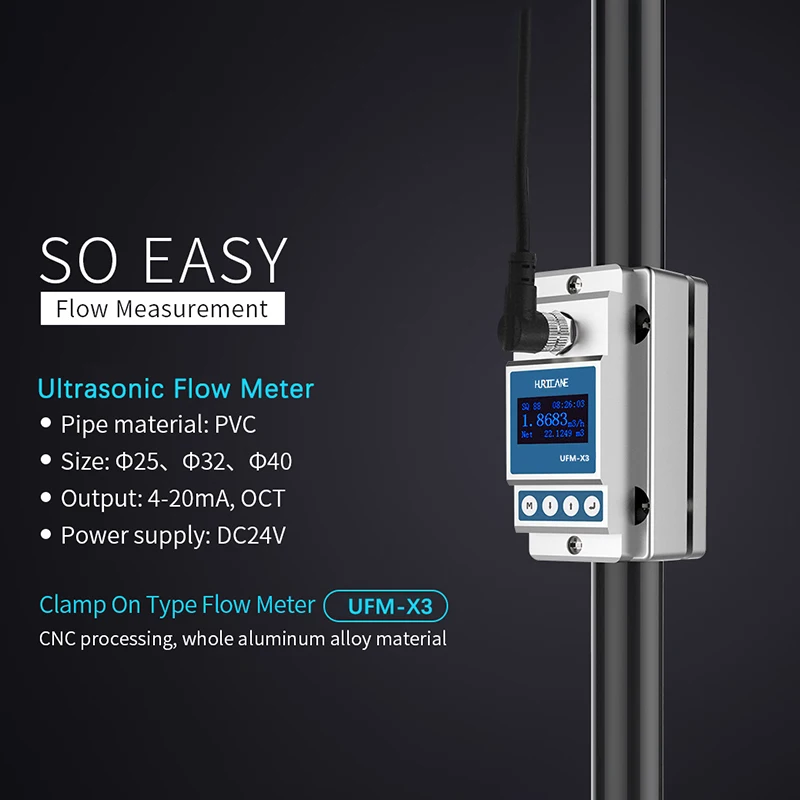

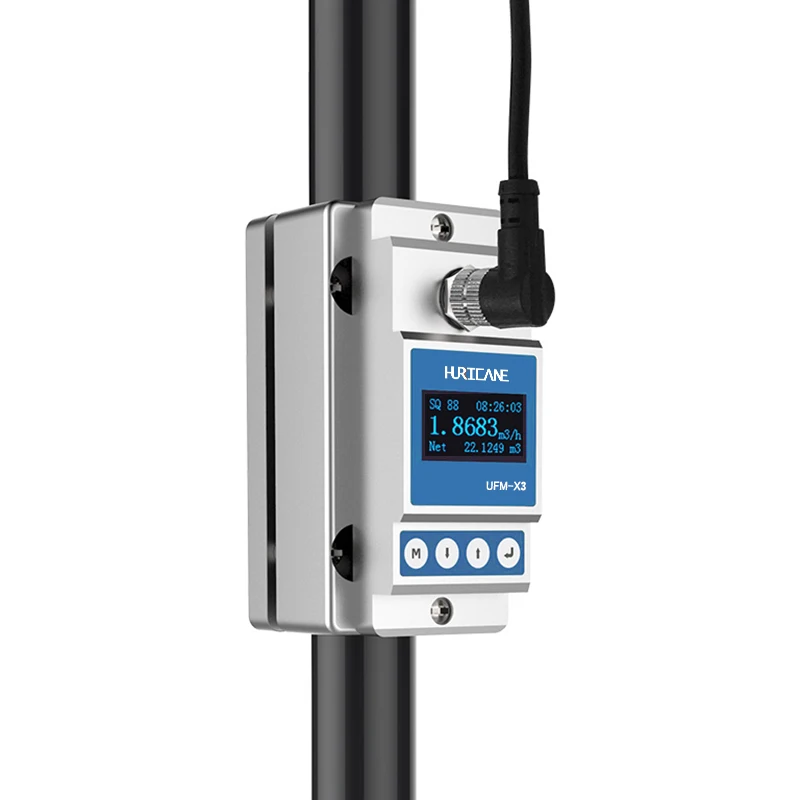

The UFM-X3 is an ultrasonic flow meter that is easy to install on PVC pipes to measure pure water.
Model | UFM-X3 |
Flow range | 0.1 m/s ~ 5.0 m/s |
Accuracy | ± 2% |
Repeatability | 0.8% |
Pipe size | Φ25(DN20), Φ32(DN25), Φ40(DN32) |
Analog output | 4-20mA,Maximum load:600Ω |
Data storage | Daily,monthly,and Annual.Flow Totalizer |
Alarm output | OCT,Upper and lower limit alarm function(optional) |
Communication | RS485 |
Power supply | 24VDC |
Cable length | 1.2m |
Keypad | Four light touch buttons |
Screen | OLED 128*64 display screen |
Units | Metric and imperial untis are available,Cubic Meters(m3),Liters(L),USA Gallons(GAL)/hour/min,Default unit setting:m3/h |
Totalizer | Six bit digit |
Piper materrial | Carbon Steel,Stainless Steel,PVC |
Case material | Aluminum alloy |
Environment temp | 0℃-50℃ |
Medium temp | 0℃-50℃ |
Environment humidity | 0-95% relative humidity,without condensation |
IP Grade | IP54 |
Weight | 1.5kg |

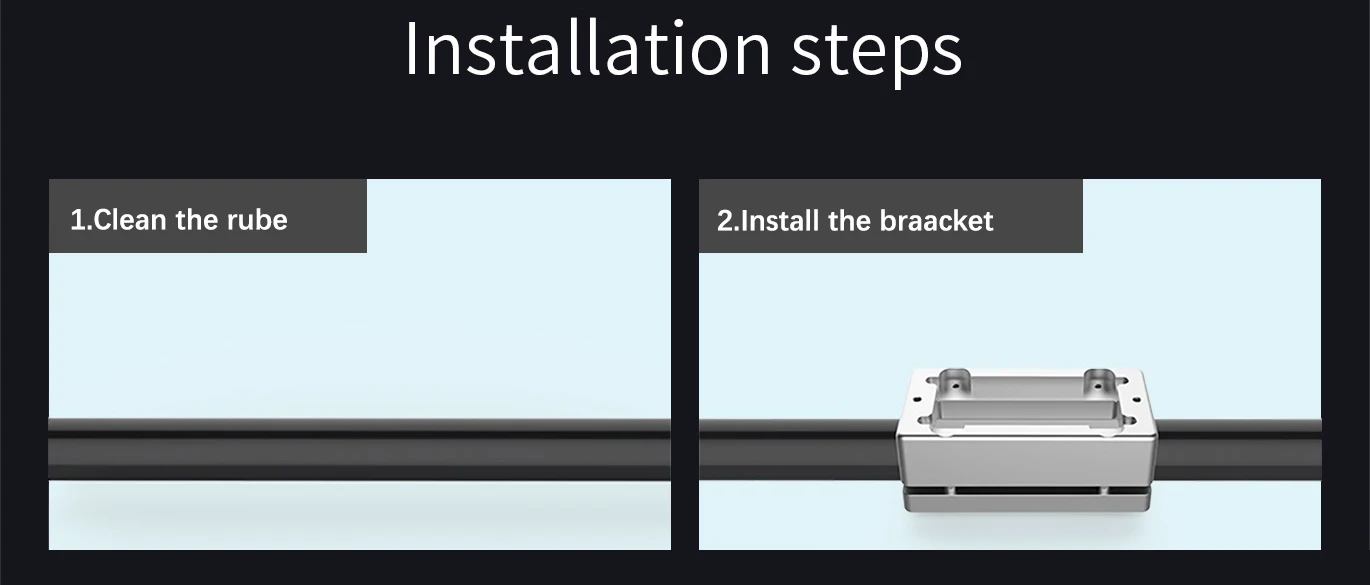

1.Make sure no dirt,paint or other stains on the surface of the tube.

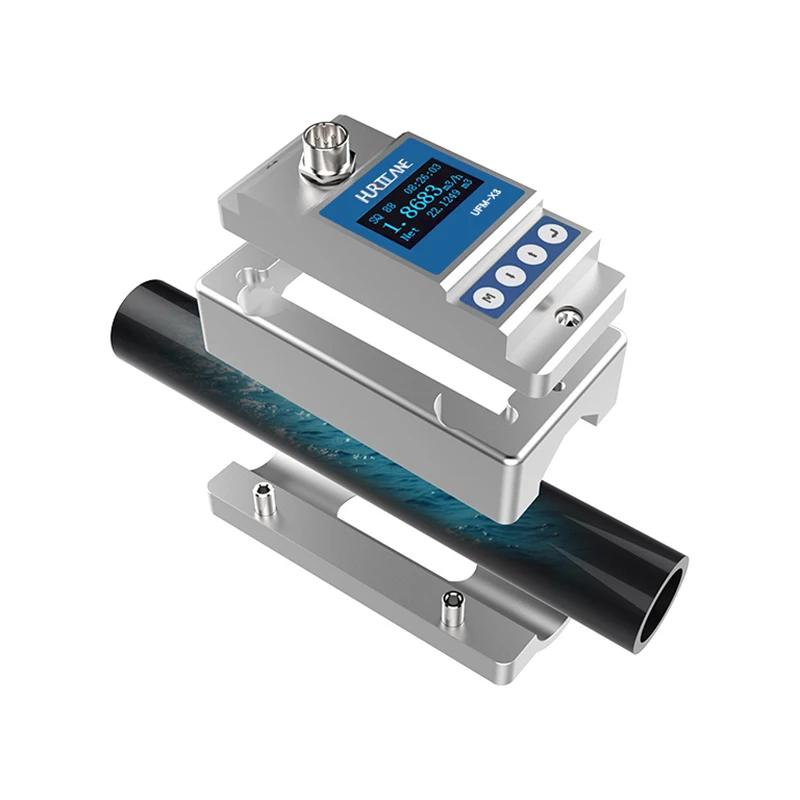

2.Align flow meter to the pipe position,lnstall screw on top part of the bracket,the bottom part of the bracket will automatically connect with the top part.Tighten the four M4 screws.

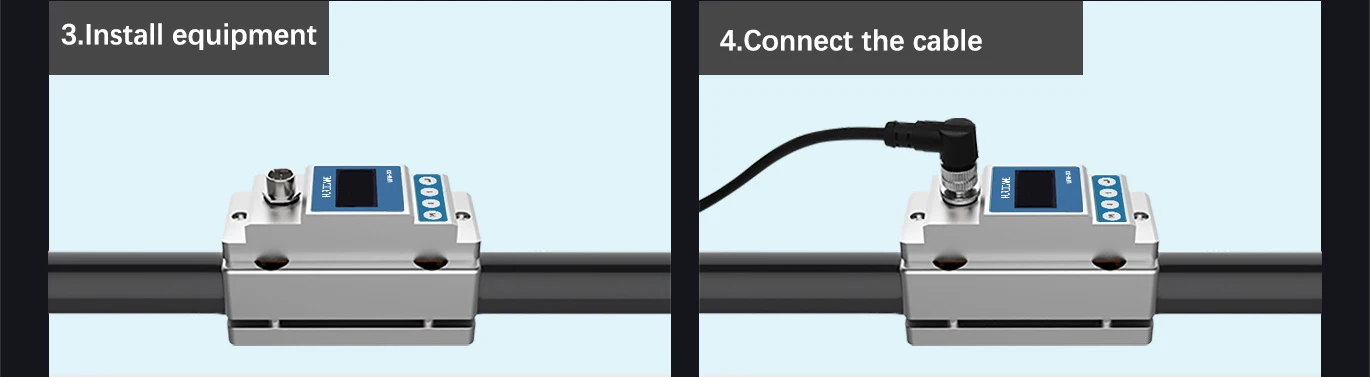

3.Take the cover off the sensor,put the flow meter into upper bracket,and tighten two M4 screws.
4.Take out the cable,connect it to the socket,and tighten up.

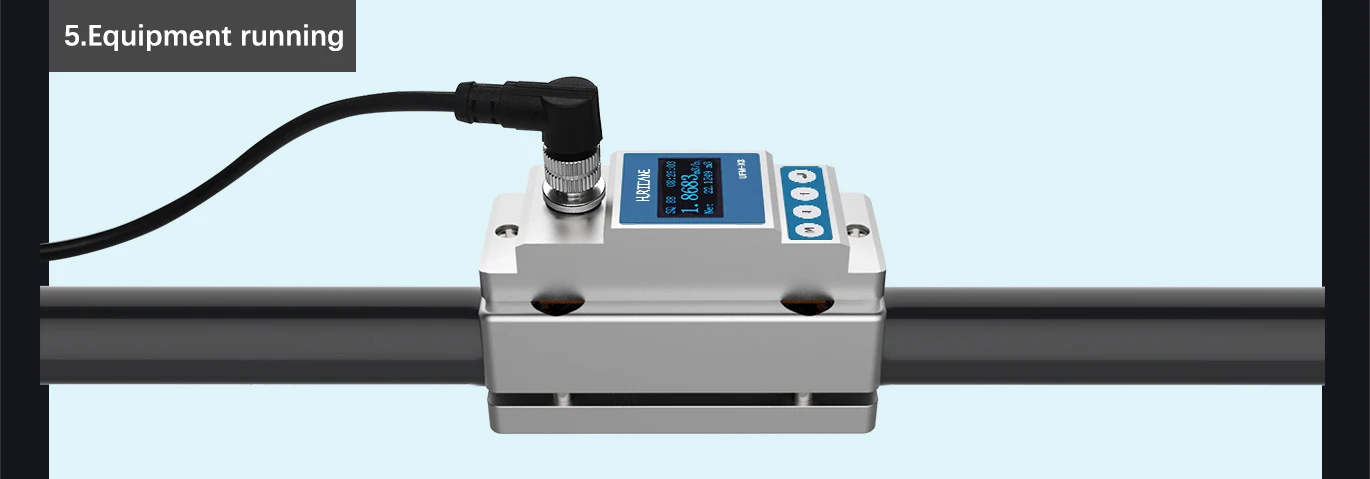

5.Please refer to the manual for cable connection.Power on and see if the SQ≥50 which indicates that the measurement has been stable.
