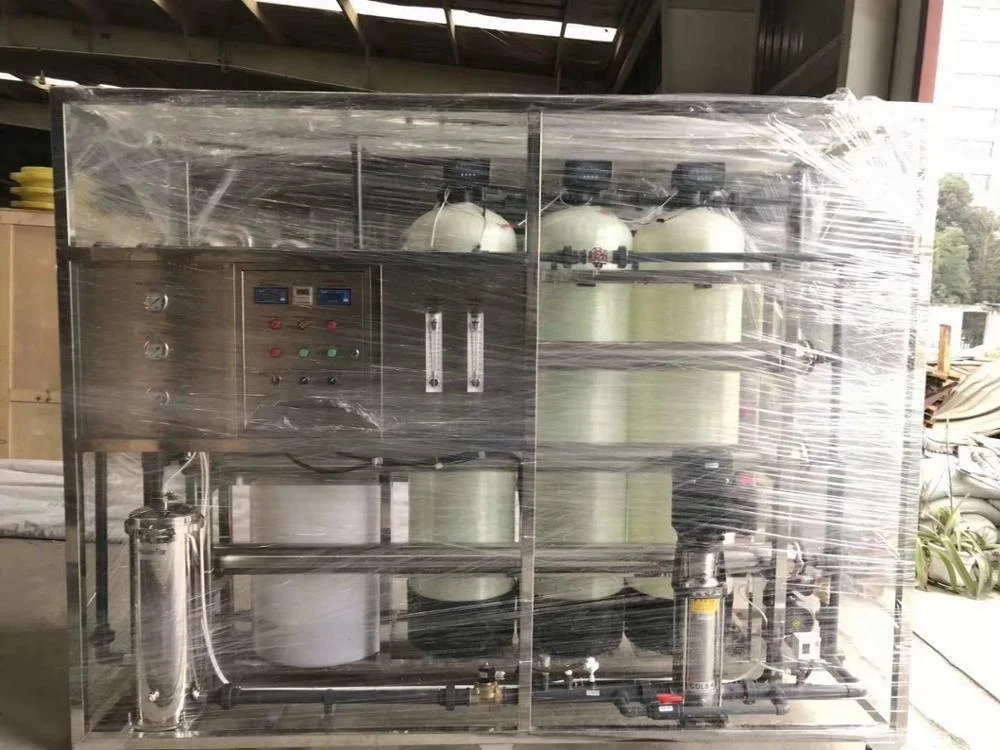

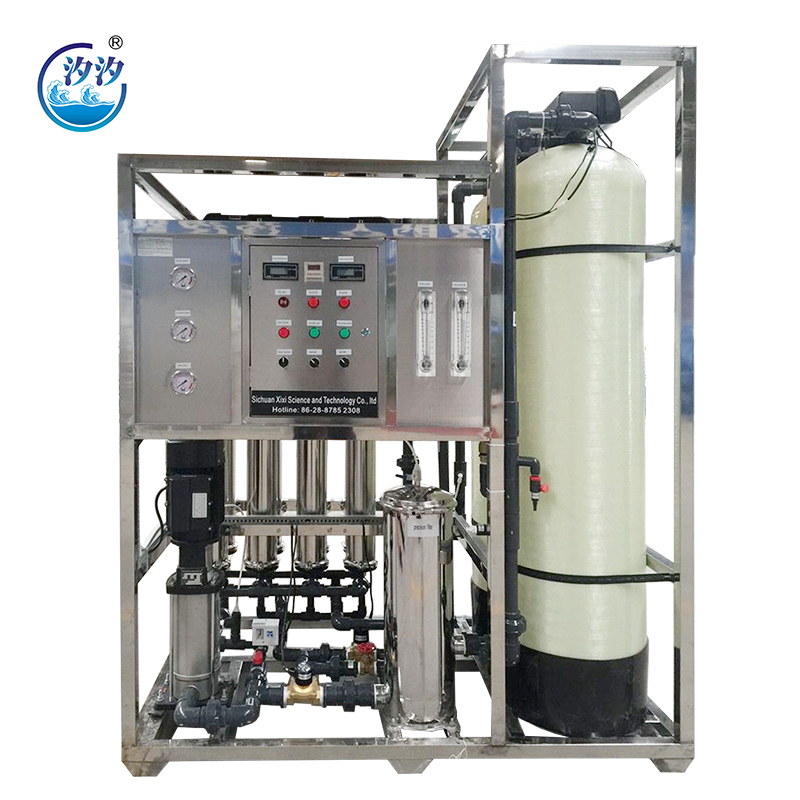

OEM ODM 2000LPH RO оборудование для очистки сточных
- Категория товара: Оборудование для очистки воды >>>
- Поставщик (Оптовый магазин): Sichuan,Xixi,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

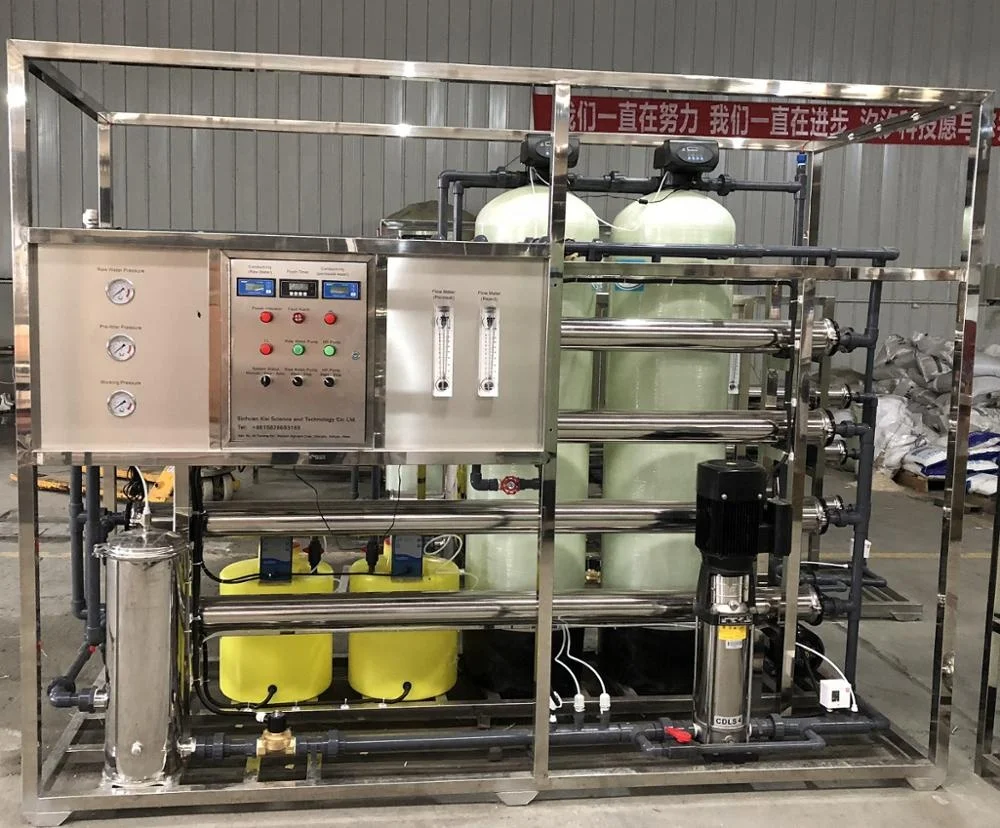

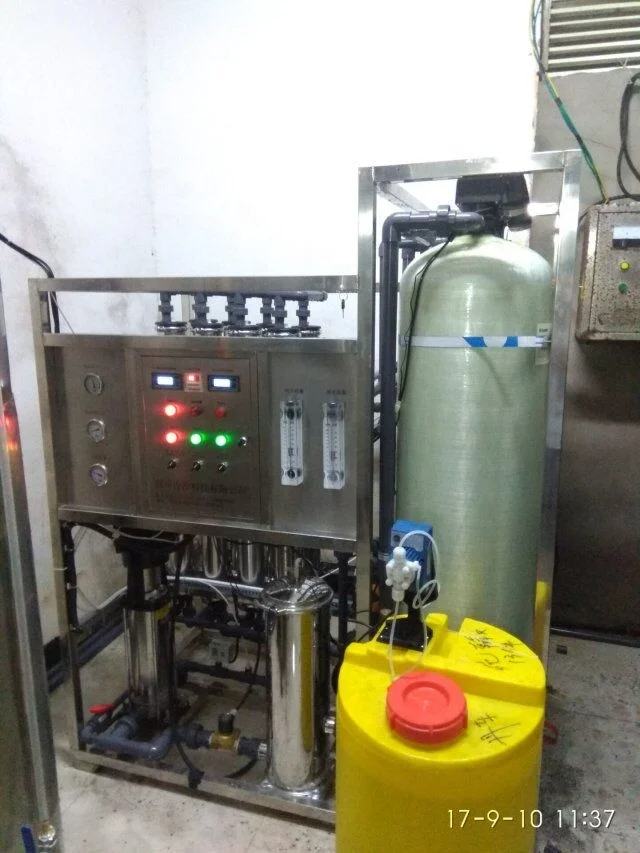

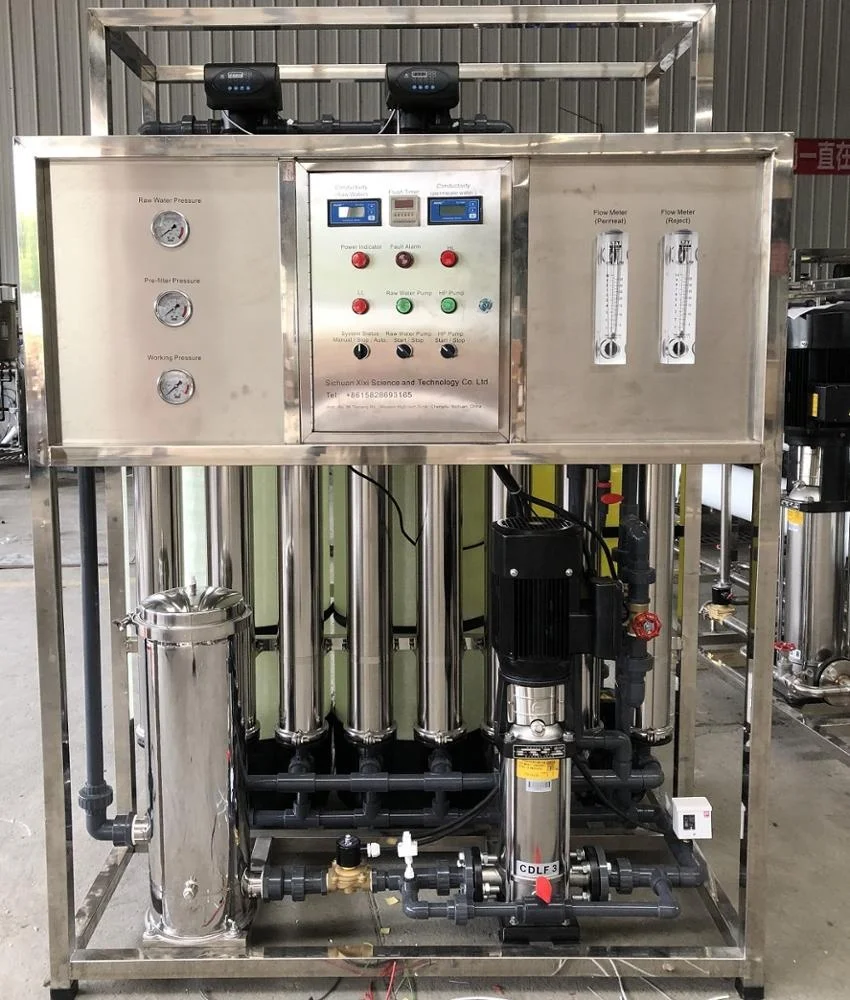

RO (Reverse Osmosis) Water Treatment Plant :
Capacity ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h).
Reverse osmosis (RO) technology known as hyper filtration, is widely used in Cosmetic, Pharmaceutical, chemical industries, food,
drinking water.
RO equipment is the most advance and energy saving in water treatment industry.
Our company SCxixi can supply all kinds of OR water purification appliance.
Capacity ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h).
Reverse osmosis (RO) technology known as hyper filtration, is widely used in Cosmetic, Pharmaceutical, chemical industries, food,
drinking water.
RO equipment is the most advance and energy saving in water treatment industry.
Our company SCxixi can supply all kinds of OR water purification appliance.
Flow rate | 2000L/H |
Type | Reverse Osmosis |
RO membrane | Ultra low pressure 4040 x 8pcs |
Inlet water TDS | <1000ppm |
Recovery rate | 35-75% adjustable |
Motos power | 2.95KW |
The main system : RO membrane unit

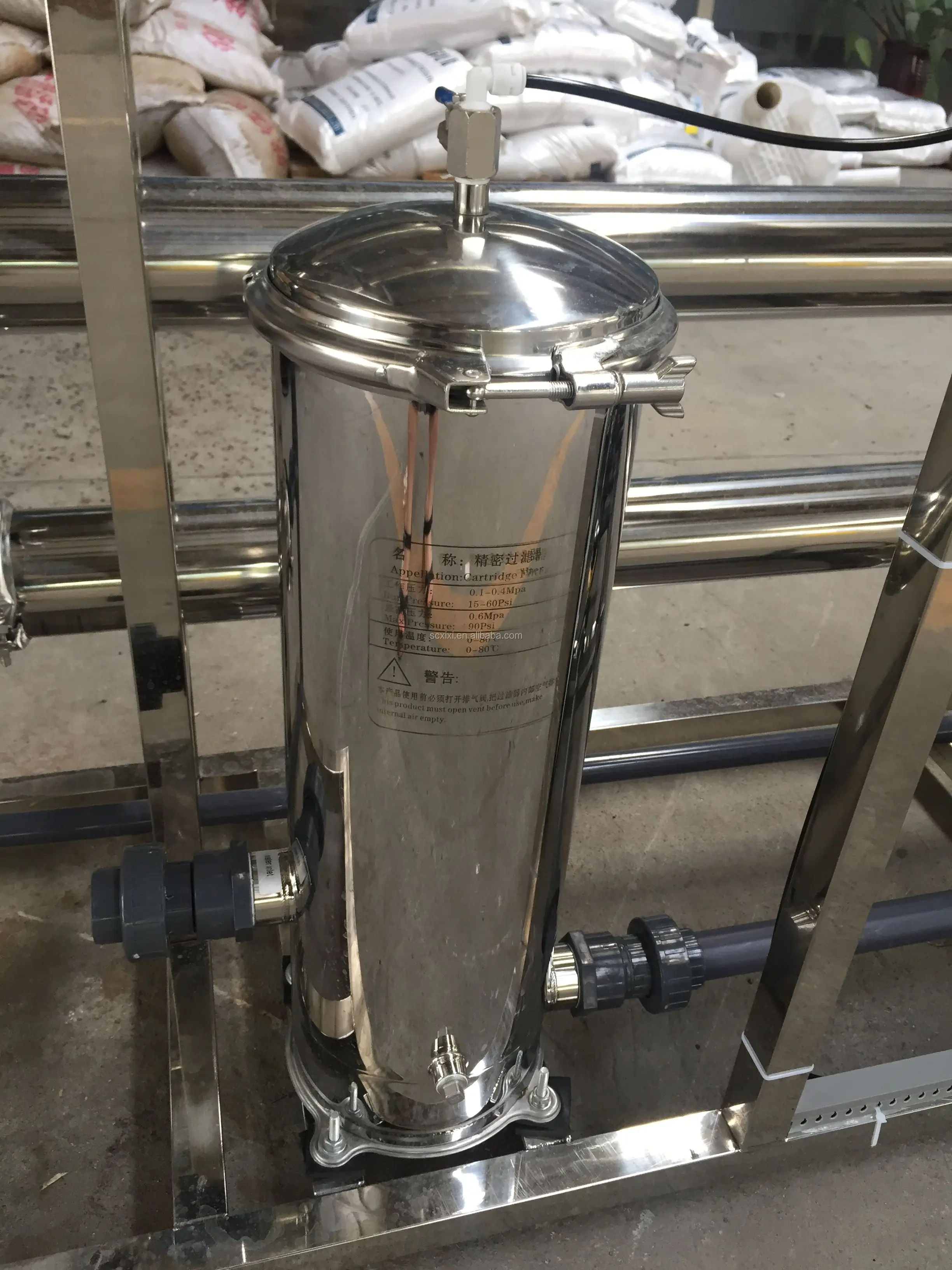

1 Security filter (5μm)
1 High Pressure pump
8 RO membranes 4040 model (0.0001μm)

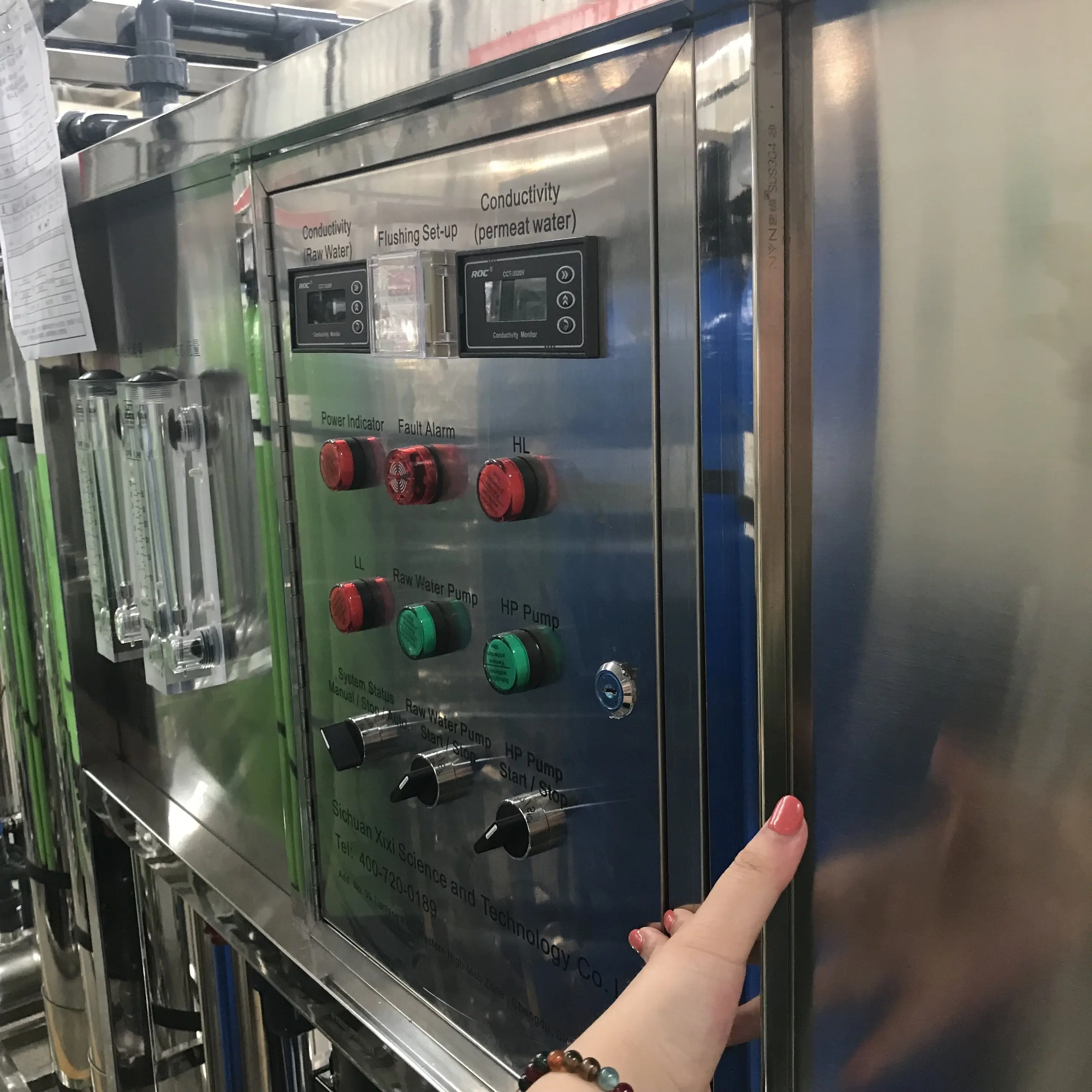

1 Relay Electrical control system
SS304 machine rack
UPVC pipes (can make SS 304 / 306 pipes according to customer's request and raw water quality )
1 High Pressure pump
8 RO membranes 4040 model (0.0001μm)
1 Relay Electrical control system
SS304 machine rack
UPVC pipes (can make SS 304 / 306 pipes according to customer's request and raw water quality )

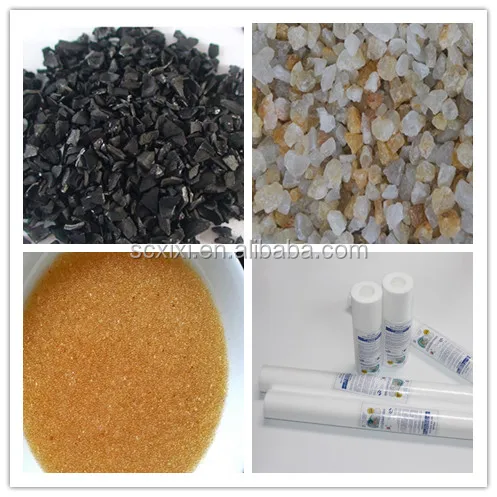

Pre-treatment Filter Media
Mechanical Filter
1) For Sand Filter (Quartz / Manganese / Zeolite sand):
It is mainly used to remove substances containing particles such as sediment, rust, colloidal substances, and suspended solids in the raw water that are more than 20μm, and the system can
perform a series of operations such as back flushing and positive flushing.
The main function: to ensure the production of water equipment, extend the life of the equipment.
perform a series of operations such as back flushing and positive flushing.
The main function: to ensure the production of water equipment, extend the life of the equipment.
2)For Carbon filter : Coconut shell activated carbon
Main function: adsorption
removal of pigments, odors, large amounts of biochemical
organics in the water, reduce the residual brine content of the water and pesticide contaminants and remove THM
and other contaminants.
organics in the water, reduce the residual brine content of the water and pesticide contaminants and remove THM
and other contaminants.

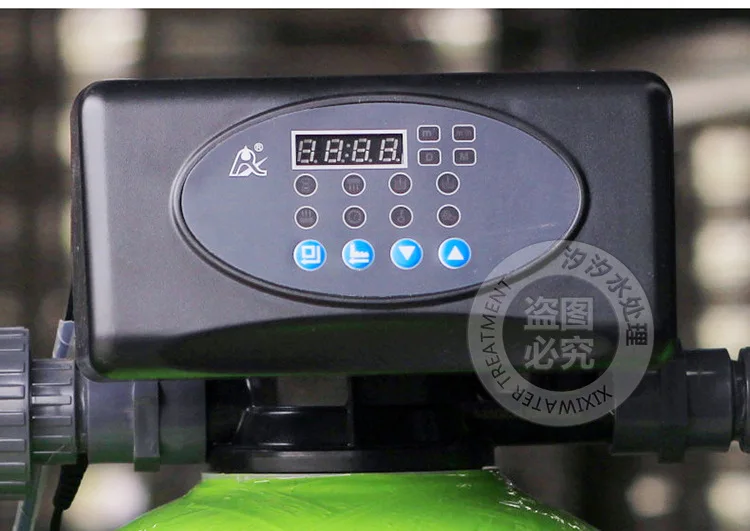

3) Water softener
prevent the concentration of CaCO3, MgCO3, MgSO4, CaSO4, BaSO4, and SISO4 at the concentrated
water end, especially on the concentrated water side of the last membrane module of the RO device, to exceed the
equilibrium solubility constant and crystallize. Before
entering the reverse osmosis membrane module, the system uses scale inhibitors to effectively prevent fouling
from occurring in a wide range of fouling substances and to remove major hardness components from the water.
water end, especially on the concentrated water side of the last membrane module of the RO device, to exceed the
equilibrium solubility constant and crystallize. Before
entering the reverse osmosis membrane module, the system uses scale inhibitors to effectively prevent fouling
from occurring in a wide range of fouling substances and to remove major hardness components from the water.

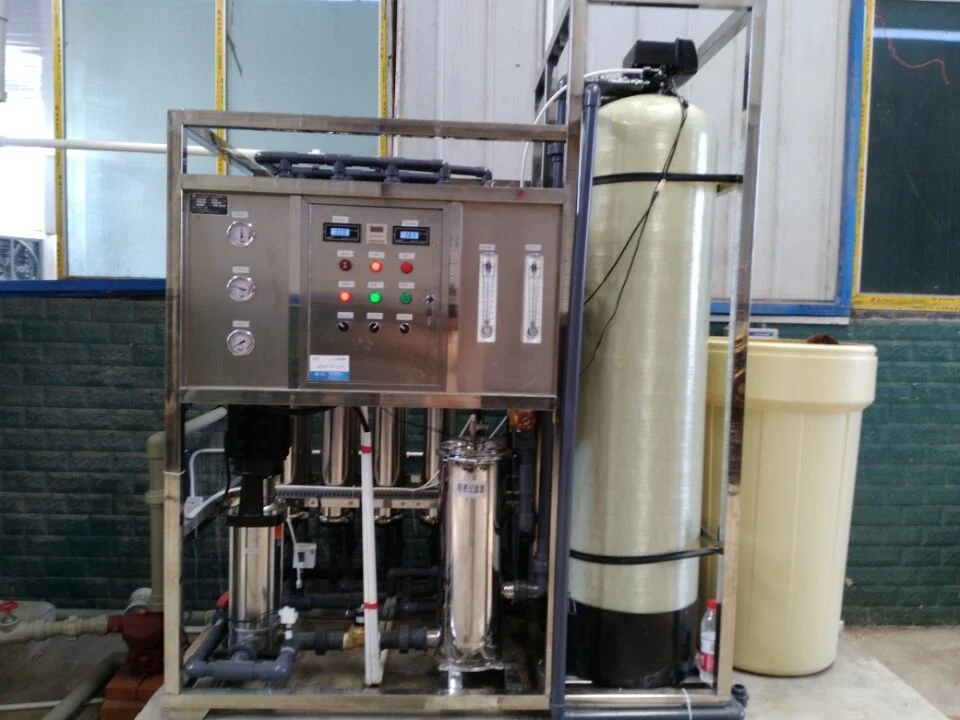

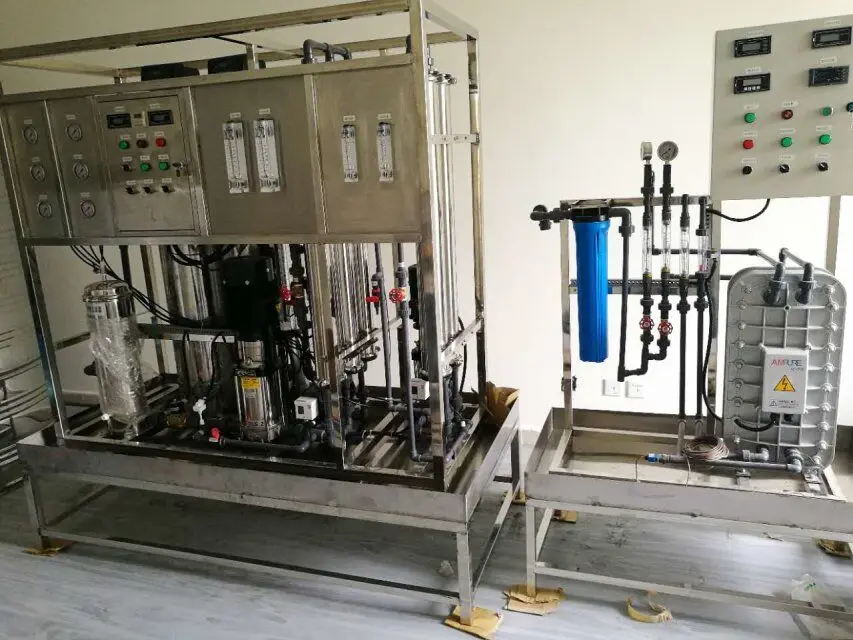

Detailed Images

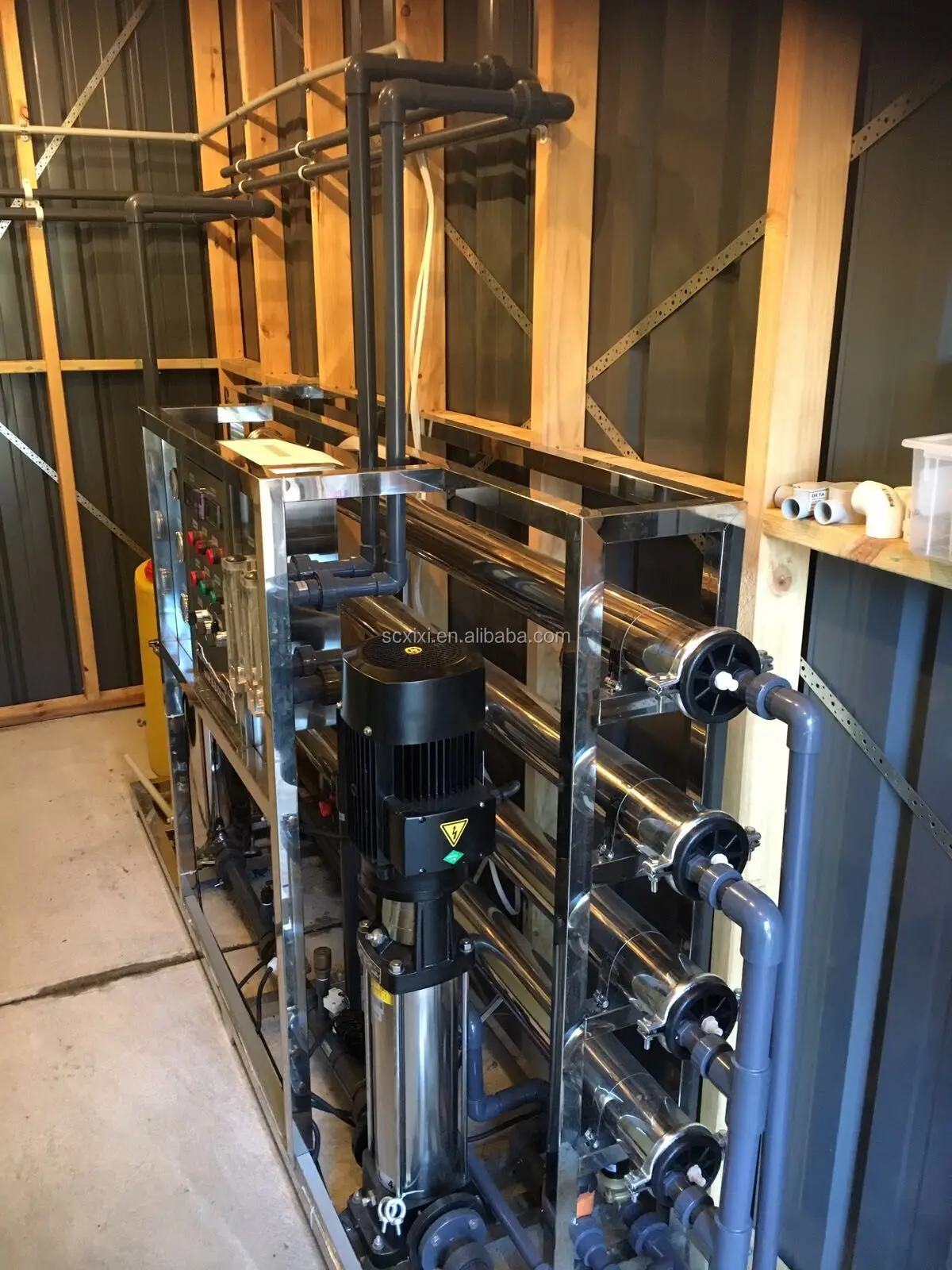

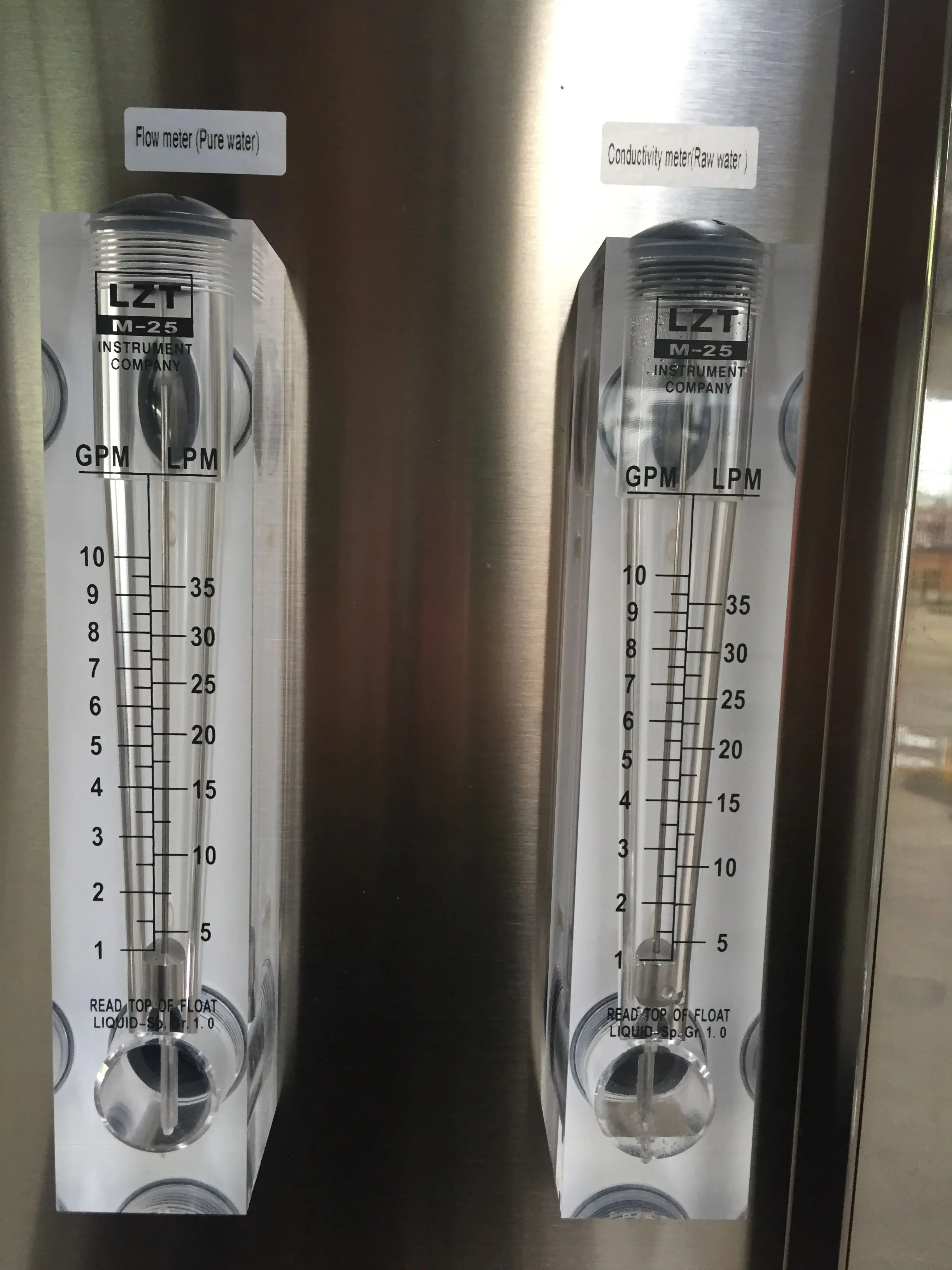

some parts of the machine
Related Products

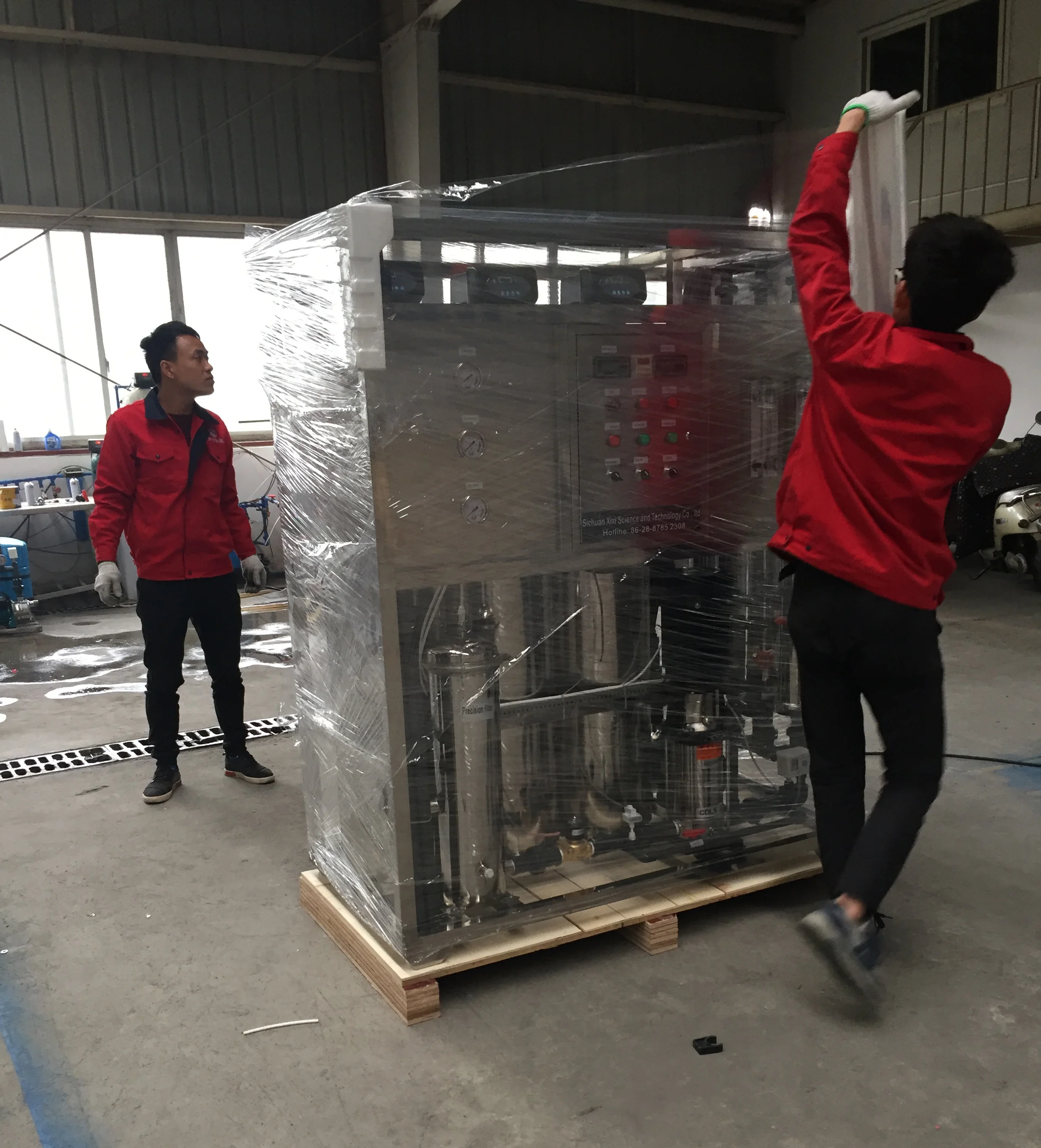

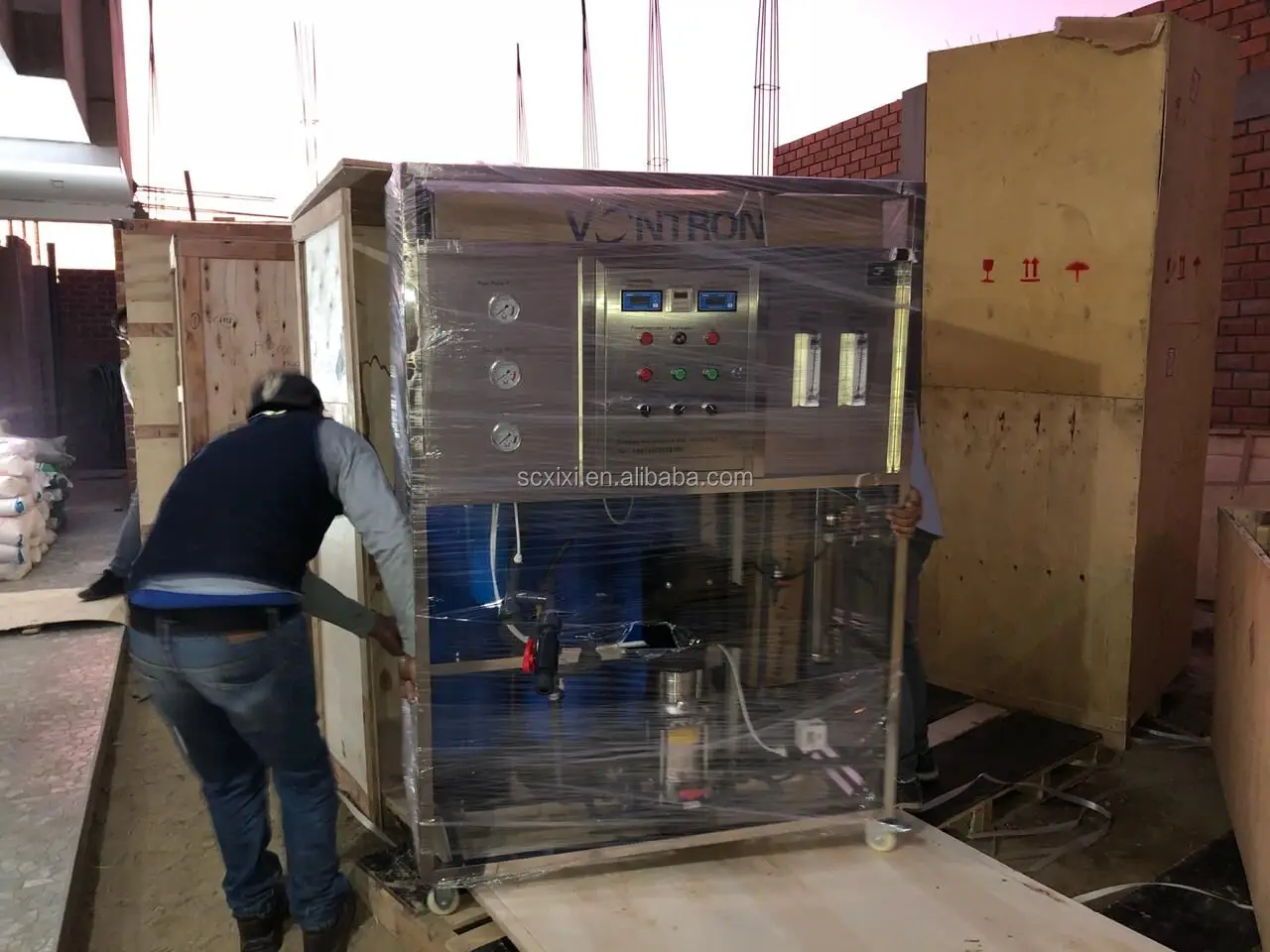

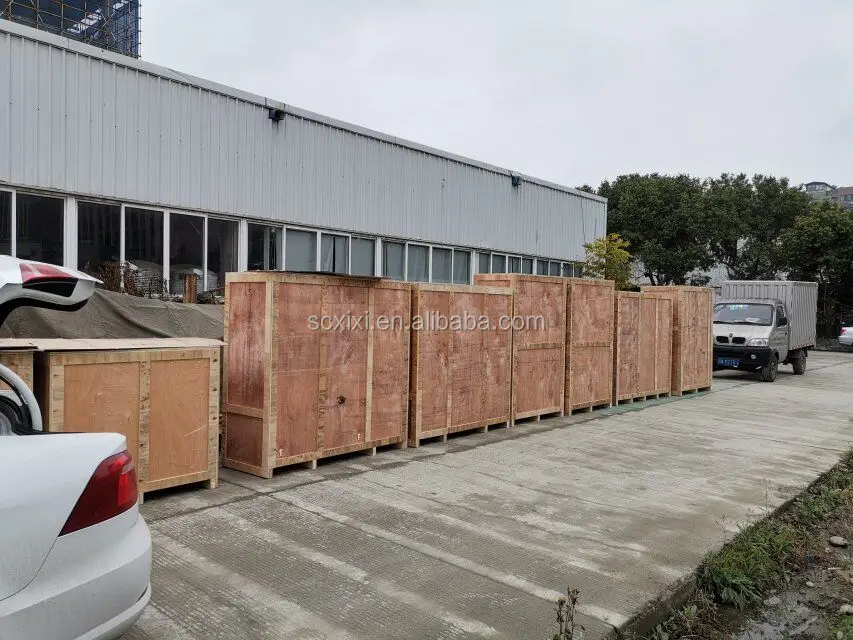

Packing&Shipping
After Sales Service
24 hours online
Considerable after-sale service :Detailed installation guide
In case any issue caused at customer's end during operation, both our sales and
engineers will help ASAP within 72 hours by email , call or communication by video.
XiXi provide 1 year gurantee for the whole machine excluding consumables.
engineers will help ASAP within 72 hours by email , call or communication by video.
XiXi provide 1 year gurantee for the whole machine excluding consumables.
Company Introduction
Main items are involved in:
1) Industrial Reverse Osmosis (RO) plants
2) Ultra-filtration (UF) filter
3) Water softener
4) Multimedia Water Filter System
5) Car wash water recycling system
6) Related water treatment spare parts and consumables.
7) Water bottling line
Welcome to visit our factory !.
1) Industrial Reverse Osmosis (RO) plants
2) Ultra-filtration (UF) filter
3) Water softener
4) Multimedia Water Filter System
5) Car wash water recycling system
6) Related water treatment spare parts and consumables.
7) Water bottling line
Welcome to visit our factory !.
Customer Visiting
FAQ
Q1. Are you a trading company or factory ?
A1. Yes we are factory.
Q2. What is your advantage ?
A2. Factory direct sale, competitive price , free consultation for water treatment, 5 patents in car wash water recycling system.
Alibaba verified Trade Assurance gold supplier. Protect your order , payment and delivery in time.
Not Only Make Common Product For Filtration, We Also Design And Continous To Innovate New Products.
Our new design is very popular and satisfied by our client from South Africa, Peru, Chile, UK, Canada etc.
We can show our live cases in your country once request.
Q3. Do you have quality certification ?
A3. Yes CE, ISO9..1:2015 certificated. and we also achieved approval document from China government for safe and sanitary products
related to DRINKING WATER. The most authoritative certification in China.
Q4. Can i put our own company logo on your machine ?
A4. Yes no problem , we can use your logo.
Q5. How long can i receive the machine ?
A5. Power supply 220V/50Hz/single phase or 380V/50Hz/three phase (same supply as China ), lead time is around 1-2 weeks according
to machine scale and qty (If use different power supply with 60Hz frequency, the 60Hz pumps customization will take around 30-40
days. ).
Shipping : takes around 30-60 days by sea depends on your destination port.
Q6. Installation
A6. Our machine comes with USER MANUAL (insltation and operation , wiring diagram) in English. We can fill and flush/wash the
pre-filter media in advance before shipment , Customer just need to connect IN/OUT/Drain pipes and electricity ! Do system
commissing as per our user manual , in case any problem during your operation and commissioning, pls contact us timely , we will
arrange for technical support within 24 hours. Both your sales consultation and engineer will take part in service for you as a
team.
Note : We can also provide site installtion & commisionning once request for large system.
Q7. How often should i replace the consumables ?
A7. - Quartz/Manganese sand : 2-3 years
- Activated Carbon : 2-3 years
- Ion exchange resin: 2-3 years
- Plypropylene(PP) melt blown filter cartridges : 3-6 months
- RO membranes: 1-2 years
Replacing cycle varies according to your feed water quality , water consumption per day and maintenance.
Q8. Where should i buy the consumables ?
A8. We provide at low price for our customer. Of course customer can buy locally.
Q9. Warranty:
A9. 12 months machine guarantee (excluding consumables , man-made breackage and wrong operation)
A1. Yes we are factory.
Q2. What is your advantage ?
A2. Factory direct sale, competitive price , free consultation for water treatment, 5 patents in car wash water recycling system.
Alibaba verified Trade Assurance gold supplier. Protect your order , payment and delivery in time.
Not Only Make Common Product For Filtration, We Also Design And Continous To Innovate New Products.
Our new design is very popular and satisfied by our client from South Africa, Peru, Chile, UK, Canada etc.
We can show our live cases in your country once request.
Q3. Do you have quality certification ?
A3. Yes CE, ISO9..1:2015 certificated. and we also achieved approval document from China government for safe and sanitary products
related to DRINKING WATER. The most authoritative certification in China.
Q4. Can i put our own company logo on your machine ?
A4. Yes no problem , we can use your logo.
Q5. How long can i receive the machine ?
A5. Power supply 220V/50Hz/single phase or 380V/50Hz/three phase (same supply as China ), lead time is around 1-2 weeks according
to machine scale and qty (If use different power supply with 60Hz frequency, the 60Hz pumps customization will take around 30-40
days. ).
Shipping : takes around 30-60 days by sea depends on your destination port.
Q6. Installation
A6. Our machine comes with USER MANUAL (insltation and operation , wiring diagram) in English. We can fill and flush/wash the
pre-filter media in advance before shipment , Customer just need to connect IN/OUT/Drain pipes and electricity ! Do system
commissing as per our user manual , in case any problem during your operation and commissioning, pls contact us timely , we will
arrange for technical support within 24 hours. Both your sales consultation and engineer will take part in service for you as a
team.
Note : We can also provide site installtion & commisionning once request for large system.
Q7. How often should i replace the consumables ?
A7. - Quartz/Manganese sand : 2-3 years
- Activated Carbon : 2-3 years
- Ion exchange resin: 2-3 years
- Plypropylene(PP) melt blown filter cartridges : 3-6 months
- RO membranes: 1-2 years
Replacing cycle varies according to your feed water quality , water consumption per day and maintenance.
Q8. Where should i buy the consumables ?
A8. We provide at low price for our customer. Of course customer can buy locally.
Q9. Warranty:
A9. 12 months machine guarantee (excluding consumables , man-made breackage and wrong operation)
