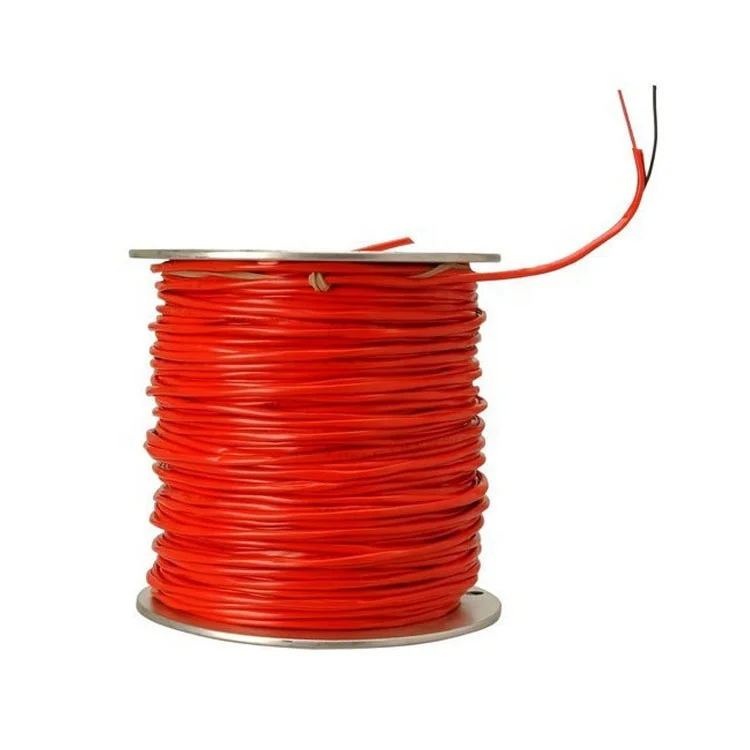

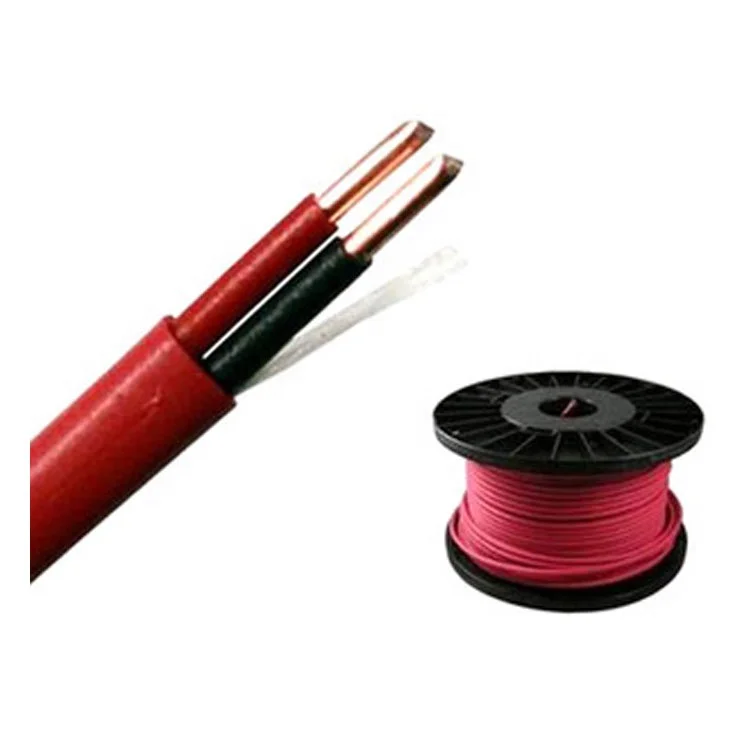

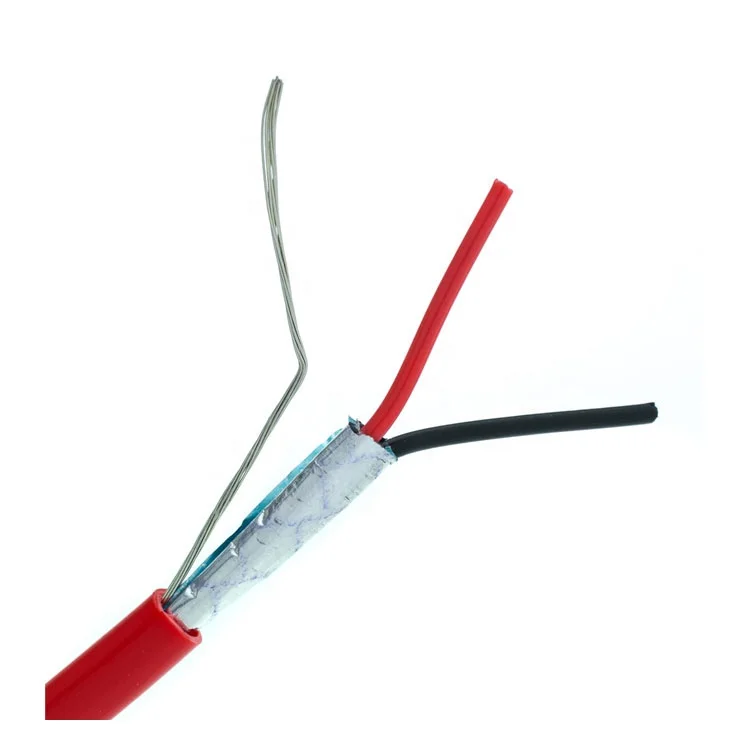

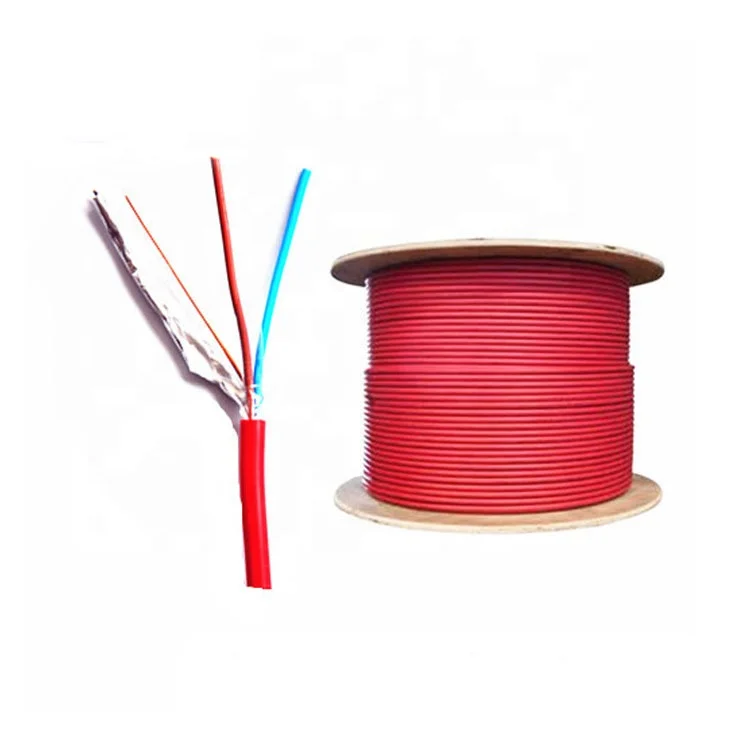

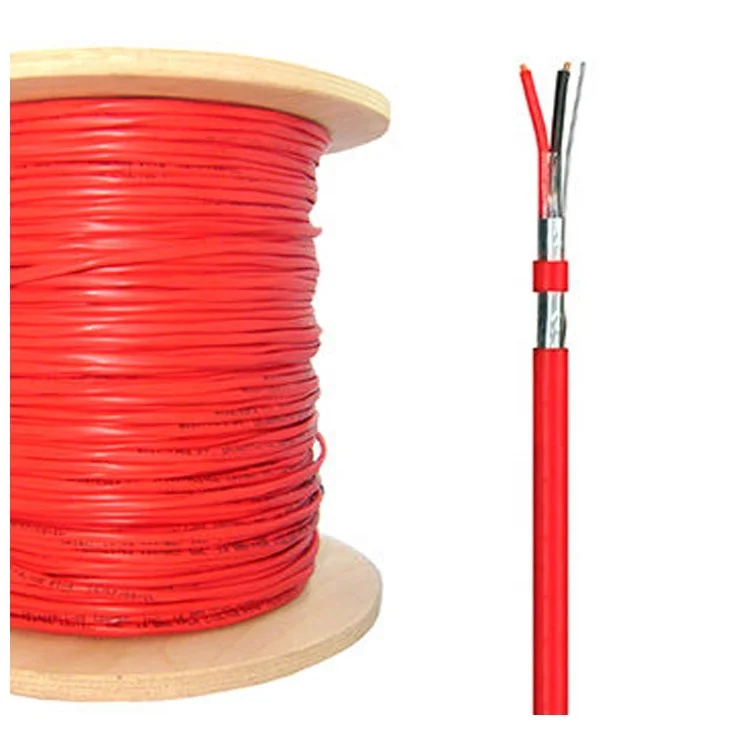

Кабель для сигнализации безопасности 18 awg 2c * 1, 5 мм2, кабель пожарной сигнализации
- Категория товара: Communication Cables >>>
- Поставщик (Оптовый магазин): Hangzhou,Right,Angle,Cable,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification | Product Description |
2Cx22AWG | 2CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mmPVC O.D:3.2mmPVC |
4Cx22AWG | 4CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mmPVC O.D:3.8mmPVC |
6Cx22AWG | 6CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mmPVC O.D:4.1mmPVC |
8Cx22AWG | 8CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mmPVC O.D:4.8mmPVC |
10Cx22AWG | 10CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mmPVC O.D:5.2mmPVC |
12Cx22AWG | 12CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mmPVC O.D:5.8mmPVC |
2Cx22AWG | 2CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mm PVC+AL+7/0.20mm drain wire O.D:3.5mm PVC |
4Cx22AWG | 4CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mm PVC+AL+7/0.20mm drain wire O.D:4.2mmPVC |
6Cx22AWG | 6CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mm PVC+AL+7/0.20mm drain wire O.D:4.5mmPVC |
8Cx22AWG | 8CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mm PVC+AL+7/0.20mm drain wire O.D:5.2mmPVC |
10Cx22AWG | 10CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mm PVC+AL+7/0.20mm drain wire O.D:5.4mmPVC |
12Cx22AWG | 12CX7/0.20mm BC/CCA/Tinned CCA I.D:1.1mm PVC+AL+7/0.20mm drain wire O.D:6.2mmPVC |
| Rating | 75℃ ; 300V | ||
| Conductor Resistance | Max 24.4ohm/km at 20℃ | ||
| Dielectric Strength | Min AC1.5KV | ||
| AC Leakage Current Through overall Jacket | AC 1500V <= 10mA | ||
| Insulation | Unaged | Tensile Strength | 13.8 Mpa |
| Elongation | 150% | ||
| Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) | |
| Elongation | 80%(100℃ 168h) | ||
| Jacket | Unaged | Tensile Strength | 13.8 Mpa |
| Elongation | 150% | ||
| Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) | |
| Elongation | 80%(100℃ 168h) | ||
