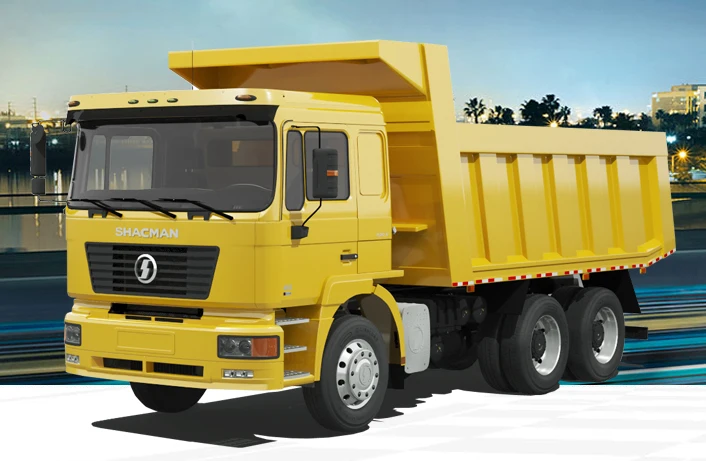

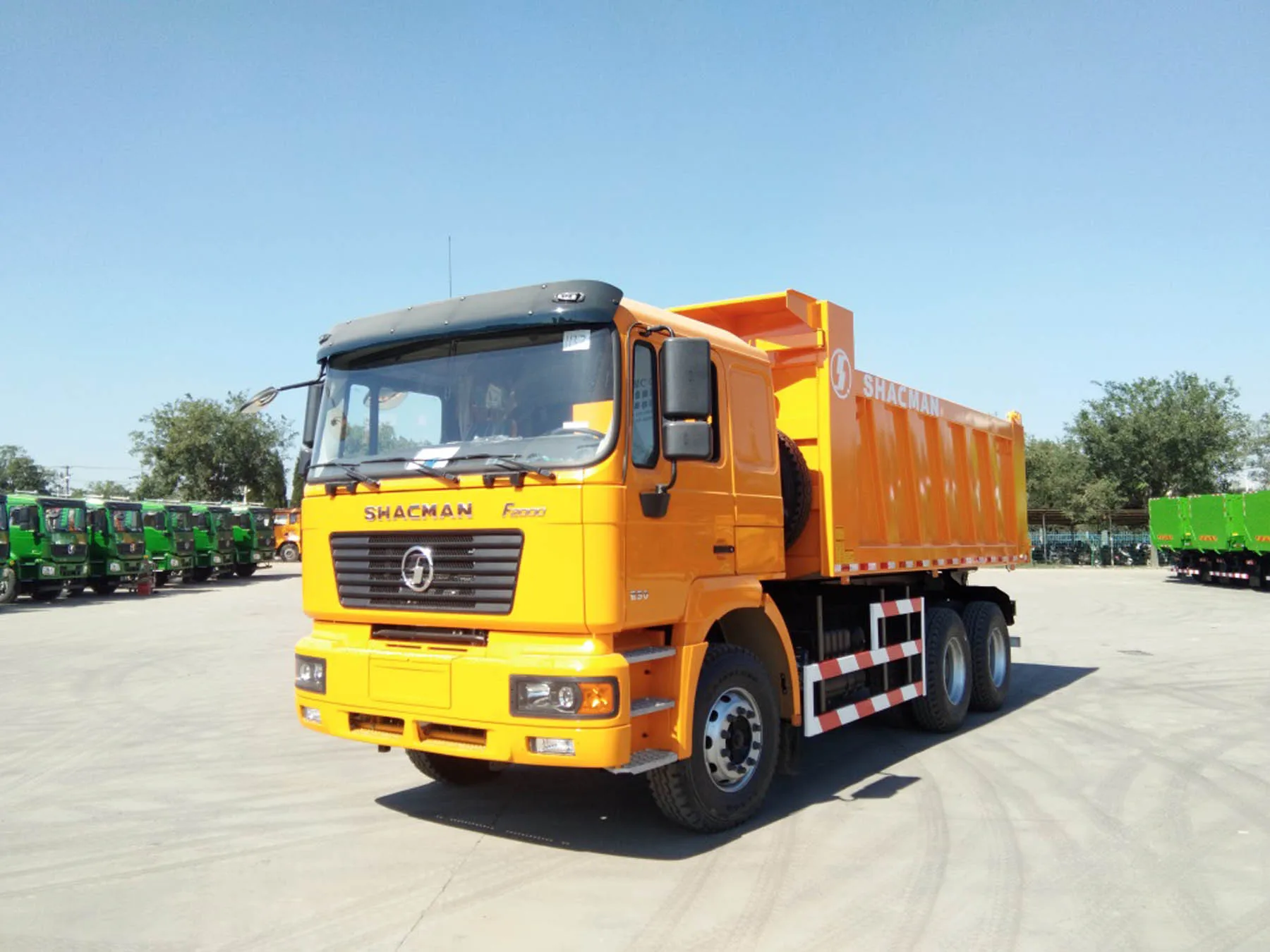

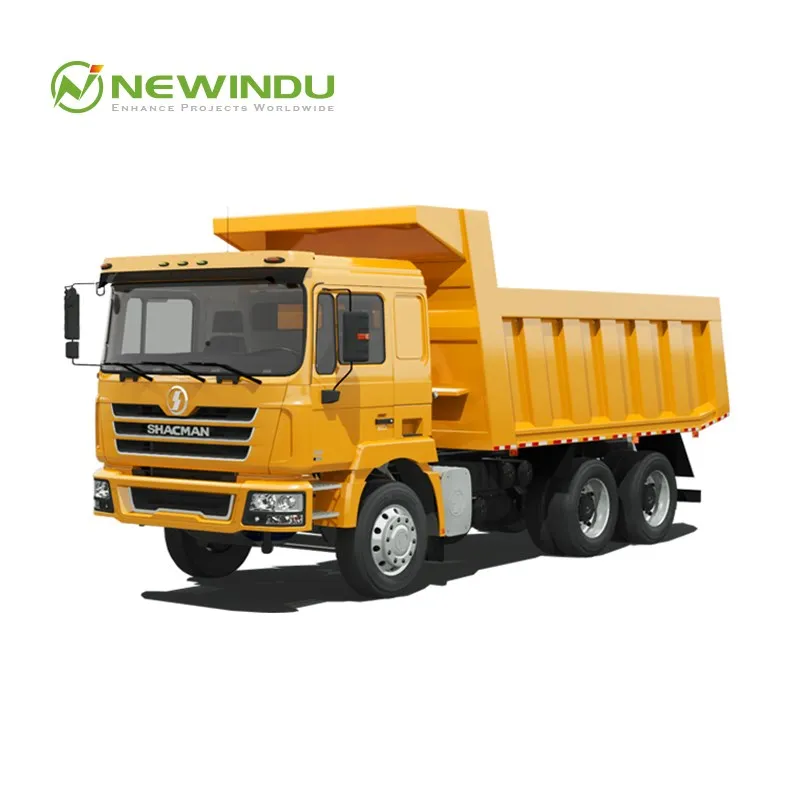

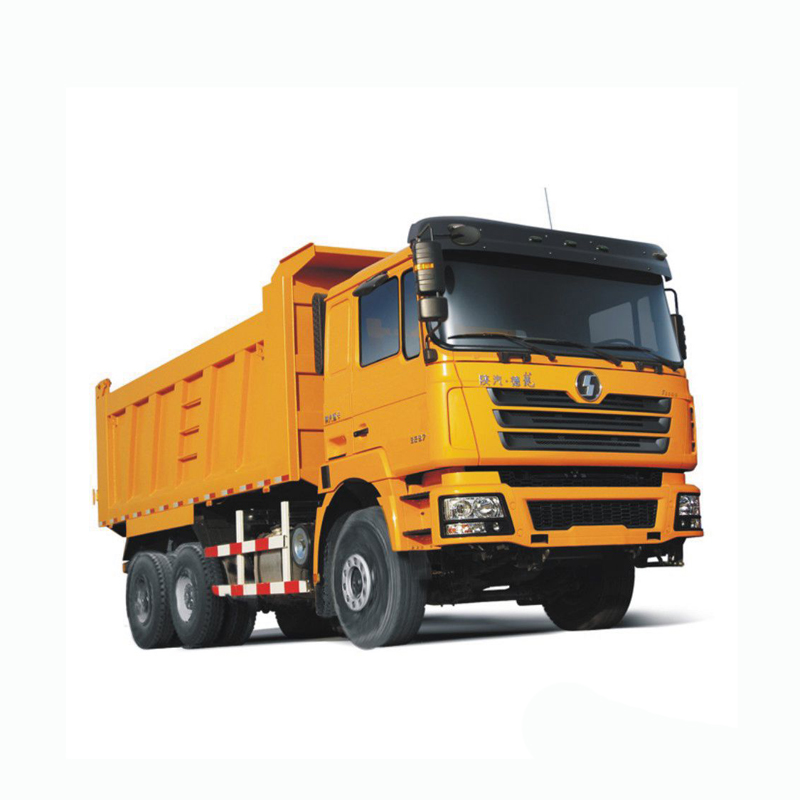

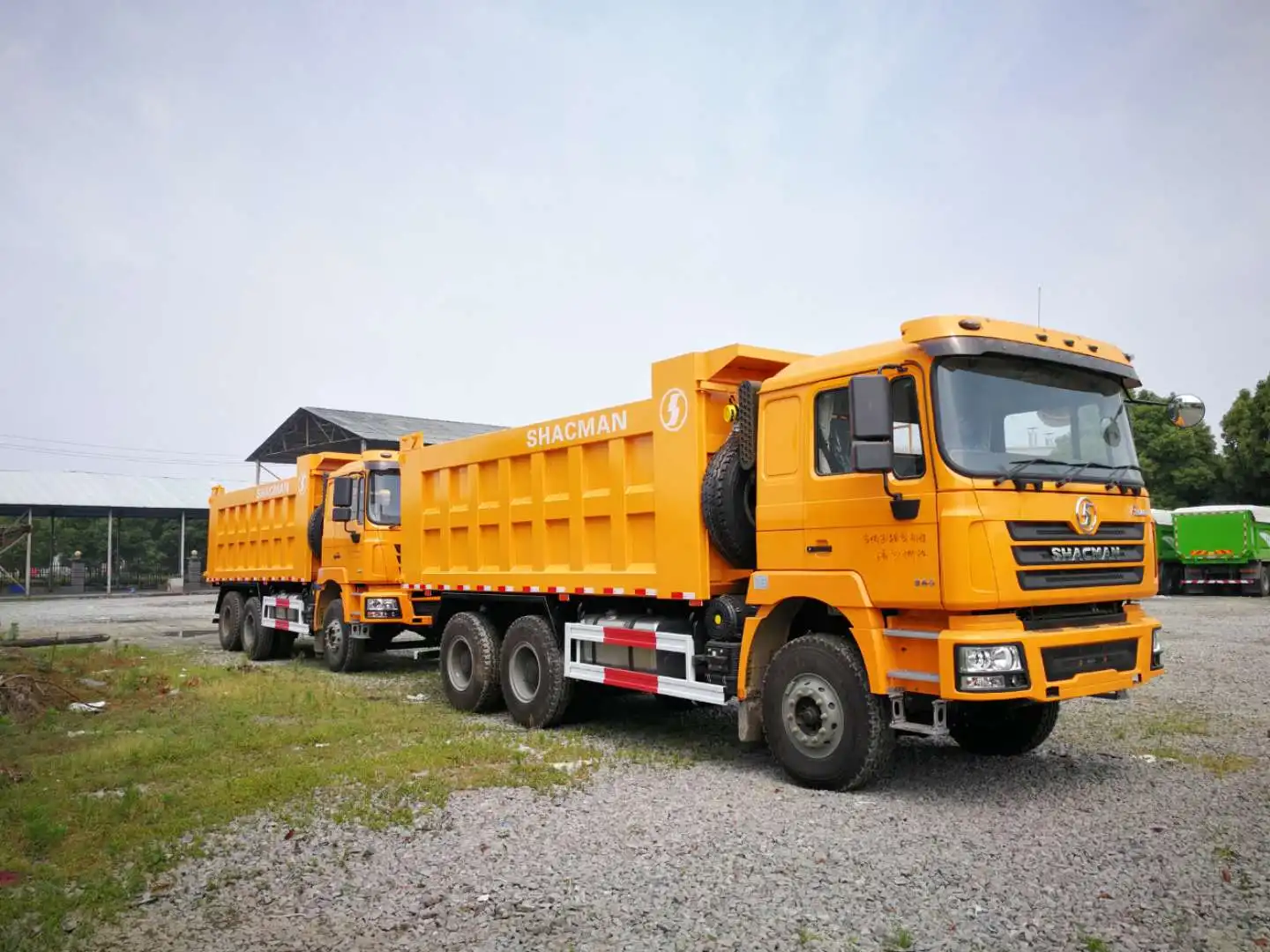

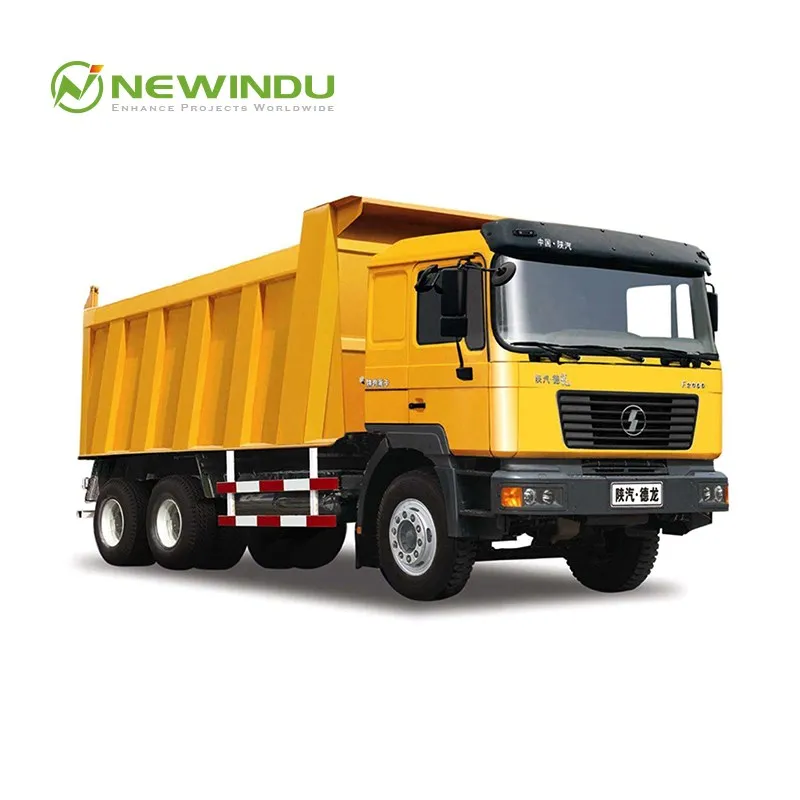

Shacman Dump+Truck Mining Dump Truck For Sale
• It adopts Weichai WP12N engine, which features advanced fuel system and inlet and exhaust system, National Ⅲ emission standards, strong power and good performance.
• The hydraulic system adopts imported product of world-famous brand, which has the advantages like high allowed pressure, high efficiency, low noise, and complete functions; the pump is integrated with pressure limit valve, high-pressure safety valve, bypass valve and etc, which simplifies the hydraulic system for easy installation and service.
• The working devices can operate near the road shoulder, so that the machine can be widely used; the water spray device with self-suction function is of high measuring accuracy and convenient to operate; the rotor housing of optimized design has small resistance; the specially designed milling and mixing rotor has good quality and strong milling and mixing capability.
| Drive type | 6×4 | |||
| Complete kerb mass (kg) | 11200 | |||
| Max.total mass (kg) | 25000 | |||
| Max.speed (km/h) | 70 | |||
| Min.turning circle(m) | 18 | |||
| Min.ground clearance(mm) | 314 | |||
| Approach / Departure angle (°) | 16/66 | |||
| Max.gradeability(%) | 40 | |||
| Appearance dimensions (mm) | Max.length | 8275 | ||
| Max.width | 2490 | |||
| Max.heigh | 3300 | |||
| Front / Rear overhang | 1525/1600 | |||
| Wheel base(mm) | 3800+1350 | |||
| Track width(mm) | 1939 / 1800 | |||
| Engine | WP10.290 | |||
| Rated Output (kw/ps) | 228/290 | |||
| Clutch | φ420mmSpring-loaded clutch damper | |||
| Transmission | FULLER 9JS135 | |||
| Gear ratio | 12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1.00 12.66R | |||
| Front axle | 7.5tons | |||
| Rear axle | Shan Qi Steyr military reinforced axle 13tons | |||
| Steering | Integral inner circulation power sreering | |||
| Cab | D'LONG F2000, flat roof | |||
| Tire | 12.00R20 | |||
| Fuel consumption for 100km(50km/h) L | 36 | |||
| Fuel tank capacity (L) | 300 | |||
| Platform dimensions(mm) | 5600*2300*1500 middle lift | |||
