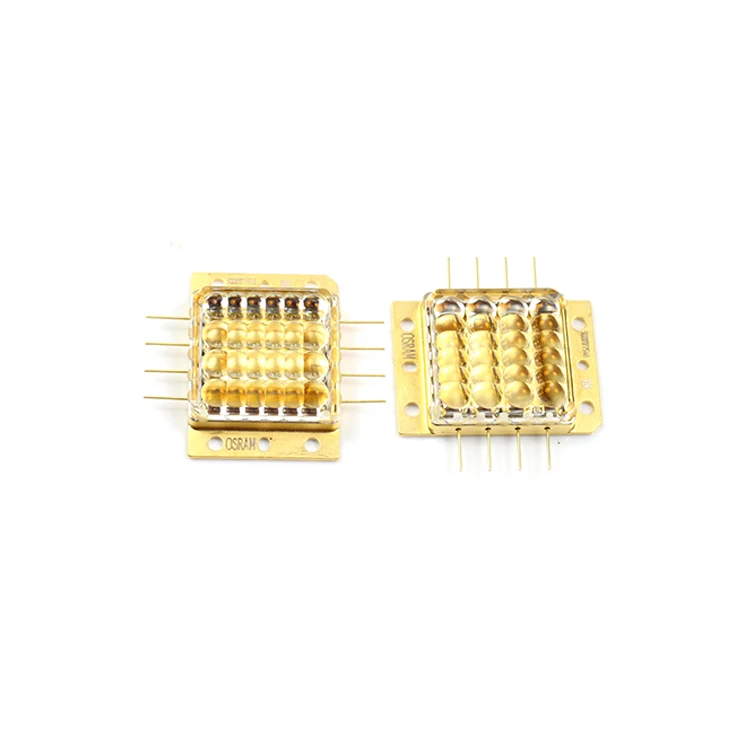

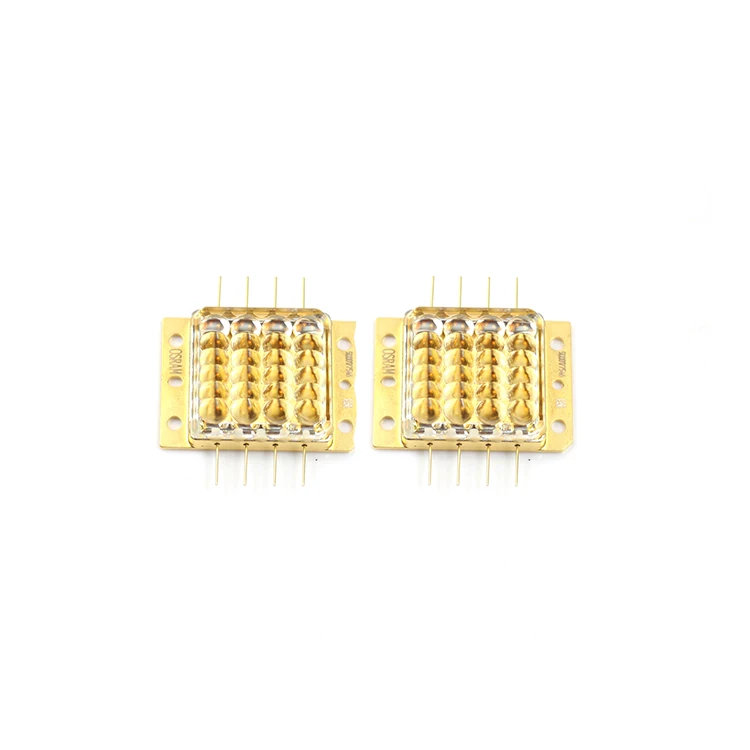

Мощный 450 нм 50 вт синий лазерный аккумулятор для источника

High Power 450nm 50W Blue Laser Bank For Illumination Source

 Key Features

• Butterfly package with typical 60 W optical output power in continuous wave operation (cw) at
  Tcase = 25 °C.
  (Please note that case temperature Tcase is not equivalent to any heatsink temperature; details       in corresponding application note)

• 20 multimode laser chips in one package

• One package contains 4 bars (channels). Per channel 5 multimode laser chips are bonded in         series connection

• Wavelength 450 nm ±10 nm

• Typ. wall plug efficiency of 31% at Tcase = 65 °C

• ESD protection diode for each laser chip

Applications

Laser projection

Laser shows

Illumination

Safety Advice

     Depending on the mode of operation, these devices emit highly concentrated visible

light which can be  hazardous to the human eye. Products which incorporate these

devices have to follow the safety  precautions found in IEC 60825-1 “Safety of laser

products”.

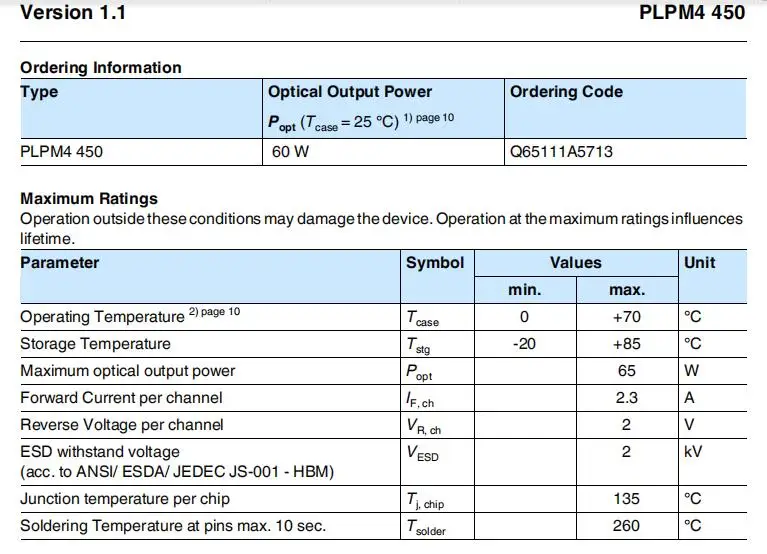

Absolute Maximum Ratings

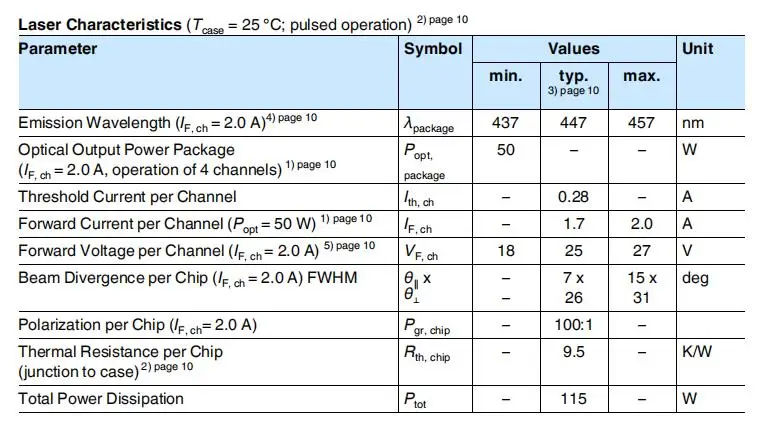

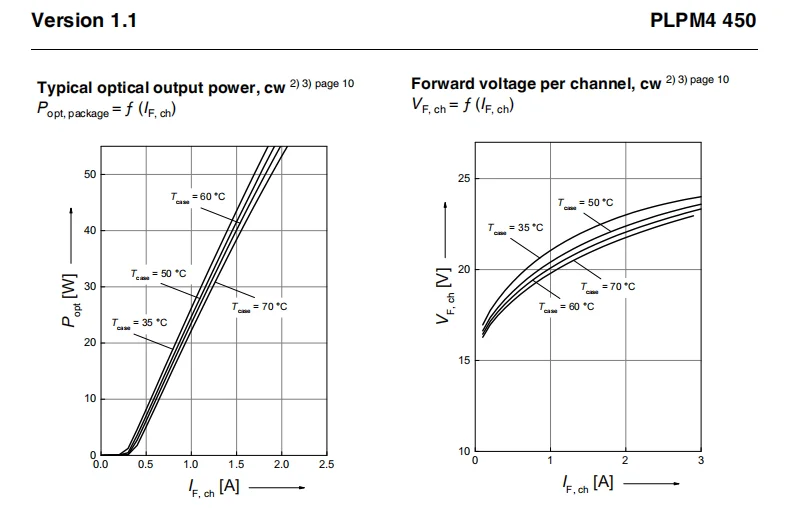

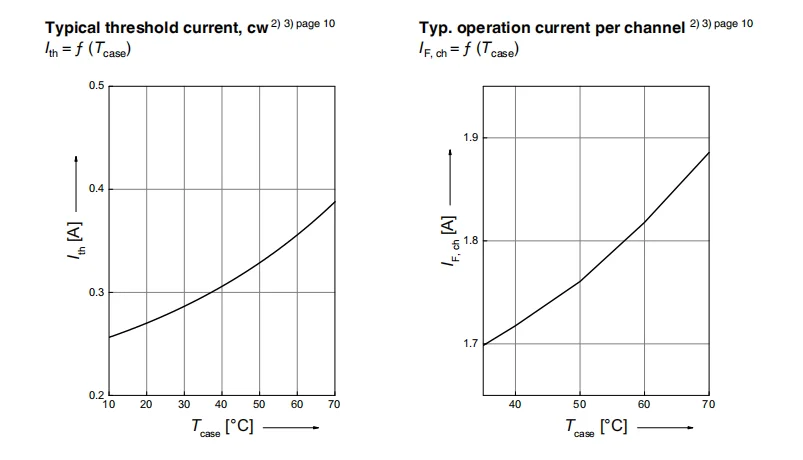

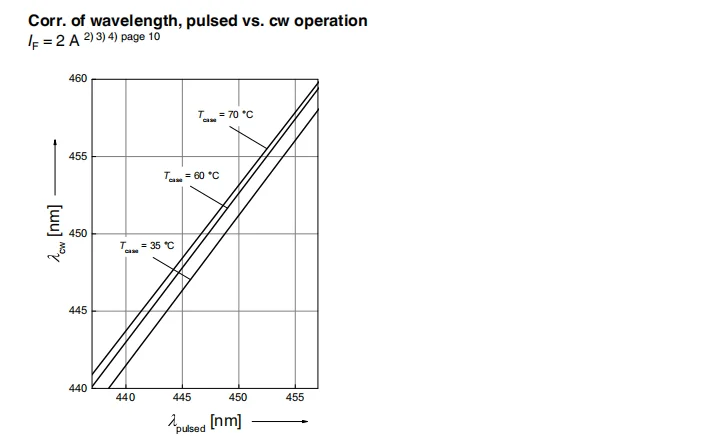

Electrical and Optical Characteristics  (Tc=25℃)

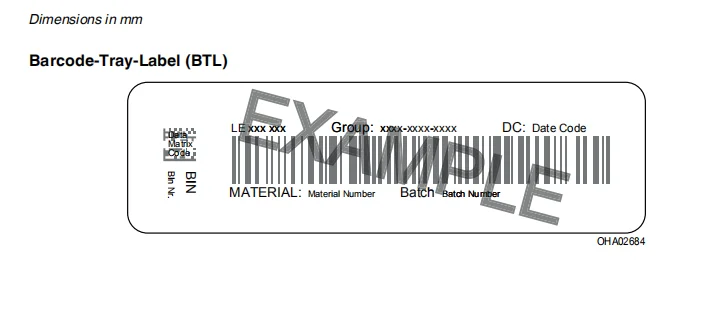

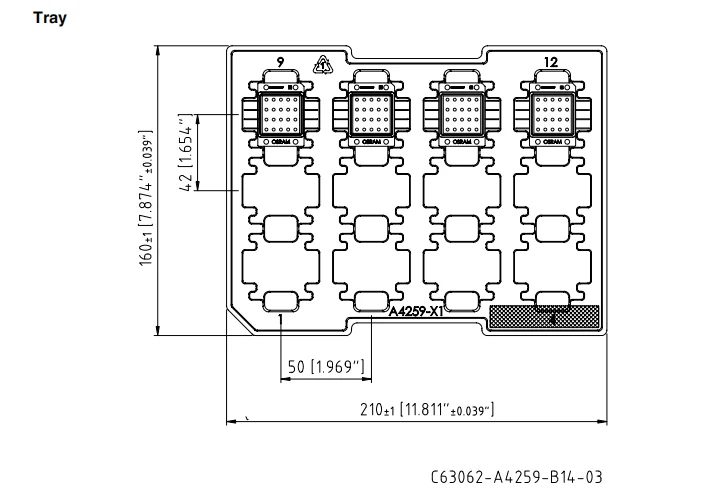

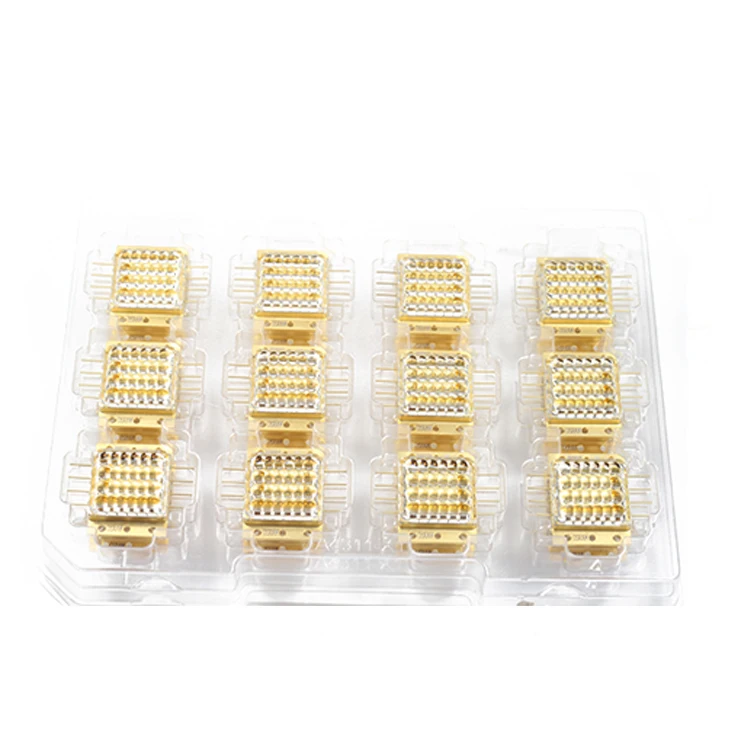

 Packaging

1. 100pieces/box, 10boxes/ctn.

2.  This is a high-efficient semiconductor original packaging brand new laser diode which provides emission wavelength of 450nm and standard light output of 50w. 5

4. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes

Shipping:

*1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance. Low

Cost Blue Violet TO56 405nm 20mw

*And it will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.

1.Following up the case, recording the entire process and all the voice from each customer.  Solution will be provided within 48 hours.

2.Before or after purchasing galvoscanner from us, if you have any technical questions,please send e-mail to our service mailbox, we will give you professional reply in time. L

 4

3.Online services: SKYPE, mail, voice phone, message. You could contact us at any time.  Low

Cost Blue Violet TO56 4.We would appreciate any of your suggestions for helping us to keep improving our service and product. Low C

ost

5.OEM accepted.

  A.Every customer's admiration is our goal and future willing,     we are concentrated in doing the best quality products,
supplying the best goods and service.TO56 L

aser Diode 405nm Laser Violet 20mw Laser diode
B.The laser wavelength including:405nm 410nm 445nm 450nm 455nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 980nm RGB and so on.
