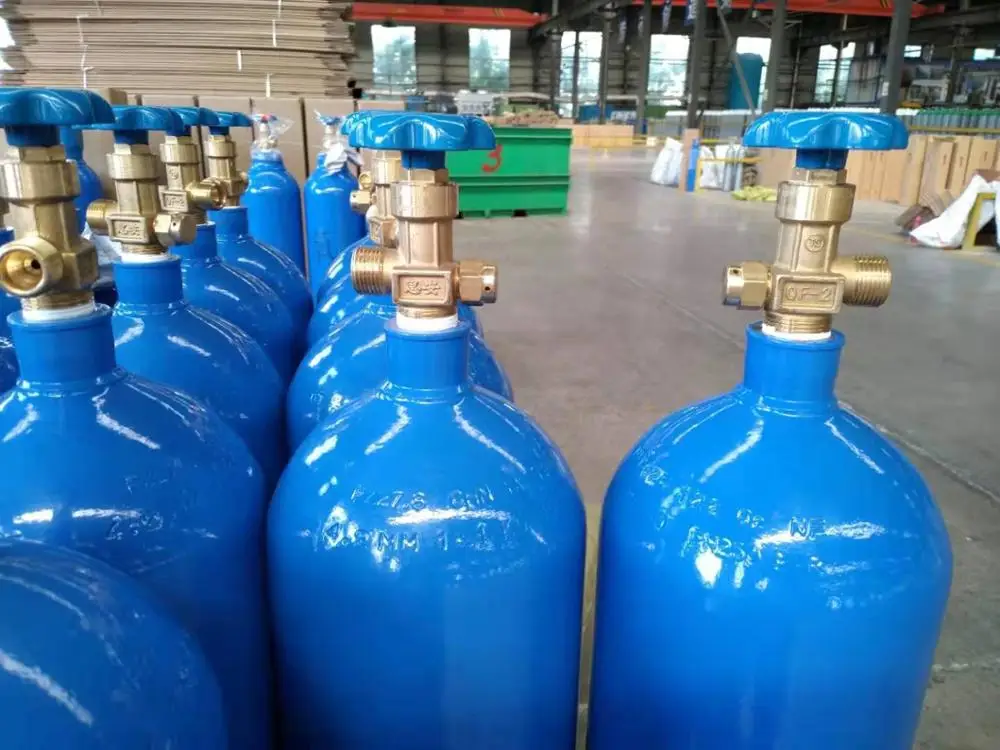

Портативный баллон для кислорода/азота/гелия/углекислого диоксида/аргона с клапанами CE ISO 232 мм 50 л/40 л 200 бар
- Категория товара: Gas Cylinders >>>
- Поставщик (Оптовый магазин): South,China,Special,Gas,Institute,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Seamless steel gas cylinders are widely used to store and transport gases such as for oxygen, hydrogen, nitrogen, argon, helium, air, carbon dioxide, carbon monoxide etc.We are Specialized manufacture high-pressure gas cylinders by high quality seamless steel pipe at consistent height,smoothly painting and excellent properties.It can be widely used for steel cutting, welding. electronic,media and other fields. Our Cylinders are certificated by GB5009,GB 584, ISO9809-1,ISO9809-3,and Pass the strict interational organization TUV.
Product Prameter
ISO9809-3 Standard
| Type | Outside Diameter (mm) | Water Capacity (L) | Height Without Valve (mm) | Weight (Without Valve/cap) kg | Service Pressure (Mpa) | Test Pressure (Mpa) | Design Wall Thickness (mm) | Material |
| WMA 219-19-15 | 219 | 19 | 685 | 27 | 150 | 250 | 5.7 | 37Mn
|
| WMA219-20-15 | 20 | 715 | 28 | |||||
| WMA219-25-15 | 25 | 865 | 33 | |||||
| WMA219-28-15 | 28 | 955 | 36 | |||||
| WMA219-30-15 | 30 | 1015 | 38 | |||||
| WMA219-31-15 | 31 | 1045 | 39 | |||||
| WMA219-33-15 | 33 | 1105 | 41 | |||||
| WMA219-34-15 | 34 | 1135 | 42 | |||||
| WMA219-35-15 | 35 | 1165 | 43 | |||||
| WMA219-36-15 | 36 | 1195 | 44 | |||||
| WMA219-37-15 | 37 | 1225 | 45 | |||||
| WMA219-38-15 | 38 | 1255 | 46 | |||||
WMA219-39-15 | 39 | 1285 | 47 | |||||
WMA219-40-15 | 40 | 1315 | 48 | |||||
| WMA219-42-15 | 42 | 1375 | 50 | |||||
| WMA219-44-15 | 44 | 1435 | 52 | |||||
| WMA219-45-15 | 45 | 1465 | 53 | |||||
| WMA219-47-15 | 47 | 1525 | 55 | |||||
| WMA219-50-15 | 50 | 1615 | 58 |

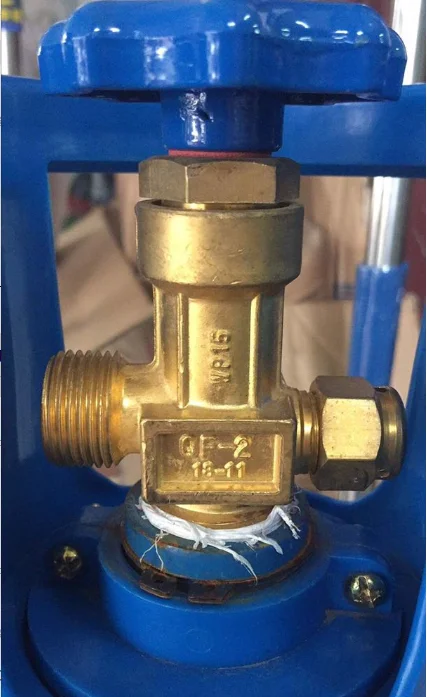

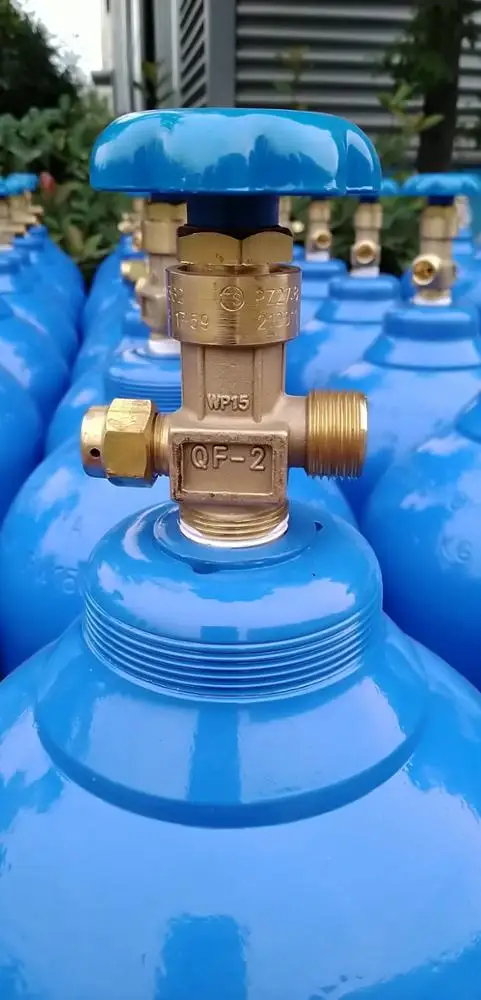

Detailed Images

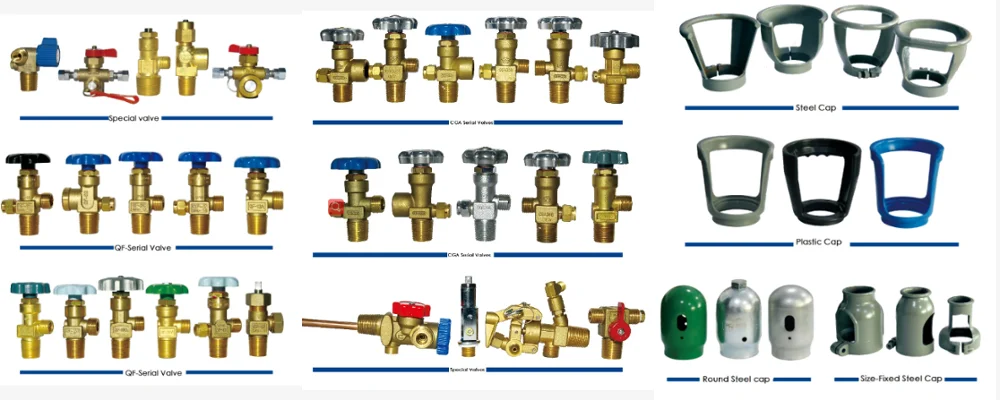

Accessories

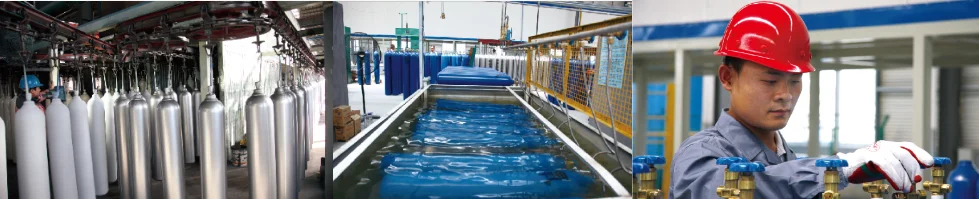

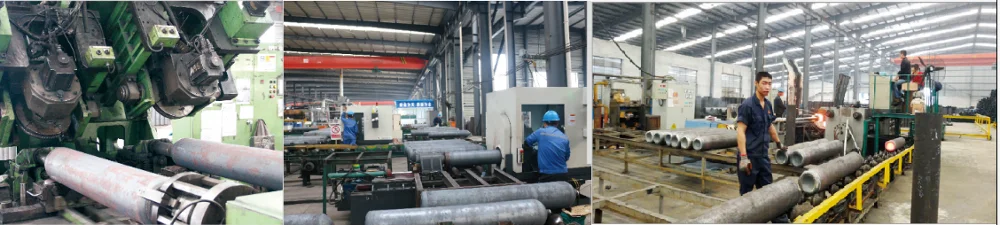

Factory View

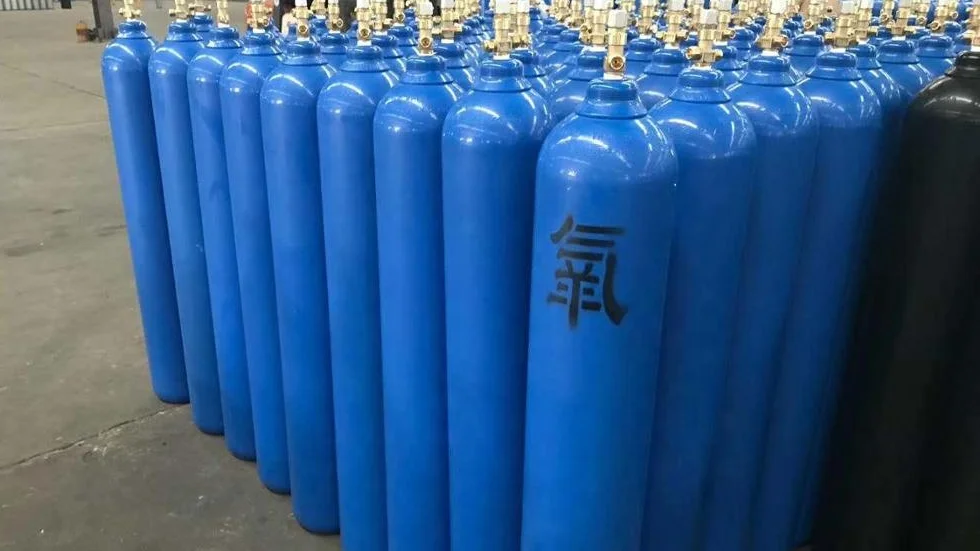

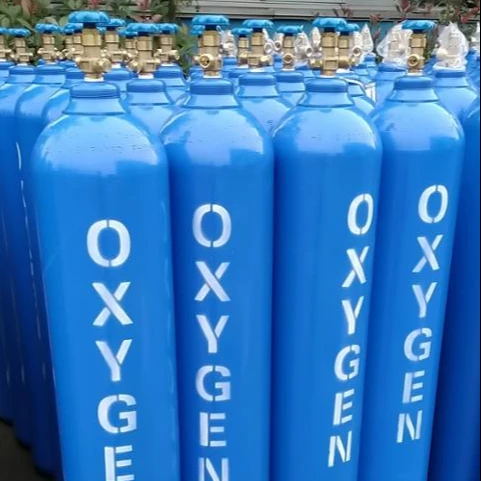

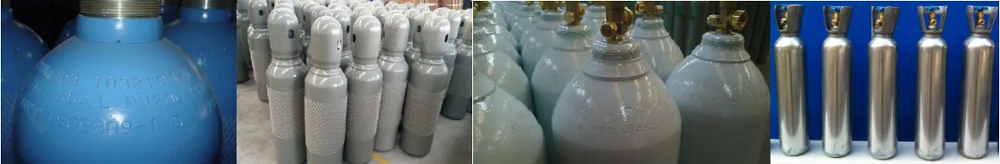

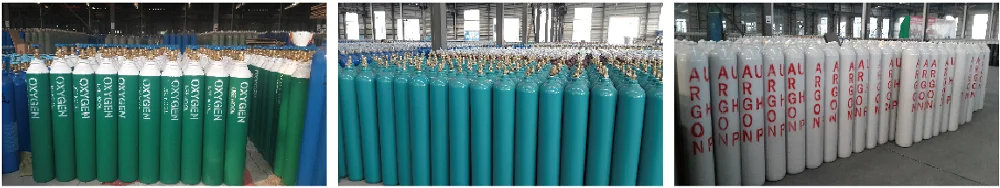

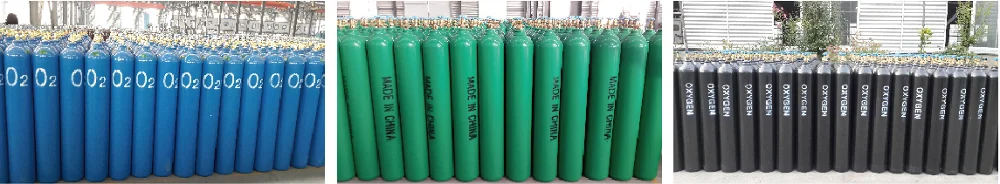

Finished Products

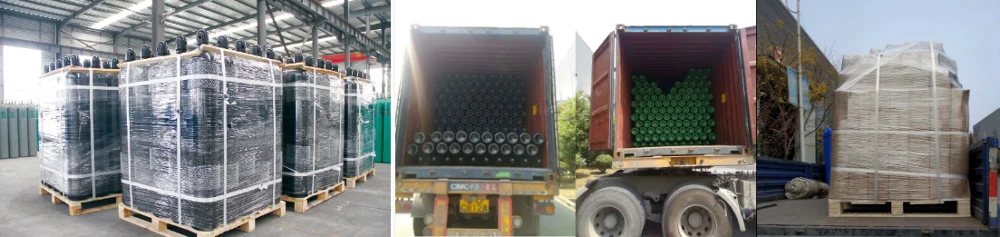

Packing and Shipment
Our Service
