Product Description

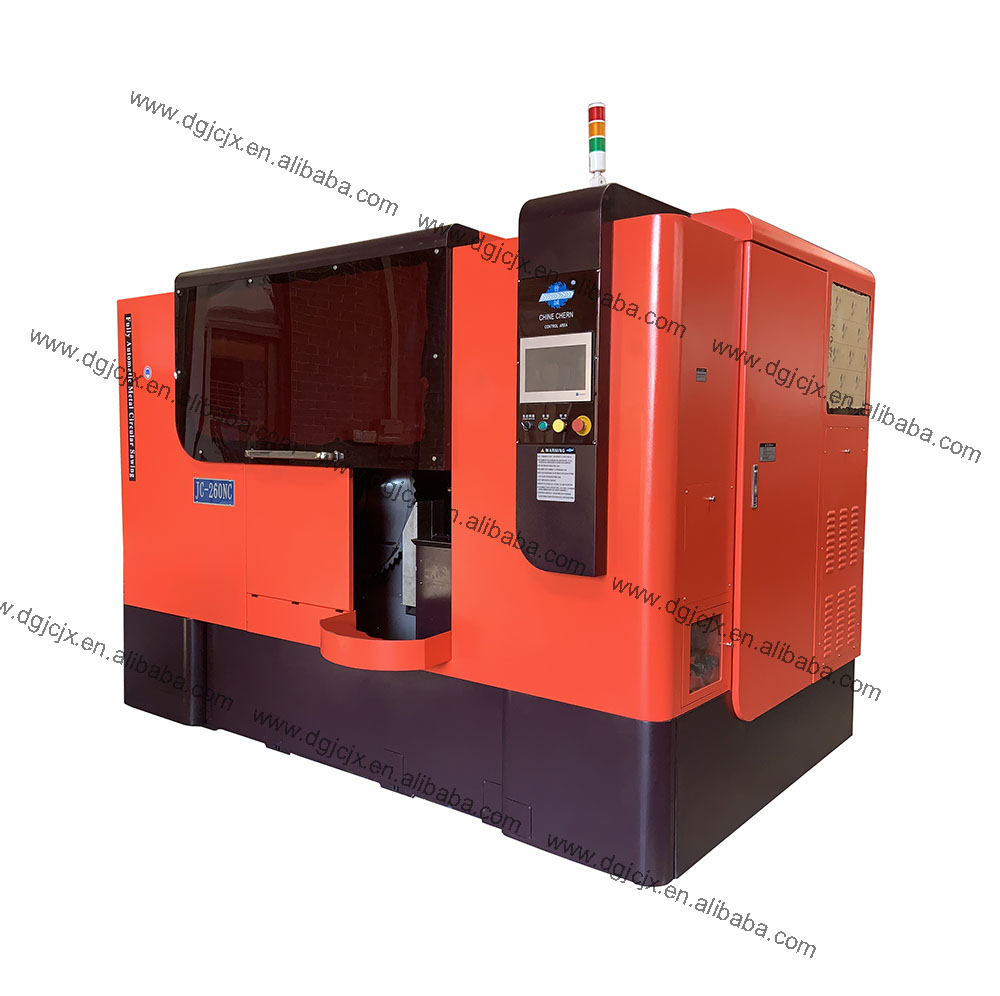

Metal Bar CNC Metal Circular Cold Saw Machine
Features :
1.Full-automatic super hard metal circular saw machine adopts servo motor & Precision Ball Screw control, Servo motor & Ball Screw control advancing of tool and feeding .
2.There are 5 groups gear box on the machine head. It can work along with belt pulley.
Innovative gear box design together with precision process technology enables the gear box achieve zero clearance,Prolong the life of saw blade
3. TCT Tungsten Carbide saw blade is suitable for cutting iron/steel /Stainless steel solid bar,
Low cost,High speed.
5.Water-solubility cutting oil with automatic circulation cooling pump.
6.Cutting length tolerance : ±0.05- ±0.1mm,More precised .
7. Japan Yaskawa Servo motor drive + TaiWan ball screw feed transmission
8. Hydraulic driven sawhead feed for cutting motion,TaiWan Hydraulic system is more stable.
10. Anti-vibration Saw blade device improve cutting performance .
11. Single pcs or multiple pcs can be cut once as per out diameter .
12. Float type feeding device ensure bended solid bar can be fed smoothly.
Parameters :
| Specification | JC-260NC | |
| Cutting Capacity | Solid bar O.D | 100mm-260mm |
| Angle steel | 100mm-260mm | |
| Round tube | 100mm-260mm | |
| Square tube | 100-200mm | |
| Motor (KW) | 30KWx8P | |
| Oil pump motor(KW) | 5x4P | |
| Advance Servo motor (KW) | Ball Screw+ AC Servo Motor(4) | |
| Feed Servo Motor (KW) | Ball Screw+ AC Servo Motor(4) | |
| Sawblade Specification(mm) | 750xt3.4x3.8 | |
| Pin hole + Hole diameter(mm) | 4x21xPCD180x80(std) | |
| Cutting length(mm) | 6-600mm once/600-999mm(multiple feed) | |
| Blade speed (RPM) | 30-80 | |
| Auto Chips Conveyor | Chain Drive (Opt) | |
| Cutting Fluid | Air Compressed Oil Mist | |
| Packing weight(bottom) (kg) | 11500 | |
| Packing size (LxWxH)(mm) | 2500x2400x2600 | |
| Load Capacity(mm) | 200x6000Lx4pcs | |
| Rack Size(LxW)(mm) | 5300Lx1600W | |
SEPARATING SYSTEM
Separator automatically separates trim edge cut and residue into different storage tanks.
SAW BLADE ANTI VIBRATION DEVICE
Employs an unique electromagnetic brake system to eliminate vibration and sliding caused by gear backlash, ensuring a superb finish cut surface and enhancing blade service life.(Only for CS,CS-S machines)

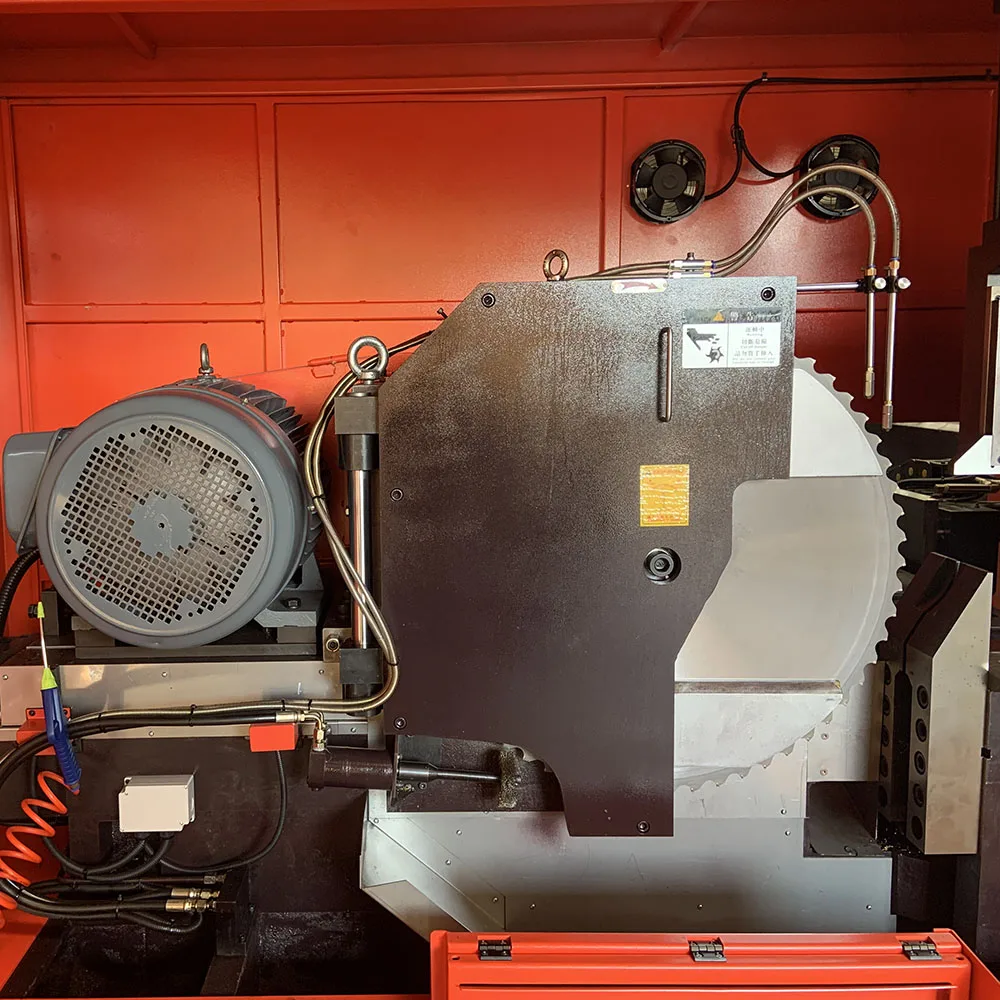

UNIQUE GEAR HEAD DESIGN
The unique gear transmission system ensures smooth cutting with high efficiency,
less noise,and low power consumption,and enhances saw blade service life.

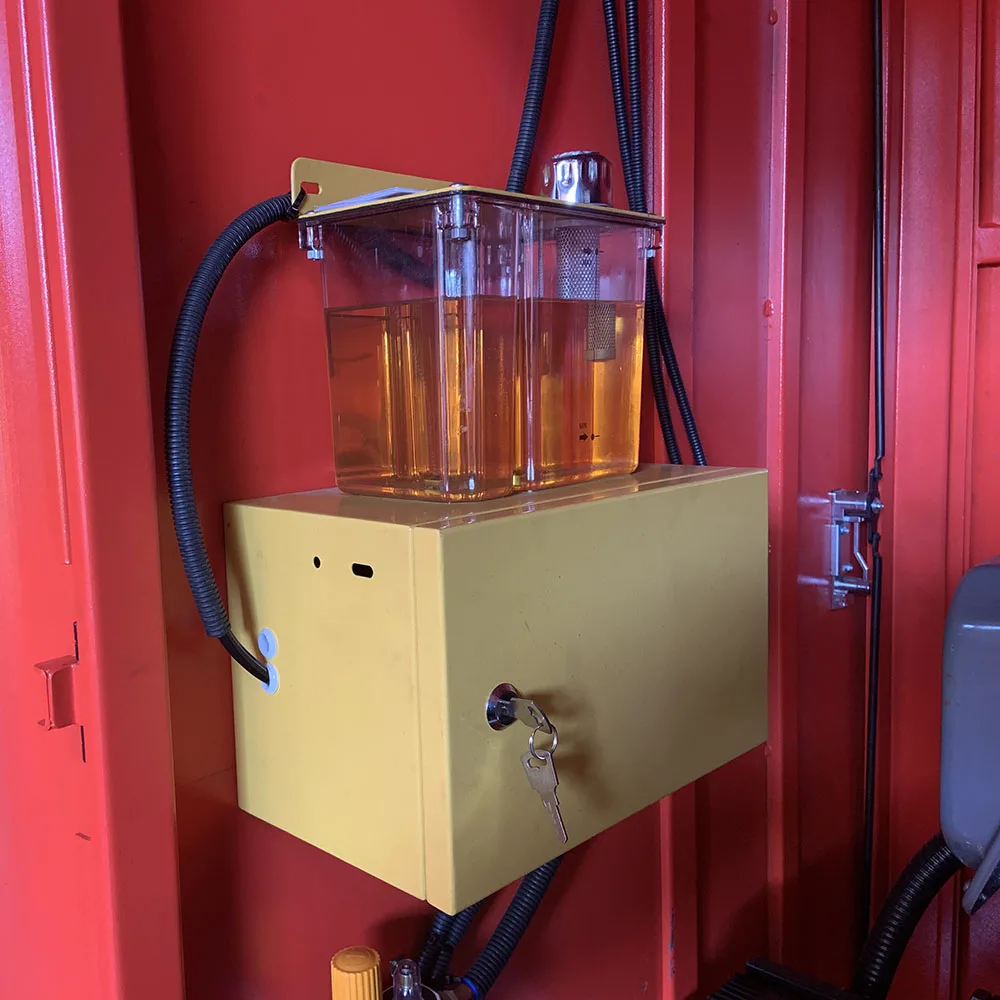

OIL MIST COOLING SYSTEM
Cools down blade temperature when cutting and provide antirust for cut pieces. Special designed with outwardly open door for easy maintenance and adjustment.

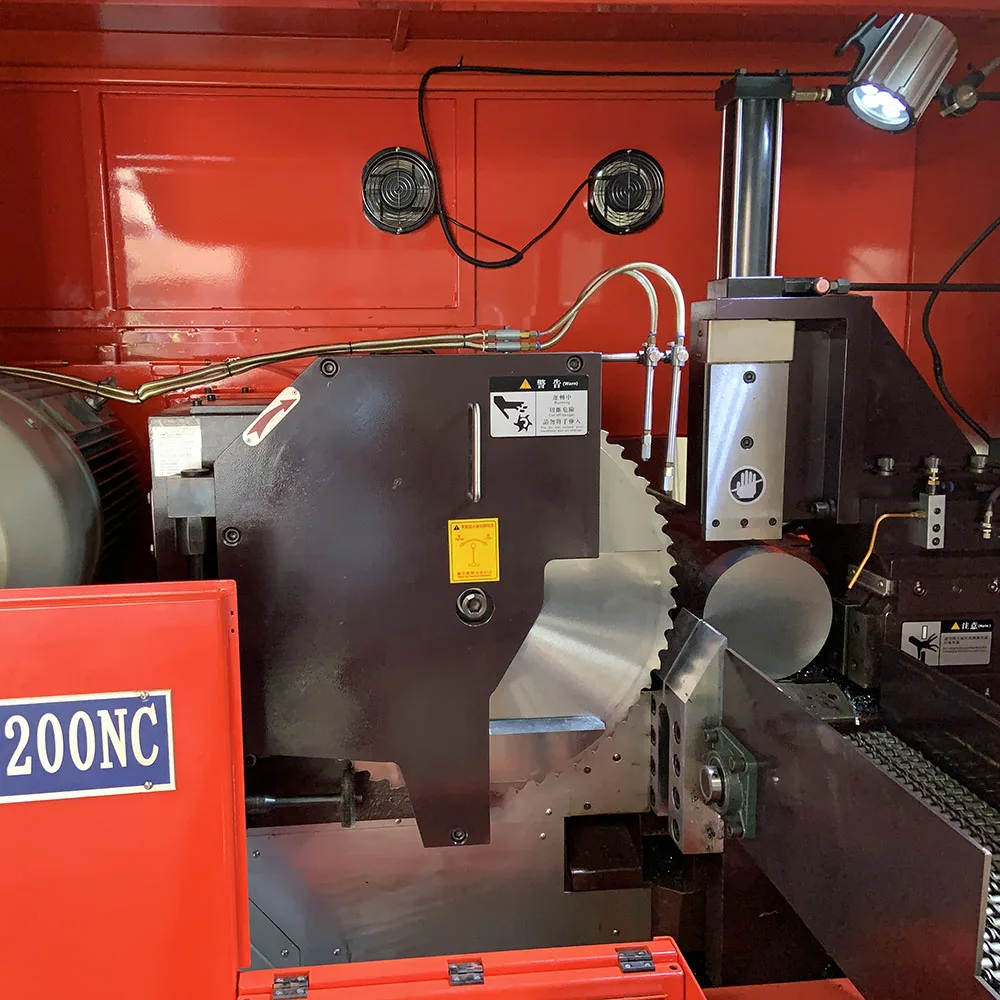

OVERHEAD CLAMPING VISE JAW
Ensure material being clamped firmly and avoid vibration while fast cutting single bar or 2 pieces same size bar at one time.

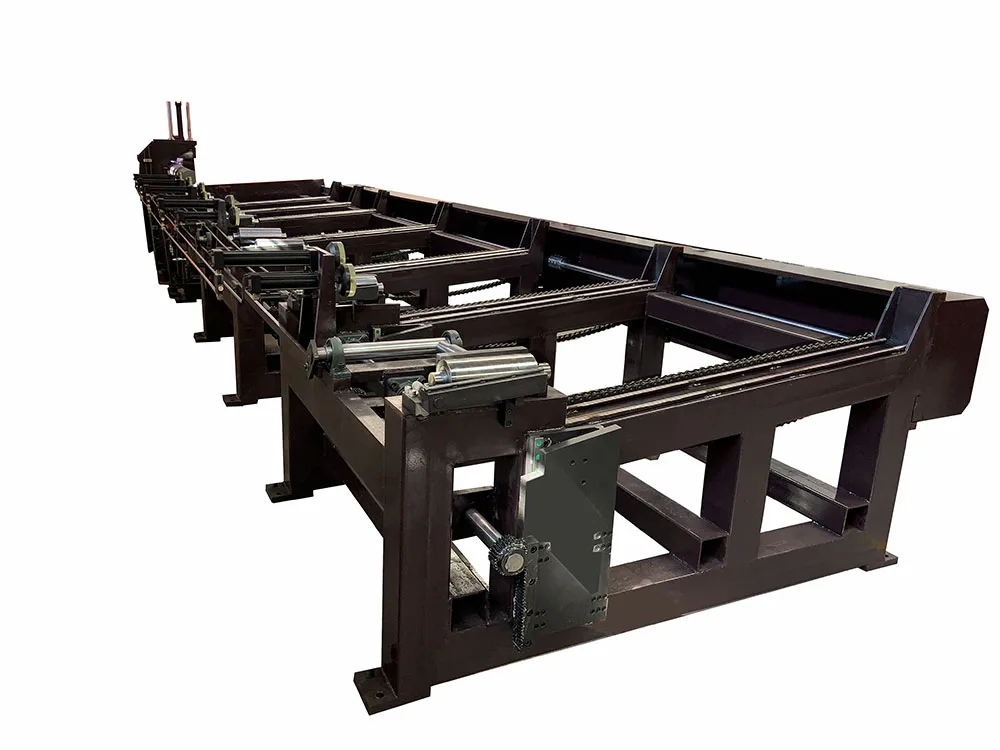

MAGAZINE TABLE
Magazine table holds 6 meters long material for loading different sizes of bars. Customized bar loading system is optional for different

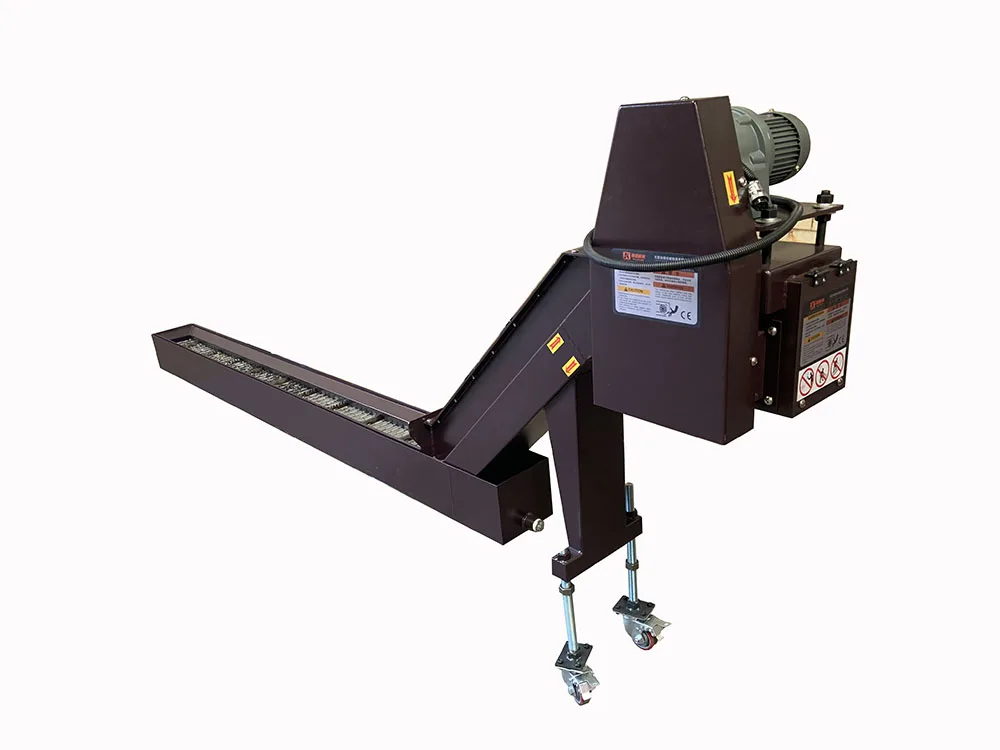

Scraps Discharge :
TCT Saw Blade :
Samples :
