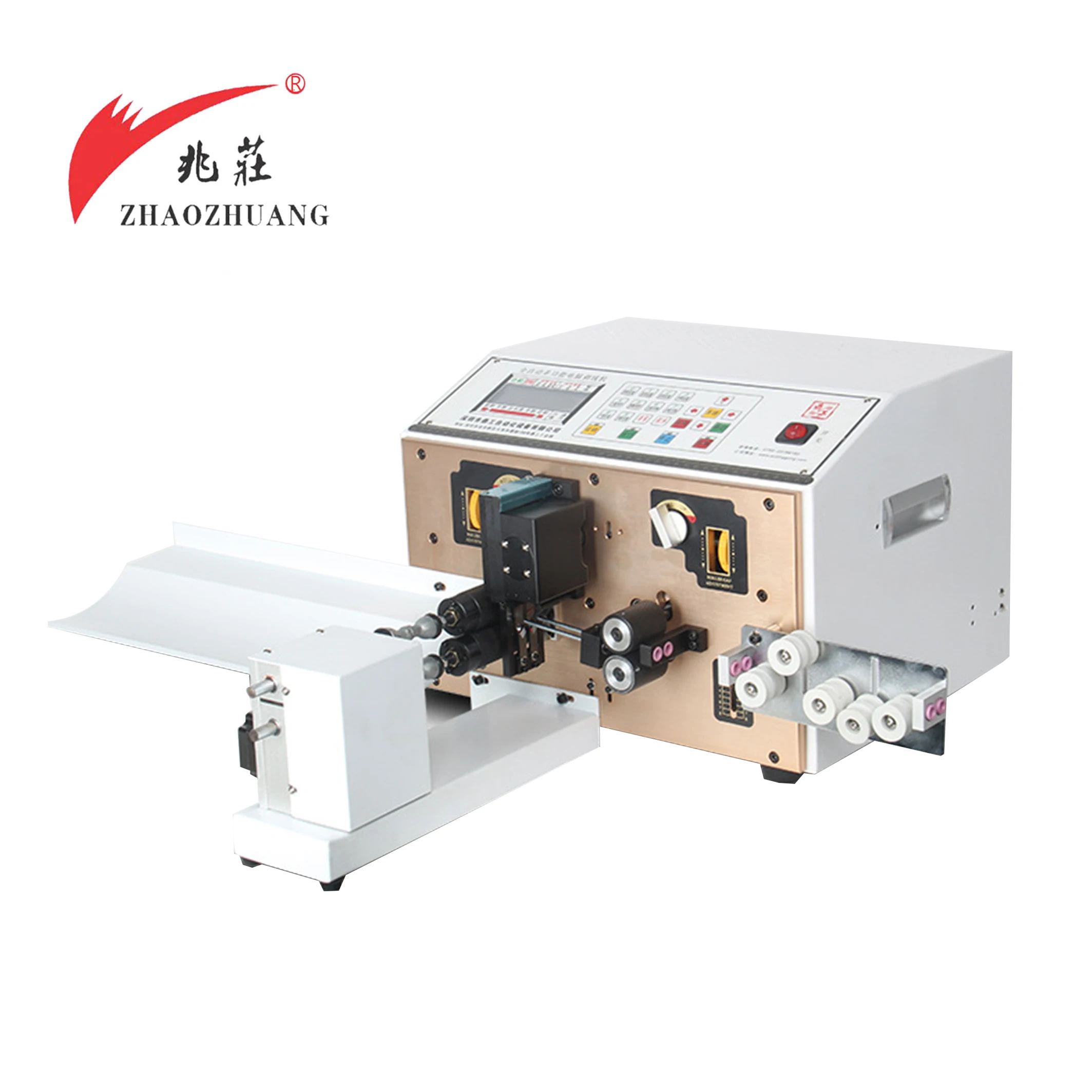

Машина для резки и скручивания

Поделиться:


Цена:700,00 $ - 750,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


Automation wire cut and strip machine,power cord computer wire strippers


Fully automatic double wire computer cable stripping machine





Feature:


1. Electronic products tend to be light, thin, short and small, so the required wires tend to be thin, short and high precision.


2. This machine can give full play to its greatest strengths. The short line within 50MM, which used to be considered difficult to process, is not responsible now.


3. Why is it difficult? At the same time, the speed of feeding, feeding, retracting, re-peeling and peeling can be set separately, and the isolation line can also be forced.


4. Peeling to the end of 99MM, eliminating the previous isolation line can not be completely stripped and injured to the heart line.
































































Name



Fully automatic cutting stripping and twisting machine



Model



XC-220T



Size



L930*W700*H300mm   (Dimensions with mounting tray straightener)



Weight



40Kg



Power Supply



AC220V 50Hz/60Hz  450W(Special voltage can be customized)



Wire range



AWG16#~AWG32#( Depending on the wire material and structure)



Cutting Length



0.1~99999.9mm



Stripping Length



Top: 0~30    End: 0-100(More than 30 needs half stripping)



Cutting lerance



±(0.2+0.003*L)mm  (L= length)



Blade material



Tungsten steel or high speed steel



Speed



13000pcs/h(100mm length,stripping 3mm both ends)



Mode



2-phase hybrid stepping motor



Wire material



PVC,VSF, Teflon, Fiberglass, etc.
