LoraWan датчик скорости ветра, направление ветра

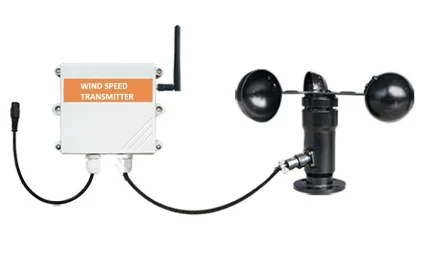

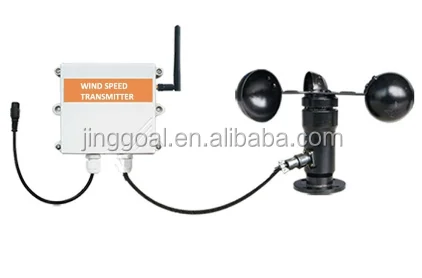

IWS27L , Wind speed Sensor is specifically designed to accurately and reliably measure wind velocity under the adverse environmental conditions. Build-in Digital circuits are capable of strong RFI & EMI resistance and automatic temperature compensation. The sensor mainly includes high-strength aluminum-alloy housing shell, 304SS wind cup, PCB board painted with anti-corrosion coating, and features water proof and corrosion resistance. The sealing rings are used to wrap the rotating part, with the excellent sealing function of water proof, salt fog and dust immersing. W70S Wind speed sensor has good performance in harsh environment.

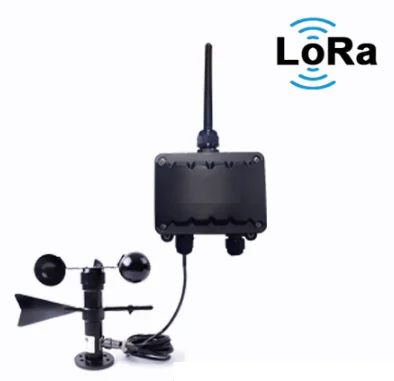

With LoRaWAN® module, it transmits the pressure via gateway to networks server and application server. User can monitor the status remotely. It is optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia). As it is with algorithm of low power consumption, the internal battery can work for more than 1 years for one charge (With different parameter, 3 years lifetime is realized).

1)          More than 3 years battery life

2)          -141dBm sensitivity

3) 10,000m emission distance in the view area

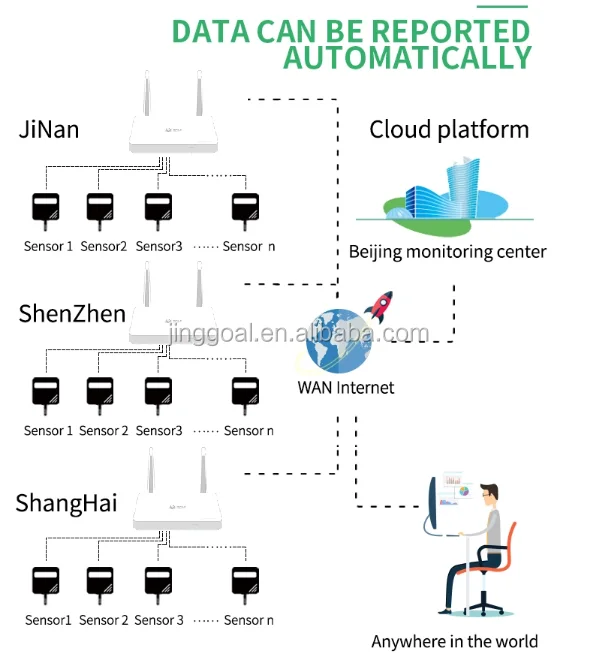

4) Through the gateway, it can upload the data into cloud

5) Can be in the chemical industry, metallurgy industry, oil and electricity automatic field
