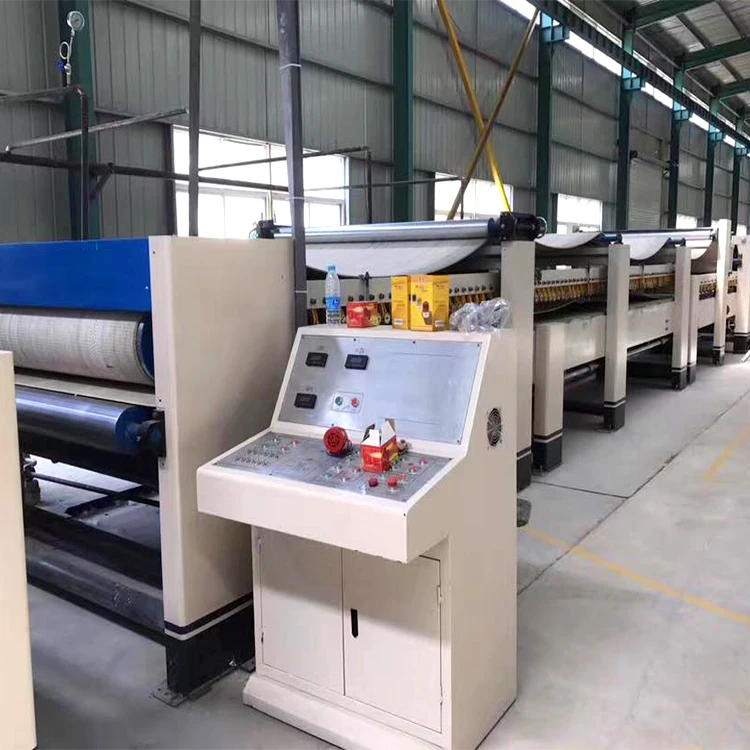

Luyuan Brand High Speed 3 Ply 5 Ply Corrugated Cardboard Production Line / Corrugator Machine
Product Description
JL Series Corrugated cardboard production line /China carton box making machine prices
Introduction

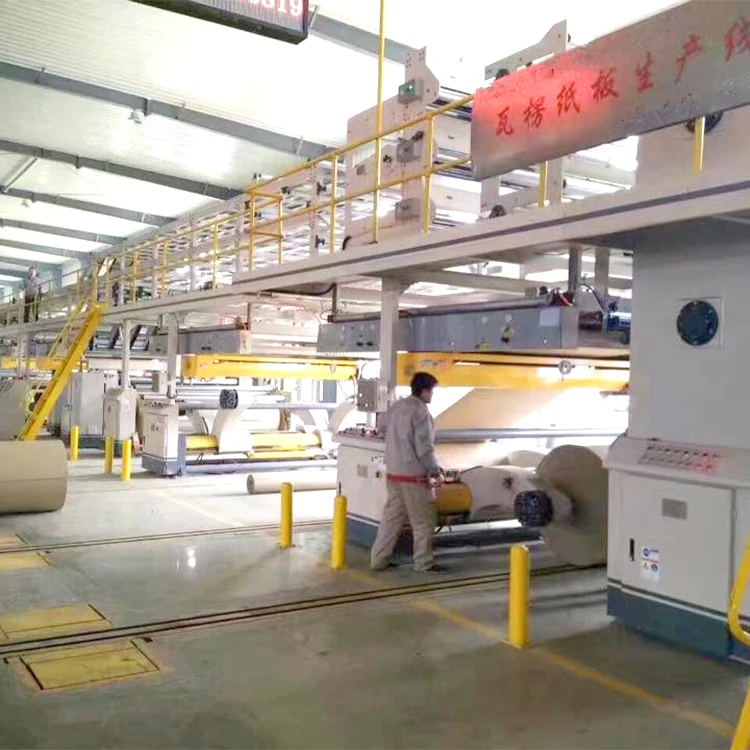

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The 3ply, 5ply, 7ply and multifunction corrugated cardboard production line mainly consists of the following equipment: mill roll stand, preheater, single facer, the overhead convey bridge, glue pasting machine, double facers, slitter scorer, cutoff, stacker, heating system, air compression system and glue making system, etc.
Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The 3ply, 5ply, 7ply and multifunction corrugated cardboard production line mainly consists of the following equipment: mill roll stand, preheater, single facer, the overhead convey bridge, glue pasting machine, double facers, slitter scorer, cutoff, stacker, heating system, air compression system and glue making system, etc.
Technological Parameters
1.Working speed:60~200m/min
2.Heating methord:steam heating, electric heating, oil heating
3.Width:1400mm~2500mm
1.Working speed:60~200m/min
2.Heating methord:steam heating, electric heating, oil heating
3.Width:1400mm~2500mm
Product Paramenters
Model | Name | Qty | Remark |
ZJ-V6 | Mill Roll Stand | 5 | Full hydraulic control, pneumatic control brake, inner expansion chuck, hydraulic station adopt Taiwan product, multiple point tension control. |
DXC | Railing and track | 10 | Include railing and track.motorized carry the paper roll.the length of double rails is 9000mm |
RG-1-10B | Pre-heater | 2 | Diameter 1000mm,360°electric adjust wrapping angle.With balanced tension rollers. |
RG-1-10B | Pre-conditioner | 2 | Diameter 1000mm,360°electric adjust wrapping angle.With balanced tension rollers |

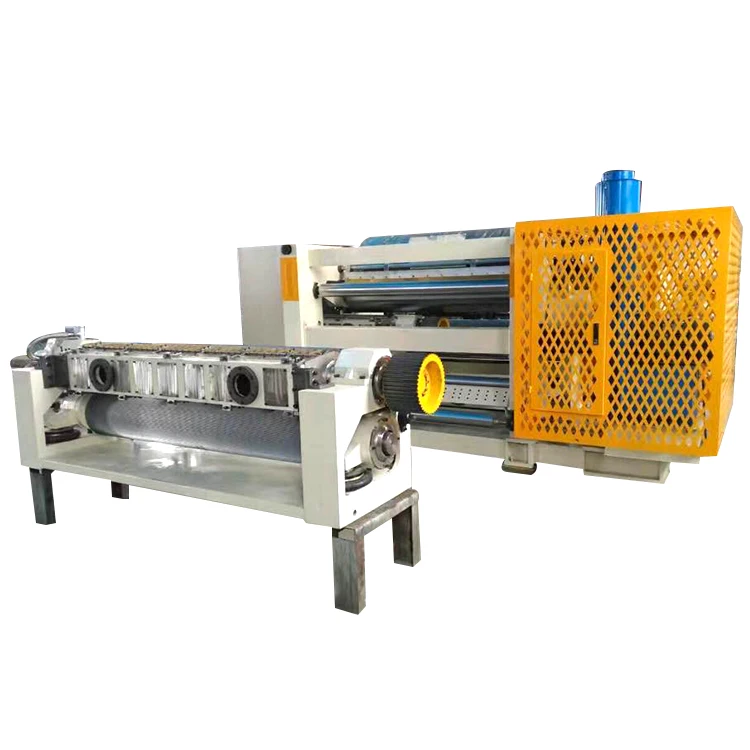

SF-405D | Cassette type Single facer | 2 | Main corrugating roll diameter 405mm,assistant roller:346mm, material is48CrMo alloy steel.surface do Tungsten carbide treatment.PLC automatic control the glue,Quick roll change,15 minutes |
MK-405 | Additional Corrugated roller +change roller trolley | 2 | Diameter:405mm,surface do Tungsten carbide treatment,including:Both ends of the shaft seat, bearings, steam components, suction boxes, pneumatic component etc. |
RG-3-10B | Triplex pre-heater | 1 | Diameter1000mm,360°electric adjust wrapping angle.With balanced tension rollers |
GM-D | Gluing machine | 1 | Gluing roll diameter 320mm,Variable frequency motor drive,PLC control,Electric adjustment amount of glue, glue digital, After the glue roller surface quenched, bore machining, surface grinding and doing balancing lines engraved with 25 pit-style textured, coating evenly, consume less glue. |
ZDF | Double layer bridge conveyor | 1 | Using an independent variable frequency motor drive pull paper enhanced adsorption tensioning device. |
SM-E | Double facer+ Main Driver | 1 | Dryer section: The 20 hot plates, cooling stereotypes minister five meters. Using the whole hot plate structure. Entrance ¢ 400mm hot cylinder temperature mention speed so glossy, 16 groups throughout the contact plate design structure. PLC automatic control plate. Down with automatic correction, temperature display, inverter motor, separate gearbox cardan shaft drive. |

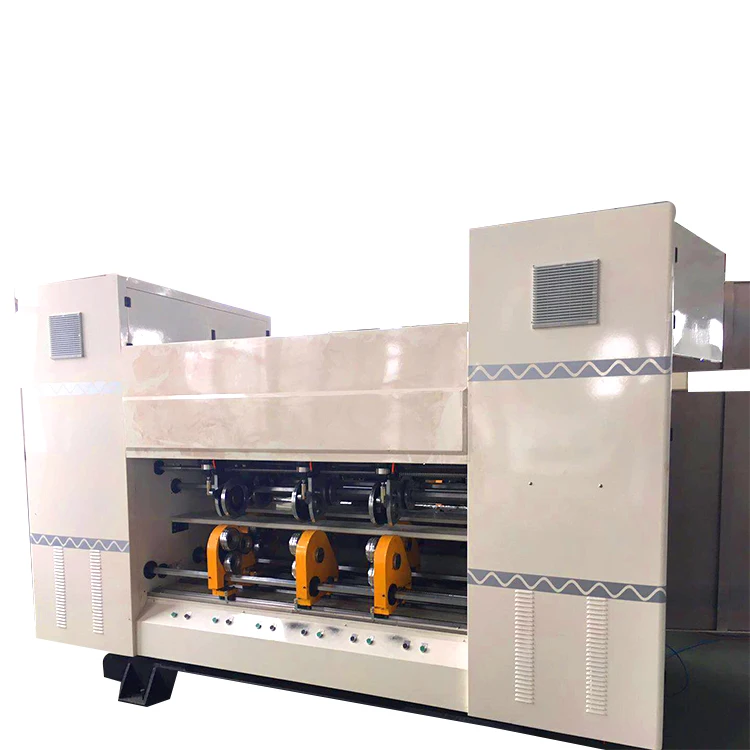

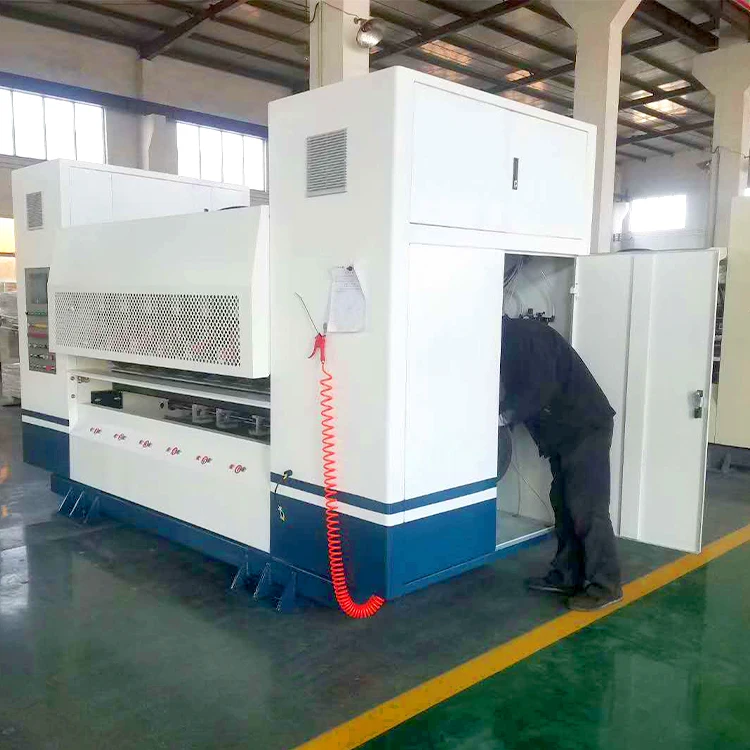

NC-2200 | NC slitter scorer | 1 | Alloy blades, knives ten-line six, zero pressure line models. Schneider servo computer automatically row knife, zero seconds for a single time. Suction outlet width is automatically adjusted. |
SP-2200 | Double separate paper stands | 1 | Pneumatic separate paper,it can be automatic and manual control |
NC-220 | NC Double Cutoff | 1 | Full AC synchronous servo control, braking energy storage, spiral blade structure, helical gears, oil pressure protection, 10.4-inch touch screen display. |
NC-DM | Double Lift DownStacker | 1 | Make order 5 seconds, 20 seconds for change order, stacking height of 1800mm. With Points feature, and health management system synchronization, order management, centralized management, do not slow down automatically for a order. |
JZJ | Automatic Splicer | 5 | Automatic splicer promises the corrugated line to keep working uninterrupted to reduce paper consumption, greatly improving productivity. Maximum speed 250m/min. |
ZJZ | Automatic Glue making system | 1 | PLC control, measurement precision, automatic cleaning, automatic recharge |
SG | Production line management system | 1 | Improve the automation of production lines, easy to operate. Reduce losses and improve the utilization of paper and cost savings. Automatic control of the production line, stable quality cardboard. Increase the average speed, increase productivity. Automatic production statistics, easy to keep control of the production line, improve work efficiency. |
QU | Pneumatic system | 1 | 1 set 1m ³tank.pipeline and air-compressor supply by customer. |
ZQ | Steam system | 1 | boilers and pipes are supplied by customer |
DQ | Electric system | 1 | Variable frequency motor speed control agencies, Delta inverter control system. Operation is simple and convenient interface, the main relay using the French Schneider |
