Product Description

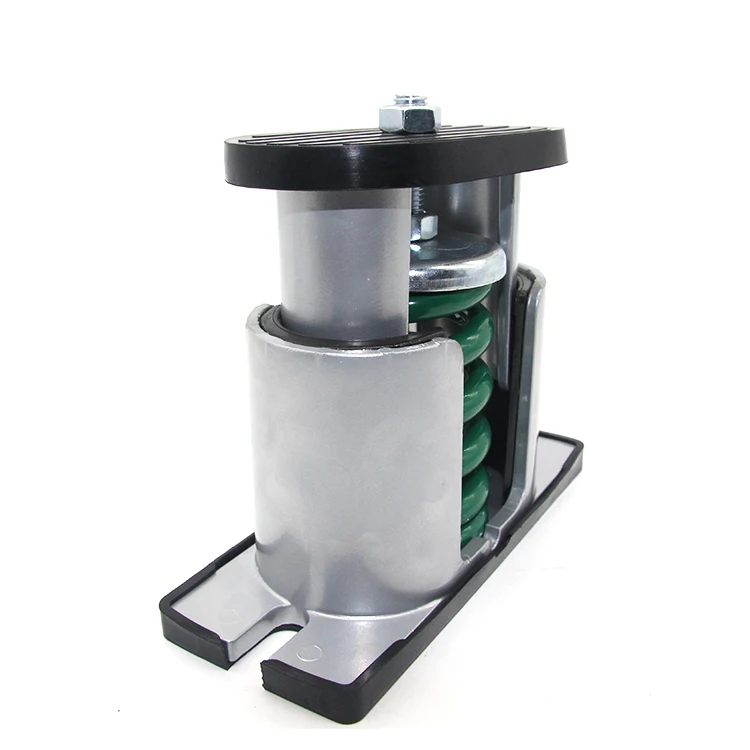

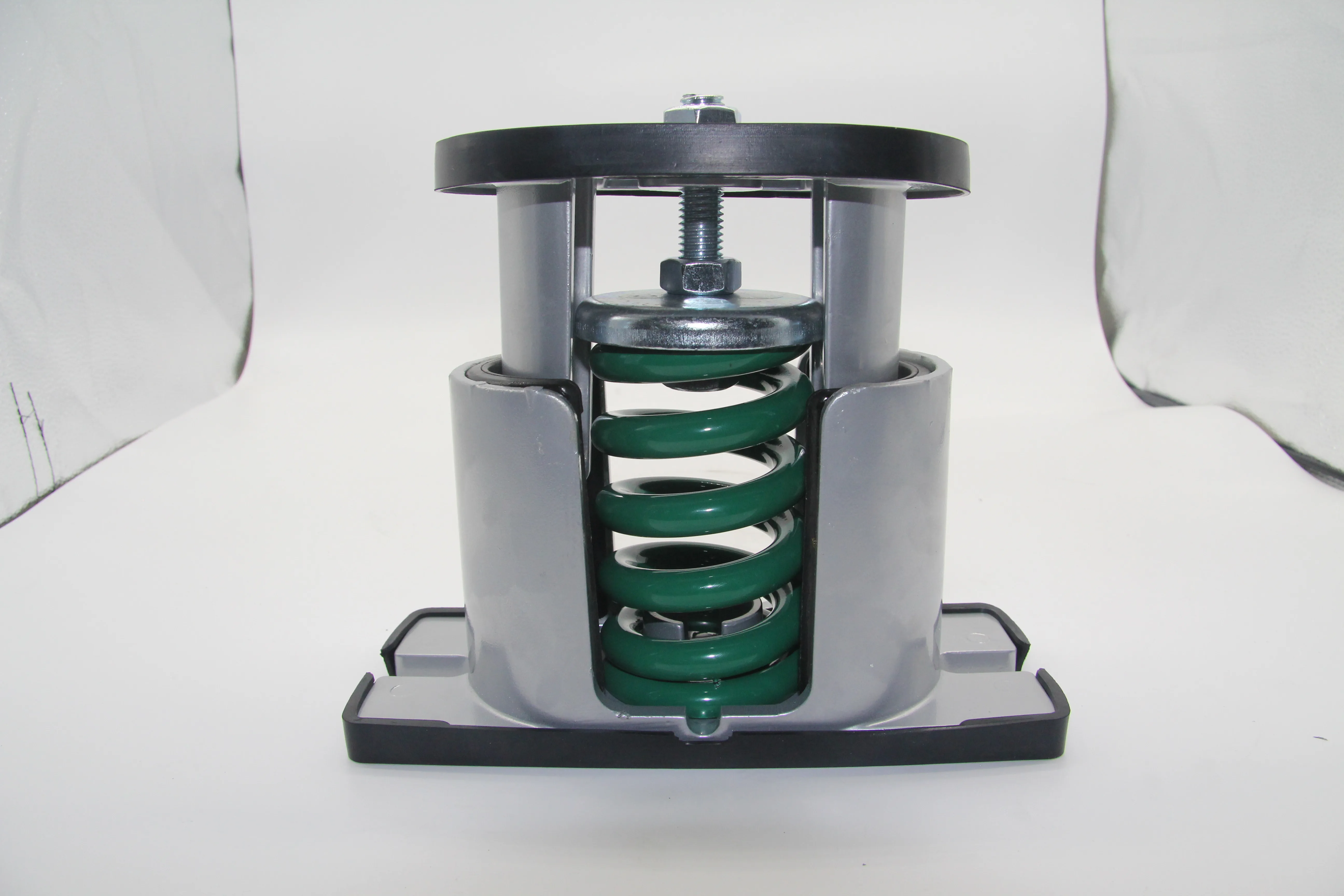

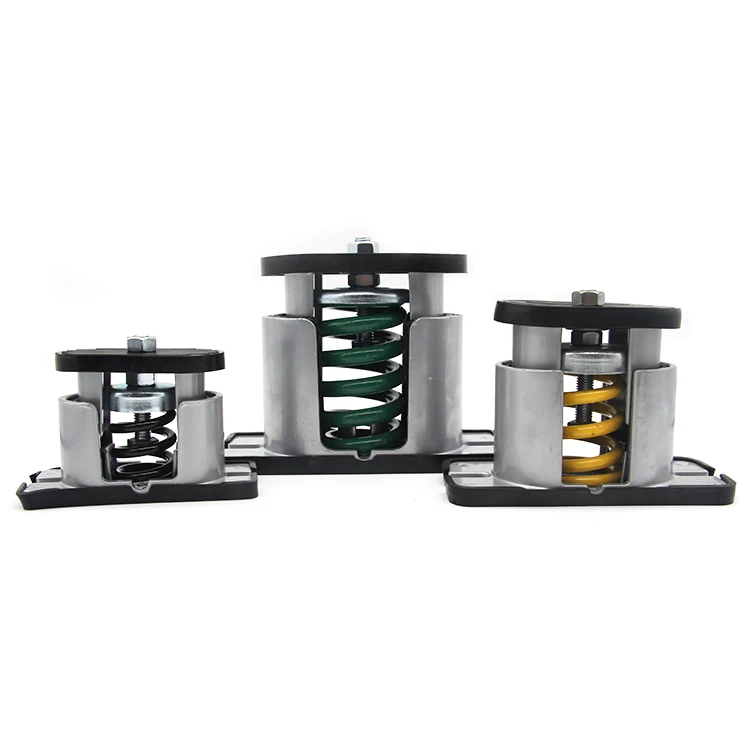

Description of Industrial use Floor Mount Vibration Isolators

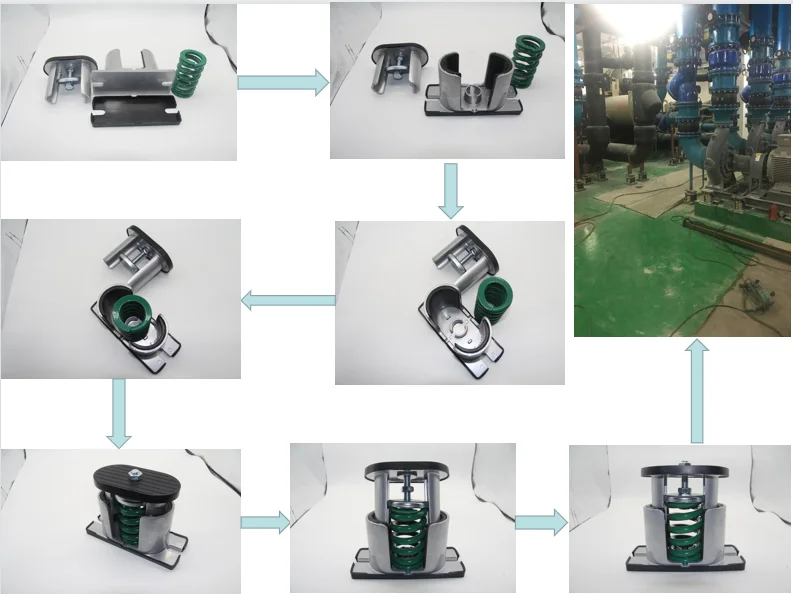

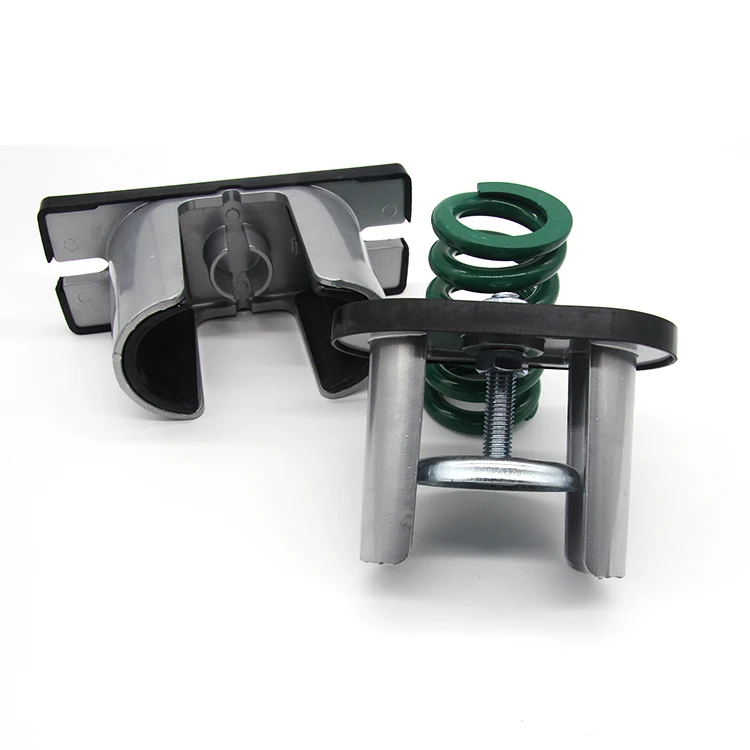

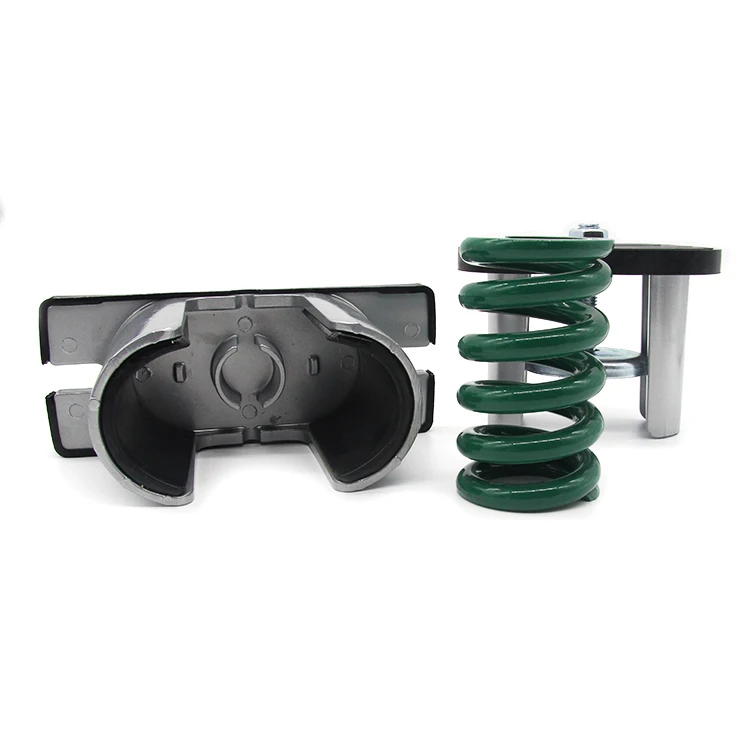

Industrial use Floor Mount Vibration Isolators adjustable low-frequency damping spring shock absorber is equipped with upper bolts to be fixed to the equipment, and lower to the foundation. There are height adjustment bolts to adjust the level of the equipment, and adopt lateral damping to improve the vertical and horizontal levels. Stiffness. (JB type damping spring shock absorber damping ratio ≥0.065).

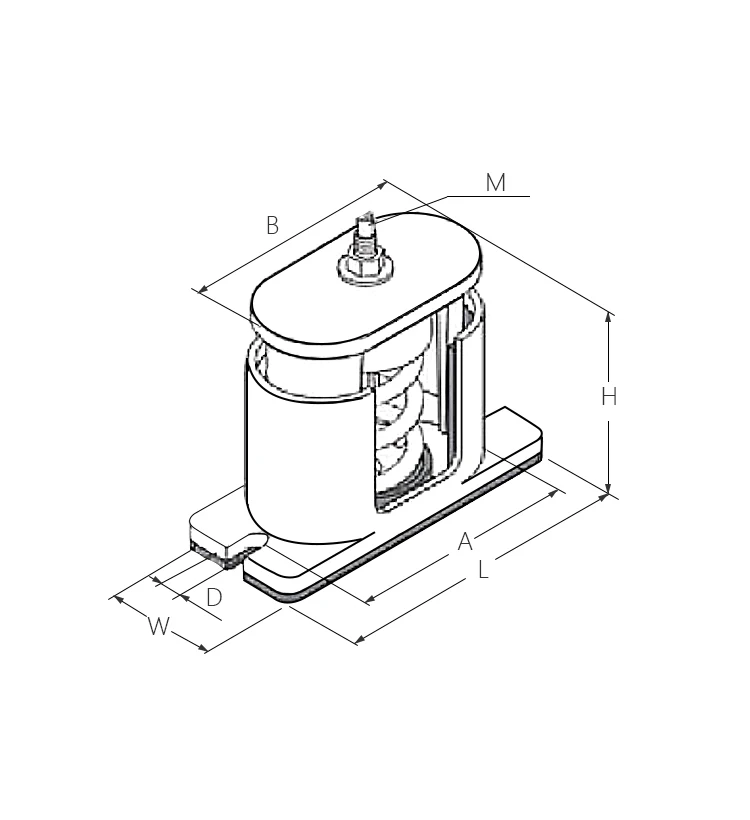

Model | Dimension | ||||||||||||
L | A | B | W | H | M | D | |||||||
JB-S | 148 | 126 | 106 | 62 | 95 | 12 | 12*!8 | ||||||
JB-M | 180 | 150 | 118 | 83 | 140 | 12 | 12*30 | ||||||
JB-L | 220 | 185 | 153 | 90 | 185 | 14 | 15*25 | ||||||
Model | Load range （kg) | Coefficient of elasticity （Kg/mm) | Applicable deflection |
JB-12-S | 6-12 | 0.8 | 15 |
JB-18-S | 9-18 | 1.2 | 15 |
JB-30-S | 15-30 | 2 | 15 |
JB-40-S | 20-40 | 2.7 | 15 |
JB-55-S | 30-55 | 3.7 | 15 |
JB-75-S | 40-75 | 5 | 15 |
JB-90-S | 45-90 | 6 | 15 |
JB-120-S | 60-120 | 8 | 15 |
JB-150-S | 75-150 | 10 | 15 |
JB-180-M | 150-180 | 7.2 | 25 |
JB-250-M | 200-250 | 10 | 25 |
JB-300-M | 300-350 | 12 | 25 |
JB-350-M | 350-400 | 14 | 25 |
JB-400-L | 450-400 | 16 | 25 |
JB-450-L | 400-450 | 18 | 25 |
JB-500-L | 500-600 | 20 | 25 |
JB-600-L | 600-700 | 24 | 25 |
JB-700-L | 700-850 | 28 | 25 |
JB-850-L | 700-850 | 34 | 25 |
JB-1000-L | 850-1000 | 40 | 25 |
Features of Industrial use Floor Mount Vibration Isolators
1) The body material is high-strength aluminum alloy
2)Lightweight and firm appearance, easy to install: suitable for all kinds of mechanical internal shock absorbers
3) All springs are treated with heat treatment, ED rusting, baking varnish or plastic spraying procedures
4)Load deflection of 25mm can effectively eliminate mechanical structure vibration
2)Lightweight and firm appearance, easy to install: suitable for all kinds of mechanical internal shock absorbers
3) All springs are treated with heat treatment, ED rusting, baking varnish or plastic spraying procedures
4)Load deflection of 25mm can effectively eliminate mechanical structure vibration

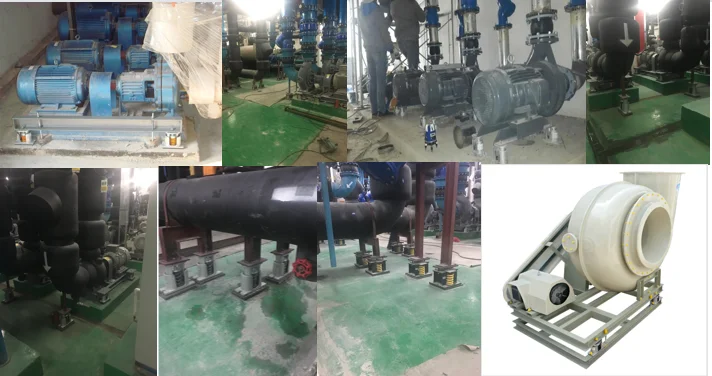

Application
Application of Industrial use Floor Mount Vibration Isolators
1)Air conditioning box, centrifugal fan
2)Small ice water machine, various water pumps and pipes
3)Generating units, general industrial units
2)Small ice water machine, various water pumps and pipes
3)Generating units, general industrial units
Packing&Shipping
Inner package of Industrial use Floor Mount Vibration Isolators:Plastic film
Outer package of Industrial use Floor Mount Vibration Isolators :Wooden Case
Delivery of Industrial use Floor Mount Vibration Isolators:Within 7 days after received the payment
Company Introduction
Shanghai Songjiang Jiufu Shock Absorber Co., Ltd. has always pursued the business tenet of "survive by quality and development by science and technology", the quality policy of "integrity-based, technological innovation, wholeheartedness and perfection" and a warm and thoughtful after-sales service system. "Building a brand-name enterprise and opening up the international market" is our eternal goal to move towards a first-class enterprise with an internationally synchronized management level.
