Product Description

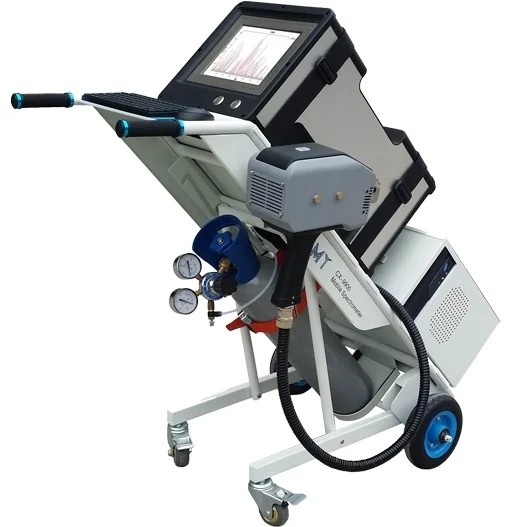

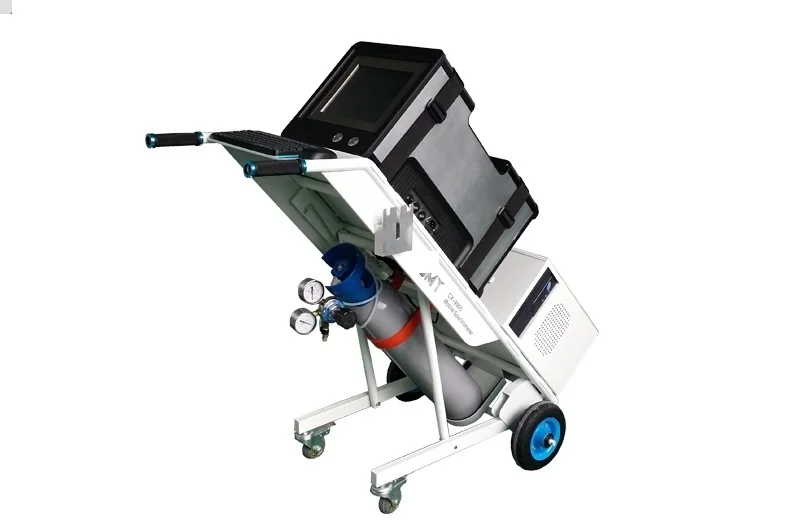

CX-9900 mobile metal analyzer is a mobile arc spark spectrometer ideal for many applications in the metal producing, processing,
and recycling industries.
CX-9900 mobile metal analyzer has advantages of high precision and good stability of analysis, easily operation, and extensive
applications, small size, light in weight.
CX-9900 mobile analyzer can be used in identification of materials in processing factory, structure material analysis in
petrochemical equipment, and metal analysis in recycling industry.
CX-9900 mobile spectrometer is metal analyzer with CCD optical technology and modern microelectronics components.
CX-9900 mobile spectrometer is your choice for analysis of C, P, S, B, Sn, As and N and other non- metallic elements and other
metal contents in inconvenient cutting large Metal components. It can analyze various forms of metal materials, such as: pipe,
bar, valves, welds, tanks, castings and so on.
The CX-9900 Mobile Spectrometer can meet your analytical requirements , whether in the factory premises or outside the factory, in
scrap yards, submerged submarine tanks, or on high-altitude ladders in chemical
and recycling industries.
CX-9900 mobile metal analyzer has advantages of high precision and good stability of analysis, easily operation, and extensive
applications, small size, light in weight.
CX-9900 mobile analyzer can be used in identification of materials in processing factory, structure material analysis in
petrochemical equipment, and metal analysis in recycling industry.
CX-9900 mobile spectrometer is metal analyzer with CCD optical technology and modern microelectronics components.
CX-9900 mobile spectrometer is your choice for analysis of C, P, S, B, Sn, As and N and other non- metallic elements and other
metal contents in inconvenient cutting large Metal components. It can analyze various forms of metal materials, such as: pipe,
bar, valves, welds, tanks, castings and so on.
The CX-9900 Mobile Spectrometer can meet your analytical requirements , whether in the factory premises or outside the factory, in
scrap yards, submerged submarine tanks, or on high-altitude ladders in chemical
Optical System | Optical Structure | Paschen-Runge Mount | |
Rowland Circle of Diameter | 350mm | ||
Wavelength Range | 130nm-800nm | ||
Detector | Multi high resolution CCD detectors | ||
Degree of Vacuum | Auto control within 6-15 Pa | ||
Pixel Resolution | 30pm | ||
Full Spectrum | |||
Light room temperature is controlled automatically | |||
Spark Source | Type | Digital arc and spark source/New plasma generator | |
Spark Frequency | 100-1000Hz | ||
Plasma Current | 1-80A | ||
Ignition Voltage | >8000V | ||
Spark Stand | Argon flushed with minimal consumption of Argon | ||
Spray discharge electrode technology | |||
Adjustable sample clamp | |||
Others | Measurable Elements | Fe base, Al base, Cu base, Zn base, etc. | |
Dimension | 830mm(L)*700mm(W)*460mm(H)(Benchtop) 830mm(L)*700mm(W)*1230mm(H)(Floor Module) | ||
Weight | 80Kg(Benchtop) 120Kg(Floor Module) | ||
Storage Temperature | 0℃-45℃ | ||
Operating Temperature | 10℃-30℃, 23±2℃ is recommended | ||
Power | AC220V/50Hz | ||
Power Consumption | Excitation: 700W / Stand by:100W | ||
Argon Quality | 99.999%, Argon pressure >4MPa | ||
Argon Consumption | 5L/min during spark mode | ||
No. | Product | Brand | Place of origin |
1 | Linear array CCD | Toshiba | Japan |
2 | Optical grating | Zeiss | Germany |
3 | Optical lens | Zeiss | Germany |
4 | Optical fiber | Agilent | America |
5 | slit | Lenox laser | America |
6 | Filter | TDK | Japan |
7 | Pressure sensor | SSI | Canada |
8 | Magnetic valve | Burkert | Germany |
9 | Light source module | CREATE | CREATE |
10 | system control module | CREATE | CREATE |
11 | data acquisition module | CREATE | CREATE |
12 | Vacuum optical module | CREATE | CREATE |
13 | Spark stand module | CREATE | CREATE |
14 | System software | CREATE | CREATE |
15 | Laptop or PC | Lenovo | China |
16 | Printer | HP | America |
17 | Standard sample | National Standard | China or import |
Matrices
* Available for Fe, Al, Cu, Zn, Ti, Ni, Pb,etc.
Spark Stand
* Argon flushed with minimal consumption .
* Minimal maintenance requirements
* Customized small sample clamp .
Read-out System
* Ethernet data transmission based on DM9000A
* High performance Read-out System processes
the spectrum data five times faster than traditional
systems
Excitation Source
* Optimized ignition parameters
* Pre-spark with high discharge energy
* HEPS digital excitation source
* Maximum power : 700w,standby 40W
Software
* High accurate analysis results are easily achieved.
* Status monitor in sparking
* Microsoft Windows 7 operating system
* Strong Database capability
* Customized format of report
Optical system
* Multi-CCD detectors with high resolution
* Paschen-Runge structure with full wavelength
coverage
* Saving valuable analytical time and enhancing
accuracy and detection limits.
* Incorporate sample excitation and automated
sample monitoring techniques.
Electrical and Environmental
Requirements:
* Voltage : AC220V, 50Hz
* Temperature : 10℃~30℃.
* Humidity : 20%~80%
* Purity of Argon ：99.999%
Dimensions
Bench top Floor model
Length 500 mm 830 mm
Width 450 mm 700 mm
Height 300 mm 1450 mm
* Available for Fe, Al, Cu, Zn, Ti, Ni, Pb,etc.
Spark Stand
* Argon flushed with minimal consumption .
* Minimal maintenance requirements
* Customized small sample clamp .
Read-out System
* Ethernet data transmission based on DM9000A
* High performance Read-out System processes
the spectrum data five times faster than traditional
systems
Excitation Source
* Optimized ignition parameters
* Pre-spark with high discharge energy
* HEPS digital excitation source
* Maximum power : 700w,standby 40W
Software
* High accurate analysis results are easily achieved.
* Status monitor in sparking
* Microsoft Windows 7 operating system
* Strong Database capability
* Customized format of report
Optical system
* Multi-CCD detectors with high resolution
* Paschen-Runge structure with full wavelength
coverage
* Saving valuable analytical time and enhancing
accuracy and detection limits.
* Incorporate sample excitation and automated
sample monitoring techniques.
Electrical and Environmental
Requirements:
* Voltage : AC220V, 50Hz
* Temperature : 10℃~30℃.
* Humidity : 20%~80%
* Purity of Argon ：99.999%
Dimensions
Bench top Floor model
Length 500 mm 830 mm
Width 450 mm 700 mm
Height 300 mm 1450 mm
