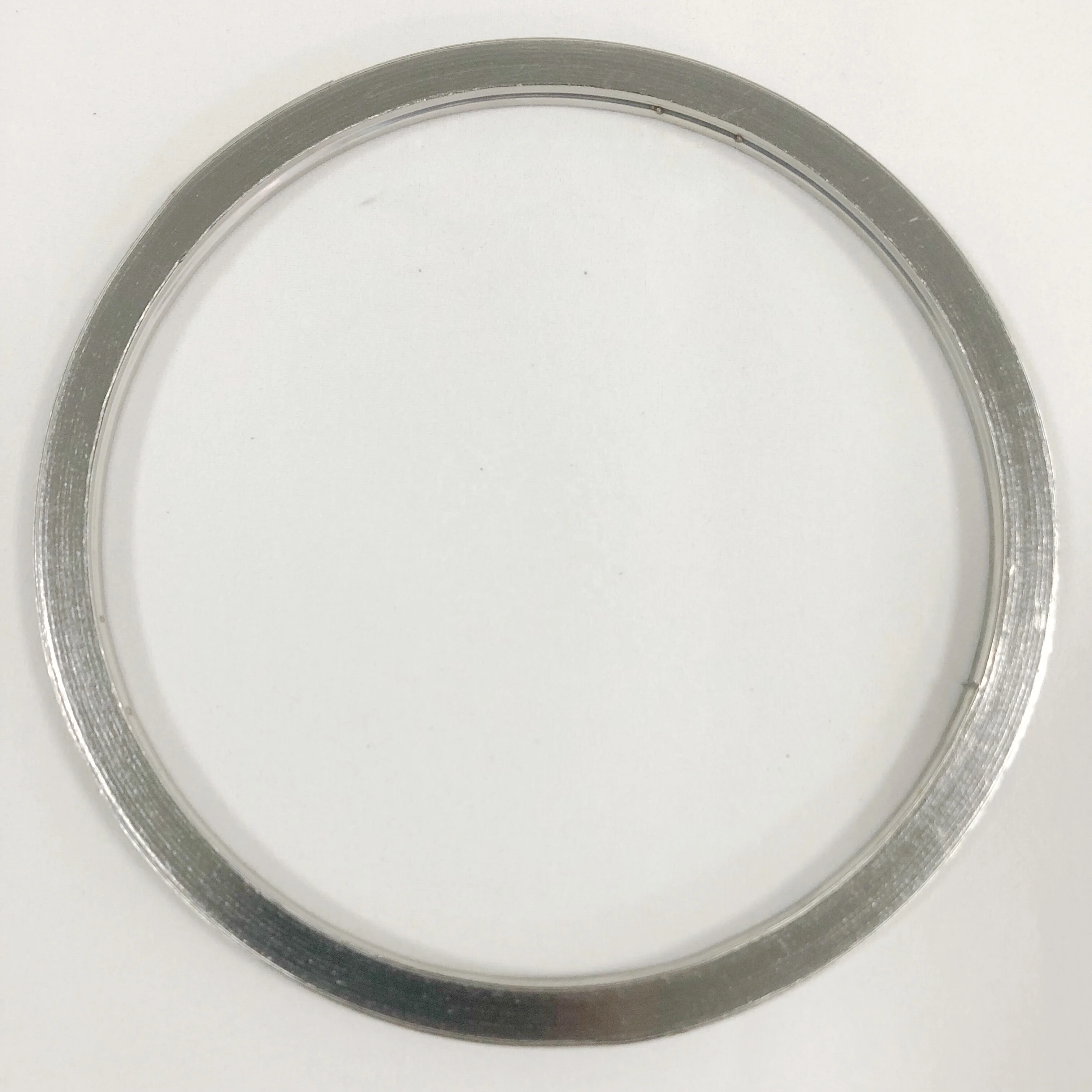

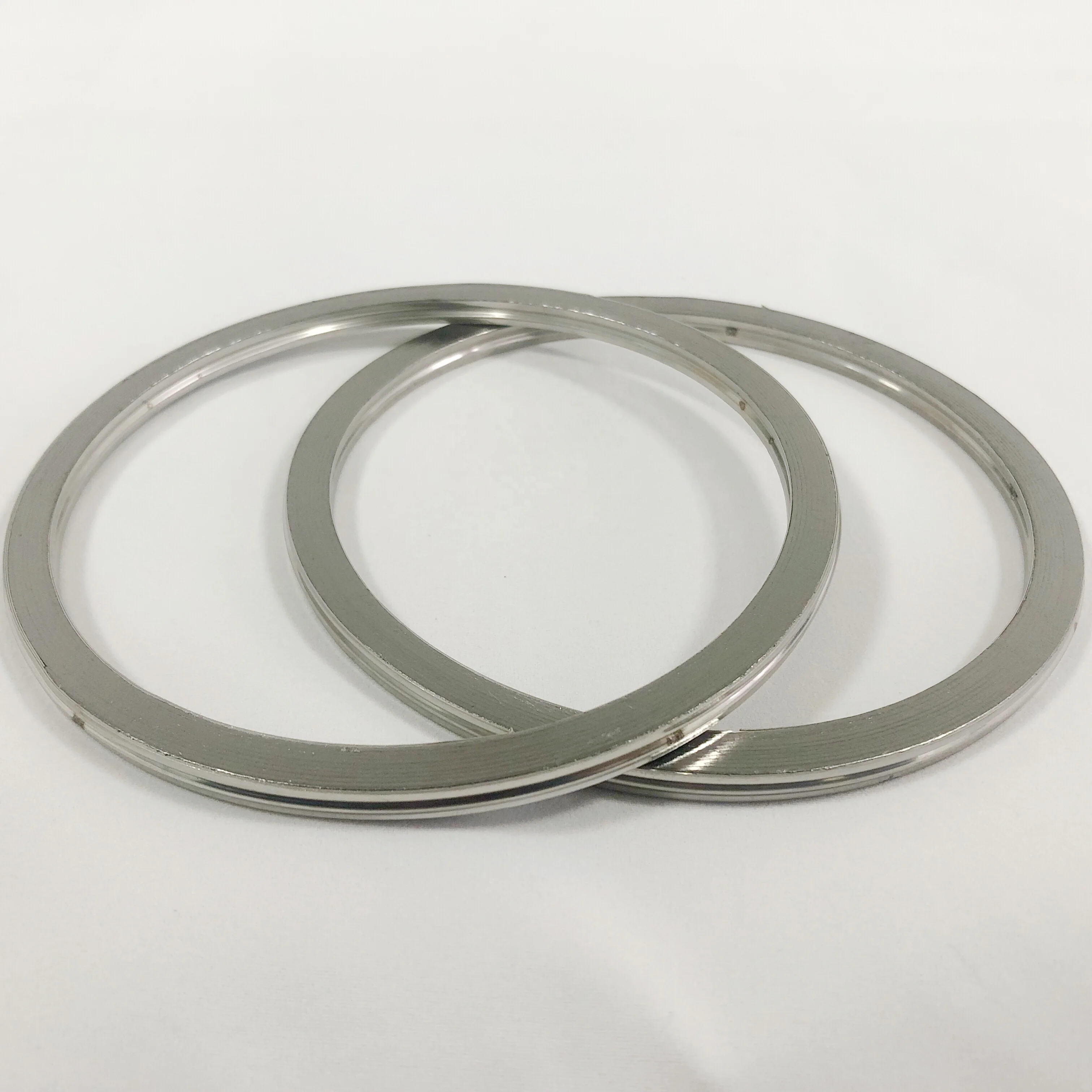

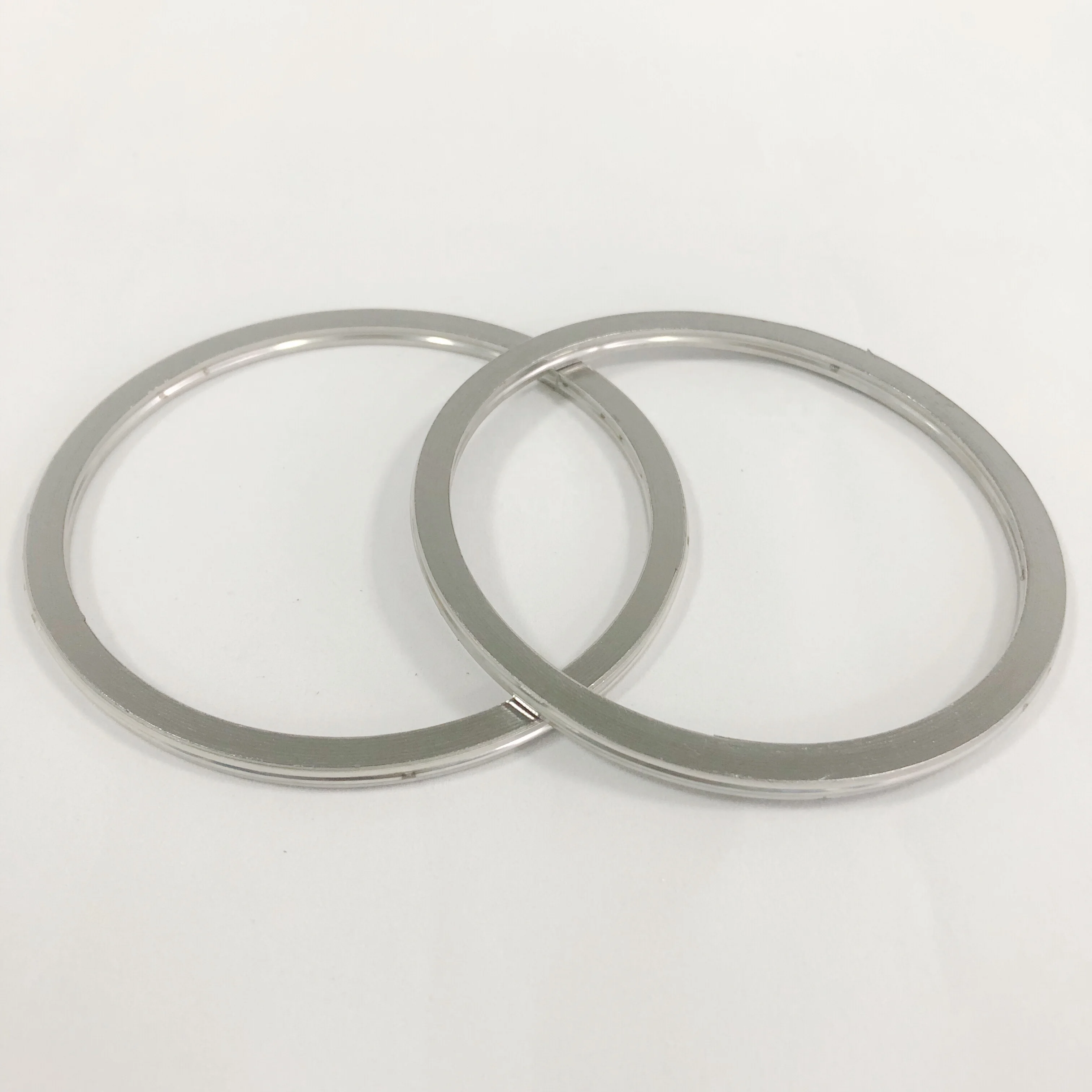

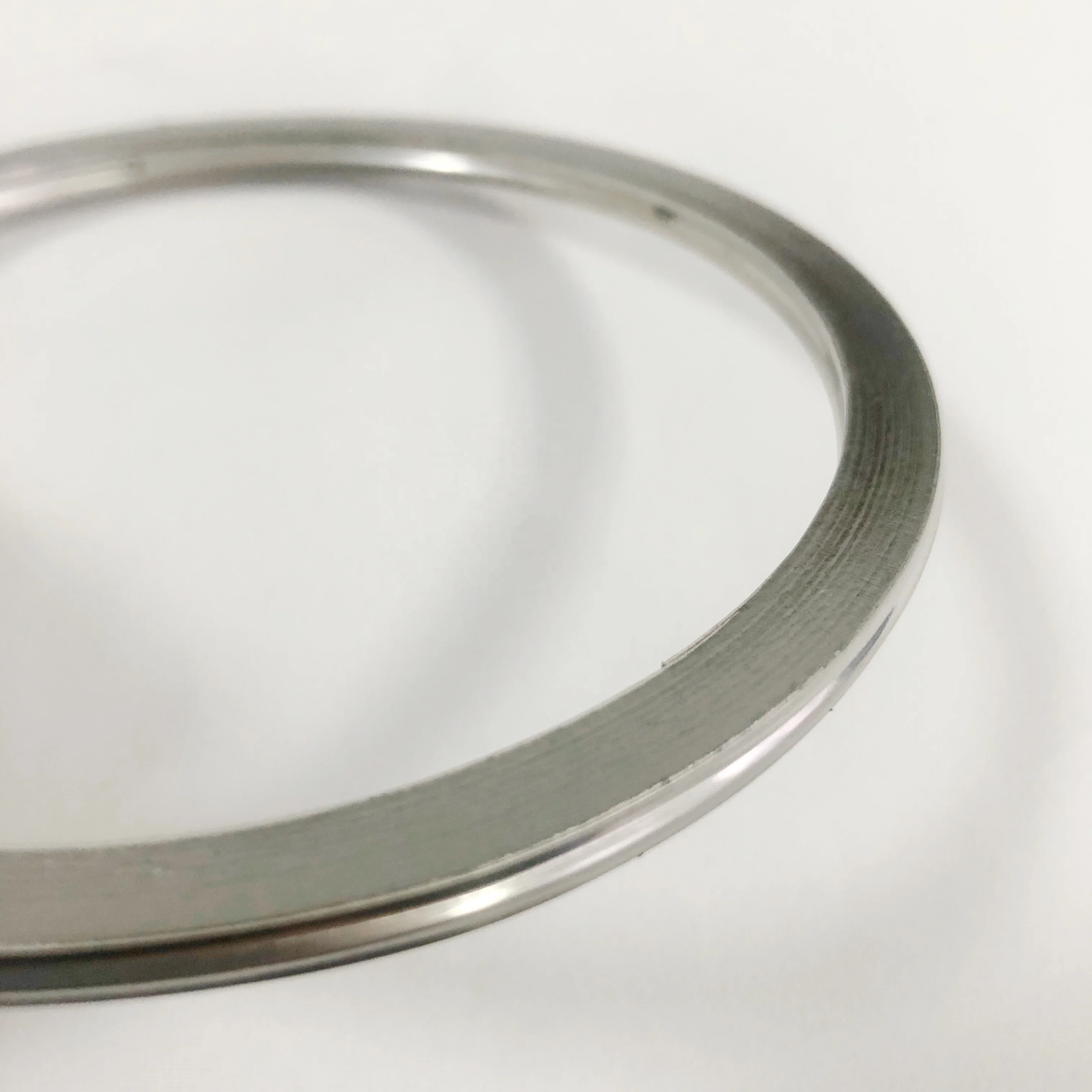

Прямая Заводская поставка, SS316 ПТФЭ спиральная прокладка
- Категория товара: Gaskets >>>
- Поставщик (Оптовый магазин): Zhenjiang,Chunhuan,Sealing,Materials,Co.,Ltd.,(group)
Поделиться:
Описание и отзывы
Характеристики
Product Description
DESCRIPTION OF PRODUCTS
Metal spiral wound gasket is widely used as a sealing gasket at present.
It is the best elastic gasket in semi-metal sealing gasket. It is made of V-shaped or W-shaped thin steel belt and various fillers alternately wound and can withstand The use of high temperature, high pressure and conditions suitable for ultra-low temperature or vacuum conditions can solve the problem of chemical corrosion of various gaskets by changing the material combination of the gasket.

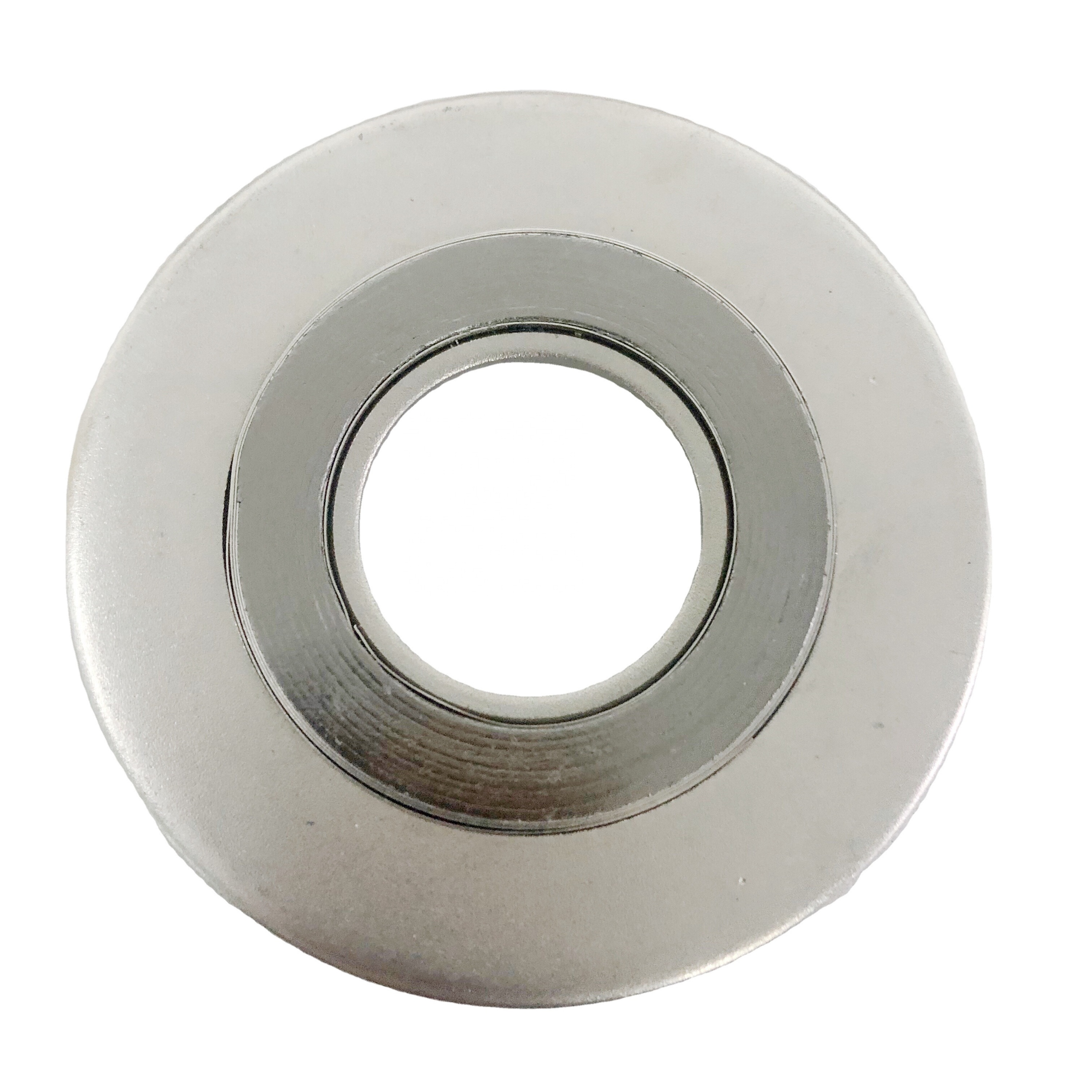

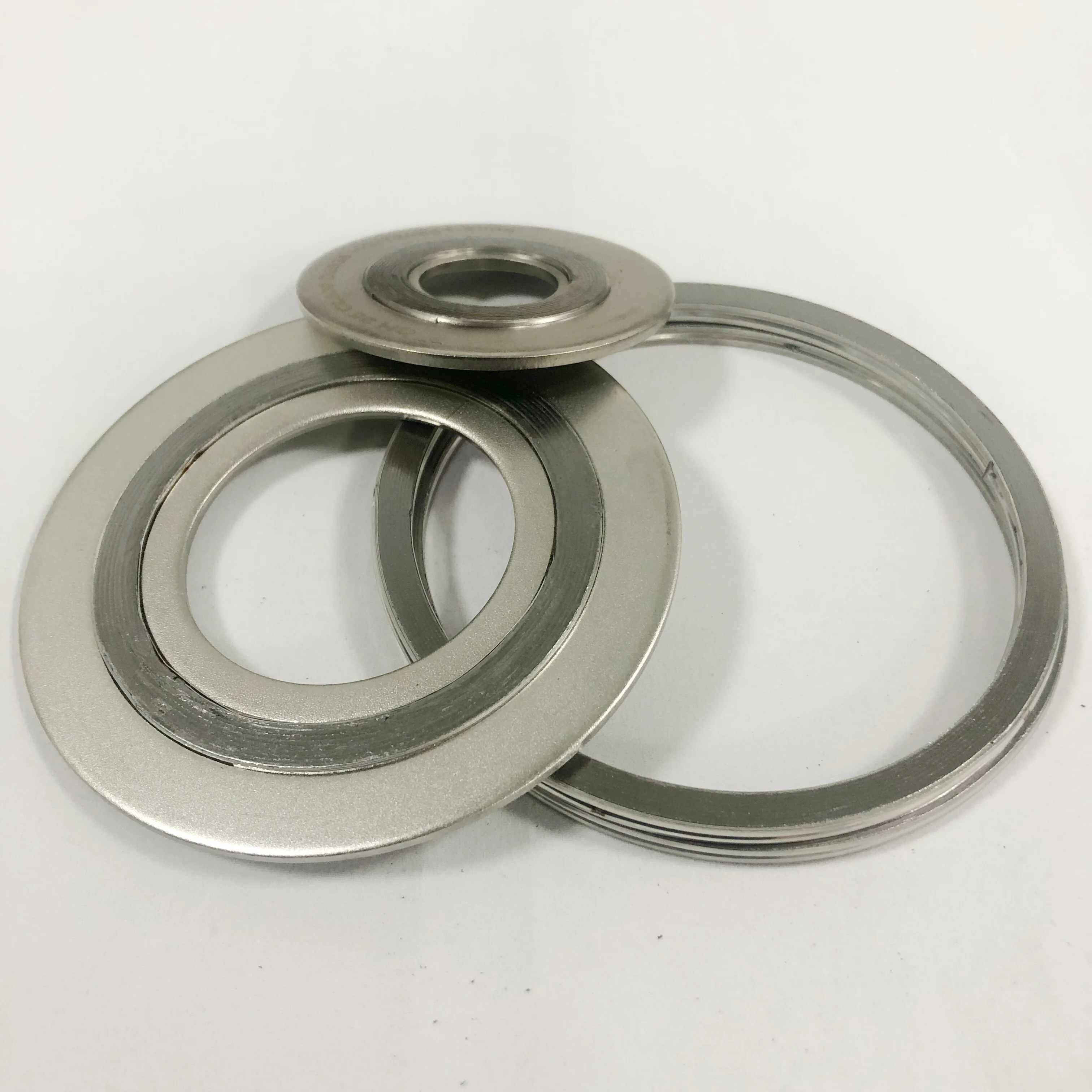

The structural density can be made according to the different locking force requirements to strengthen The main body and accurate positioning, winding gasket with metal inner ring and outer ring, using internal and external steel ring to control the maximum compression, the gasket surface contact surface of the flange sealing surface requirements are not high.
APPLICATION
* Suitable for uneven load, easy relaxation of joint force, periodic change of temperature and pressure, impact or vibration.
* Is the valve, pump, heat exchanger, tower, manhole, hand hole and other flange connections of the static seal original,
* Widely used in petrochemical, machinery, power, metallurgy, shipbuilding, medicine, atomic energy and aerospace and other departments.
FILLED MATERIAL AND MAIN PROPERTIES
Filler | Temperature(℃ ) | Max Pressure | Media | Compression(% ) | Rebound(% ) | Relaxation(%) |
F.G. | -220--550 | 250 BAR | corrosive | 18--30 | ≥17 | ≤18 |
ASB | -150--450 | 100 BAR | vulgaris air tightness | 18--30 | ≥19 | ≤28 |
PTFE | -200-- 250 | 100 BAR | corrosive | 18--30 | ≥15 | ≤13 |
NAF | -100--350 | 100 BAR | vulgaris air tightness | 18--30 | ≥19 | ≤28 |
MICA | -150--800 | 100 BAR | H-TEMP | 18--30 | ≥19 | / |
CER | -200--1090 | 100 BAR | Ultra-TEMP | 18--40 | ≥19 | / |
MATERIALS FOR OD AND ID,MAIN PROPERTIES
Materials | Mark | Hardness(HB) | Temperature(°C) |
Carbon steel | CS | 120 | -40~+540 |
SUS 304 | 304 | 130~180 | -195~+550 |
SUS 316L | 316L | 130~180 | -100~+550 |
SUS 321 | 321 | 130~190 | -195~+760 |
HASTELLOR-B2 | HASTB | 215 | -185~+1090 |
INCONEL-600 | INC600 | 150 | -100~+1090 |
MONEL-400 | MON | 150 | -130~+820 |
Ti | T2 | 215 | -195~+1090 |
STANDARD
·HG20610 /HG20631 / ·ASME B16.20/·DIN / BS 3381-1999
·JIS B2404-1999 JIS TS-1998
·GB/T4622.2 /·JB/T4719 /SH3407 and so on
CHARECTERISTIC
1.The applicable working condition range is wide. Can resist high temperature, high pressure, and adapt to the use condition of ultra-low temperature or vacuum. By changing the material combination of the gasket, the chemical corrosion problem of the various media to the gasket can be solved.
2.The stress compensation ability is strong. The sealing performance is stable and reliable at the station with frequent temperature and pressure fluctuation.
3.The sealing performance is excellent.
4.The surface accuracy requirement for flange sealing contact with the gasket is not high. 5.The installation is convenient, and the pre-tightening pressure of the gasket is low.
Our Services
OUR SERVICE
1)Your inquiry will be replied within 2 hours during working time,Within 24hours when rest time.
2)Our working time is 7.30 AM --17:30 PM,Monday to Saturday.
3)General samples time can be arranged within 2--5days.
4)Orders will be produced exactly as request and approved samples.
5)When mass production,we send photos to show the production line.And confirm the estimate time again.
6)At the end of mass production,photos and samples will send to you for approval.You can arrange the inspection.
7)Before shipment,our QC will have inspection to make sure the quality.
8)We always try best to ensure every order to delivery in time.
Company Information
Zhenjiang Chunhuan Sealing Material Co., Ltd is one of the fluoroplastics processing enterprises taking the lead in passing the IS09001 quality system certification. And with the strength of PTFE products, which are superior quality with REACH,RoHS,MSDS certificate.
Our group mainly manufactures products: PTFE rod, PTFE film, pipes, sheets & mats, PTFE push rods & extrude rods, PTFE turning plates & teflon film , PTFE fillings, PTFE belts, ropes, tapes & packing tapes, metallic gaskets, PTFE corrosion resistant linings, composited tubes & pipe fittings, rubber sheets, mats, framework oil seals & o-rings.
