Product Description

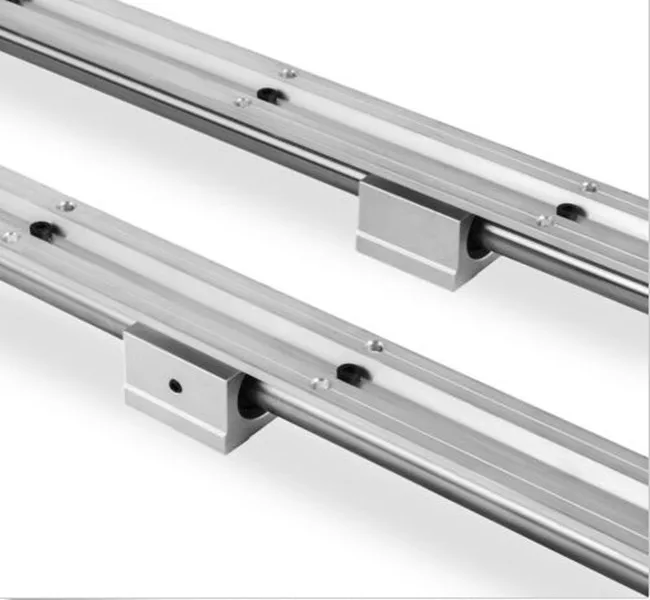

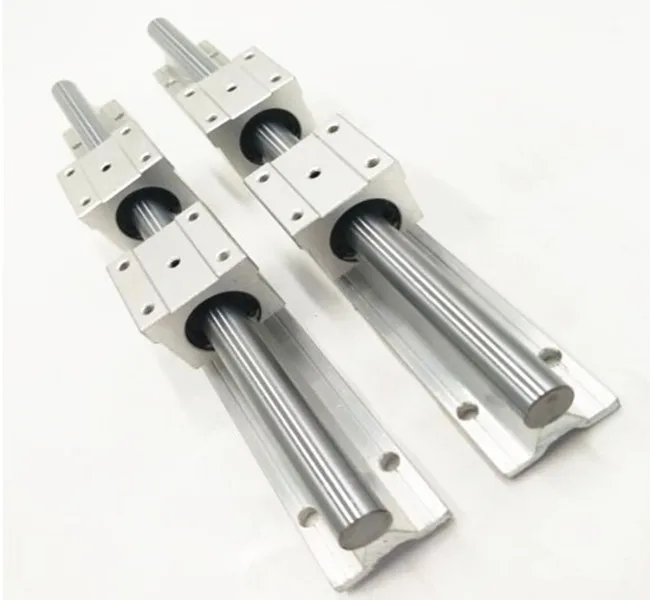

Sliding Rail System Linear Motion Guide Rail SBR20 with SBR20uu
Support rail unit is assembled of Support Rail, LM Shaft, and Open type Linear Bushing Case. All components are standardized for providing interchangeability and less cost and designing time.

Product Feature of Linear Support Rail Unit:
1.Interchangeable
2.Max length: 4000mm
3.High quality standard

4. Rail:  Length can be cut freely.

sbr s shaft rail.JPG





SBR series support rail units
DesignationShaft     DiameterBasic load ratingWeight(gf) Dimension(mm)
Rail UnitsSlide UnitsDynamic           C NStatic      Co NSlide Units  (kgf)Rails  (kgf/m)DhHEθ
SBR16SASBR16UUAØ1677011700.152.5622.525452.580º
SBR20SASBR20UUAØ2086013700.23.52427501.560º
SBR25SASBR25UUAØ2598015600.455.33033602.550º
SBR30SASBR30UUAØ30156027400.637.38353770550º
SBR35SASBR35UUAØ35166031300.929.684043807.550º
SBR40SASBR40UUAØ40215040101.3312.694548907.550º
SBR50SASBR50UUAØ5038207930320.46606211512.550º



 Detail of Linear Rail and Slide Unit




Features of Linear Slide Unit

1. Widely used in electronic equipment, food machinery, tools, machinery, CNC machine tools, Automotive and digital three-dimensional equipment or special machinery industry;

2. Used with the quenching linear drive shaft, Small friction resistance and high precision;

3. Guide rails can be used for docking, Small friction resistance and high precision.

 The following items in stock:


SBR..UU

SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU,SBR40UU,SBR50UU

SBR..LUU

SBR16LUU,SBR20LUU,SBR25LUU,SBR30LUU,SBR40LUU

TBR..UU

TBR16UU,TBR20UU,TBR25UU,TBR30UU

TBR..LUU

TBR16LUU,TBR20LUU,TBR25LUU,TBR30LUU

SCS..UU

SCS8,SCS10,SCS12,SCS13,SCS16,SCS20,SCS25,SCS30,SCS35,SCS40, SCS50

SCS..LUU

SCS8,SCS10,SCS12,SCS13,SCS16,SCS20,SCS25,SCS30,SCS35,SCS40, SCS50

SC..JUU

SCJ10,SCJ12.SCJ13,SCJ16,SCJ20,SCJ25,SCJ30,SCJ35,SCJ40, SCJ50

SCE

SCE8,SCE10,SCE12,SCE13,SCE16,SCE20,SCE25,SCE30,SCE35,SCE40, SCE50



Packaging & Shipping

             Package of Linear Slide Unit:

1. Standard export packing

2. According to the customers' request

 Shipping:

           1. Lead time: around 8-15 days, pls confirm before order;

           2. Incoterm: FOB, C&F, CIF;

           3. Delivery Cost: Pls advise the port of destination and we could assist to check it for you;

           4. Payment Term: T/T; L/C; PayPal; Alibaba Trade Assurance.



Our Services

 Related Productsparts

Company Information

 001001



Shandong Jingrui Transmission Technology Co,.Ltd. is one professional manufacturer of linear motion systems and automation components.

The factory is produce a wide range of linear guide rail, blocks (carriages) and support shafts, ball screws&end supports, rack and pinion and linear bearings. The linear rails can be produced in standard lengths or cut to any desired requirement as part of a complete assembly.

Shandong Jingrui offers one-stop solutions for any motion control application.It does not matter if you are a one time user, or a large volume OEM, we can assist you in your advantage and selecting the most cost effective solution to successfully complete your Automation Tasks.

Welcome to contact us for discuss the details.
