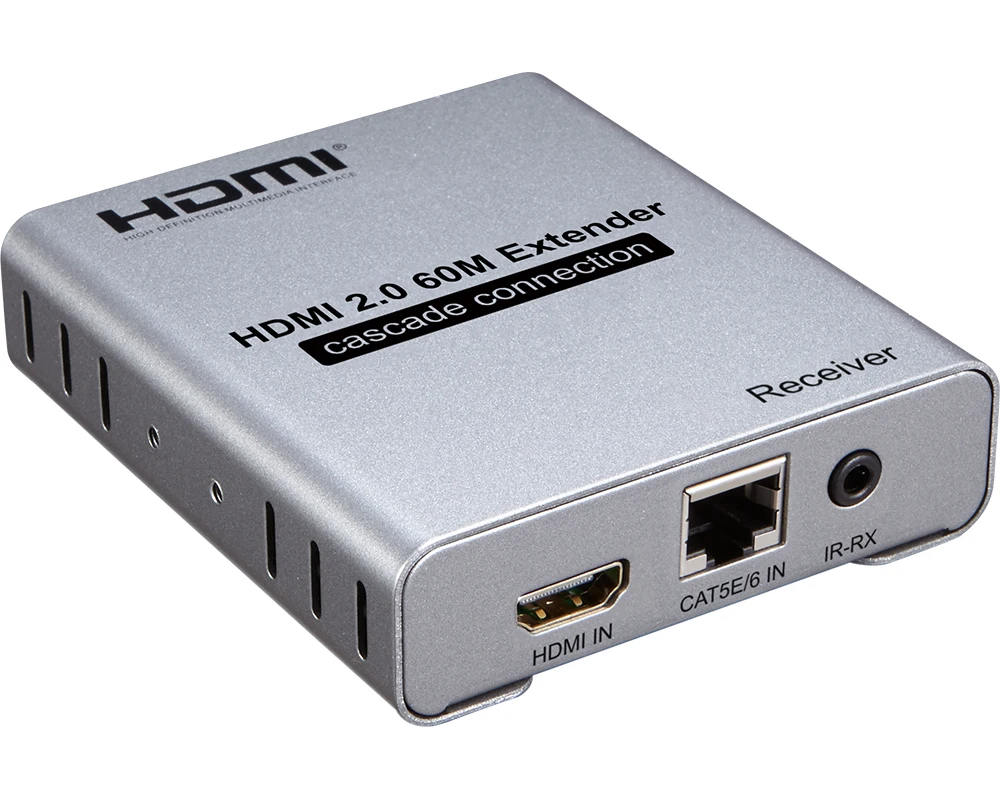

Прямая продажа с фабрики лучшая Hdmi 2,0 удлинитель 60 м 4k 60hz Hdr каскадное соединение точка-многоточечный более Cat6 кабель
- Категория товара: Кабель для проигрывателя MP3 / MP4 >>>
- Поставщик (Оптовый магазин): Changzhou,Halee,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

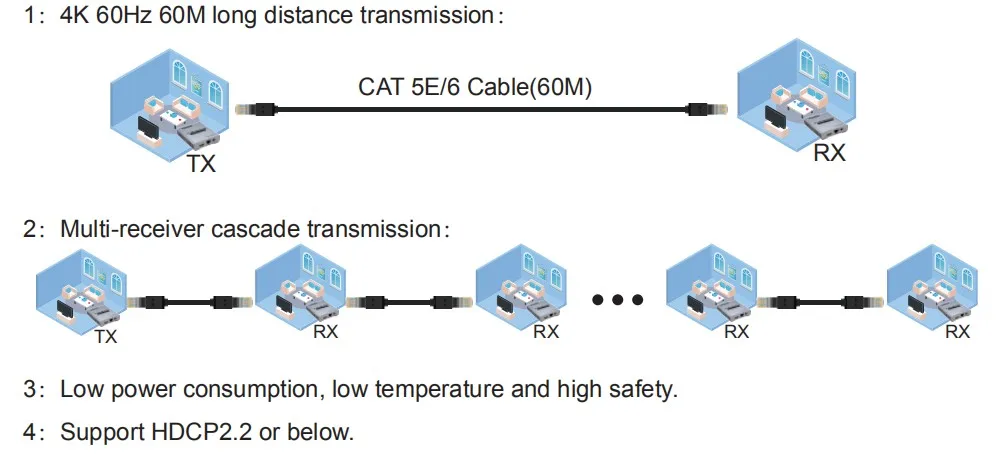

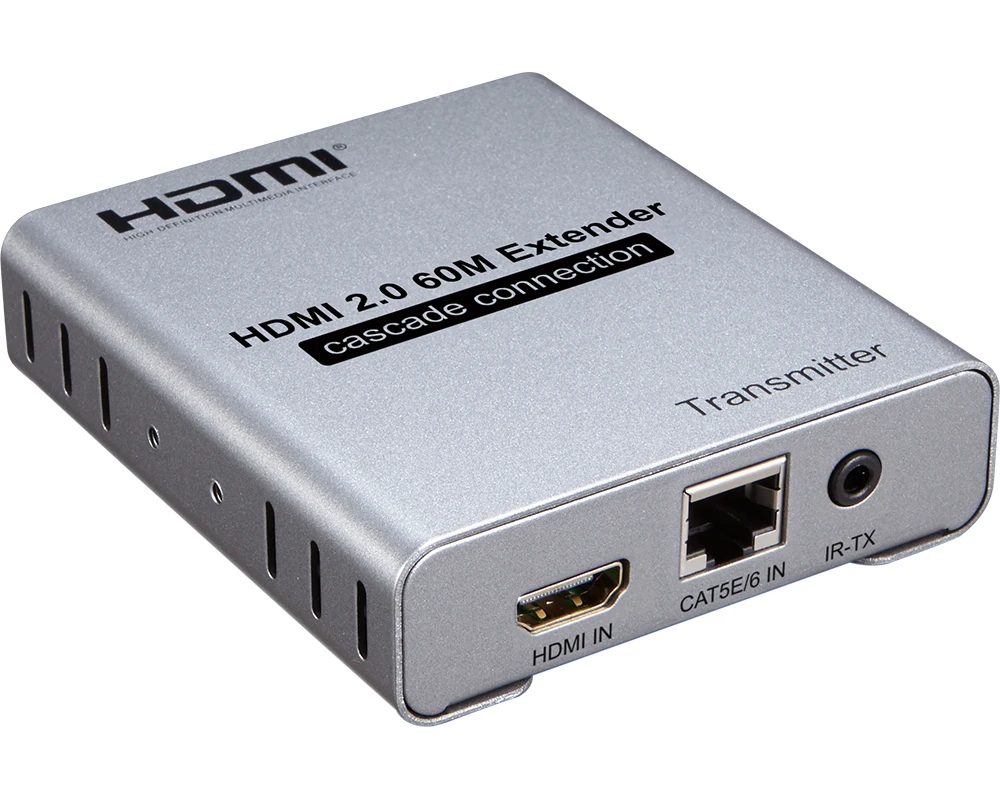

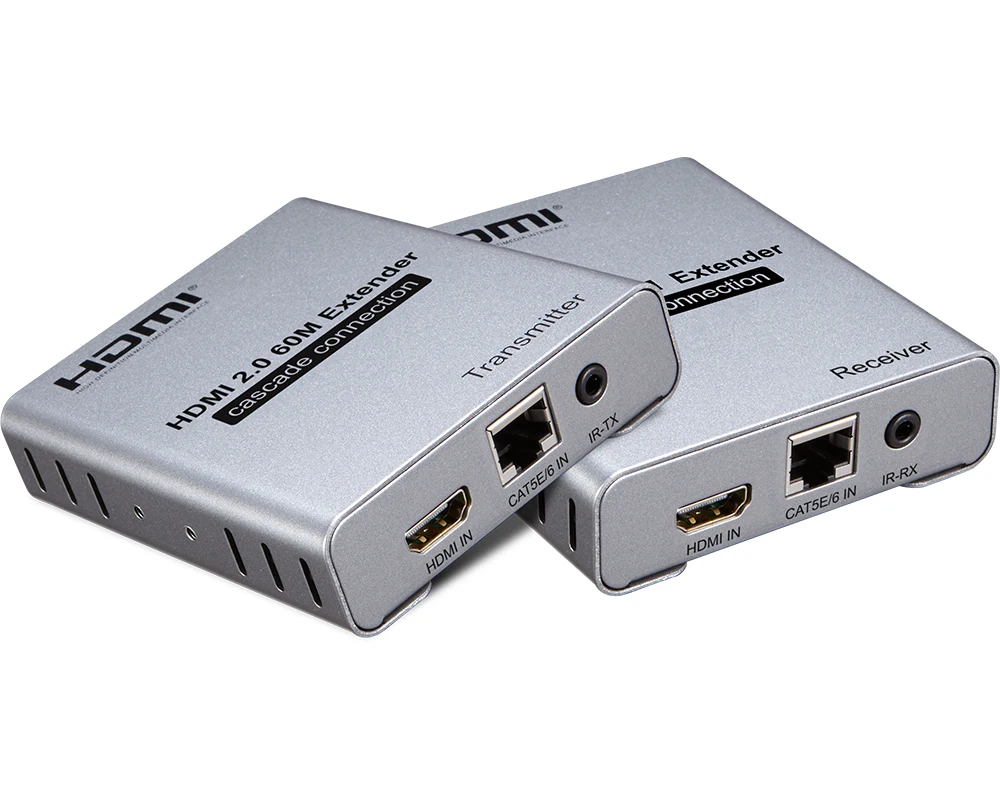

HDMI 2.0 60M Extender cascade connection
The HDMI 2.0 60m extender uses single cat-5E or cat-6(recommended) cable instead of
HDMI cable, you can extend the HDMI 2.0 4K@60Hz signal to 60 meters.or 4K@30Hz
and 1080P singal to 120 meters.The purpose of the extender is to achieve long-distance
signal transmission with low-cost wires.
HDMI cable, you can extend the HDMI 2.0 4K@60Hz signal to 60 meters.or 4K@30Hz
and 1080P singal to 120 meters.The purpose of the extender is to achieve long-distance
signal transmission with low-cost wires.
1. Top Quality: We have strict quality control system and enjoy good reputation from the market.
2. Excellent Service: We treat clients as friends&partners and aims at building long term business relationship.
3. OEM Accepted : We Can print your own logo on the products.
4. Timely Delivery: Your order shall be shipped on time.
5. We would like explore more nicer design to support customers' demand.
2. Excellent Service: We treat clients as friends&partners and aims at building long term business relationship.
3. OEM Accepted : We Can print your own logo on the products.
4. Timely Delivery: Your order shall be shipped on time.
5. We would like explore more nicer design to support customers' demand.
Features
Specifications
Length of CAT-5E/CAT-6 cable between Rx and TX …..….…..................... up to 60 meters
HDMI input …..………...............….........…................. 4K/1080p/720p/576p/576i/480p/480i
Support audio format .……………......………………………….................. DTS/Dolby/LPCM
HDMI output …..…………….…...….....………............ 4K/1080p/720p/576p/576i/480p/480i
Max bandwidth ……………………......…………………………………….................. 600MHz
Max baud rate ……………….………….……….....…………………….................... 6Gbps x3
Input video signal ………....................….………..………..…………….…… 0.5~1.5Volts p-p
Output DDC signal ……………………...……..……………...................…… 5Volts p-p (TTL)
Input HDMI cable distance ………….…...................... ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ………….….................... ≤10m AWG26 HDMI standard cable
TX Max working current ………………………...………………………….................... 350mA
RX Max working current ……………...………...………………………….................... 200mA
Power adapter format …................. Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ……..………...……….…………...................… (-15 to +55℃)
Operating Humidity range ….………..….….................… 5% to 90%RH (No Condensation)
Dimension (L x W x H) …………….......…………………....................……… 94x84x24(mm)
TX Weight …………………………….........…..………………………………................... 223g
RX Weight ....................………………………...........……..……………………………… 223g
HDMI input …..………...............….........…................. 4K/1080p/720p/576p/576i/480p/480i
Support audio format .……………......………………………….................. DTS/Dolby/LPCM
HDMI output …..…………….…...….....………............ 4K/1080p/720p/576p/576i/480p/480i
Max bandwidth ……………………......…………………………………….................. 600MHz
Max baud rate ……………….………….……….....…………………….................... 6Gbps x3
Input video signal ………....................….………..………..…………….…… 0.5~1.5Volts p-p
Output DDC signal ……………………...……..……………...................…… 5Volts p-p (TTL)
Input HDMI cable distance ………….…...................... ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ………….….................... ≤10m AWG26 HDMI standard cable
TX Max working current ………………………...………………………….................... 350mA
RX Max working current ……………...………...………………………….................... 200mA
Power adapter format …................. Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ……..………...……….…………...................… (-15 to +55℃)
Operating Humidity range ….………..….….................… 5% to 90%RH (No Condensation)
Dimension (L x W x H) …………….......…………………....................……… 94x84x24(mm)
TX Weight …………………………….........…..………………………………................... 223g
RX Weight ....................………………………...........……..……………………………… 223g

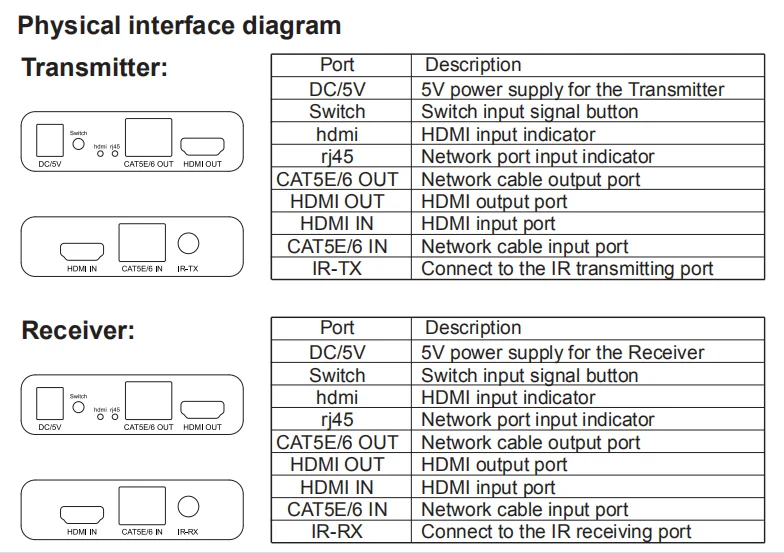

Connecting and Operating:
1.Connect source device with transmitter by one HDMI cable, the cable max length is 10 meters.
2.Connect display device with receiver by one HDMI cable, the cable max length is 10 meters.
3.Connect TX with RX by one cat5e or cat 6(recommended), the cable max length is 60 meters.
4.One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively
2.Connect display device with receiver by one HDMI cable, the cable max length is 10 meters.
3.Connect TX with RX by one cat5e or cat 6(recommended), the cable max length is 60 meters.
4.One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively
5.Connect the power supply to the TX and RX.
6.LED indicator:
When the HDMI indicator is on, it indicates that the HDMI signal input , and the RJ45 indicator is on, indicating that the network port signal input .
6.LED indicator:
When the HDMI indicator is on, it indicates that the HDMI signal input , and the RJ45 indicator is on, indicating that the network port signal input .
Packing & Delivery

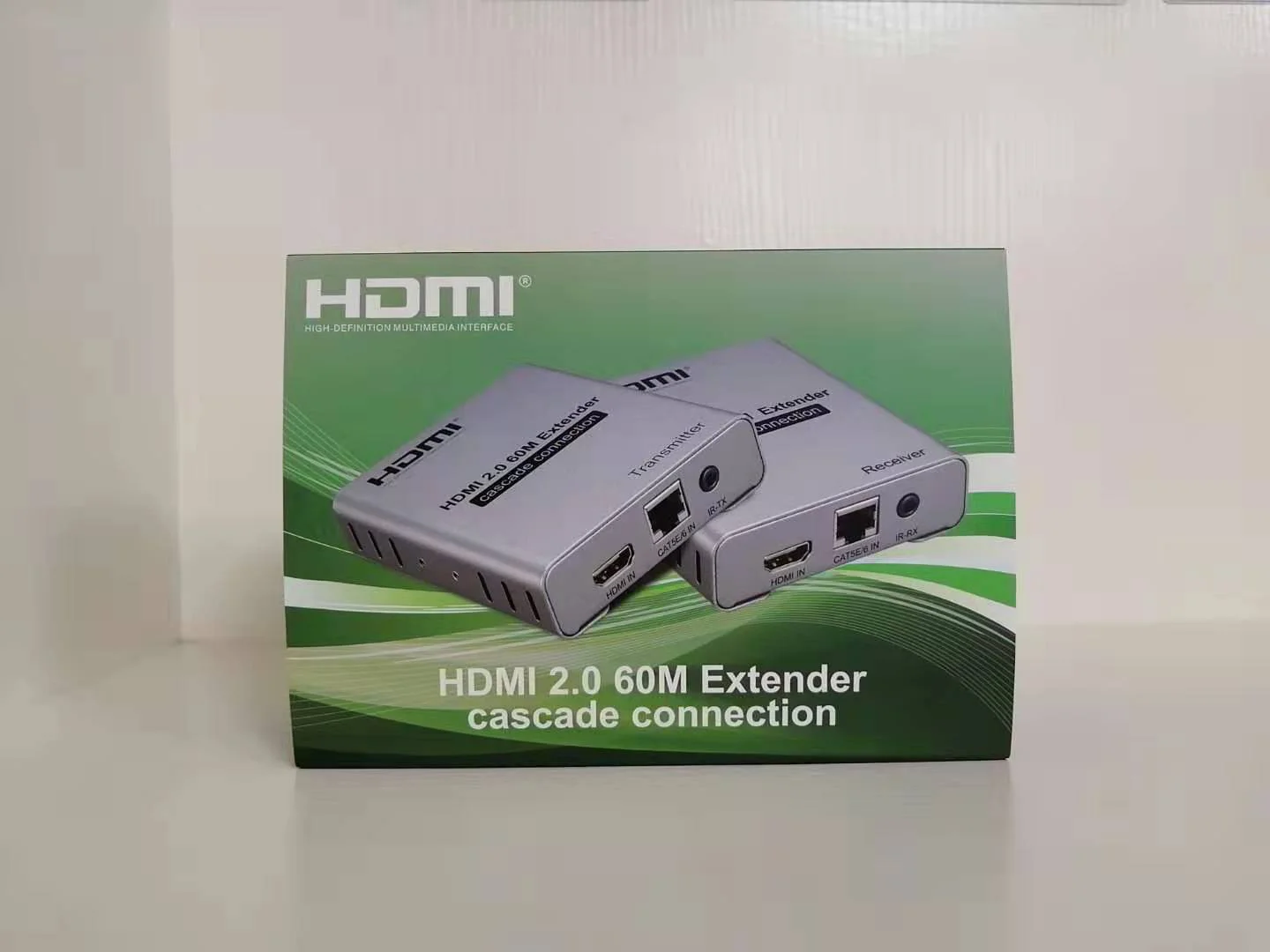

Packing
1. OPP bag/ Colour Box / Blister box
2. gift box / top hanger
3. OEM / ODM design are highly welcomed
Delivery
1. FOB shanghai / Ningbo / HK / shenzhen
2. Lead time : 1-3 weeks
3. By sea / by air / by ex-press
1. OPP bag/ Colour Box / Blister box
2. gift box / top hanger
3. OEM / ODM design are highly welcomed
Delivery
1. FOB shanghai / Ningbo / HK / shenzhen
2. Lead time : 1-3 weeks
3. By sea / by air / by ex-press
Company Profile
Changzhou Halee Electronic Co., Ltd. is located in Changzhou, Jiangsu Province and is specialized in connectors and cables ,including Audio, Home Theater, Video, Computer and Network Essentials. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Europe, the United States and other countries and regions. Our products enjoy a good reputation among our customers.We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Changzhou Halee Electronic Co., Ltd. is located in Changzhou, Jiangsu Province and is specialized in connectors and cables including Audio, Home Theater, Video, Computer and Network Essentials. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Europe, the United States and other countries and regions. Our products enjoy a good reputation among our customers.We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation
for mutual benefits.
for mutual benefits.
Recommend Products
FAQ
Q:Are you factory? | ||||||||
A:Yes.We are the factory with many years manufacturing experience. | ||||||||
Q:Can you customize the logo packaging and color | ||||||||
A:Yes.You should offer us the original design drawing with AI or CDR format file, MOQ depends on the product. | ||||||||
Q:What about the quantity? | ||||||||
A:All the goods will past strict inspection before sending out. And kindly check the goods once you received and contact us in time. We will help you solve the problem if the goods have quantity problem. | ||||||||
Q:Could you provide any sample? | ||||||||
A:Yes, we do pleasure to provide samples for your checking and testing quality. | ||||||||
Q:What kind of material you use? | ||||||||
A:High quality environmental protection material Comply with RoHS /REACH /PAHS /NP/SCCP/PHTHALATES. | ||||||||
Q:What is the after-sale service? | ||||||||
A:24hours ,7days after sale services ,1 year quality warranty and professional technologyperson to slove your matters. | ||||||||
Q:Do you have certificates for our markets? | ||||||||
A:Yes, we not only produce MFI cable, but also can provide CE, RoHS certificate for Europe customers, UL, FCC certificates for America customers, PSE certificates for Japan customers. | ||||||||
Q:Do you give any discount ? | ||||||||
A: Yes. We are the factory and manufacturer. Our price is reasonable and we havevery good price for bulk order | ||||||||
