5kVA Hybrid Solar Inverter for Off Grid Solar Power System
Technical Datas
| Model No. | MPS-5K | |
| Rated power | 5000VA /4000W | |
| Grid Input | Voltage | 230VAC |
| Selectable voltage range | 170-280VAC (for personal computers) | |
| 90-280VAC (for home appliances) | ||
| Frequency range | 50Hz/60Hz (auto sensing) | |
| Output | AC voltage regulation (Batt.mode) | 230VAC±5% |
| Surge power (5 seconds) | 10000VA | |
| Efficiency (peak) | 93% | |
| Transfer time | 10ms(for personal computers); 20ms (for home appliances) | |
| Waveform | Pure sine wave | |
| Battery & AC charger | Battery voltage | 48VDC |
| Floating charge voltage | 54VDC | |
| Overcharge protection | 62VDC | |
| Maximum AC charge current | 2A/10A /20A/30A /40A/50A/60A | |
| MAX PV array power | 300W for 60A, 4000W for 80A | |
| MPPT range operating voltage | 60~115V | |
| Maximum PV array open circuit voltage | 145VDC | |
| Maximum MPPT charging current | 60A/80A | |
| Maximum efficiency | 98% | |
| Standby power consumpsion | 2W | |
| Physical | Dimension, D*W*H(mm) | 155x295x455 |
| Net weight (kgs) | 12KG | |
| Operating Environment | Humidity | 5%-95% relative humidity ( non-condensing) |
| Operating temperature | 0℃-55℃ | |
| Storage temperature | -15℃~60℃ | |

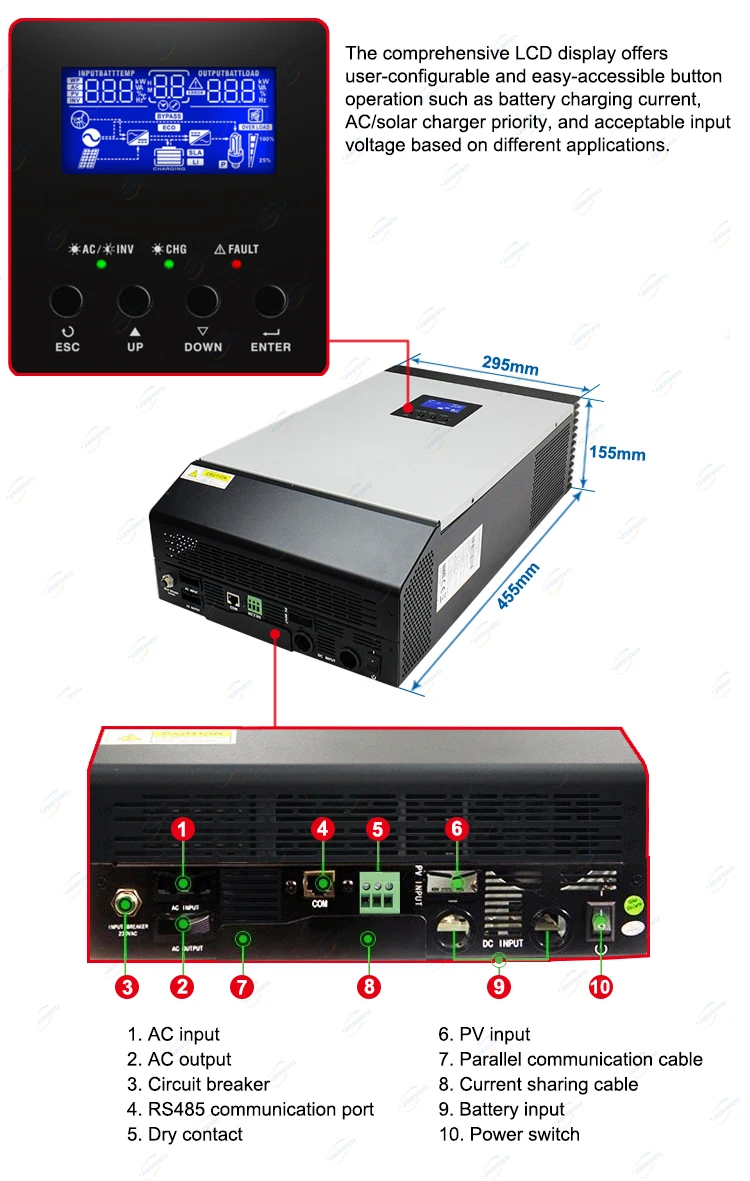

Product Details

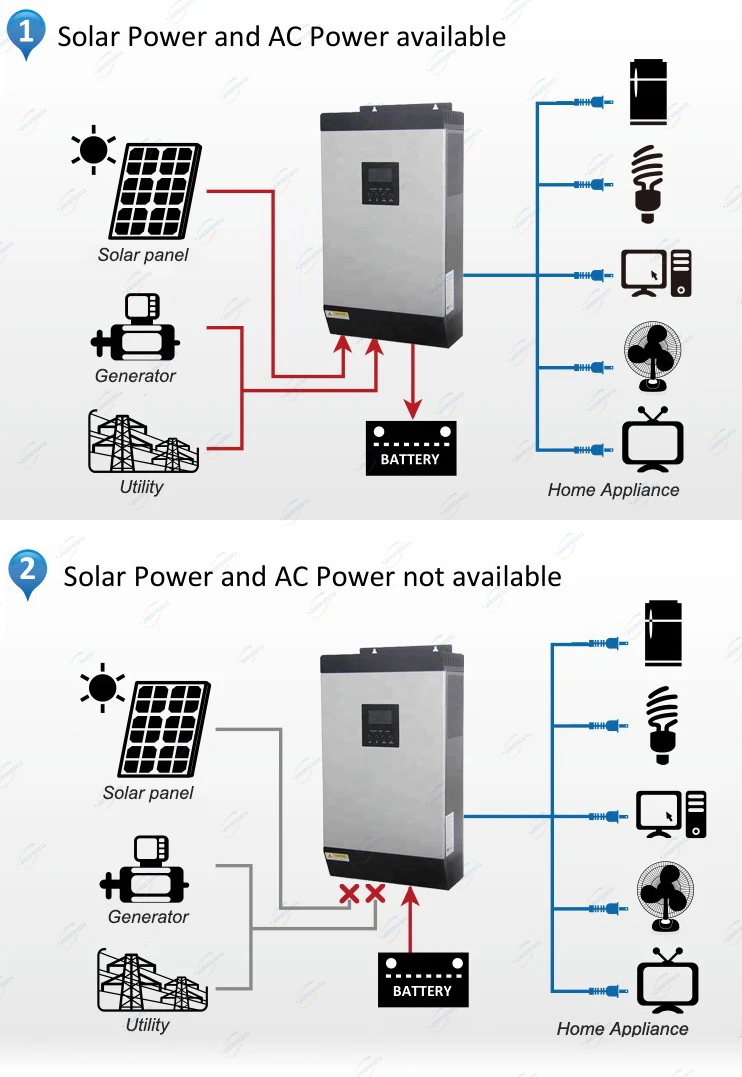

Working Diagram

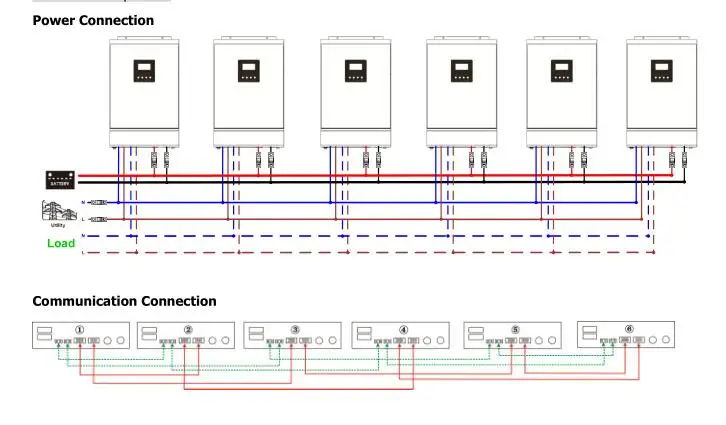

Parallel Connection
Can support 9unit connect in parallel , single phase output :
Can support 9unit connect in parallel , 3phase380V output :
Payment Term | T/T | EXW | T/T 30% deposit, T/T the balance before shipment |
FOB | |||
CFR(C&F) | |||
CIF | |||
West Union | Amount lower than 5,000 USD | ||
Delivery Time | 15 days after receiving payment for one container | ||
FAQ
Q1. Are you a factory?
A. Yes, welcome to visit our factory.
Q2. How long is the delivery time?
A. Usually it will take about 5-10 days to produce 50pcs.
Q3. Could you offer Form A or C/O?
A. No problem, we can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5. Would you accept to use our logo?
A. Yes, But MOQ should be more than 100pcs
Q6. We want to know about your month capacity.
A. It depends on which model. For example for relay type small capacity, month capacity can reach about 2000pcs and big capacity about 3000pcs.
Q7. Where is your market?
A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q8. Does the inverter connect with solar system?
A. Yes. Because of the unique feature which combine invert, charge and AC auto-transfer switch into one complete system, made inverter not only connect with solar system, but also could be used in officer equipments, household items, power tools ans etc..
