Зубчатая передача и вал OEM
US $1.00-$50.00
Прямая поставка с завода подшипников линейный вал 30 мм (WCS30
- Категория товара: Shafts >>>
- Поставщик (Оптовый магазин): Shandong,Jingrui,Transmission,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

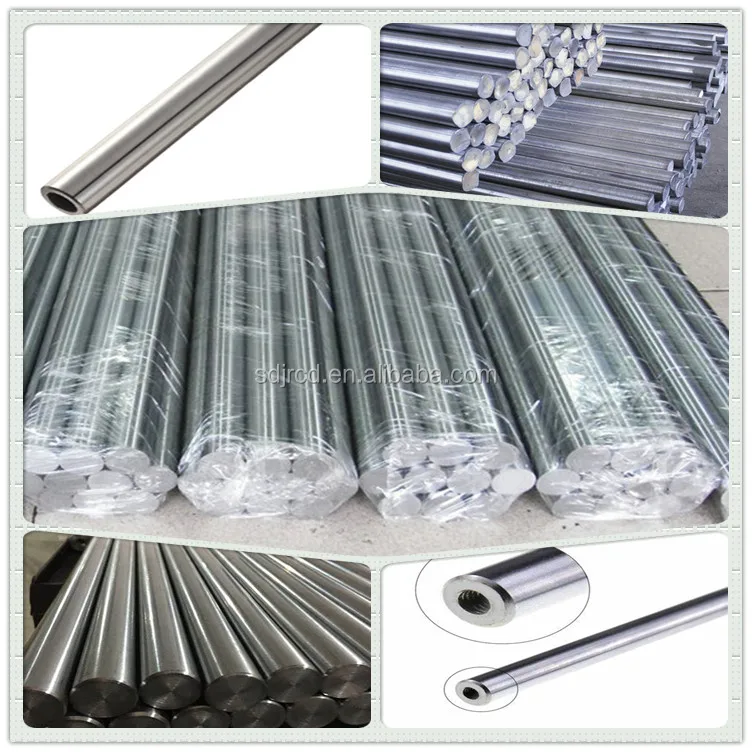

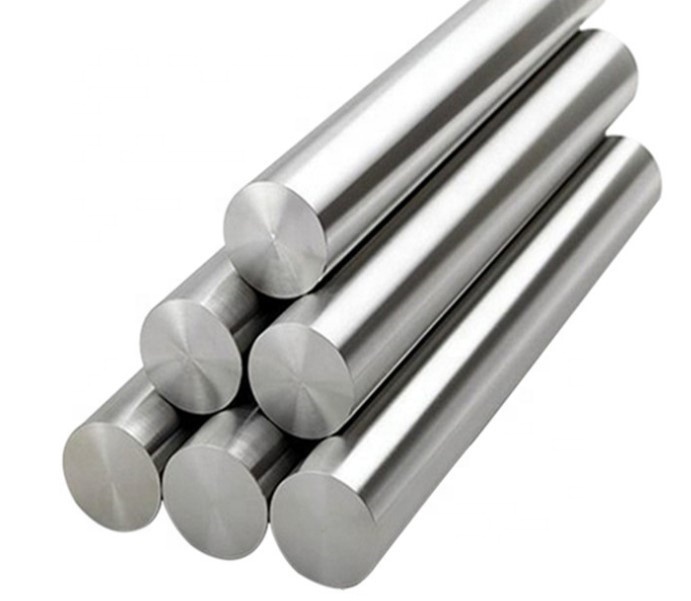

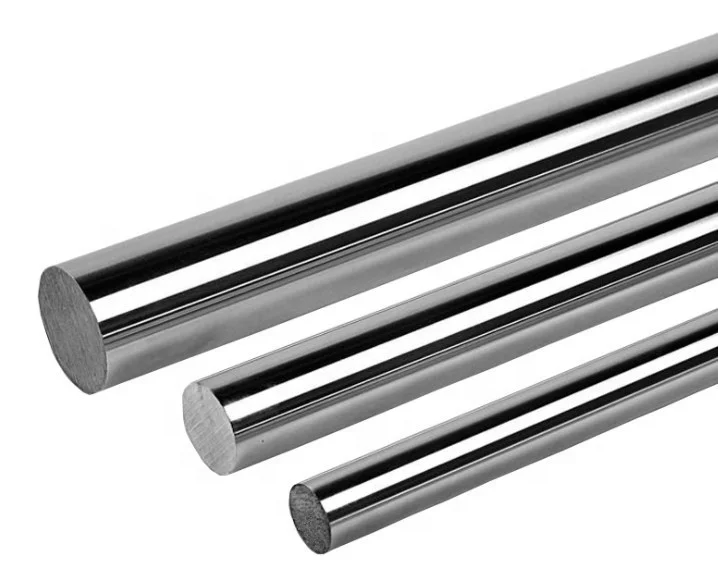

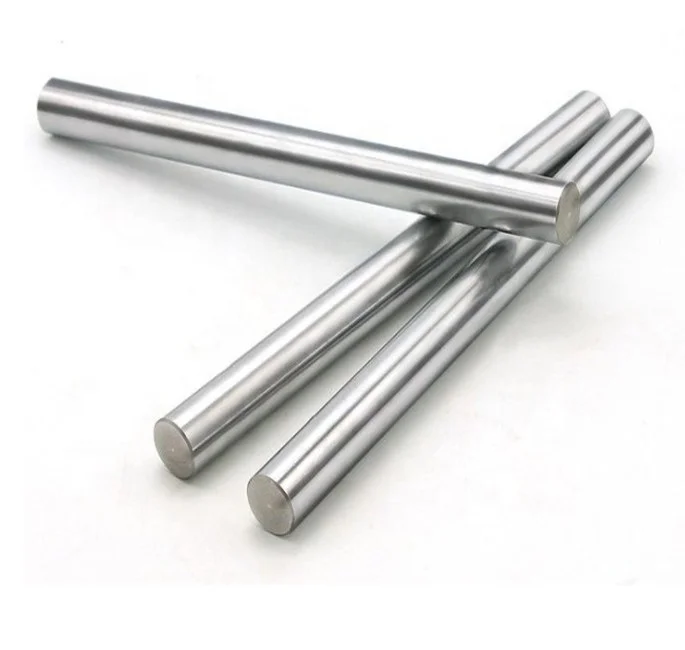

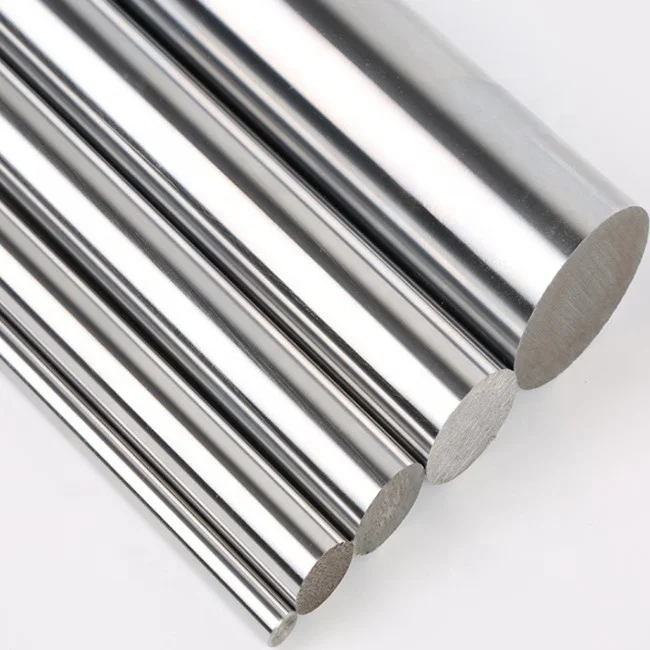

Bearing Factory Supply Directly 30mm Linear Shaft (WCS30 SFC30)
Main Products:
Hard Chrome Plated Rod, Hydraulic Piston Rod, Cylinder Piston Rod, Chromium Rods, Linear Shafts, SBR Shafts, Hard Chrome Shaft, Induction Rod, Induction Shaft, etc.
Hard chrome plated rod (HRC 15-20)
Hardened and tempered chrome plated rod (HRC 28-30)
Induction and hardened chrome plated rod (HRC 55-60)
Hollow chrome bar
Hollow piston rod
Cylinder rod
Product Name | Linear Shaft (Linear rod; Steel bar; Optical axis) |
Size: | Ø 4-110mm |
Model No. | WCS SFC WC SF series 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm |
Tolerance | ISO f7 |
Chrome thickness: | 20-30micron |
Roughness | Within 1.5μm |
Material/Length | Bearing Steel GCr15, high Carbon Steel 45#, SUS440C |
100-6000mm (If you need above 6000mm,we can anti-connect for you) | |

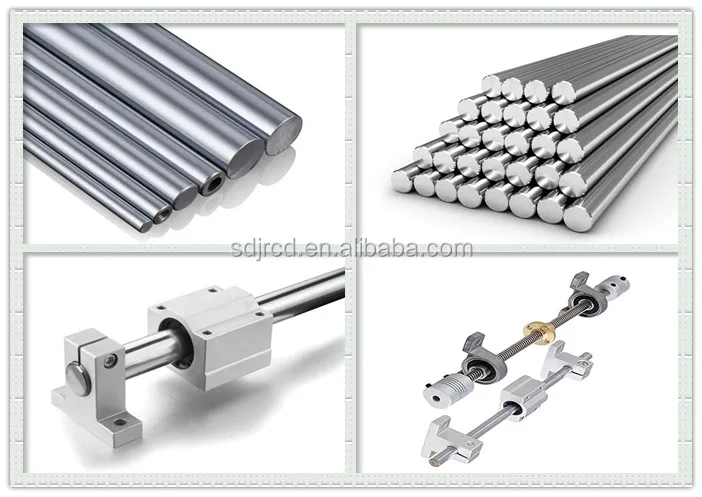

Other linear shaft type | Solid shaft, hollow shaft, threaded shaft, stainless steel shaft |
Supply condition: | 1.Hard chrome plated |
2.Induction hardened | |
3.Quenched & Tempered | |
4.Induction hardened with Q&T | |
Quality Control | 100% inspection |
Customized | Yes,all are customized according clients' drawings design or sample |
Payment Way | T/T, Western Union ,Paypal |
Packaging | 1:Anti-rust oil OPP bags and cartons for outer packages. |
2: Customer's requirement. | |
Shipping | (1)0-100kg: express & air freight priority. |
(2)>100kg: sea freight priority | |
(3)As per customized specifications. |
Applications:

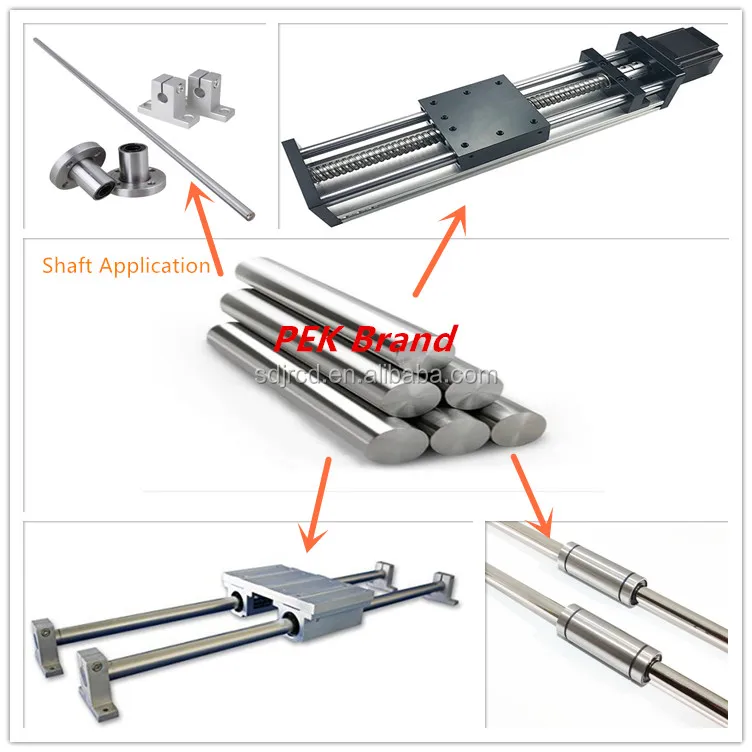

Linear Motion Guides, Hydraulic cylinder rods,plastic injection molding machines, construction equipment, rubber molding machines, papermaking machines, printing machines, refrigeration equipment, foods and chemical machinery, loading equipment, fiber spinning equipment, textile machinery, agricultural equipment, automotives, shipbuilding and the like.
If you are interested in our company, please feel free to contact me!
