Yarn Dyeing Machine DW241C





FYI is the leading manufacturer & supplier of top quality Textile Dyeing Machines like lab dyeing machine, yarn dyeing machine, bobbin dyeing machine, infrared dyeing machine. We also offer cheese dyeing machine, package dyeing machine, sample dyeing machine, which are highly appreciated for superior in quality, durability and efficiency. These products are manufactured with the most advanced technologies using high grade raw materials. Our available range of products includes HTHP Package Yarn Dyeing Machine, HTHP Dyeing Machine, Winch Dyeing Machine, Bath Beaker Dyeing Machine, Lab Dyeing Machine and many more.





Application of Yarn Dyeing Machine

Package Yarn Dyeing Machine which is also named cheese dyeing machine, or bobbin dyeing machine.

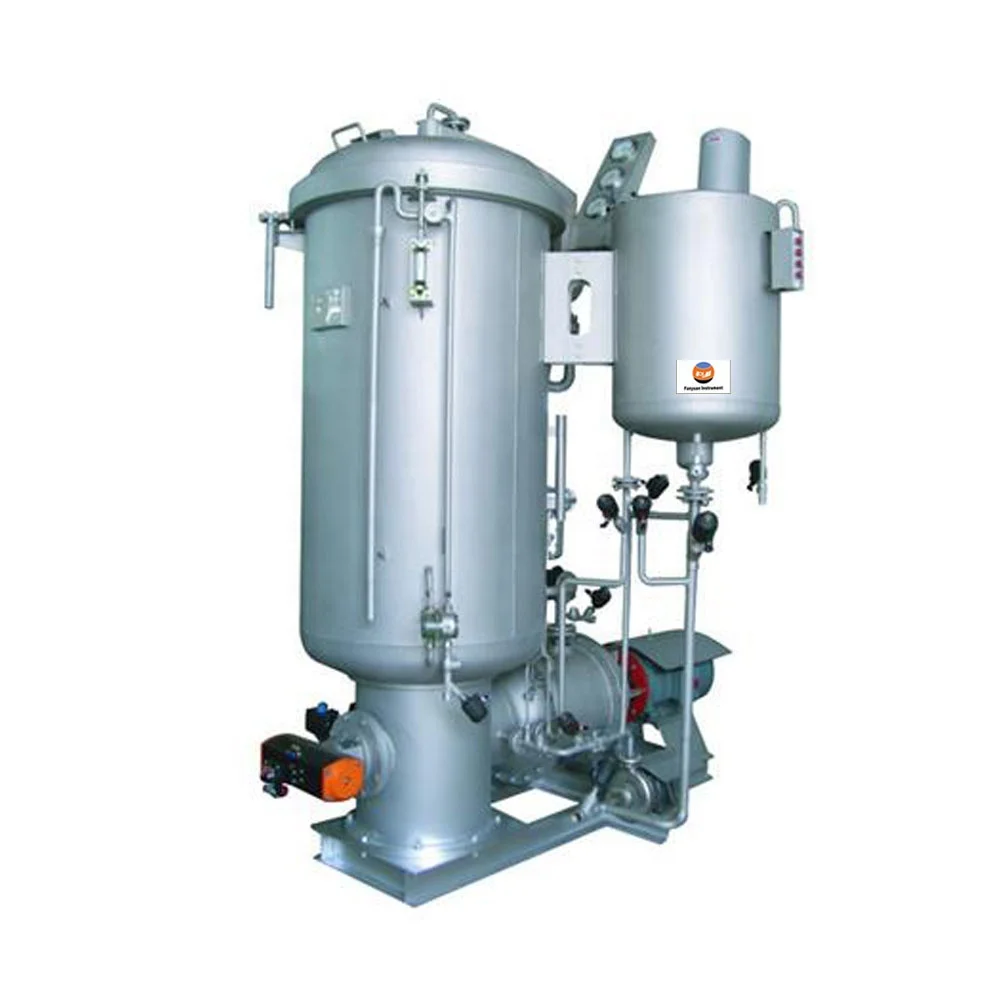

DW241C is a package yarn dyeing machine designed for factory use with high temperature and high pressure. It can be applicable for cotton yarn, polyester yarn, wool yarn etc. Other forms samples such as sliver, lea yarn, bulk fiber, viscose, nylon zipper, ticking buckle tape also can be treated after change dyeing frame.



Related Standards of Hthp Dyeing Machine:

STANDARDS

GB

ISO

ASTM

Note: this package dyeing machine can conform to but not limit to all the standards above, for more standards conformance, please contact us.



Feature of Package Yarn Dyeing Machine:

l  Integral type heat exchanger, centrifugal pump and 180°plate type reversing arrangement.

l  No external circulation pipeline, saving space more than 20%;

l  The main pump’s motor is controlled by transducer and the water volume can be adjusted steplessly to accord with the synchro dyeing requirement by technological curves;

l  Unique, stable and reliable reversing arrangement. When the liquid flow is changing its direction the main pump don’t stop and this increases liquid’s circulation times to raise dyeing quality;

l  Advanced computer controller can display temperature curve, procedure and output, etc;

l  Fully automatic dyes dosing, water feeding, draining, heating, temperature keeping, cooling and cleaning, can meet the dyeing technology requirement;

l  Low bath ratio(1:6~1:7), saving dyes, auxiliary agent, steam and water. Much less waster discharging;

l  Dyeing vessel and all the parts in contact with dye liquid are all made of high quality stainless steel;

l  Control the liquid level is controlled by high-precision differential pressure transducer sensor;

l  Main vessel equipped with automatic pressure and pressure relief device.





Key Specification of Package Dyeing Machine

Design pressure	0.44MPa
Max working pressure	0.4MPa
Design temperature	140℃
Max working temperature	135℃
Heating rate	20~130℃,about 30 minutes (saturated steam pressure:0.7MPa)
Cooling rate	130~80℃,about 20 minutes (cooling water pressure: 0.3MPa)
Power supply	380V
Dimension:	2×3×2m (L×W×H)



Specification Comparison Sheet:

Model	Max. capacity (kg)	Bobbin qty.	Cylinder diameter (mm)	Power (kw)
DW241-20	3	1*3	φ200	2.2
DW241-40	12	3*4	φ400	5.5
DW241-43	24	4*6	φ430	7.5
DW241-45	28	4*7	φ450	7.5
DW241-60	54	6*9	φ600	11
DW241-90	162	18*9	φ900	15
DW241-120	270	30*9	φ1,200	30
DW241-145	540	54*10	φ1,450	45
DW241-186	1,170	90*13	φ1,860	90



Standard configuration of Yarn Dyeing Machine:

No.	Item	Quantity
1	Main machine	1 set
2	Control cabinet	1 set
