Маленький цилиндрический шлифовальный мини-станок без центрального вала для точности

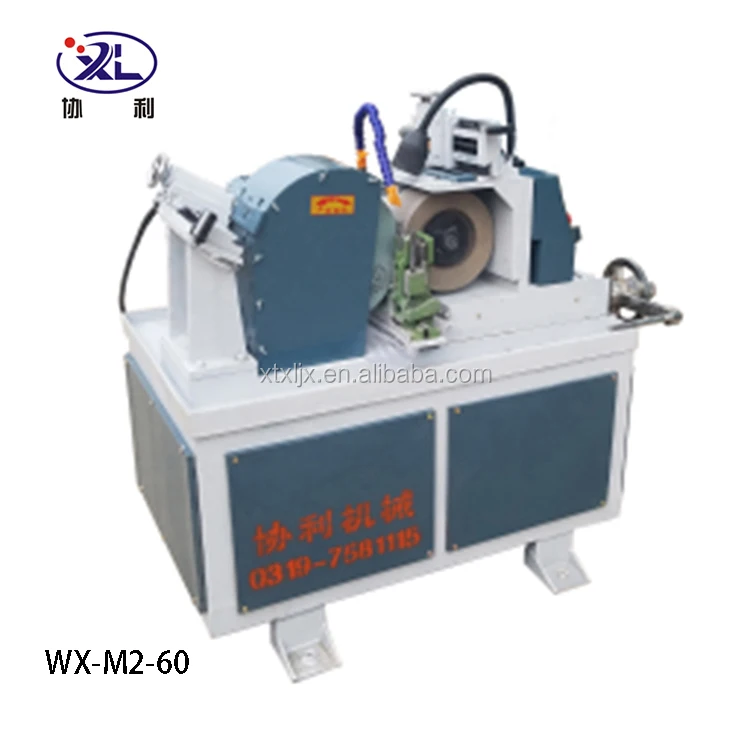

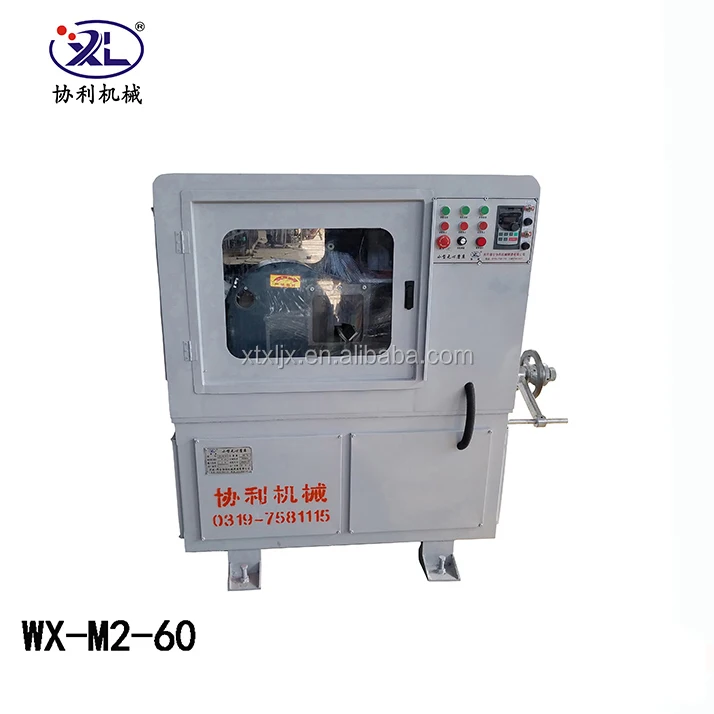

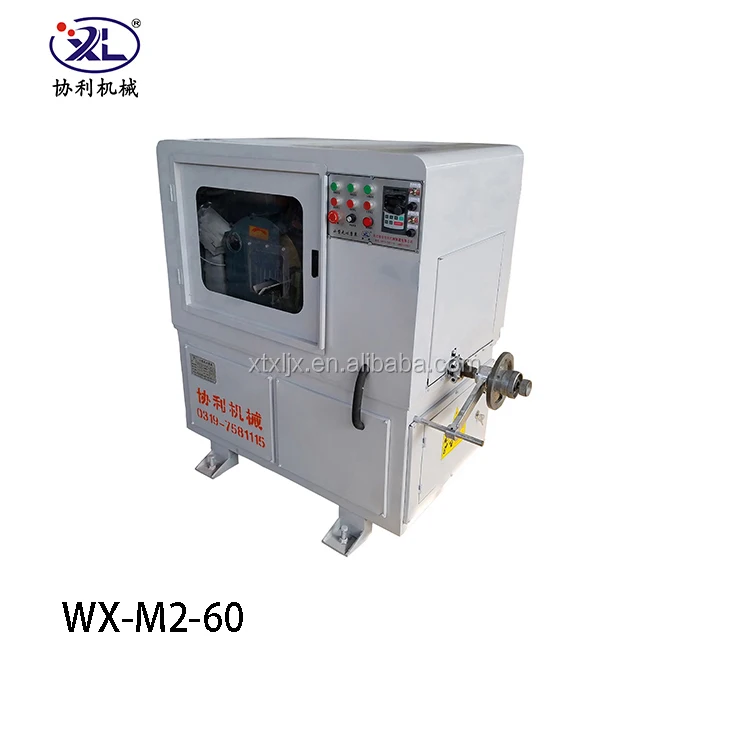

WX-M2-60 Machine features:

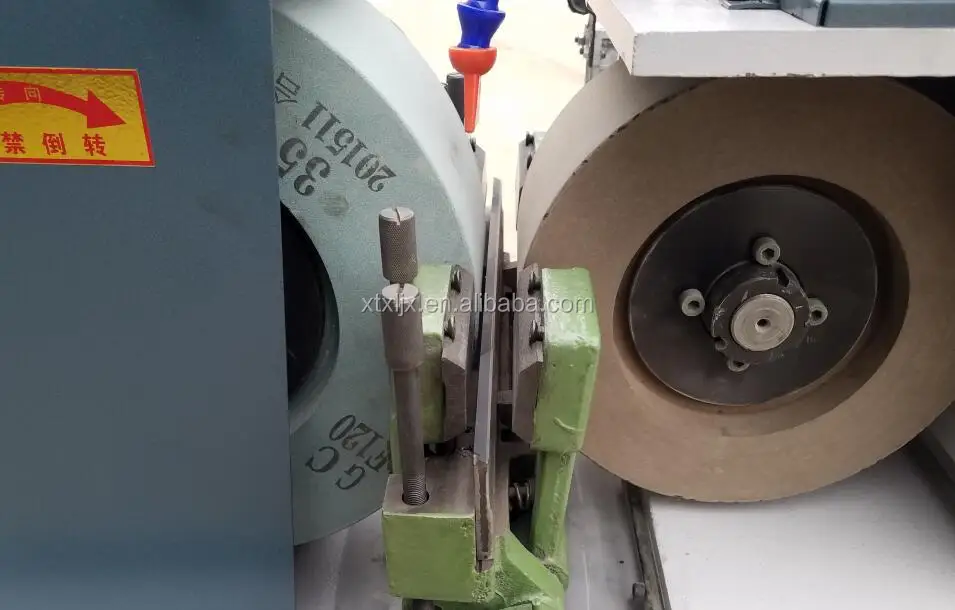

  *The width of grinding wheel guide wheel is 125mm, with larger grinding amount and better stabilit.

*The layout of the machine adopts the single - sided movement mode of regulating wheel frame.

* The sand wheel shaft adopts overhang structure, so it is convenient to replace the grinding wheel.

*Guide wheel shaft adopts overhang structure, easy to replace guide wheel.

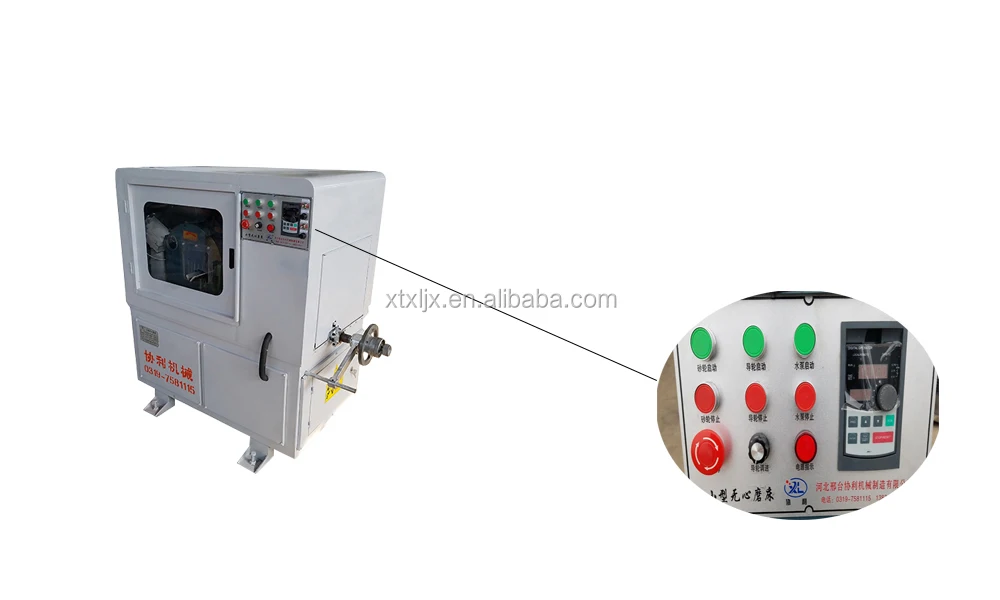

* The regulating wheel adopts frequency conversion to adjust the speed, which can realize the feed speed of the workpiece with different diameter.

* The machine tool is equipped with cutting mechanism, which can realize grinding of step surface and cone surface.

* The machine tool can be equipped with a long workpiece through grinding bracket.

* The machine can be matched with a variety of automatic feeding equipment and automatic manipulator.

Main purpose and scope of application:

    * In addition to grinding with grinding wheel, PVA polishing wheel can be used to highlight and wet polish the workpiec

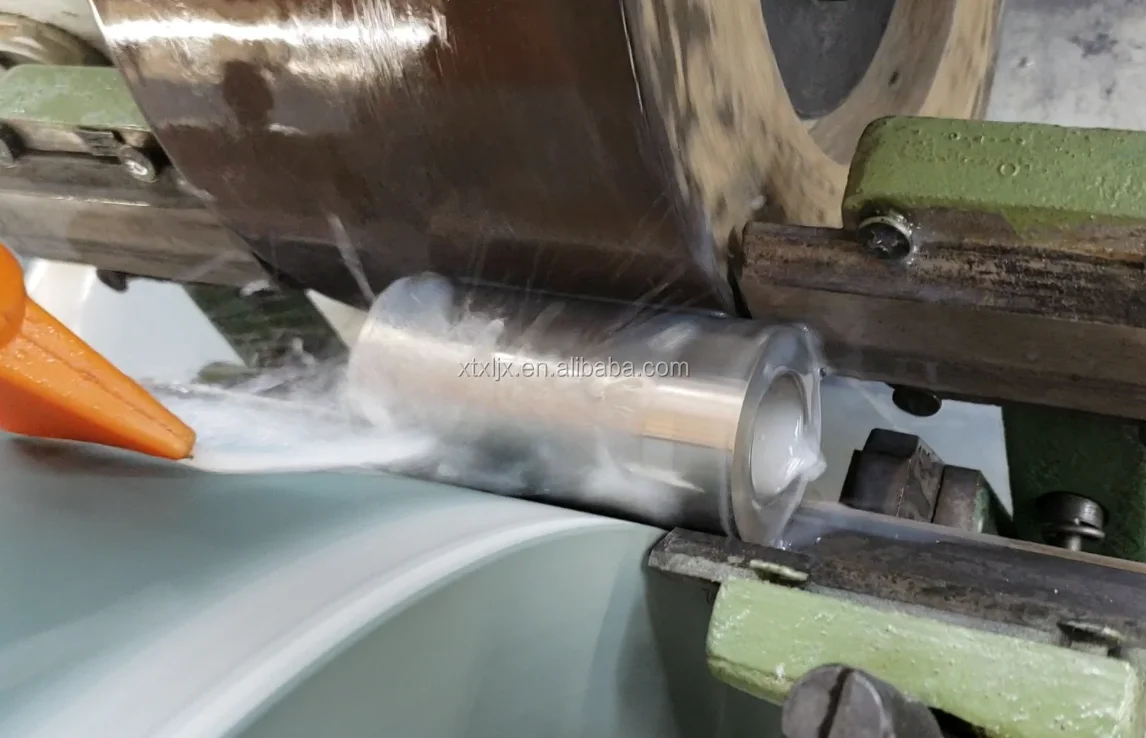

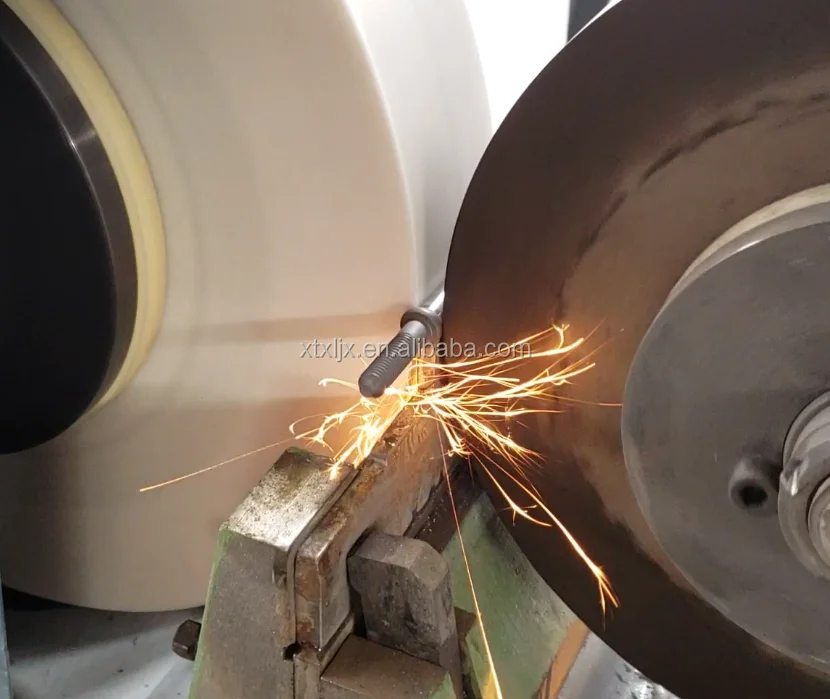

    * It is mainly used for grinding the cylindrical surface of various ring and shaft parts, and for semi-automatic and automatic cutting grinding of various stepped, tapered and cylindrical rotating surfaces.

Main technical parameters

* Longitudinal feed grinding.

   1,Diameter of grinding workpiece    0.8–60mm

   2,Maximum grinding length    1000mm

*Cross feed grinding

   1,Diameter of grinding workpiece    2–60mm

   2,Maximum grinding length    125mm

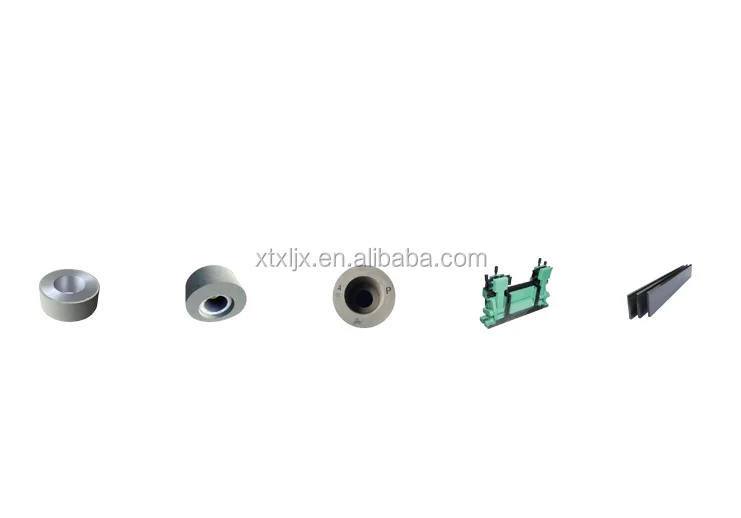

*Specification of grinding wheel         P350*125*127

*Specification of guide wheel           P250*125*75

*Speed of grinding wheel         2000r/min

*Speed of guide wheel  Stepless5-240 r/min

*The turning Angle of the regulating wheel

   1,In the vertical plane        -2° -5°

   2,Horizontal plane        -10°-10°

*Grinding accuracy of standard test bar

(ø 20 × 75 )
   1, Roundness      2 μ m

   2, Cylindricity    3 μ m

   3, Roughness     Ra0.2 μ m

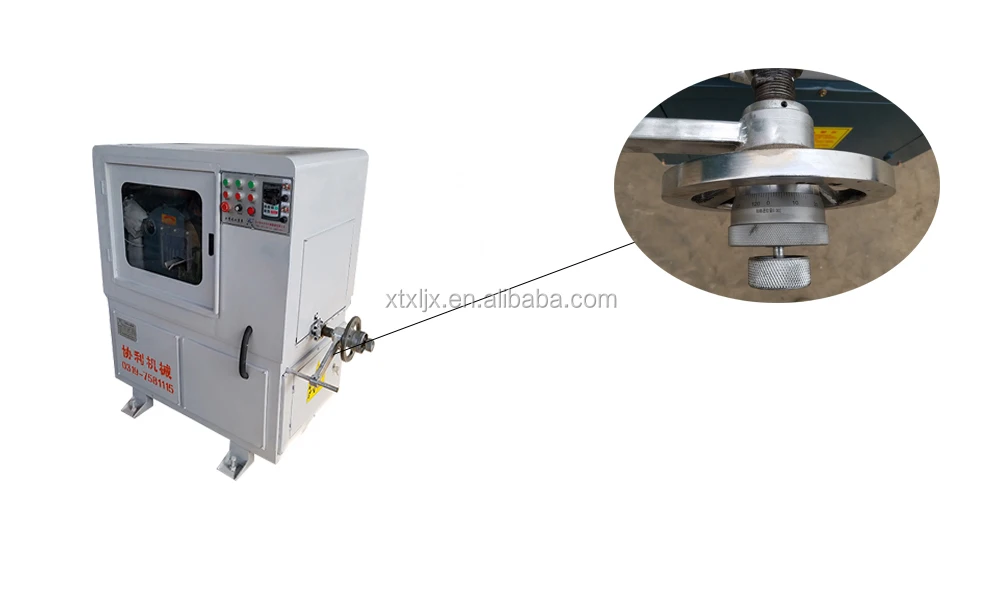

*Grinding feed  (Feed rate of each grid of dial  0.002mm)

*Cooling pump flow             25L/min

*Equipment power               5KW

   1,Motor for grinding wheel       4.0kw

   2,Motor of guide wheel         0.75kw

   3,Motor of cooling pump       0.09kw

*Machine tool lead-in power supply         Three phase four wire  380V 50Hz

  *Machine dimension           1300*960*1300mm

  *Machine tool weight              1000kg(about)
