Небольшая солнечная панель Sunpal 12 В 18 50 Вт 100 120 монокристаллические солнечные панели для
- Категория товара: Солнечные панели >>>
- Поставщик (Оптовый магазин): Sunpal,Power,Co.,Ltd.Sunpal,Ltd.
Поделиться:
Описание и отзывы
Характеристики

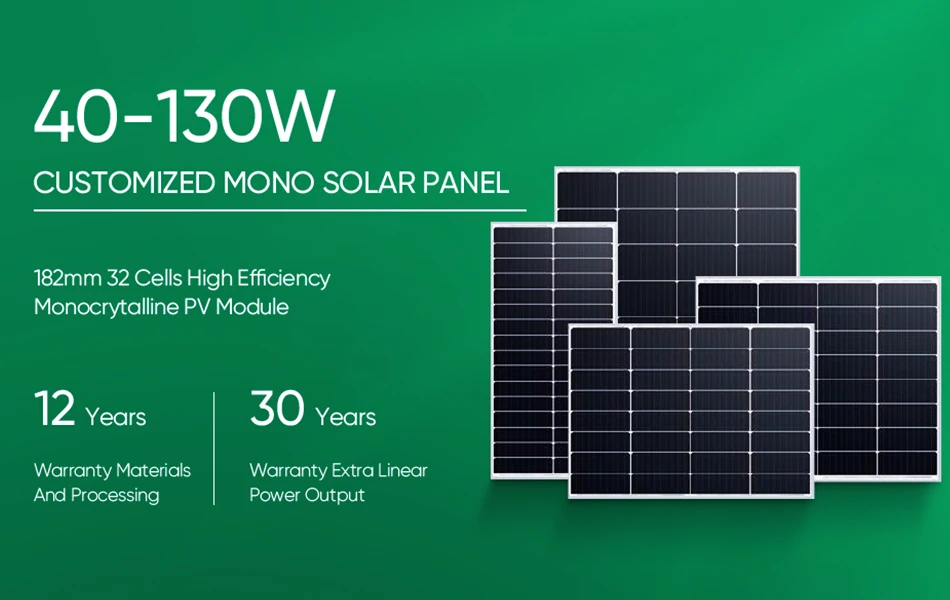

Product Description
Cell Orientation | 32 (4x8) |
Glass | Single Glass |
Weight | 6.52kg±3% |
Power Output Tolerance | 0~+5W |
Dimension | 785*765*30mm |
Frame | Anodized aluminumalloy frame |
Model Number | SP40M-32 | SP50M-32 | SP60M-32 | SP70M-32 | SP75M-32 | SP80M-32 |
Testing Condition | STC | STC | STC | STC | STC | STC |
Maximum Power (Pmax/W) | 40 | 50 | 60 | 70 | 75 | 80 |
Open Circuit Voltage (Voc/V) | 21.28 | 21.42 | 22.06 | 21.51 | 21.8 | 22.06 |
Short Circuit Current (Isc/A) | 2.34 | 2.91 | 3.25 | 4.06 | 4.21 | 4.33 |
Voltage at Max Power (Vmp/V) | 18.24 | 18.37 | 19.37 | 18.43 | 18.79 | 19.37 |
Current at Max Power (Imp/A) | 2.19 | 2.72 | 3.10 | 3.8 | 3.89 | 4.13 |
Module Weight (Kg) | 2.8 | 3.43 | 3.43 | 4.53 | 4.53 | 4.53 |
Module Dimension (mm) | 655*395*30 | 800*395*30 | 800*395*30 | 545*765*30 | 545*765*30 | 545*765*30 |
Model Number | SP90M-32 | SP95M-32 | SP100M-32 | SP110M-32 | SP120M-32 | SP130M-32 |
Testing Condition | STC | STC | STC | STC | STC | STC |
Maximum Power (Pmax/W) | 90 | 95 | 100 | 110 | 120 | 130 |
Open Circuit Voltage (Voc/V) | 21.8 | 22.06 | 21.42 | 21.72 | 22.08 | 21.71 |
Short Circuit Current (Isc/A) | 5.05 | 5.14 | 5.82 | 6.24 | 6.18 | 7.39 |
Voltage at Max Power (Vmp/V) | 18.79 | 19.37 | 18.37 | 18.63 | 19.41 | 18.6 |
Current at Max Power (Imp/A) | 4.79 | 4.9 | 5.44 | 5.9 | 6.18 | 6.99 |
Module Weight (Kg) | 5.32 | 5.32 | 6.52 | 6.52 | 6.52 | 7.77 |
Module Dimension (mm) | 640*765*30 | 640*765*30 | 785*765*30 | 785*765*30 | 785*765*30 | 785*765*30 |

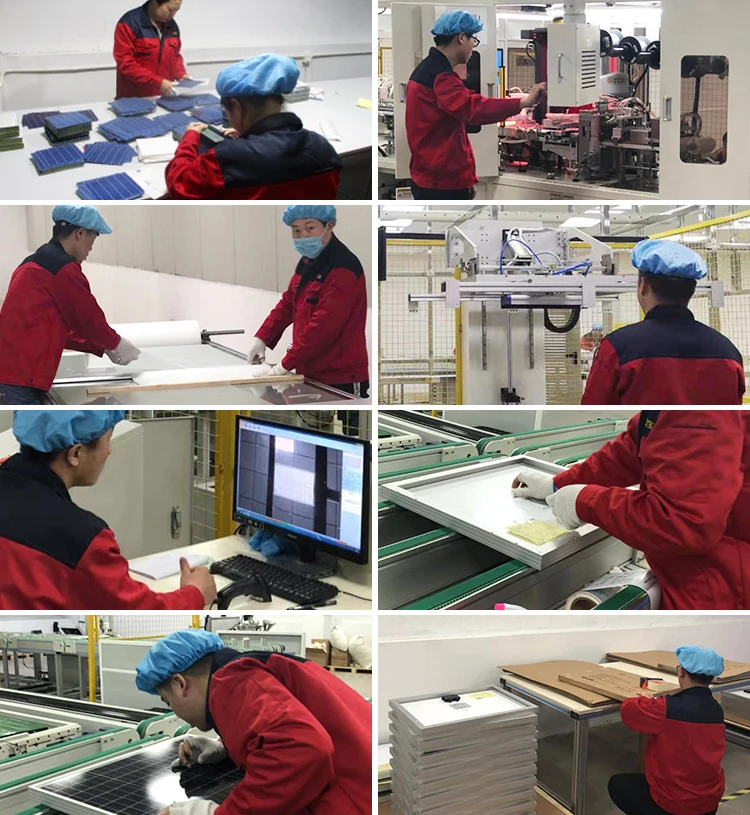

Our Factory
Strict QC System

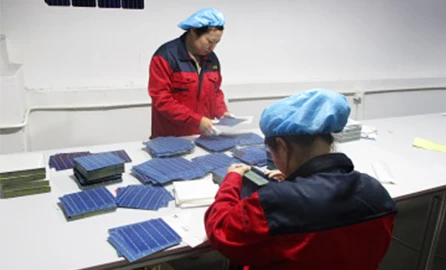

100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.

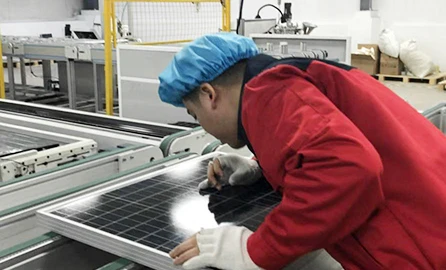

100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.

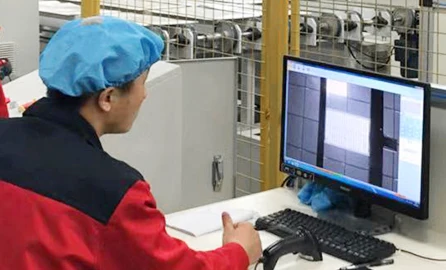

100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
100% "Zero"
Defects Objective Before Shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!

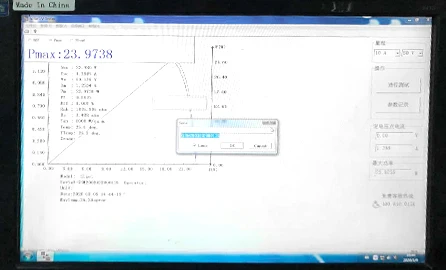

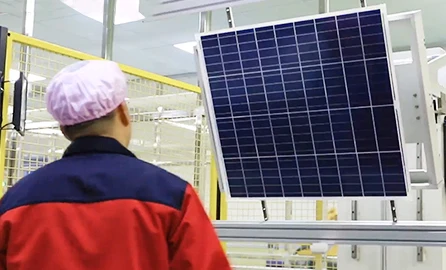

100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.

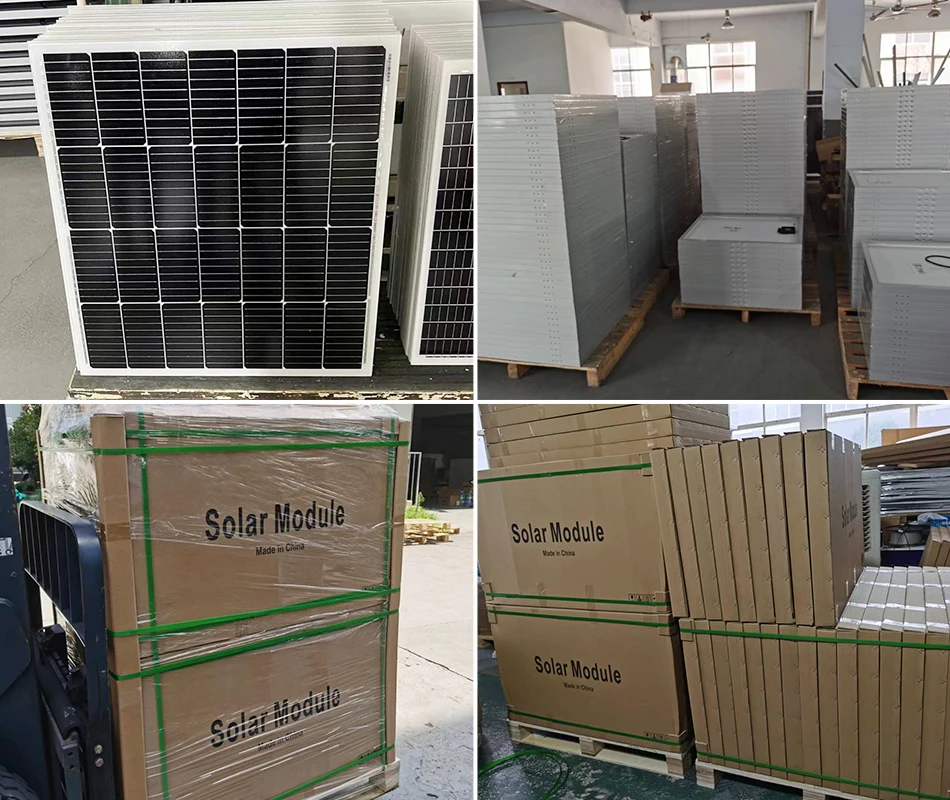

Professional Packing
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
Project Cases
FAQ
A: What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately If you want to know more information, you can send inquiry to our team, we will cover more details.
