Technical Datasheet | ||||||||
Rated voltage | 220-240V | |||||||
Rated frequency | 50/60 Hz | |||||||
Rated power | 3600W / 4500W / 5300W | |||||||
Rated water pressure | 0.03-0.6MPa | |||||||
Material | High gloss ABS plastic | |||||||
Heating element | Patented aluminum die-cast heating plate | |||||||
Color | White | |||||||
Hot water temperature | Normal ~ 55℃ | |||||||
Hot water capacity | Endless | |||||||
Protection against electric shock | Class 1 | |||||||
Degree of ingress protection | IPX4 | |||||||
Starting flow rate | 1.2 L/min. | |||||||
Hot water flow rate | 5 - 7 L/min. (1.3 - 1.9 GPM) | |||||||
Application | Apartment, office, hotel, school, hospital, hair salon etc. | |||||||
Water inlet | Bottom inlet / Side inlet / Up inlet | |||||||

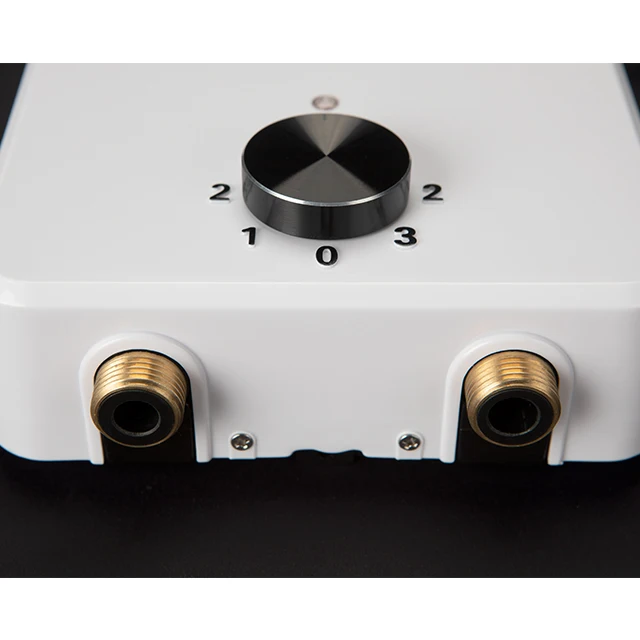

Inlet/outlet connection | G 1/2 BSP, pure brass connector | |||||||

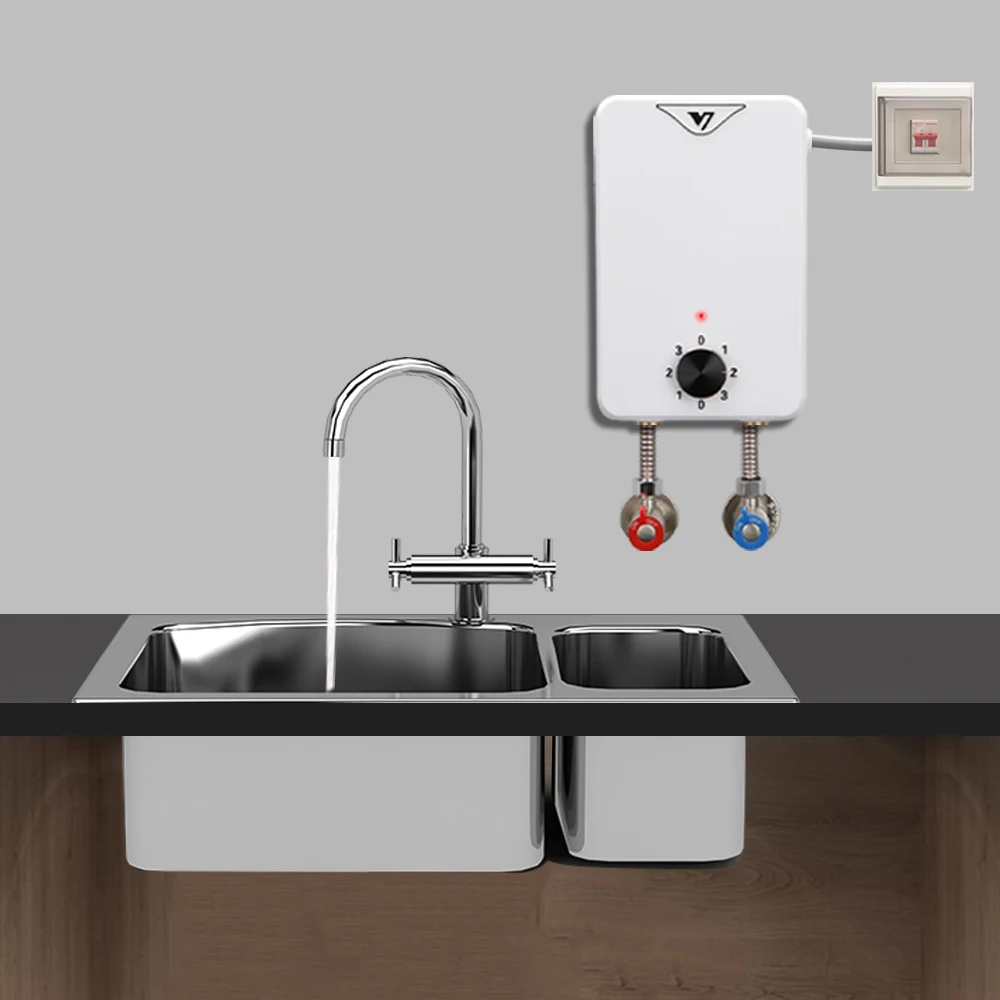

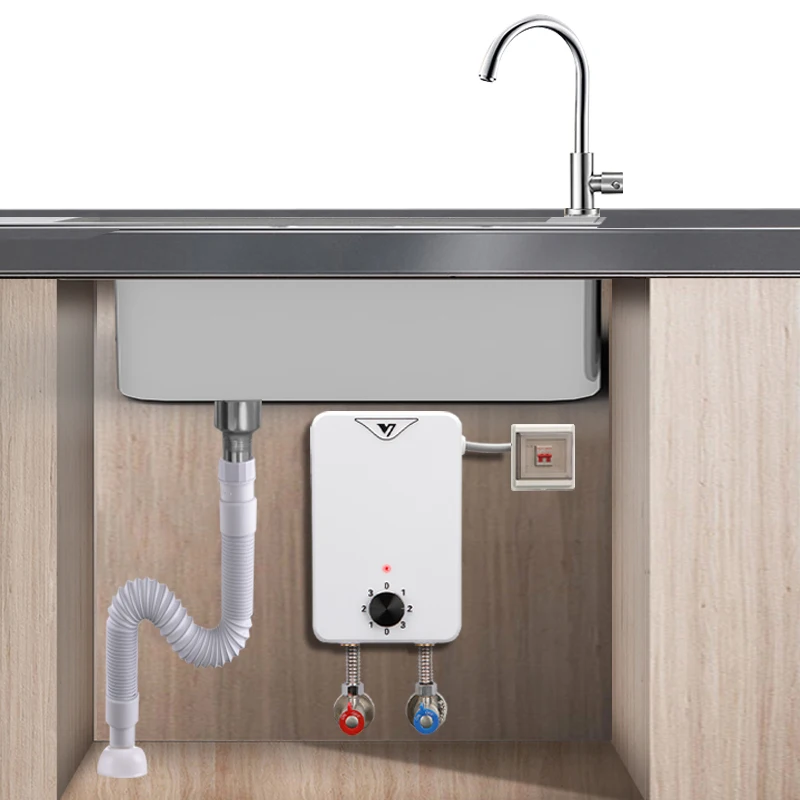

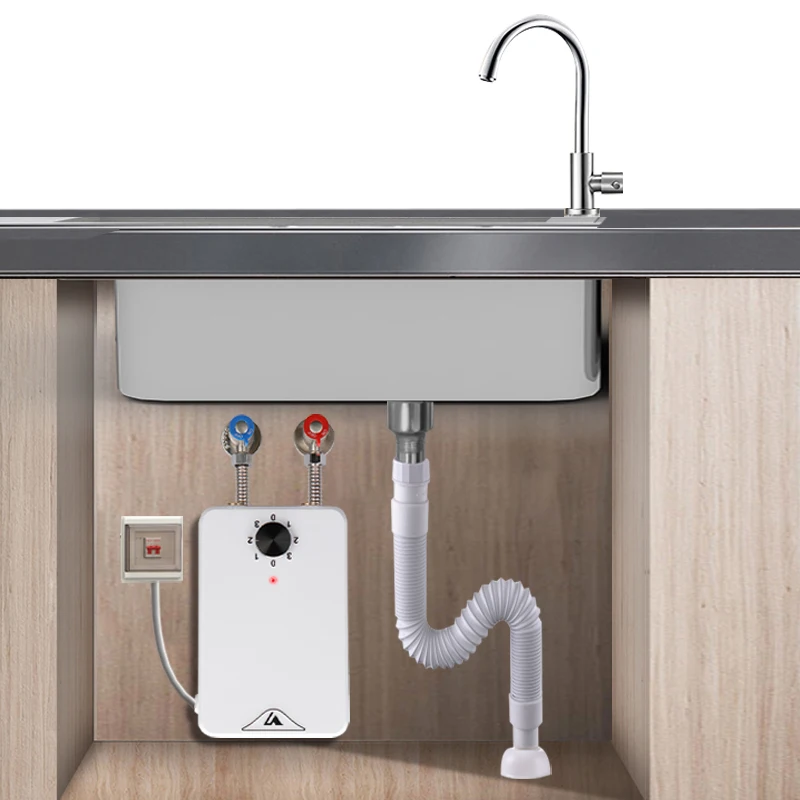

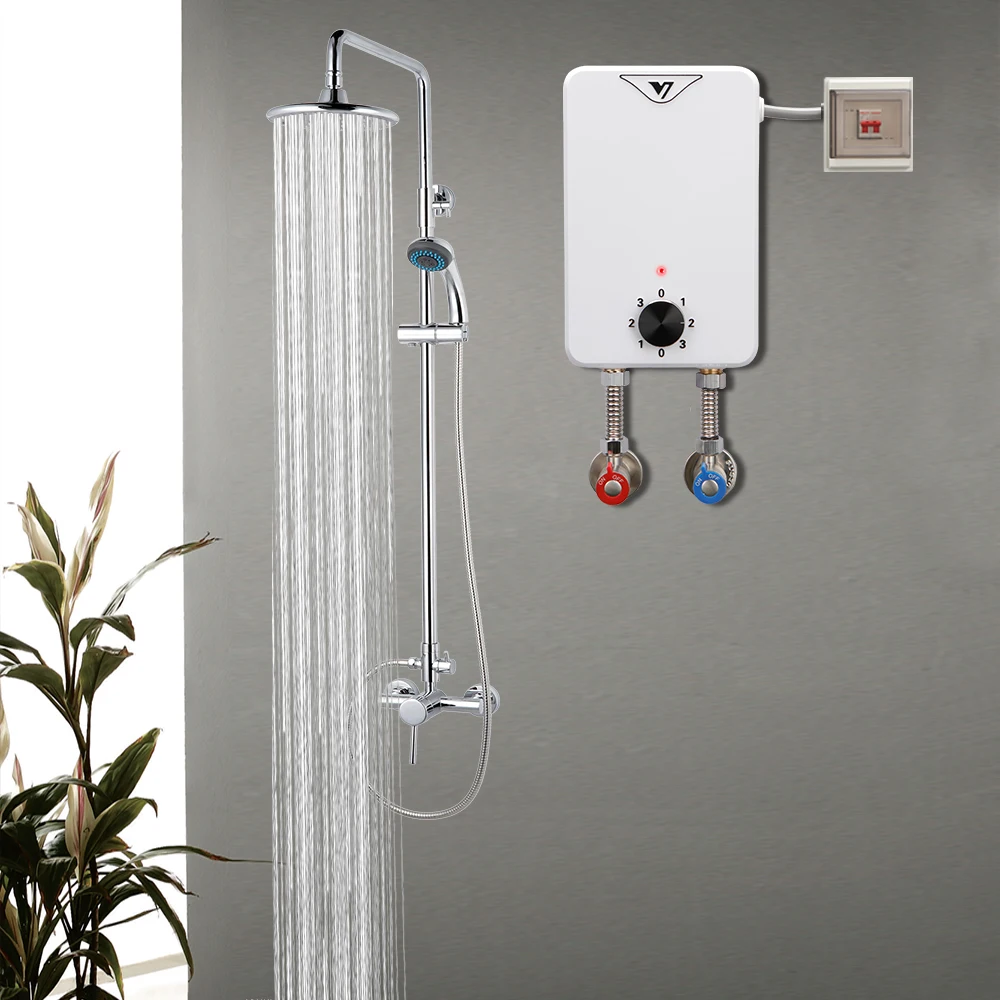

Installation | Wall mounted | |||||||
Installation method | Concealed / Unconcealed | |||||||
Compatibility | Compatible to solar system or central heating system | |||||||
Safety protection | Precise water flow sensor | |||||||
Precise temperature sensor | ||||||||
Precise double circuit relay | ||||||||
Precise leakage protection device | ||||||||
Precise dry-boiling protection | ||||||||
Precise over-heat protection | ||||||||
Safety grounding device | ||||||||
Automatic switch-off in case of no water | ||||||||
Automatic pressure relief valve (optional) | ||||||||
Product size | 165mm x 255mm x 65mm (L x H x T) | |||||||
Gross weight | 2.4kg | |||||||
