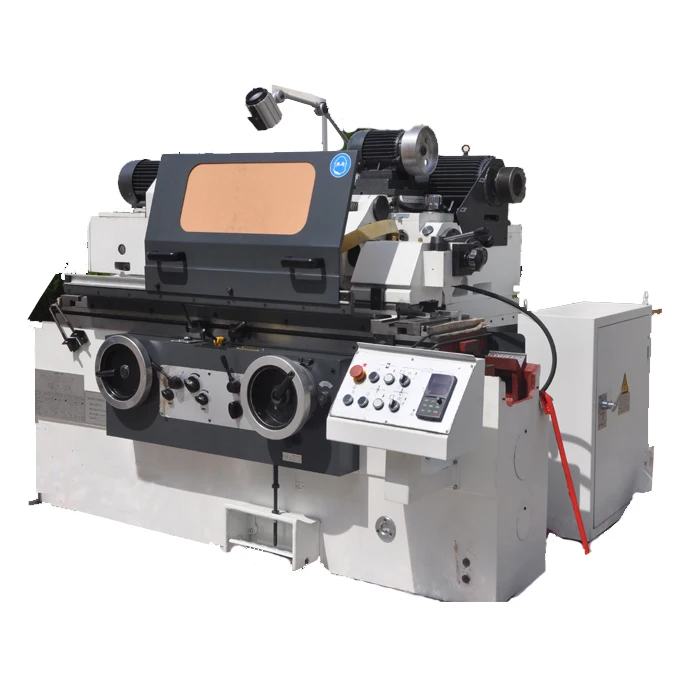

MW1420x500 universal cylindrical grinding machine for sale
- Категория товара: Cylindrical Grinding Machines >>>
- Поставщик (Оптовый магазин): Tengzhou,Uni-Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
MW1420x500 universal cylindrical grinding machine for sale
Product Description
| MAIN SPECIFICATION | UNIT | MW1420 | |
| General capacity | |||
| Distance between centers | mm | 500/750 | |
| Center height | mm | 135 | |
| Dia.Ground (O.D) | mm | 5-200 | |
| Dia.Ground (I.D) | mm | 25-100 | |
| Max.length ground (O.D) | mm | 500 | |
| Max.length ground (I.D) | mm | 125 | |
| Max.weight of work piece | kg | 100 | |
| Workhead | |||
| Swiveling angle | / | +90° | |
| Center taper (MT) | MT | 4 | |
| Spindle speed | r/min | 50HZ:25-380Stepless | |
| Wheelhead | |||
| Wheel spindle speed | r/min | 1670 | |
| Wheelhead rapid travel | mm | 50 | |
| Max.travel | mm | 205 | |
| Swiveling angel | / | ±10° | |
| Hand feed per.rev | mm | rough:2 fine:0.5 | |
| Hand feed per.gra | mm | rought:0.01 fine:0.0025 | |
| Wheel size (ODxWxID) | mm | 400x50x203 | |
| Periphearal velocity | m/s | 35 | |
| Internal grinding device | |||
| Spindle speed | r/min | 10000/15000 | |
| Dimension of wheel | mm | max:50x25x13, min:17x20x6 | |
| Table | |||
| Hand feed per.rev | mm | 6 | |
| Max.swiveling angle of table | Clockwise | / | 3° |
| Anticlockwise | / | 9°(500), 8°(750) | |
| Longitudinal speed range of table | m/min | 0.1-4 | |
| Tailstock | |||
| Center taper (MT) | MT | 4 | |
| Quil travel | mm | 30 | |
| Motor | |||
| Wheelhead motor power | kw | 4 | |
| Internal grinding | kw | 1.1 | |
| Workhead motor power | kw | 1.1 | |
| Machine | |||
| Gross weight | t | 3/3.2 | |
| Packing dimension | cm | 235X203X205 275x203x205 | |
With following standard accessories
| STANDARD ACCESSORIES: |
| Coolant tank |
| wheel periphery dresser base without diamond pen |
| flange and wheel exactor |
| standard grinding wheel |
| balancing arbor |
| leveling wedge |
| working lamp |
| open steady rest |
| internal grinding attachment |

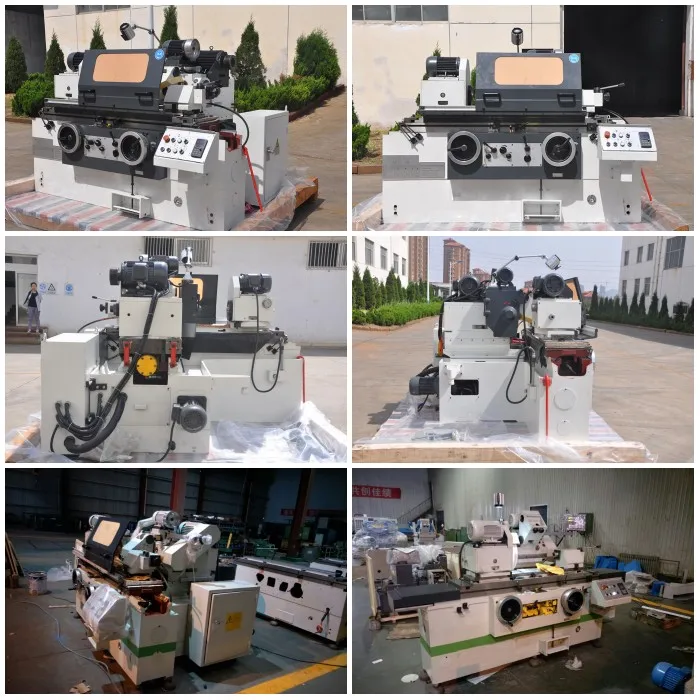

More photos
