PP/PE/PET pellet color master batch double screw plastic pelletizer price/plastic pelletizer granulator machine

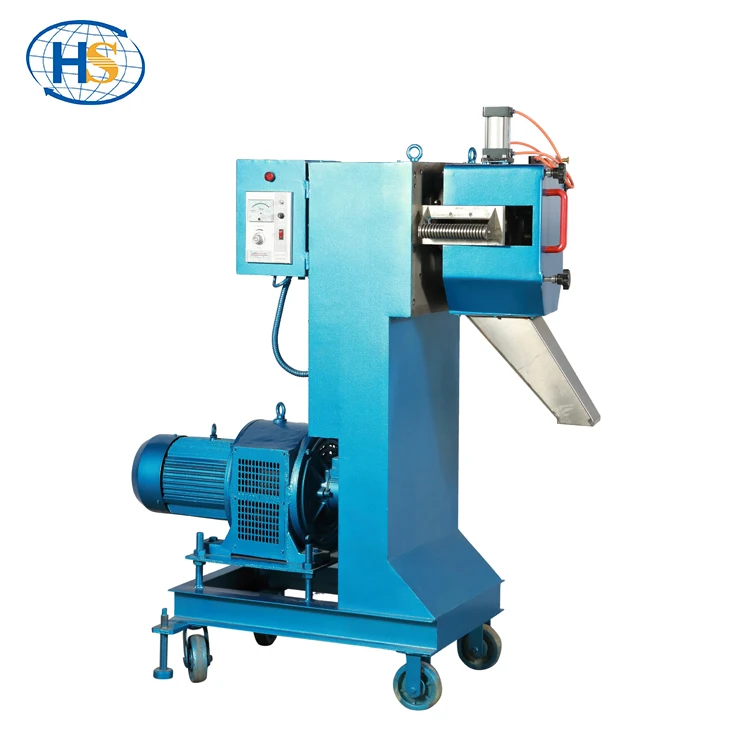

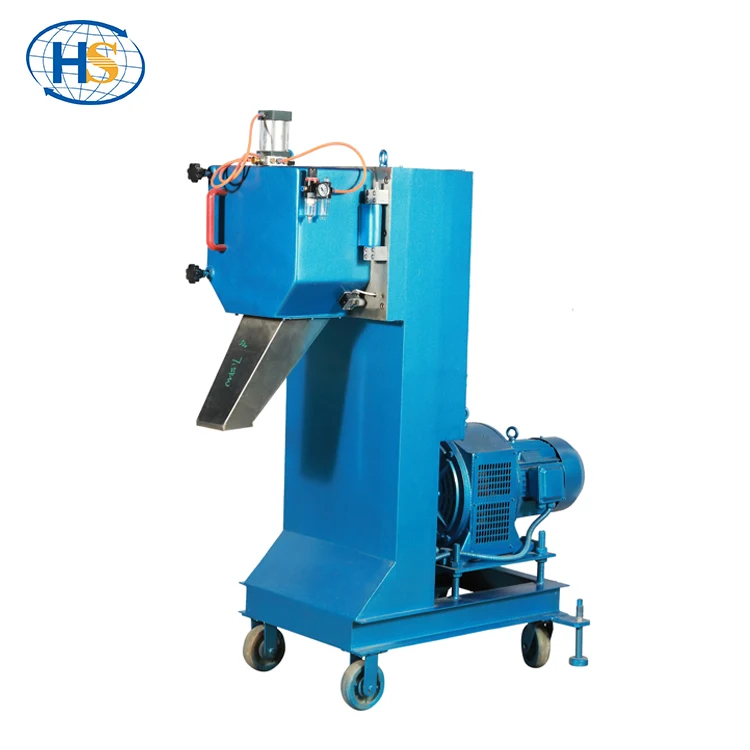

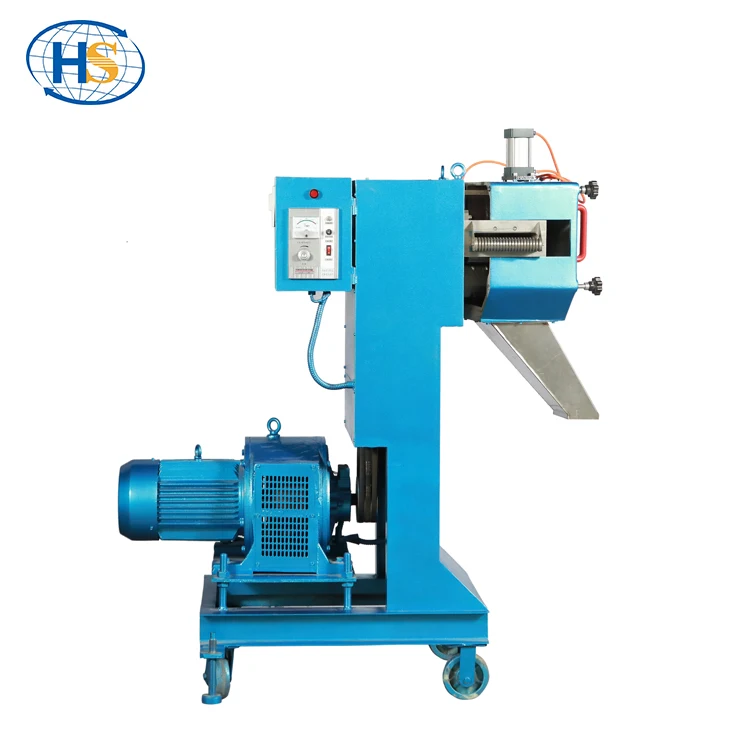

1.cantilever pelletizer
Application:
The Cantilever Pelletizer is designed to produce uniform pellets in wide varieties of size for most of any plastic material.
Model | HS-LQ 60 | HS-LQ 300 | HS-LQ 500 | HS-LQ 900 |
Max output | 60kg/hr | 300kg/hr | 500kg/hr | 900kg/hr |
No. of strand | 6 | 15 | 625 | 42 |
Standard pellet | 3x3mm | 3x3mm | 3x3mm | 3x3mm |
Cutter dimension | 120x60mm | 120x100mm | 200x200mm | 200x300mm |
(L*W*H) | 14 tooth | 32 tooth | 32 tooth | 32 tooth |
Effective rotation speed | 350-1000rpm | 350-1000rpm | 350-1000rpm | 350-1000rpm |
Haul off speed | 0-36m/min | 0-96m/min | 0-96m/min | 0-96m/min |
Motor power | 1.5kw | 3kw | 5.5kw | 11kw |
Rotated cutter clearance | 0.06-0.12mm | 0.08-0.12mm | 0.08-0.12mm | 0.08-0.12mm |
Leading roller | PU | PU | PU | PU |
Driver control | Frequency inverter | |||
AC motor | 3 Phase / 380 V / 50 Hz | |||
Material of cutter | High-speed Steel / Hard Alloy | |||
Design:
The Cantilever pelletizer is supplied with high speed steel and hard alloy steel cutting blades for reliable performance. Compact structure allows less maintenance. Production platform is well designed and strong enough for operation. Cutting assembly is featured with quick clean and change over.

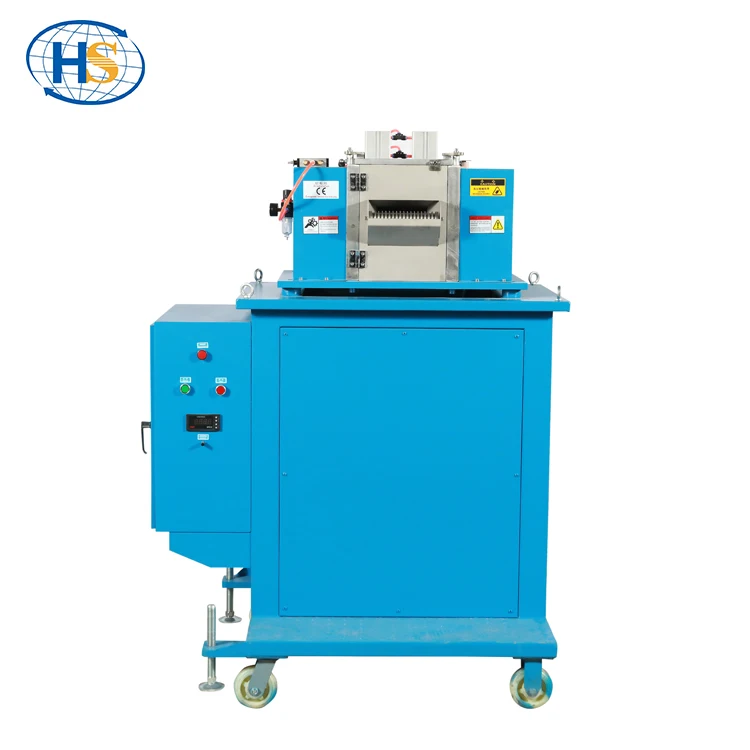

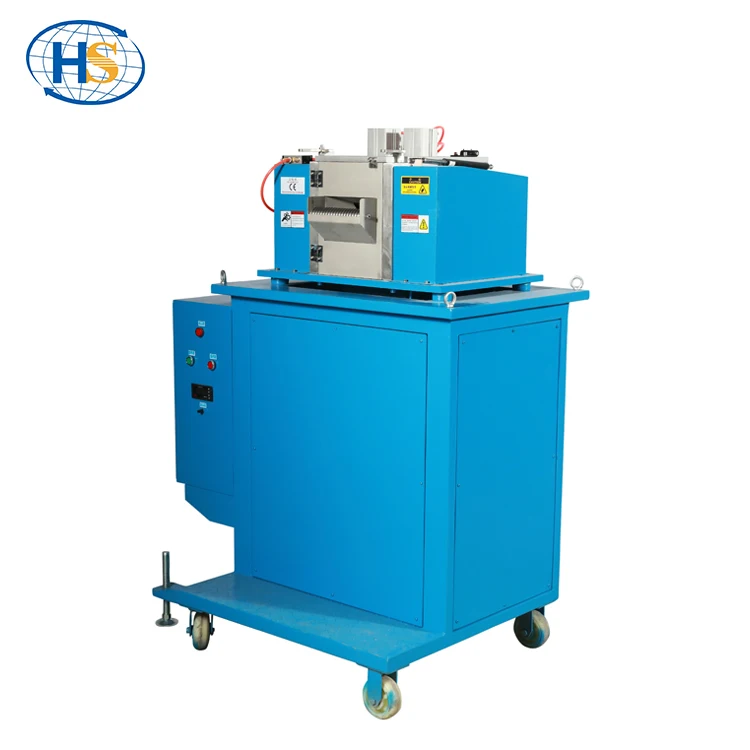

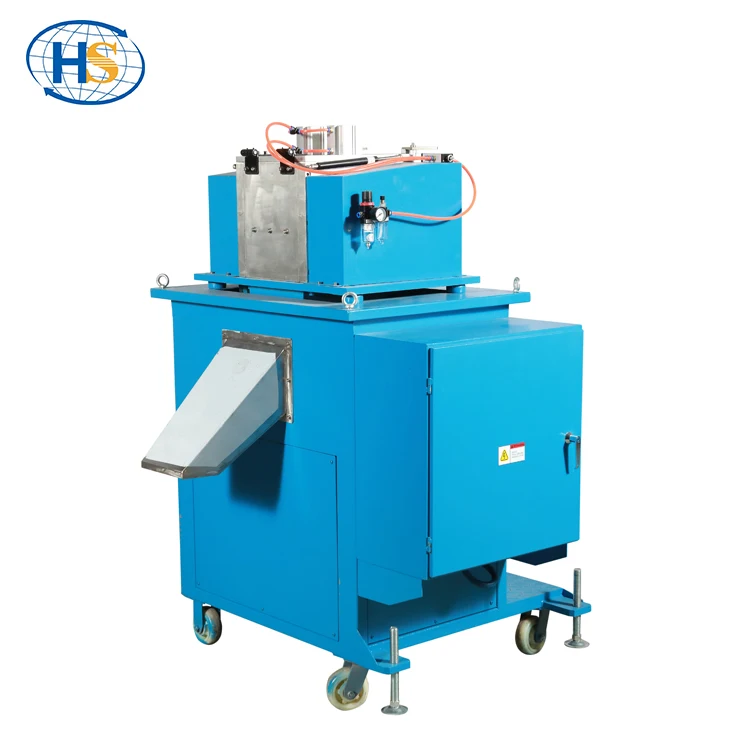

2.gantry granulator
Advantages:
Fit to pelletize glass fibre , minerial, enhanced plastics, rubber mixer, PVC, PBT, PA,PP,PE,PS,PET, ABS and other plastics strand pelletizing.
Anti-wear blades, are made of high quality tool steel ;Electromagnetic speed control; Easy and convenient to operate,just needing to open the top cover when cleaning and maintaining; equipped with mute gear transmission; anti-wear rubber towing stick; The foundation has swivel caster and fixed screw feet , easy to move and fix.
Control
Motor can be controlled by Frequent Inverter control to meet customer productivity demand
Specification
Machine Model | Motor Power | Speed Control | Number of Strand | Maximum hauling speed(m/min) | Particle size(mm) | Maximum output (kg/h) | Rotating knife dia.×L (mm) | Rotating knife teeth | Rubber diameter L(mm) | Dimension (mm) (L×W×H) |
LQ-2000 gantry | 15~22 | Slip/Inverter | ≤60 | 96 | φ3×3 | ≤2000 | φ200×400 | 32 | φ120×400 | 1200×1180×1860 |
