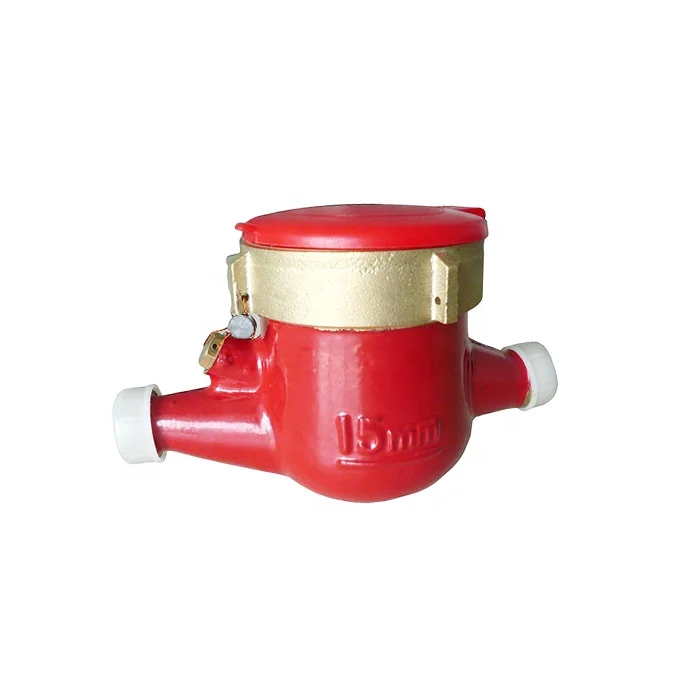

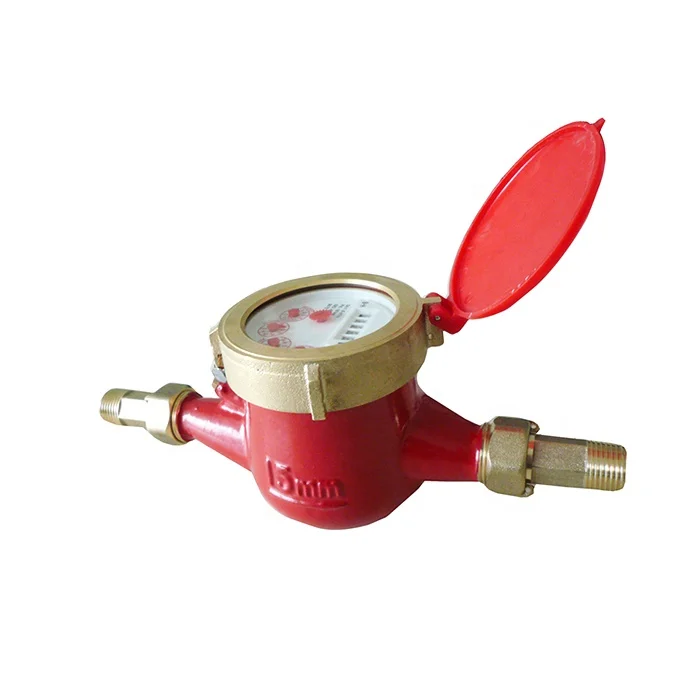

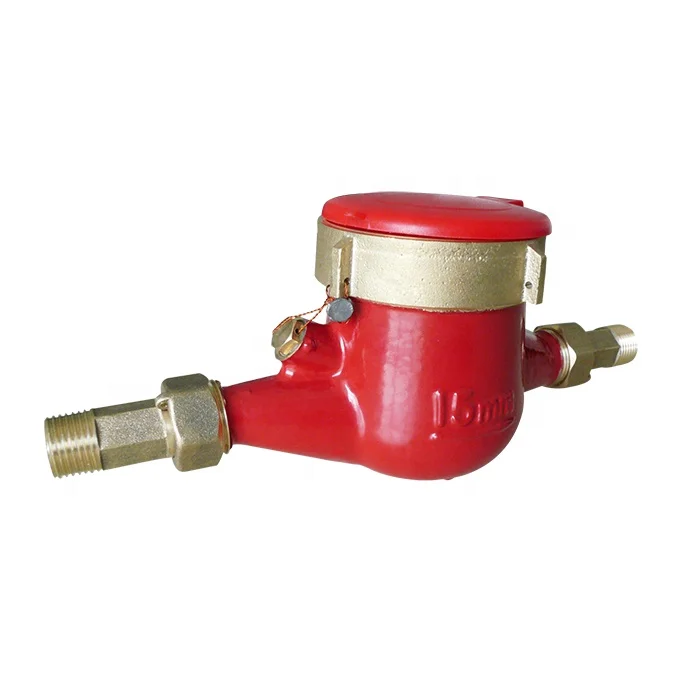

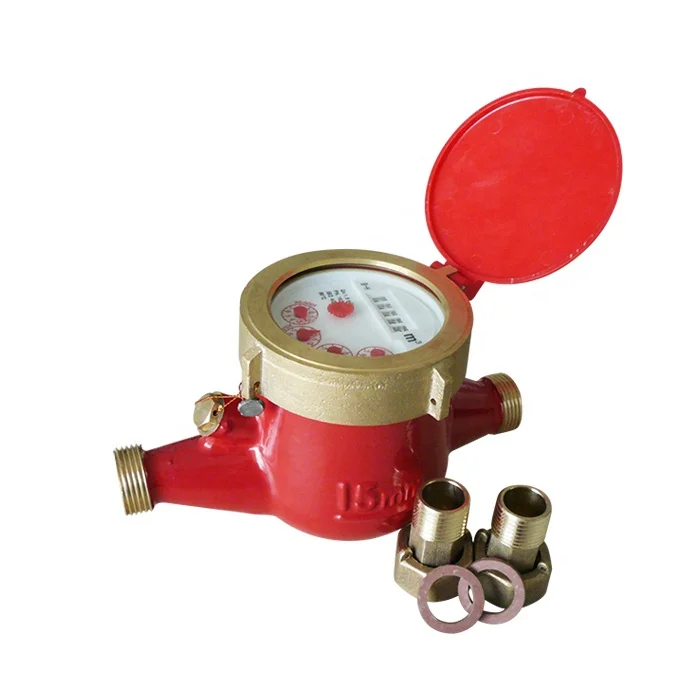

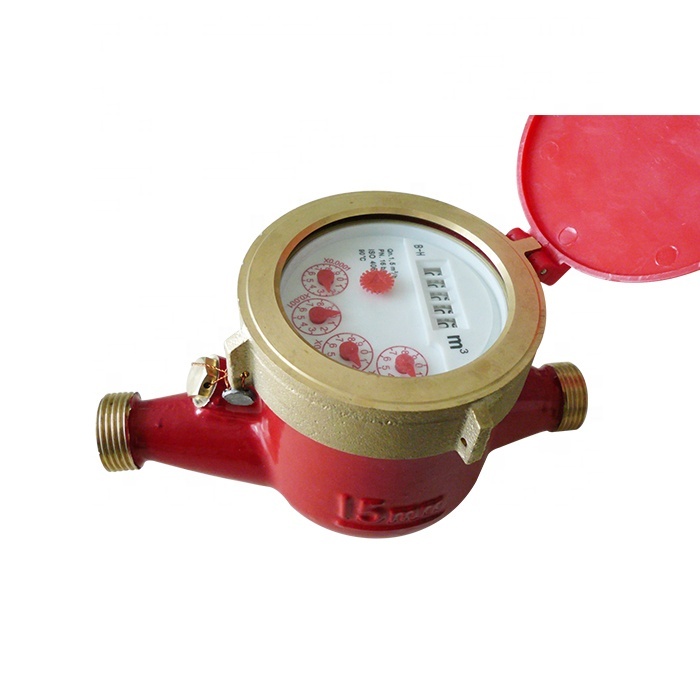

Класс B Размер 15-50 медный корпус многоструйный измеритель сухого типа для горячей
- Категория товара: Water Meters >>>
- Поставщик (Оптовый магазин): Shanxi,Solid,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Multi Jet Hot Water Meter
Product Description
Multi jet, Dry-dial
Material body: Cast gray iron / Ductile cast iron
Size: DN15 to 50mm, (½" - 2"), Available for hot water (90°C)
Accuracy: Class B Standard
Universal use. Easy for interchange & maintenance
MAIN TECHNICAL DATA
| Meter size Dia DN (mm) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
| 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | 70 | |||||
| 32 | A | 12 | 6.0 | 600 | 240 | 0.0001 | 99999 |
| B | 480 | 120 | |||||
| 40 | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
| B | 800 | 200 | |||||
| 50 | A | 30 | 15 | 4500 | 1200 | 0.001 | 99999 |
| B | 3000 | 450 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | Length | Width | Height | Connecting Thread D | Weight Kg |
| mm | |||||
| 15 | 165 | 99 | 104 | G 3/4B | 1.5 |
| 20 | 190 | 99 | 106 | G 1B | 1.7 |
| 25 | 225 | 104 | 120 | G1 1/4B | 2.4 |
| 32 | 230 | 104 | 120 | G1 1/2B | 2.7 |
| 40 | 245 | 125 | 155 | G 2B | 4.5 |
| 50 | 300 | 125 | 155 | G2 1/2 B | 7.2 |
| 280 | 165 | 175 | FLANGE CONNECTING CONFORM TO GB4216.4 D=165 D1=125 | 14 | |
WORKING CONDITION
Water temperature:≤90ºC for hot water meter
Working pressure:≤1.6Mpa
