Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000
Полировальная машина для плоских поверхностей из алюминия, меди, металла, нержавеющей стали
- Категория товара: Станок для полировки металла >>>
- Поставщик (Оптовый магазин): Anhui,Jotun,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

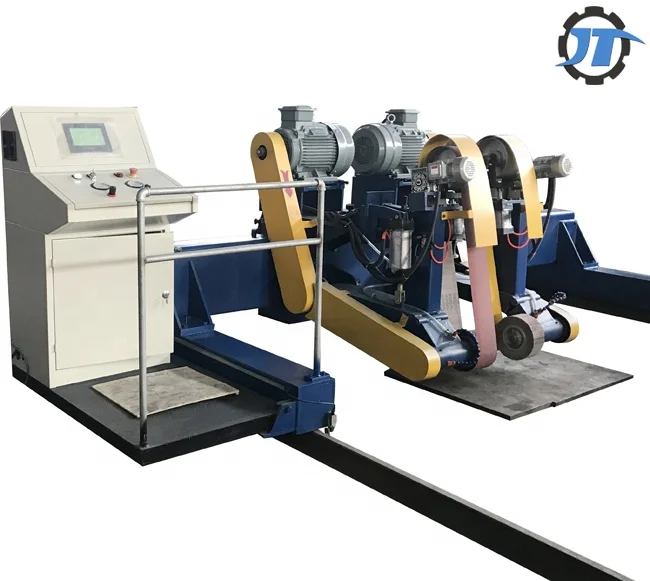

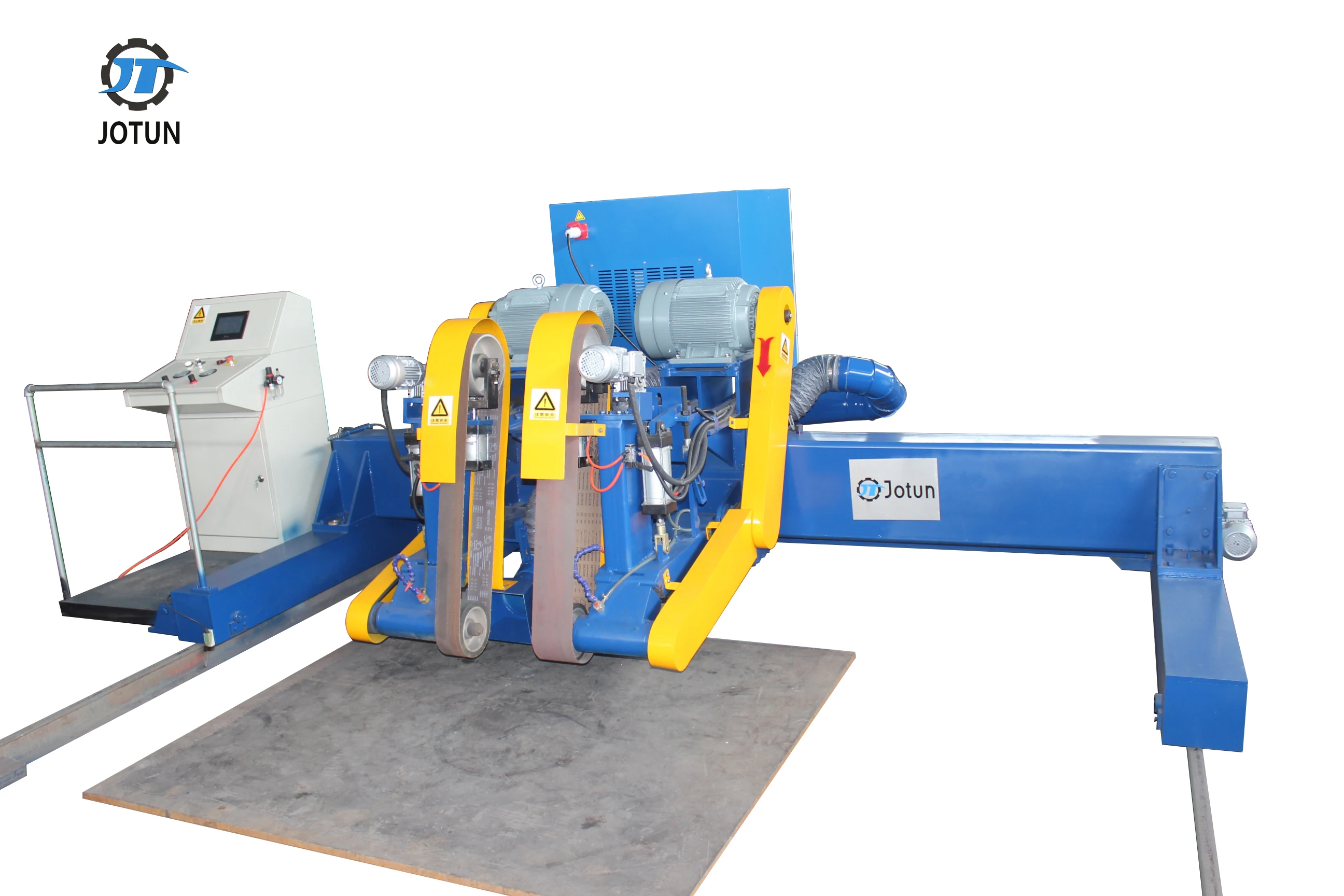

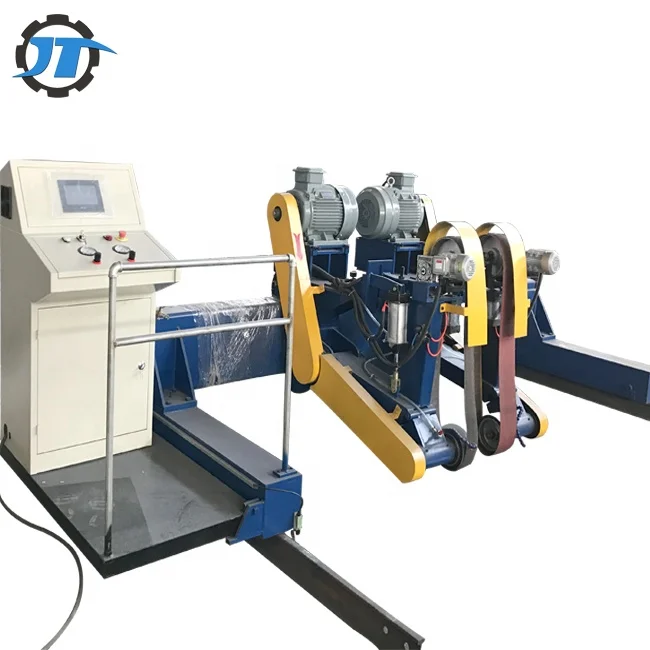

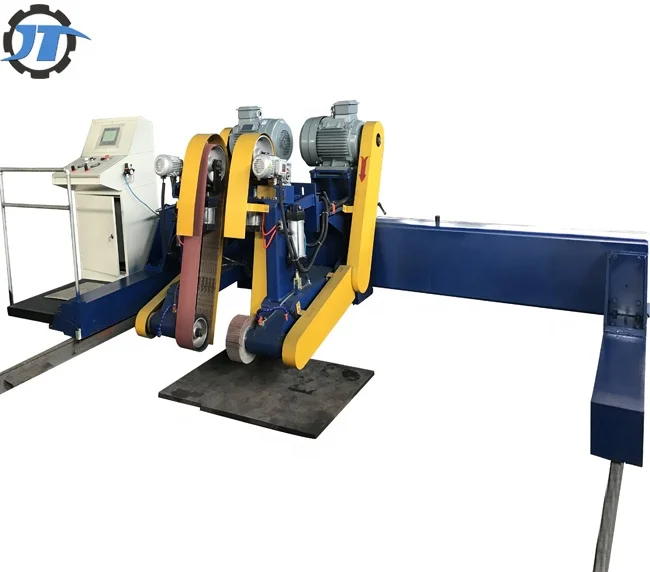

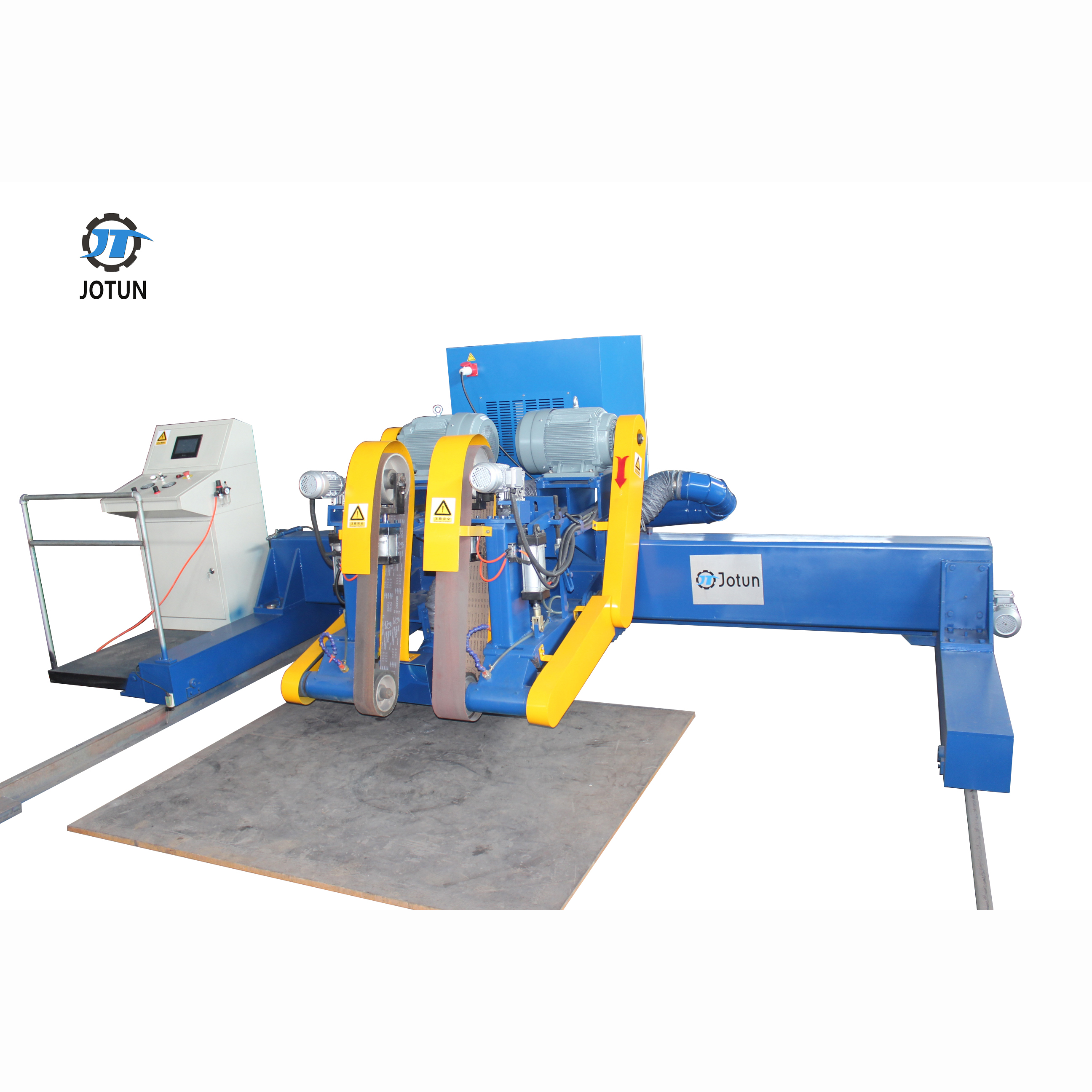

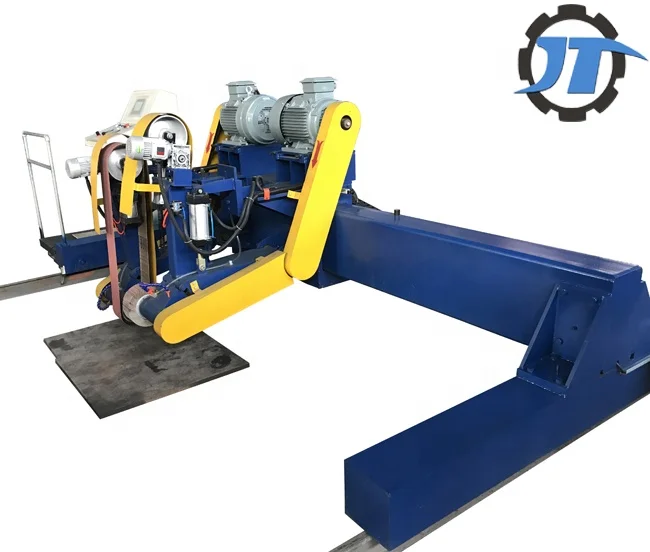

JT-PM Plate Sheet Polishing buffing Machine
It’s mainly used to polish and grind various types of large planes, such as the polishing of composite board and pre-composite front carbon steel plate, and the surface polishing of post-composite plate. It’s especially suitable to the polishing, grinding and drawing of stainless steel plate.
work piece length is virtually unlimited, and it’s just necessary to make a corresponding change in the machining tool bed and guideway.
Specification of grinding and polishing machine | ||||||
Outer Dimension | 2500*1500*2800 mm | |||||
Machine Weight | 2200 kg | |||||
Input Power | 8.5 KW | |||||
Control System | PLC/CNC | |||||
Polishing Materials | Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel | |||||
Patent No. | 201120122490.4 | |||||
Note | Our products all Non-Standard Customization | |||||
Specifications of working pieces | ||||||||
Work piece size | Plate/Flat Sheet | Min Thickness | 5mm | |||||
Width | 4000mm | |||||||
Material | stainless steel,aluminium alloy,carbon steel,red copper,etc. | |||||||
Surface rounghness | Ra ≤ 0.3 μm (Mirror Finished) | |||||||
Product Eifficiency | 8-10 square meters per hour | |||||||
Product Features
1. Grinding with abrasive belt, high efficiency, low noise and less dust.
2. Since the surface roughness is reduced after the abrasive belt is used, it can be reused. In grinding with a slightly higher level of abrasive belt, the cost is correspondingly reduced.
3. The machine tool consists of grinding head strain, cross beam, grinding head’s transverse feed mechanism, grinding head’s longitudinal feed mechanism, roller train, trajectory, machining tool bed, pneumatic system and electrical control system.
4. Due to the adoption of a grinding way that grinding head moves and workpiece stays still, work piece length is virtually unlimited, and it’s just necessary to make a corresponding change in the machining tool bed and guideway.
2. Since the surface roughness is reduced after the abrasive belt is used, it can be reused. In grinding with a slightly higher level of abrasive belt, the cost is correspondingly reduced.
3. The machine tool consists of grinding head strain, cross beam, grinding head’s transverse feed mechanism, grinding head’s longitudinal feed mechanism, roller train, trajectory, machining tool bed, pneumatic system and electrical control system.
4. Due to the adoption of a grinding way that grinding head moves and workpiece stays still, work piece length is virtually unlimited, and it’s just necessary to make a corresponding change in the machining tool bed and guideway.

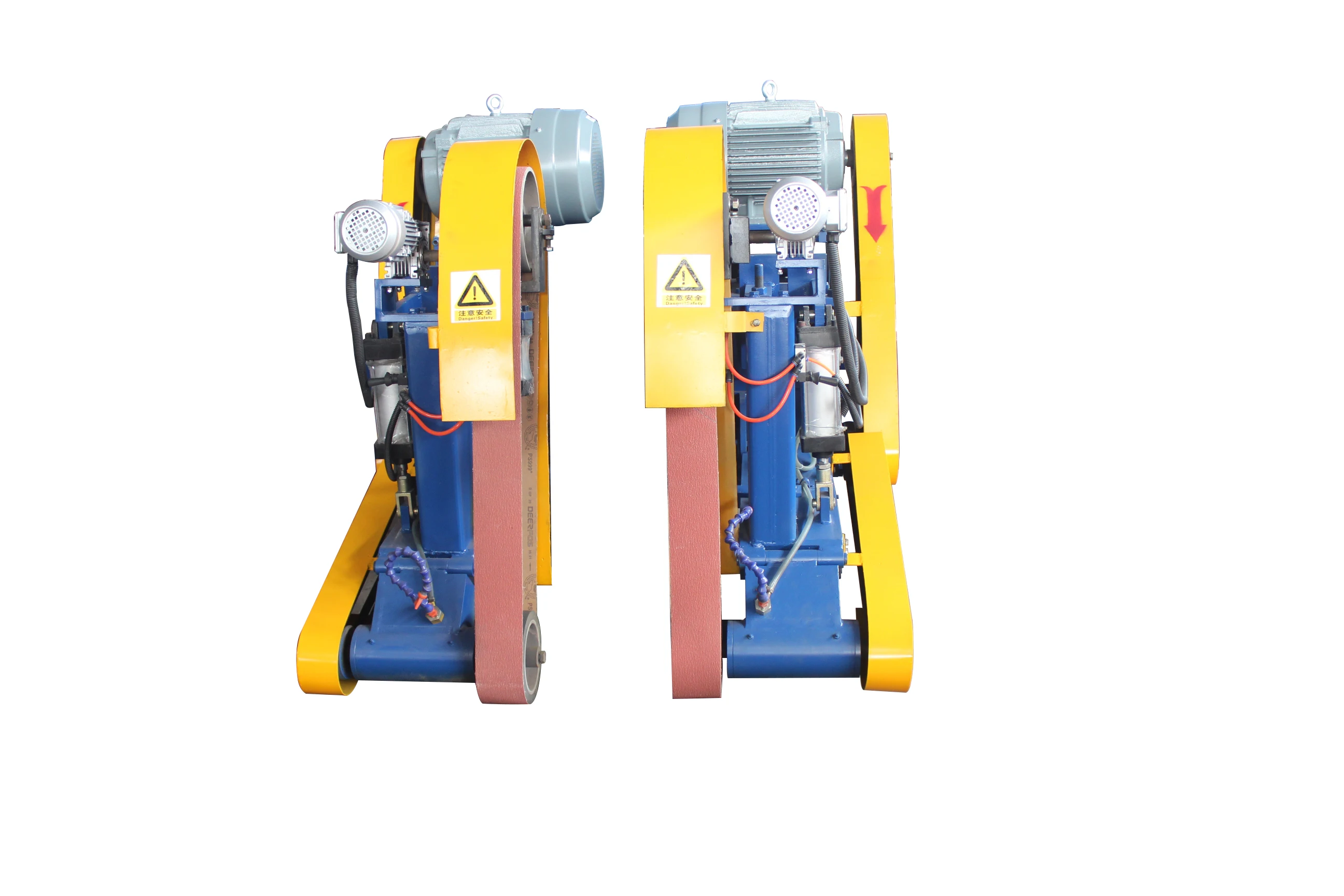

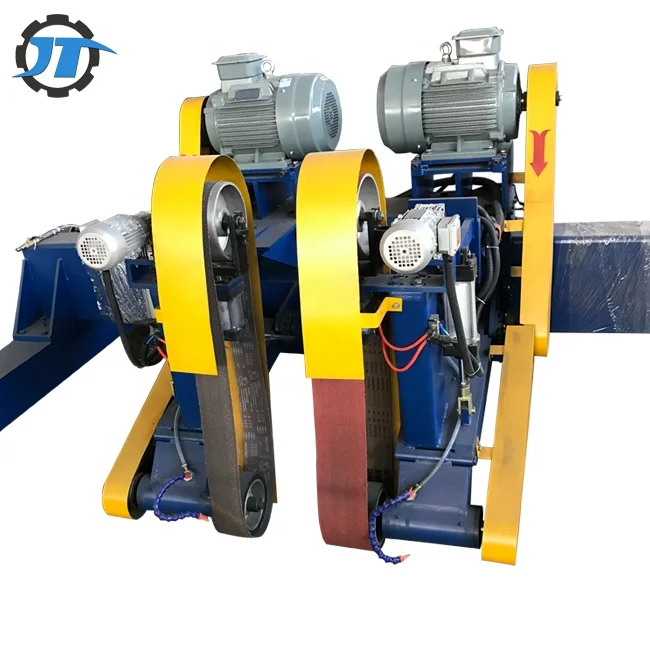

5.The grinding heads are two constant-pressure floating belt grinding heads, used to grind workpiece coarsely and finely.
Our Team
Anhui Jotun supply China professional Metal tank shell,dished end,flat sheet polishing grinding/buffing machine,welding seam treatment equipment,widely used for pharmaceutical industry,food,water purification,water supply,chemical,and new energy.Including elliptical dish,cone dish head,spherical shell ,butterfly shell,pharmaceutical stainless steel tank,pressure vessel, brewery, cylinder, cosmetic, sanitary, reaction kettle,fermentation tank,sterilizer,disinfection cabinet,filter, and LNG etc.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
Certifications
Our Service
Our product has exported to America,Argentina,Australia,Denmark,South Korea,India,Poland and 20 other countries and regions.We always focused on research development and innovation,and has recently developed water polishing to meet enviroment management certification.
We regards"reasonable prices,efficient production time and good after-sales service".Hope to cooperate with more customers for mutual development and benefits.
Packing & Delivery
After the product is commissioned, we will split the product. The shock absorbing material is carefully wrapped on the surface of the product to prevent the product from being worn during transportation. The product will then be fixed in accordance with the shipping method requested by the customer to protect the integrity and condition of the product. The way the product is packaged can be determined by the customer and we will do our best to meet your requirements.
FAQ
