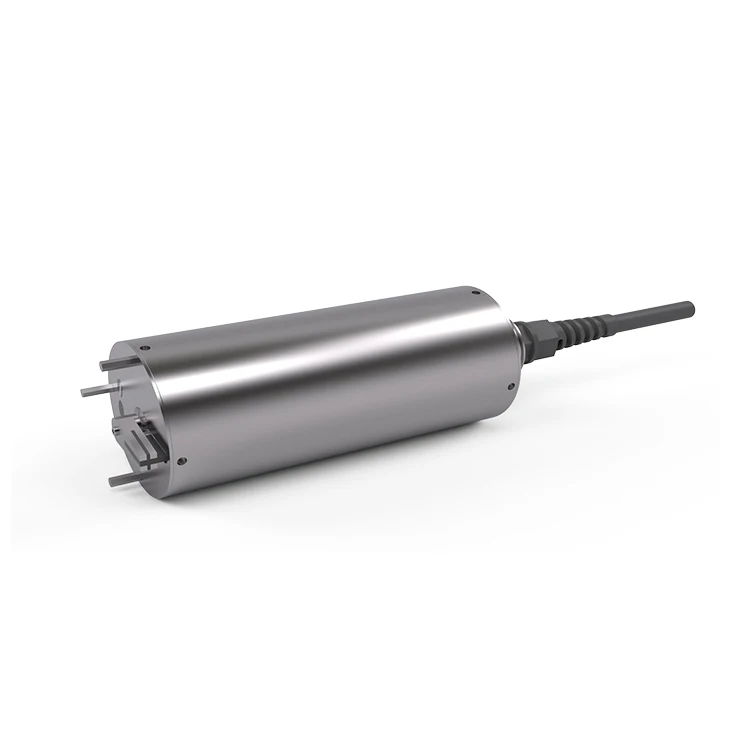

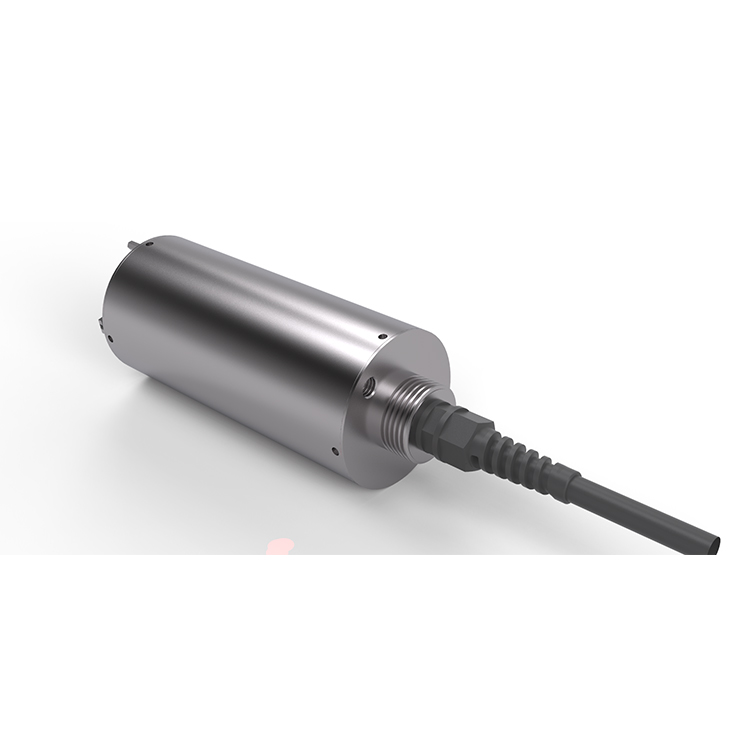

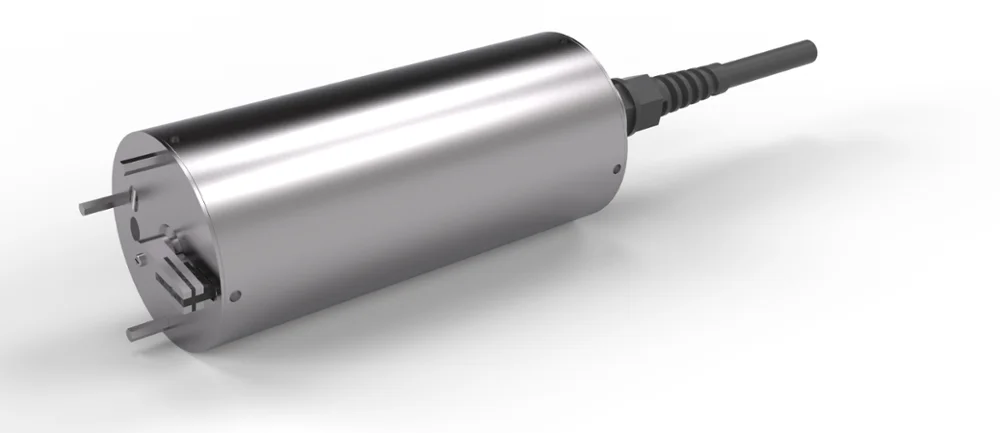

Промышленный Датчик Мутности tss, зонд, дешевый спектрофотометр для измерения мутности
- Категория товара: Other Test Instruments >>>
- Поставщик (Оптовый магазин): Hangzhou,Lohand,Biological,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

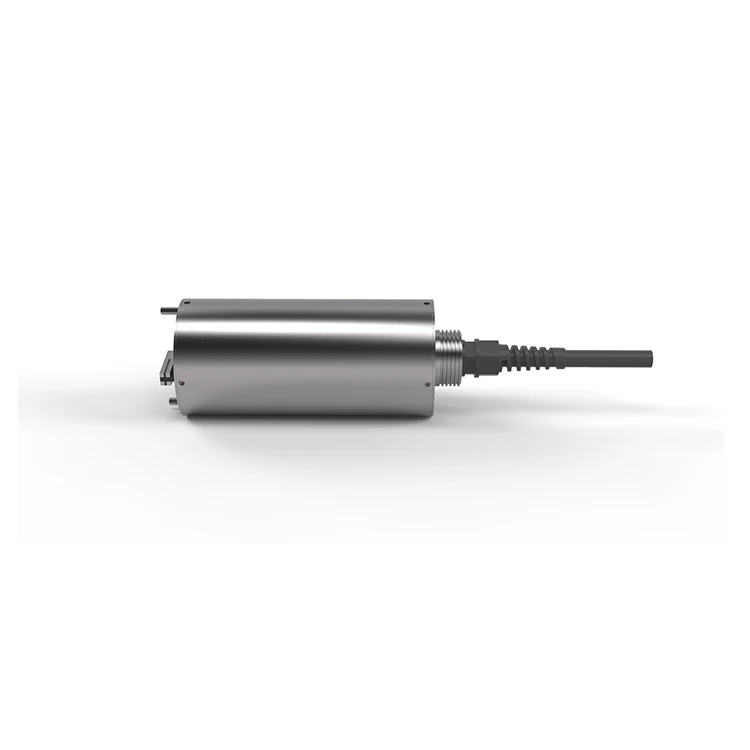

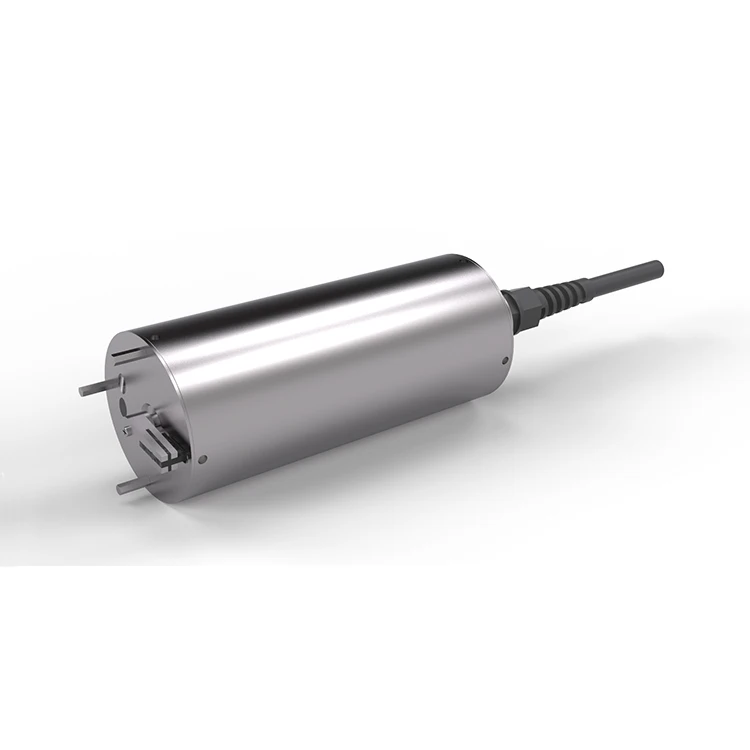

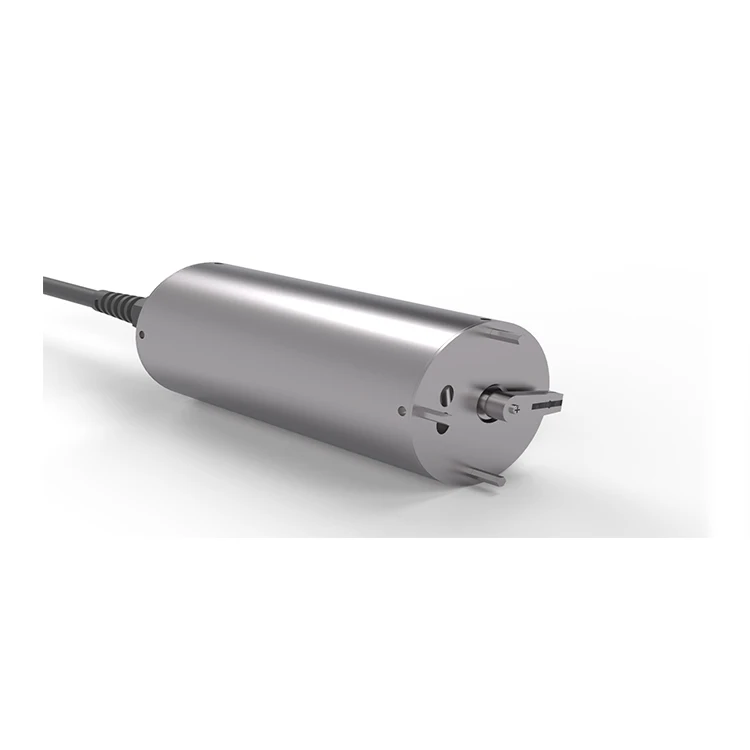

Online turbidity electrode
The online turbidity electrode adopts 90-degree scattered light method and uses a near-infrared light source to eliminate chromaticity interference and meets the IS07027 standard.
The LED emits a near-infrared beam to the sample at a certain angle.The beam will emit scattering when it hits the suspended matter in the sample during transmission.The analyzer set at 90% of the incident light receives the scattered light.The concentration of suspended matter in the sample is The intensity of the scattered light is directly proportional, so that the concentration of suspended matter in the sample and the turbidity can be calculated by measuring the intensity of the scattered light.
The LED emits a near-infrared beam to the sample at a certain angle.The beam will emit scattering when it hits the suspended matter in the sample during transmission.The analyzer set at 90% of the incident light receives the scattered light.The concentration of suspended matter in the sample is The intensity of the scattered light is directly proportional, so that the concentration of suspended matter in the sample and the turbidity can be calculated by measuring the intensity of the scattered light.
Our Advantages
1.Smart cleaning
2.Comes with intelligent device with automatic cleaning function
3.Sensitive response, wide detection range
4.Can be used for low turbidity detection. (<1NTU, with flow slot)
5.Multiple output methods
6.Support MODBUS / RS485 4-20mA current interface output to facilitate system integration.
7.Temperature compensation function
8.Built-in temperature sensor with temperature compensation function makes measurement more accurate.
2.Comes with intelligent device with automatic cleaning function
3.Sensitive response, wide detection range
4.Can be used for low turbidity detection. (<1NTU, with flow slot)
5.Multiple output methods
6.Support MODBUS / RS485 4-20mA current interface output to facilitate system integration.
7.Temperature compensation function
8.Built-in temperature sensor with temperature compensation function makes measurement more accurate.
Product Paramenters
Model | LH-DZ09-200 | LH-DZ09-1000 | LH-DZ09-3000 |
Measuring range | 0-200 | 0-1000 | 0-3000 |
Resolution | 0.01,0.1,1.0 | 0.1,1.0 | 0.1,1.0 |
Accuracy | ±0.2NTU or ±5% | ±1NTU or ±5% | ±1NTU or ±5% |
Operating temperature | 5-40℃ | ||
Deepest depth | Underwater 6M | ||
Digital interface | MODBUS/RS485 | ||
Analog interface | 4-20mA | ||
powered by | 12VDC±20% | ||
calibration | One point or two point | ||
Protection class | Ip68 | ||
Installation method | Flow tank installation or Submerged installation | ||
size | Φ54*150mm | ||
temperature range | -10 -50℃ | ||
Cable length | 5M | ||
Texture | 316 stainless steel |
Details Images
Recommend Products
About Lohand
Our Company
Since our founding in 2008, we've led the industry in developing innovative solutions to help you manage your water more efficiently and accurately.across a wide array of industrial facilities. From municipal waste water and drinking water plants to industries such as food and beverage, power generation, chemical manufacturing, and dozens more.Valuing ease-of-use, accuracy, and reliability, we craft our portfolio of solutions around the unique regulatory and operational challenges your facility faces—placing engineers and plant managers at the forefront of every design and innovation.Lohand has expertise and solutions to help you. This includes lab instrumentation, in-line process solutions, and Real-Time Control Systems, as well as a corps of service and training professionals to keep you up and running at maximum efficiency.

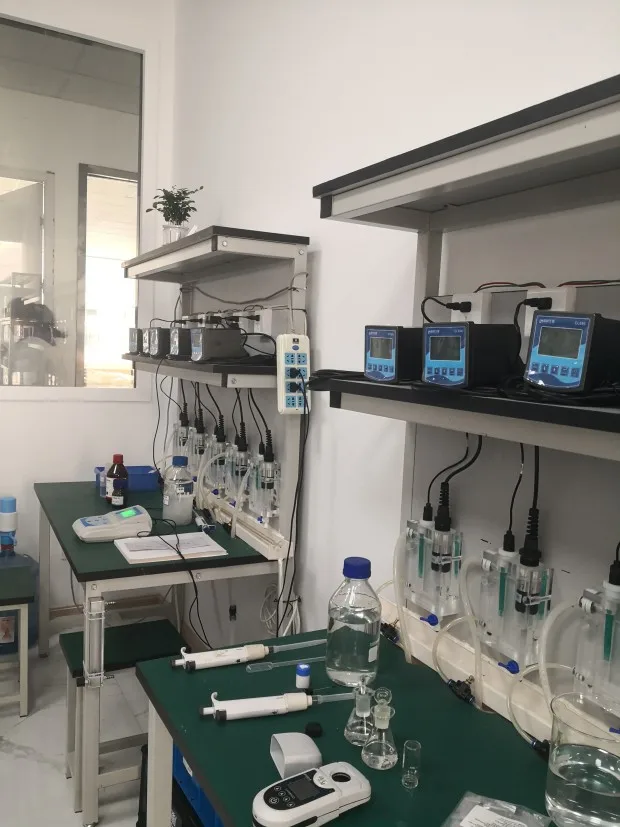

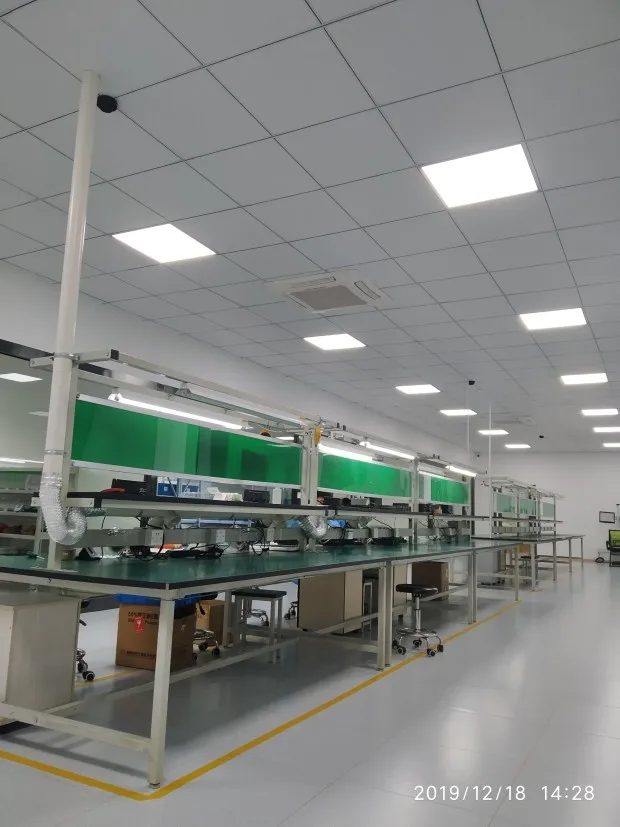

Our Factory
FAQ
1.How long can we receive the response after sending inquiry?
Answer:we are online anytime, you can contact us to know within 24 hours.
2. What is the lead time for products order?
Answer:usually, if small order, 2-3days after getting payment;if big order, it needs 10-20days after payment, it depends upon your quantity.
3.What services can we get from your company?
Answer:Superior products(peculiar design,strict quality control); Factory direct sale(favorable and competitive price); Excellent services(delivery goods on time;one year warranty;post and after services); Professional business consultation.
4.What’s the MOQ ?
Answer: Usually speaking, we do not set MOQ since we want to do business with any business type, including retailer and wholesale.
5.How can I get a sample ? What’s the sample fee? Is it refundable ?
Answer: Please confirm with us the model you’ll purchase, and you prepaid the sample fee , after sample tested and qualified, we
will refund this sample fee when you place the bulk order. We can send out the sample within 2 working days after receiving payment.
Answer:we are online anytime, you can contact us to know within 24 hours.
2. What is the lead time for products order?
Answer:usually, if small order, 2-3days after getting payment;if big order, it needs 10-20days after payment, it depends upon your quantity.
3.What services can we get from your company?
Answer:Superior products(peculiar design,strict quality control); Factory direct sale(favorable and competitive price); Excellent services(delivery goods on time;one year warranty;post and after services); Professional business consultation.
4.What’s the MOQ ?
Answer: Usually speaking, we do not set MOQ since we want to do business with any business type, including retailer and wholesale.
5.How can I get a sample ? What’s the sample fee? Is it refundable ?
Answer: Please confirm with us the model you’ll purchase, and you prepaid the sample fee , after sample tested and qualified, we
will refund this sample fee when you place the bulk order. We can send out the sample within 2 working days after receiving payment.
