Высококачественная Мини электрическая духовка для керамики

Высококачественная Мини электрическая духовка для керамики

Категория товара: Ovens >>>
Поставщик (Оптовый магазин): Henan,Sante,Furnace,Technology,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

Product Overview:

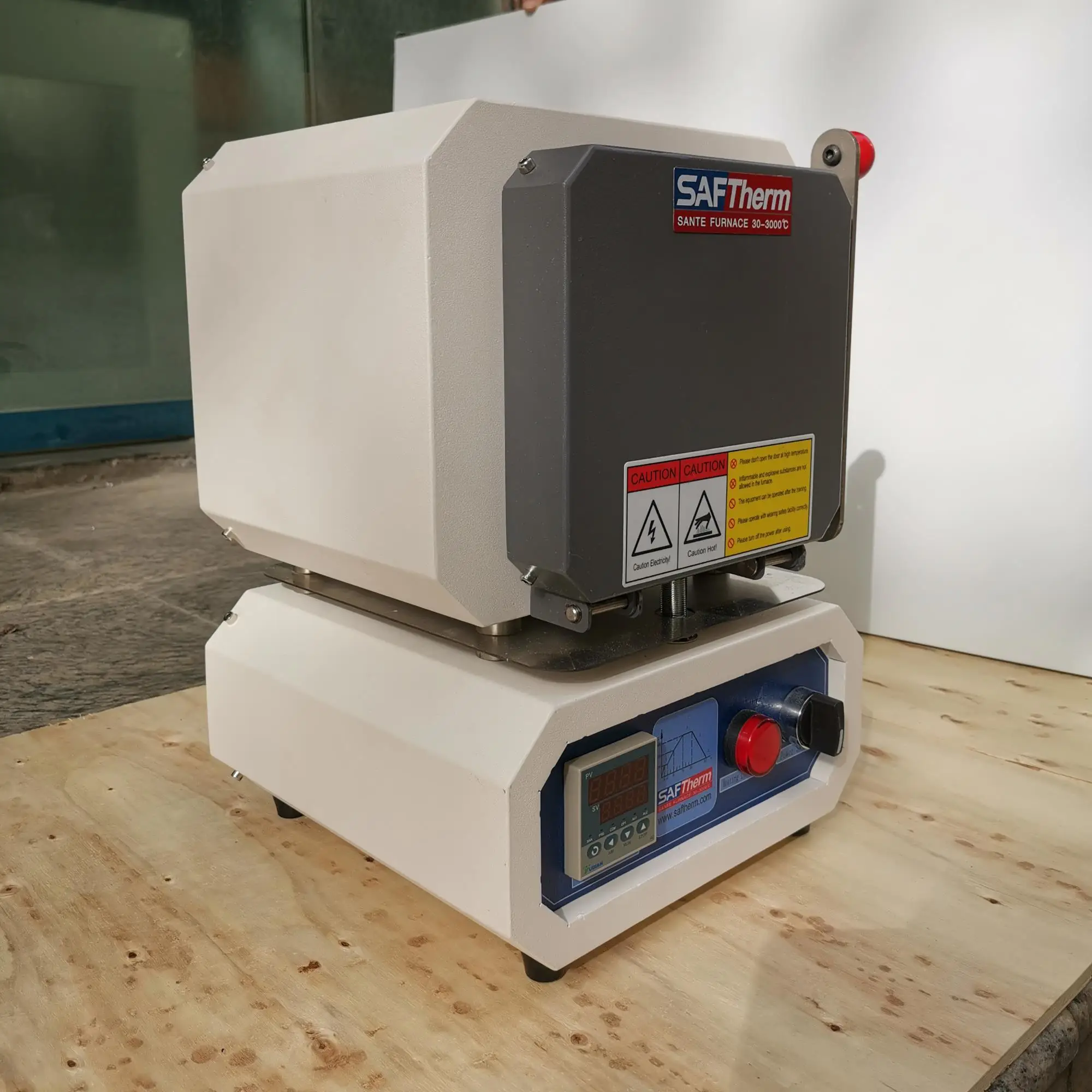

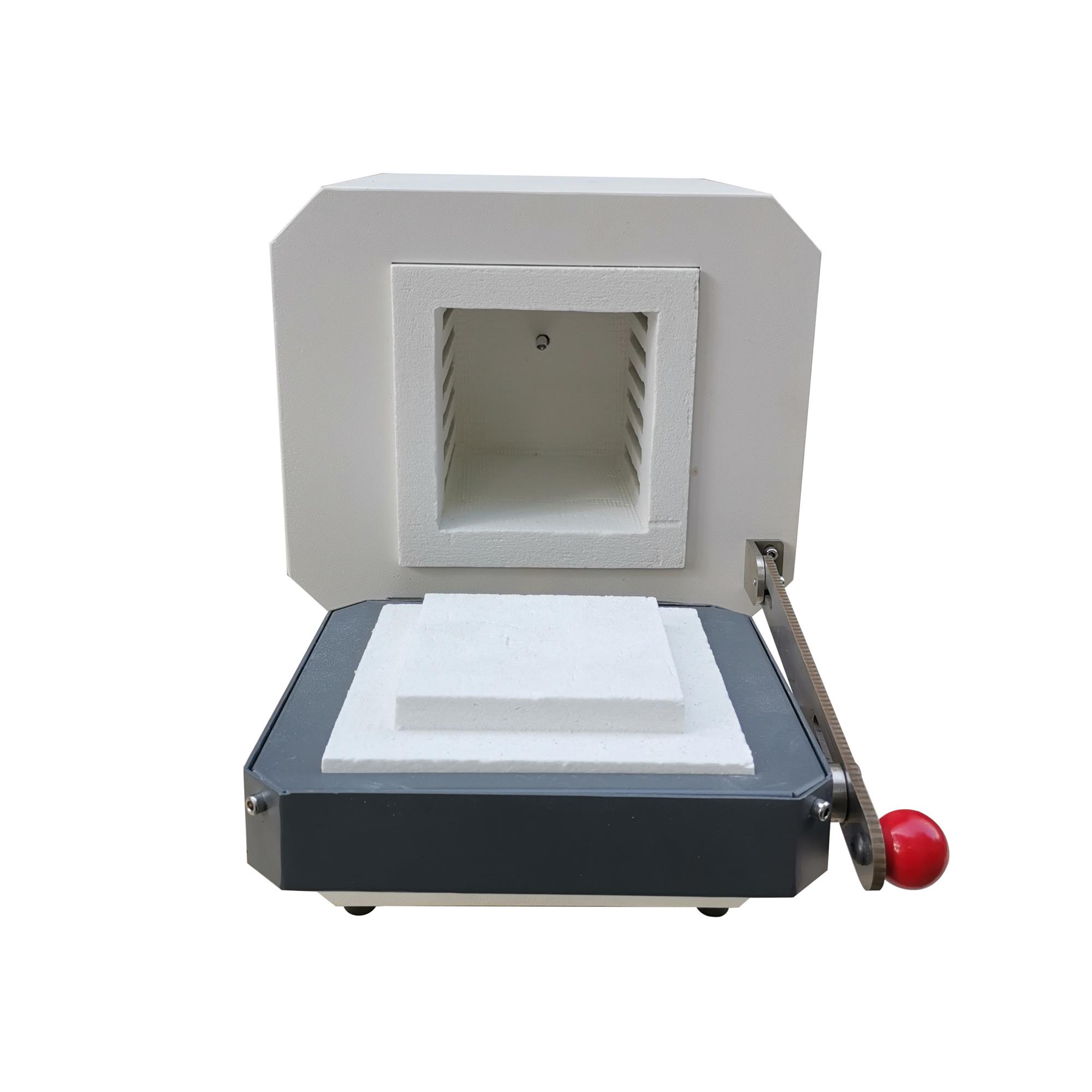

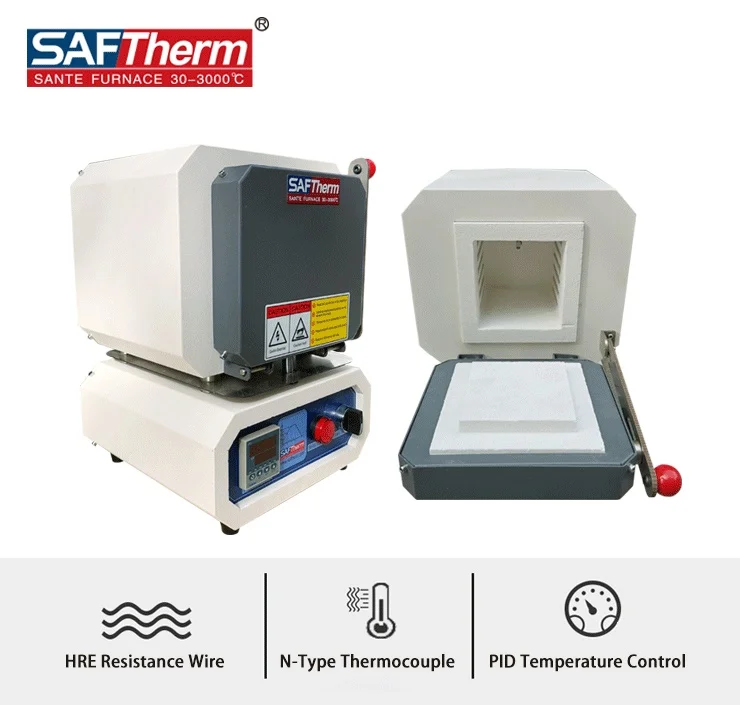

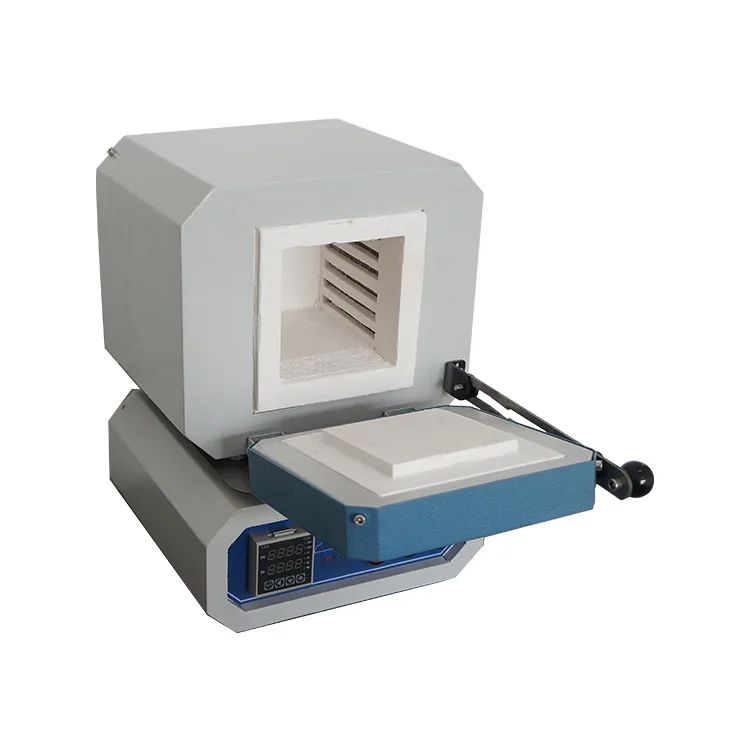

High quality mini electric oven for ceramics

The Laboratory benchtop muffle furnace With the features of small volume, low energy consumption and light weight, the mini electric heating muffle furnace is convenient for every person hold one set in the laboratory. mini electric heating muffle furnace use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system;

Scope of Application

1. AEROSPACE

The mini ceramic muffle furnace can be used in high-temperature tempering, annealing, quenching and other heating treatment processes of structural high-temperature metal materials and composites of aircraft and spacecraft engines

2. MILITARY MANUFACTURING INDUSTRY

The Laboratory benchtop muffle furnace Can be selected for all kinds of parts and components requiring heat treatment in military factories

3. SCIENTIFIC RESEARCH

we have rich experience in product in the field of scientific research, series products of 1200 ℃ to 1700 ℃ for schools and institutions.

4. PETROCHEMICAL

The minu muffle furnace is suitable for the preparation and sintering of petrochemical products.

Technical Parameters

Model	STM-1-10	STM-8-12	STM-18-10	STM-30-10
*Chamber Size mm(WDH)*	150x150x150	200x300x120	250x300x250	300x500x200
Power supply	220V/2.5KW	220V/3KW	220V/6KW	380V/7.5KW
Type	Benchtop Front-loading
Usage	General purpose furnace ideal for general laboratory uses—gravimetric analysis, sintering, quantitative analysis and heat treatment
Furnace structure	1. The furnace is consist of heating system, gas system, vacuum system 2. chamber is consist of insulation material and heating elements and atmosphere boxes 3. Temperature controller is consist of PID temp. controller, control elements and thermocouple 4. Integrated the furnace body and the temperature controller in one, the furnace is fixed on the temperature controller
Max. temperature	1000℃	1200℃
Continuous Working temperature	900℃	1100℃
Heating Rate	≤15℃/min (suggest 10℃/min for longer life using of furnace)
Heating Element	With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system
Chamber material	1. Adopt high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties 2. High quality 1300 degree fiber alumina as refractory lining, pure white color 3. Ceramic fiber insulation for fast heat-up and reduced energy consumption—rise time to 1100°>C takes only 50 minutes 4. Embedded heating elements on the round chamber which give an ideal temperature uniformity
Temp. Uniformity	±5°C
Thermocouple	N type
Temperature Controller	1. Control system integrated in the furnace base, Defined application within the constraints of the operating instructions 2. Furnace temperature controller utilizes Intelligent PID 4 group 8 segments program 3. Feature single setpoint digital control, LED display of actual temperature VS set point 4. A high-precision digital microprocessor controller fitted with self-tuning and manual PID settings makes temperature and other parameters easy to control 5. Temperature controller Precision ±1℃
Electronic component	SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc.
Furnace Shell	1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes 3. Energy efficient insulation keeps exterior safe to touch
Safety Precautions	1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
Supply Scope	1. One furnace body 2. One set of temperature controller system 3. Three-meter power line 4. One thermocouple 5. One pair of crucible stongs 6. One pair of high temperature furnace gloves 7. An instruction book
Optional Accessories	1. Quartz Boat 2. paperless recorder 3. exhaust chimney
Certification	ISO9001 CE SGS
Warranty	One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively

Detail Pictures

Packaging & Shipping

Laboratory benchtop muffle furnacein Standard Export Safe Packing:
1.The Laboratory benchtop muffle furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks

Delivery Time: 30 working days against receiving advanced payment

Port: Shanghai/Qingdao

Company Information

SAFtherm Furnace.jpg

Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan, China Free Trade Zone. SANTE products cover 1000C Benchtop electric oven~1800℃ Muffle furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on

Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment lab furnaces and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!

.jpg .jpg .jpg

FAQ

FAQS

1: Are you a factory?

Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.

2: Do you have customization or OEM service?

We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.

3: What is the delivery time?

Normally within 15 working days after receiving the advanced payment or depends on order quantity.

4: How can you guarantee the production quality?

Firstly, we are ISO9001:2008 and CE certified factory, all the processes are strictly following the standard of the metallurgy process; secondly. We have QC department who perform strictly in each producing process including package.

5: How long is your furnace warranty period?

One year(expect thermocouple and heating element), lifetime support

6: What payment terms does SAFTHERM support?

T/T, L/C and so on.
