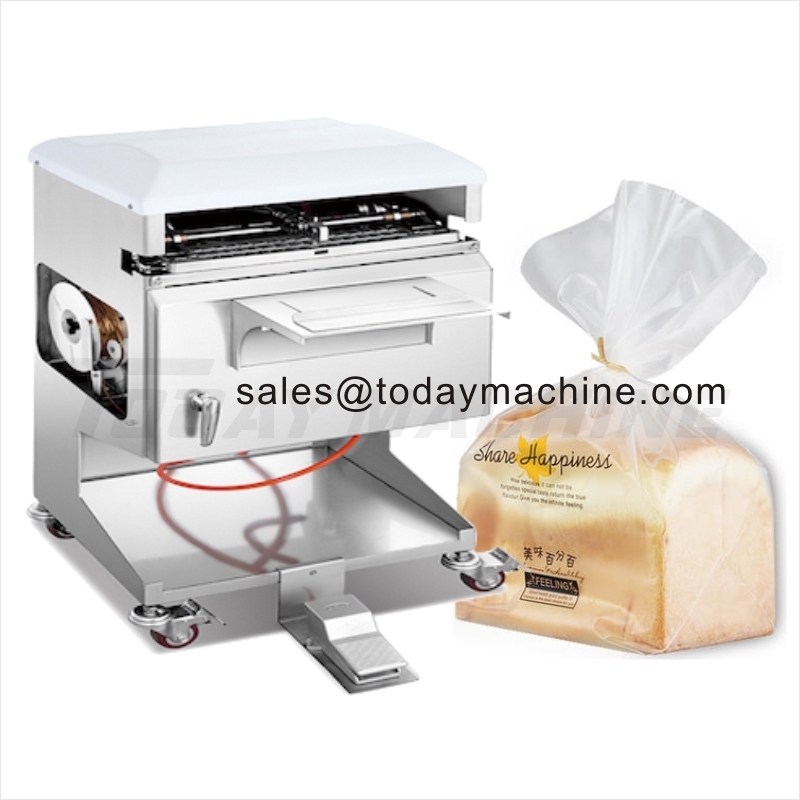

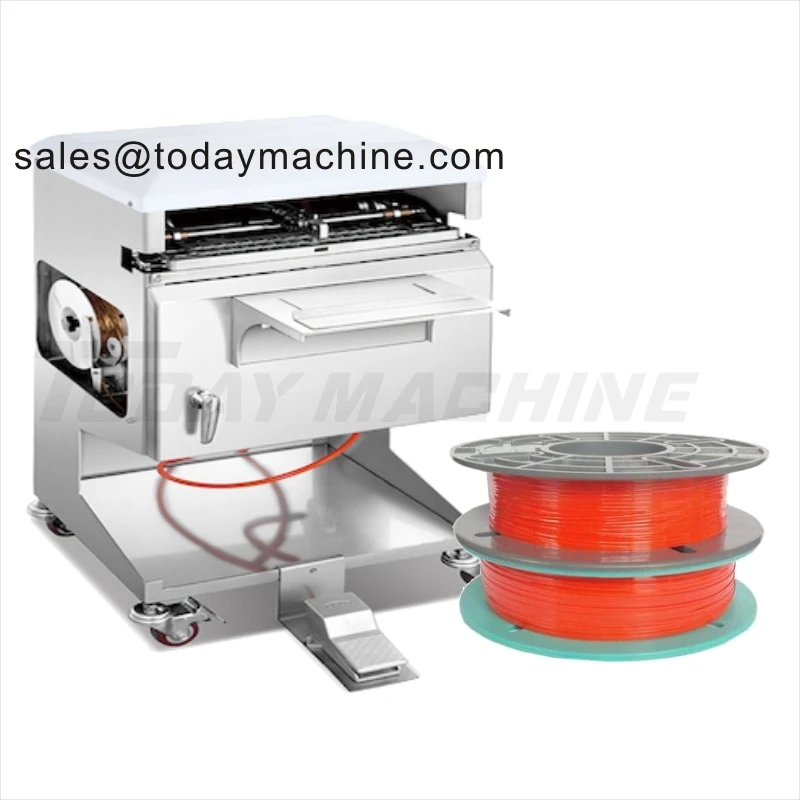

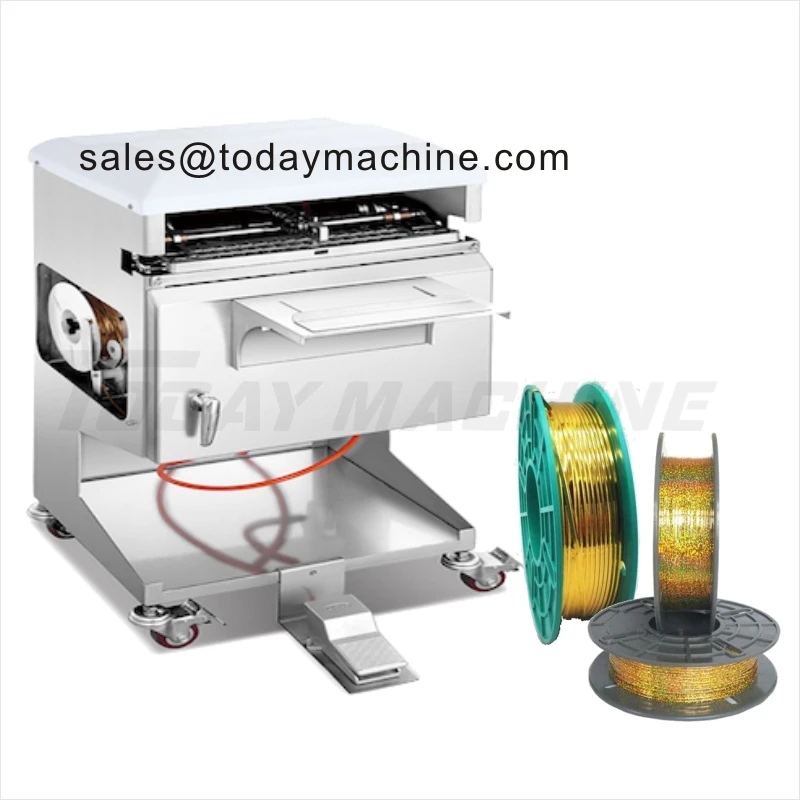

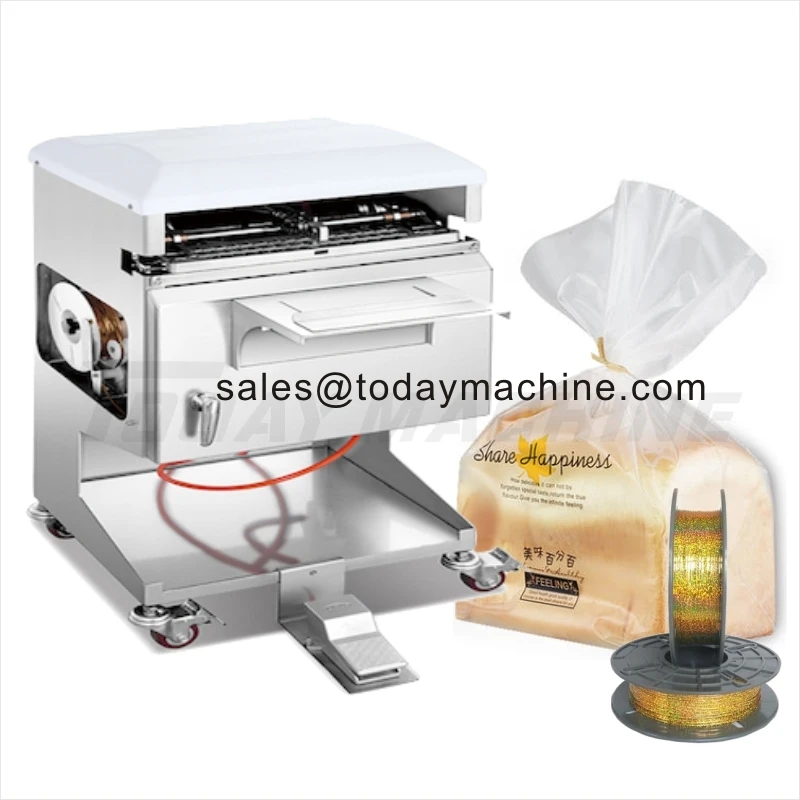

Without direct power supply ,yet only need a little compressed air and manpower to finish all pneumatic control ,performances reliable and bags beautiful ,it is an ideal selection for making flower for bread bags and candy bags…
Characters
Pneumatic type Tying Machine Tying with color wire
Pan Shaping for Upper Bag margin show nice outlook
Without electricity supplying, it works by compressed air and various thickness of wires are available
No need the electricity for the operation. But it’s driven by compressed air
Easy to replace the fan shaping folder and good to make fan shape
Various thickness of wires are available Dust remover is available as an option in the dusty place. It helps to extend machine’s lifespan.
Technical specification
Model
Frame
Max. Bag Width (mm)
Capacity (pcs/min)
Rope Length (mm)
Air Pressure (MPa)
Weight (kg)
Dimension (mm)
TIE-250
paint
250
30-40
100
0.4-0.6
35
600x600x1000
TIE-300
stainless steel
300
30-40
100
0.4-0.6
45
700x600x800
TIE-400
stainless steel
400
30-40
100
0.5-0.6
45
700x600x800
Semi auto Shrink Film Sealer
For mass production such as food, software, medicine, beverage, tobacco, daily chemicals, automobiles, cables, cosmetics, and electronics.
Application
Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
Feature
Sealing cutting shrinking can complete in one time, save energy, easy operation and beautiful packing result.
Semi automatic pof/pvc film sealing shrink packing machine is high configuration, high cost performance, good quality, long service life.
High efficiency, a big range of application in the packing filed.
Technical
Model
FQL-S450
Working way
Semi-automatic
Cutting time
0-3 second
Conveying time
0-10 second
Packaging Speed
1-14pcs/min
Conveying Weight
Max 20kg
Film Width
Max 450mm
Max. Packing Size (L*W)
500*450mm
Voltage
AC 220V-240V 50-60hz 1KW
Packaging dimension
1730*740*1050mm
Weight
150kg
Vacuum skin packaging machine
Packing of small hardware, daily goods, stationery, and Measure tools, fork, toys, medical machine, electric accessories, craftwork, keepsake,Food and plastic products…
Features
Used for packing the goods of various shapes, no mould, operation is easy, transparent, beautiful, stereoscopic, moistureproof and dustproof.
Special tubular heaters alignment for average heat distribution.
Fixed heater, instantly heating system, save energy.
Feed material type: front-in, right-out.
Small size, save spare, can be worked with assembly line, enhancing efficiency.
Surface is dealed with the parched lacquer, good view and long useful time.
High quality fittings, dependable quality.
Technical
Model
TB-390
TB-540
Voltage
220V/380V
220V/380V
Power
9KW
13KW
Area of Packaging
390mm*540mm
540mm*780mm
Packaging Speed
1-2 pcs/min
1-2 pcs/min
Package Material
PVC,PE Skin packaging film
PVC,PE Skin packaging film
Film Width
450mm
610mm
Dimensions
1000mm*690mm*1300mm
1100mm*750mm*1350mm
Weight
170KG
230KG
Automatic Can sealing machine
For Can Canister bottle sealing.
Application
This fully-automatic can sealing equipped with 4 rollers can achieve double seam via 2 operations to avoid leakage.
Ideal for sealing tuna, sardine & other cannery food in the tin, aluminum, Ferrum and other round metal cans.
Suitable for packaging in food, beverage, leisure food, pharmaceutical and chemical industries etc, such as nuts, preserved fruits, Chinese herbal, etc.
Description
High volume Fully-automatic single head seamer
4 rollers for consistent & leak-proof seam
Perfect for sealing tin, aluminum, PET& other paper cans with a maximum diameter of 130mm
Adopts PLC and man-machine interface are integrated and controlled by microcomputer technology, which realizes human-machine data exchange, and is easy to operate and intelligent.
Overload protection system advoide machine overload damage,provides a smarter using experience while extending the life of your equipment and saving on maintenance costs.
Whole sealing head and lifting tray are made of 304# stainless steel.At the same time of rust prevention, the mechanical rigidity is better, and the sealing effect is better and more stable.
The electrical components are all internationally renowned brands, which make the equipment run more stable, the service life is extended, the maintenance cost is saved, the replacement is more convenient and quick, and the customer can purchase and use it locally.
Seal without Leakage
Double Seam
All our automatic can seamers are equipped with 4 rollers, which can achieve an airtight double seam, a strong mechanical structure containing 5 layers of metal.
Strong Rollers
By improving the rigidity of the rollers, our can sealing machine can form a stronger hermetic seal, ensuring that every can of your product is leakage-free.
Perfectly-matched Toolings
Toolings of every can seamer are exclusively-made based on the size & type of your can. So the lid is perfectly sealed to the can body without any gap for leakage.
Technical parameter
Model
CS
Sealing head qty
1 piece
Seaming roller
4pcs (2pcs first operation and 2pcs second operation)
