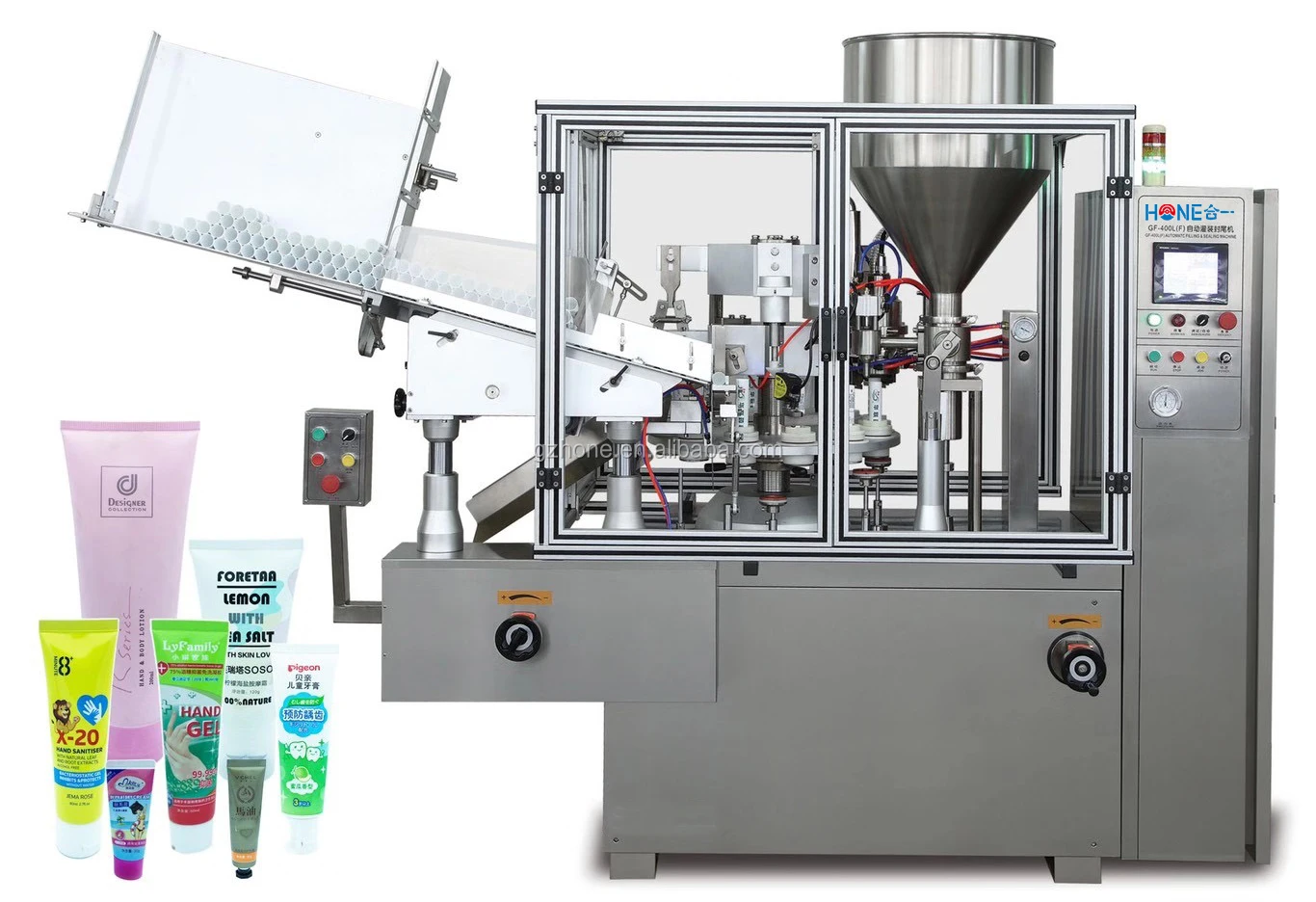

HY-A400 полностью автоматический Косметический Крем тюбик зубной пасты, наполняющая и запечатывающая машина, машина для наполнения и запечатывания пластмассовых туб для продажи
- Категория товара: Pharmaceutical Filling Machine >>>
- Поставщик (Оптовый магазин): Guangzhou,Hone,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

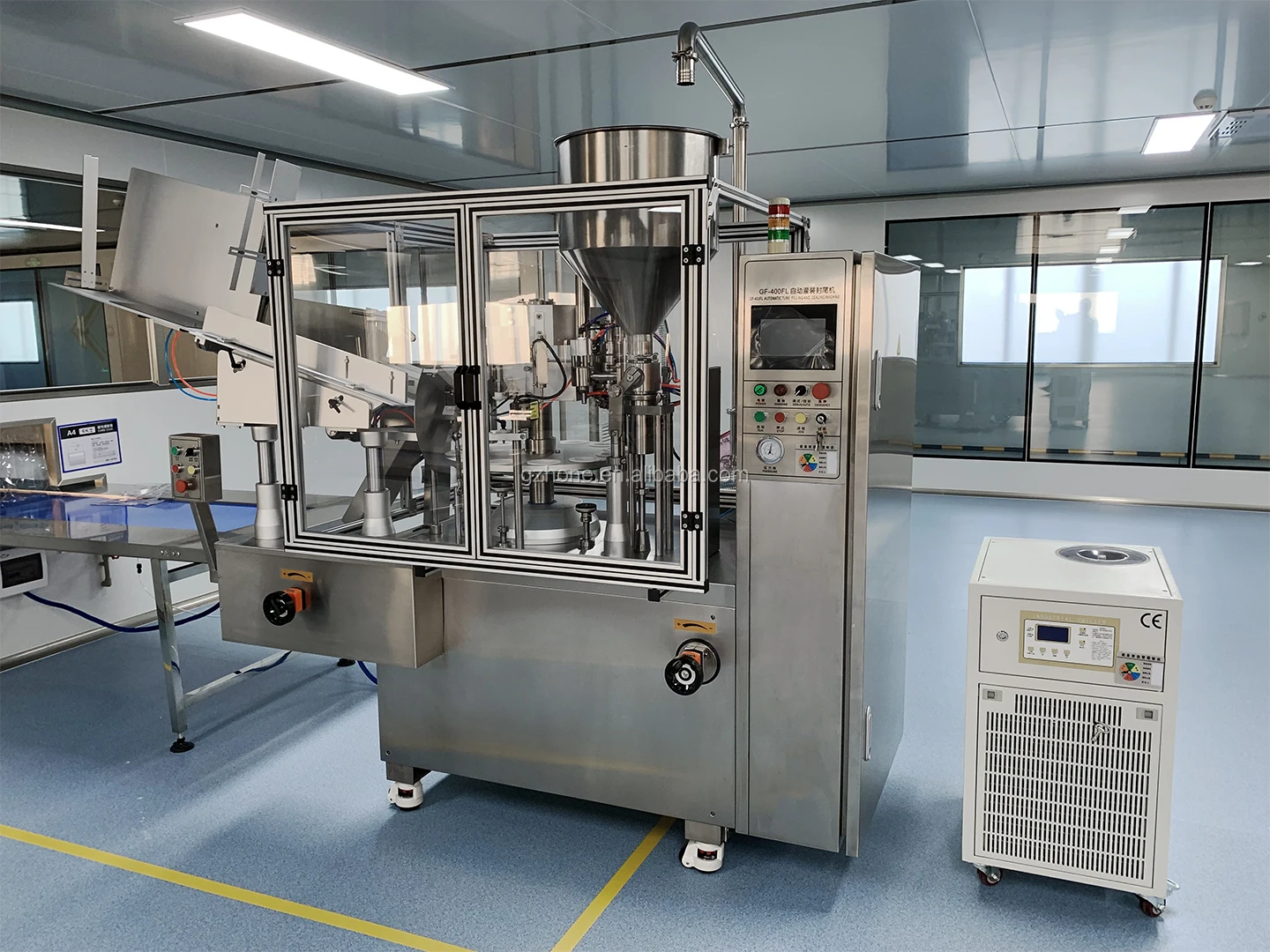

Automatic Tube Filling and Sealing Machine
Automatic Tube filling and sealing machine
※ Automatic Tube Loading and Feeding
※ BANNER Automatic Print Registration
※ Tube orientation checking
※ Tube orientation checking
※ Tube Automatic Filling with Anti-drop
※ LEISTER inner heating and external cooling
※ Tube Sealing & Code embossed
※ Tube Cutting more than million times
※ Automatic discharge to next step
※ MITSUBISHI PLC & HMI CONTROL system
※ WATER COOLING CHILLER
※ AUTOMATIC PRODUCT FEEDING SYSTEM WITH LEVEL CONTROL.
※ LEISTER inner heating and external cooling
※ Tube Sealing & Code embossed
※ Tube Cutting more than million times
※ Automatic discharge to next step
※ MITSUBISHI PLC & HMI CONTROL system
※ WATER COOLING CHILLER
※ AUTOMATIC PRODUCT FEEDING SYSTEM WITH LEVEL CONTROL.
Model | HY-A400 | ||||||

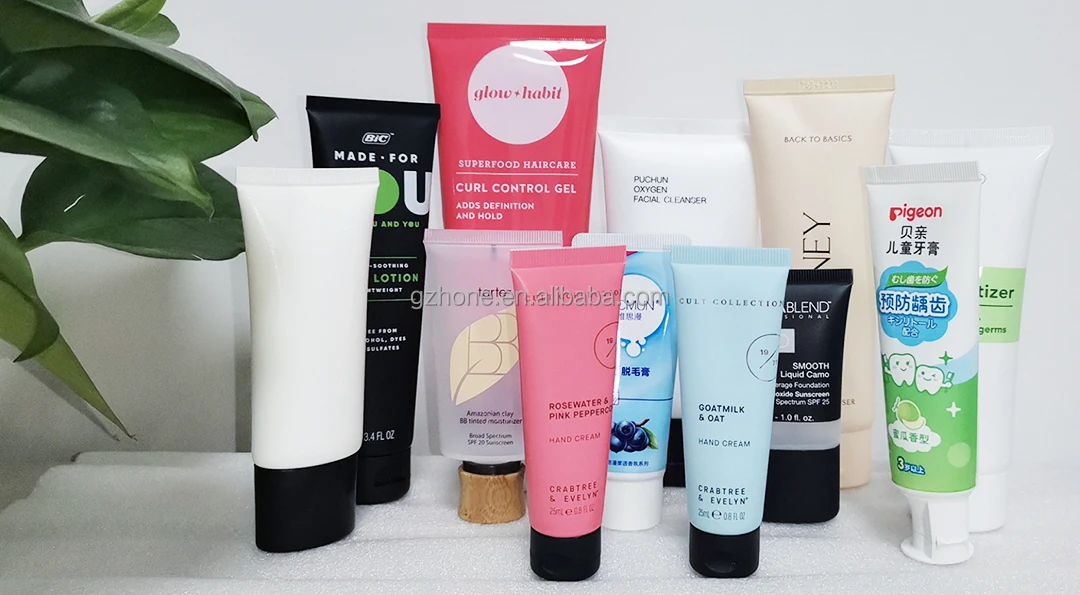

Tube material | Plastic tube, Laminated/Multiple tube | ||||||
Tube diameter | φ15—φ60 | ||||||
Tube length | 60—250（customizable） | ||||||
Filling volume | 5—400ml/pcs（adjustable） | ||||||
Filling accuracy | ≤±1% | ||||||
Product capacity | 1800—4000 pcs/h（adjustable） | ||||||
Working pressure | 0.55—0.65Mpa | ||||||
Motor power | 2KW (380V/220V 50Hz/60Hz, three phase) | ||||||
Heat sealing power | 3KW | ||||||
Working Position | 12 Pcs | ||||||
Automatic Tube Loading and Feeding
BANNER Automatic Print Registration
Tube orientation checking
Tube Automatic Filling with Anti-drop
LEISTER inner heating and external cooling
Tube Sealing & Code embossed
Tube Cutting more than million times
Automatic discharge to next step

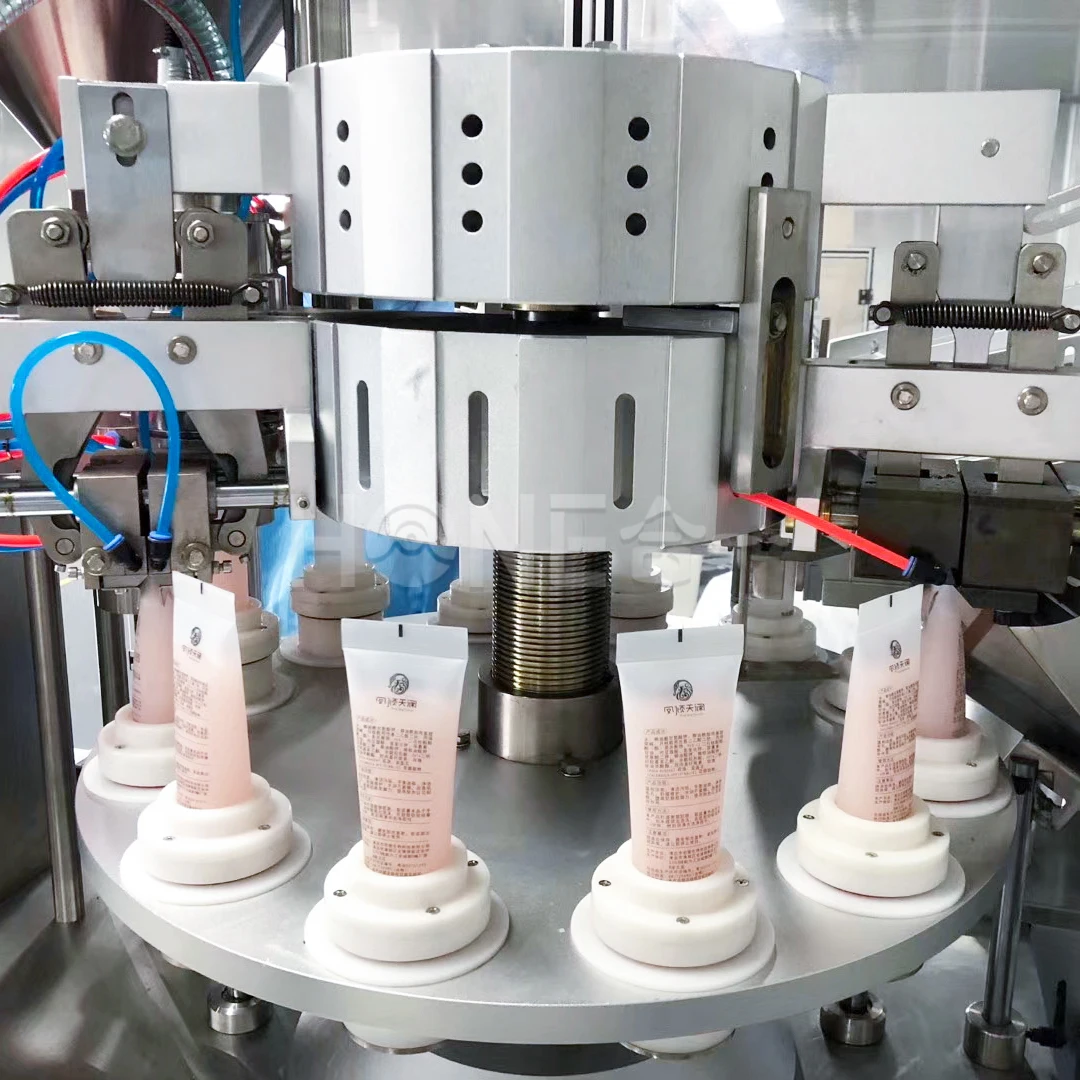

Rotating plate with 12 holes for the molds
Customize Service
Customized Jacketed heating and Mixing Hopper
◇ Could design customized hopper according to customer's requirement
◇ 50L SUS3016L jacketed heating tank, ◇ Temperature available set and automatic control
◇ Wall scrapper mixer with variable speed controller◇

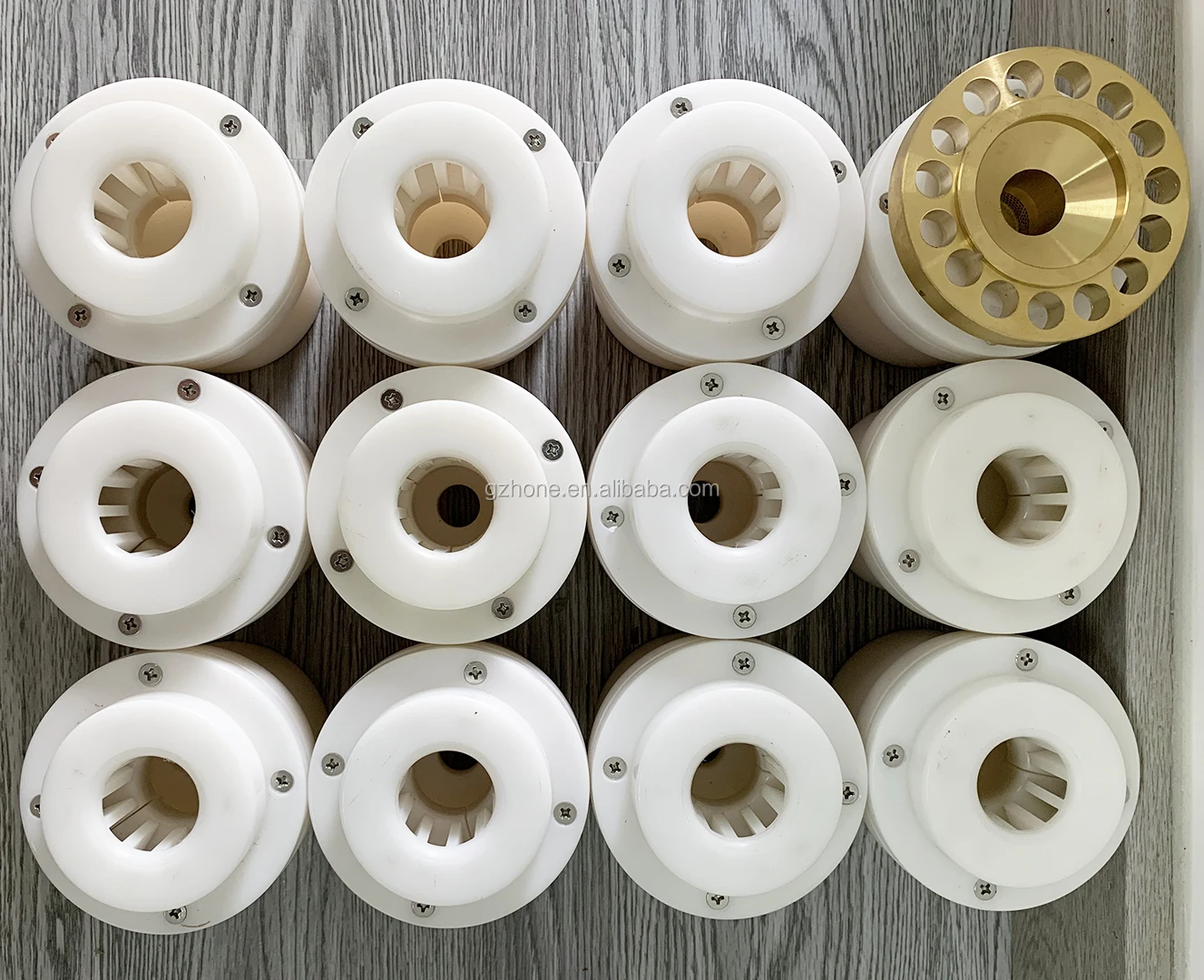

MOLDS
◇ 12PCS Molds/Set, A different size with a set of mold
◇ Copper made Heater, One size one mold
◇ Cooling jacket made of SUS304, Common adapt
