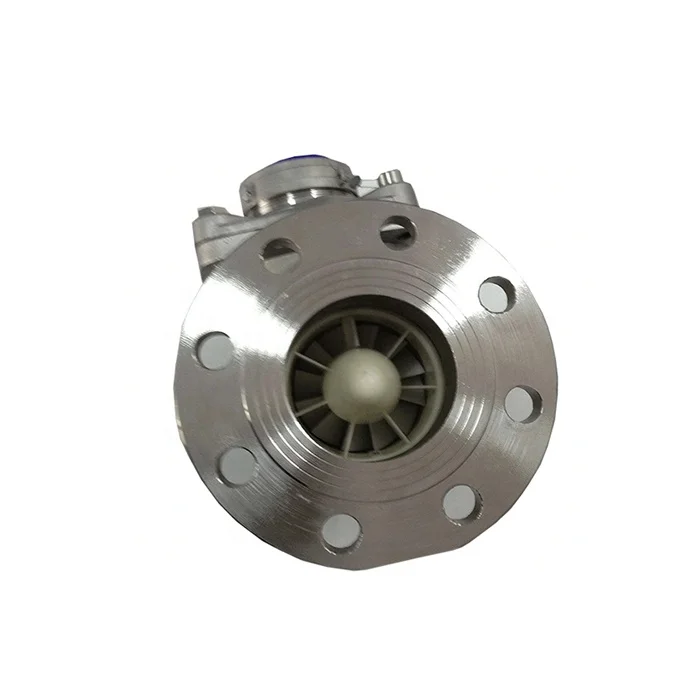

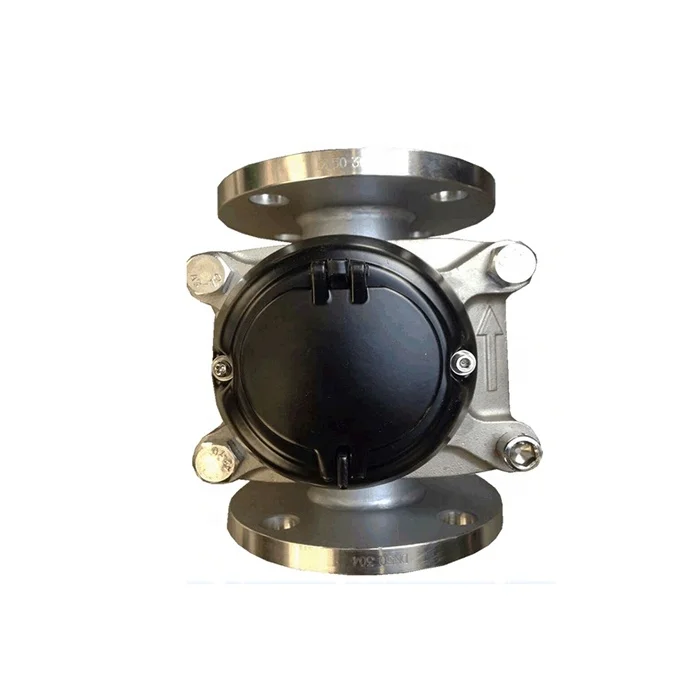

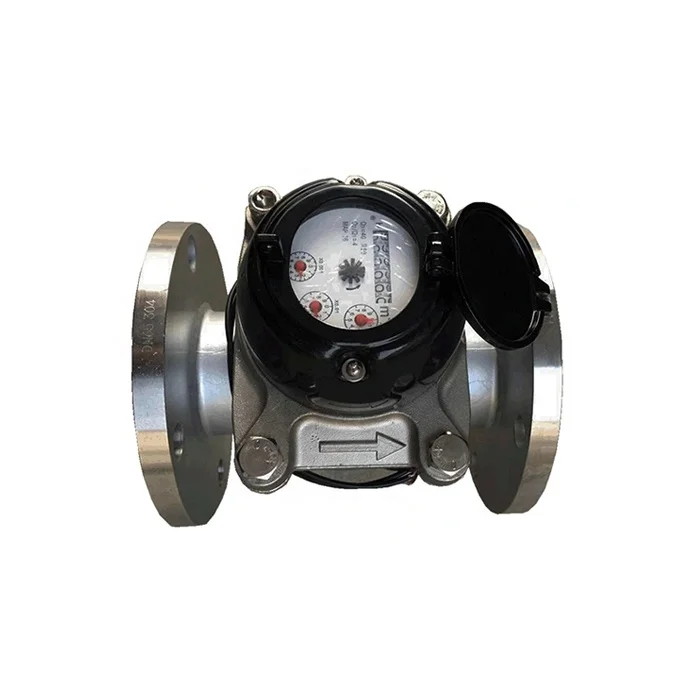

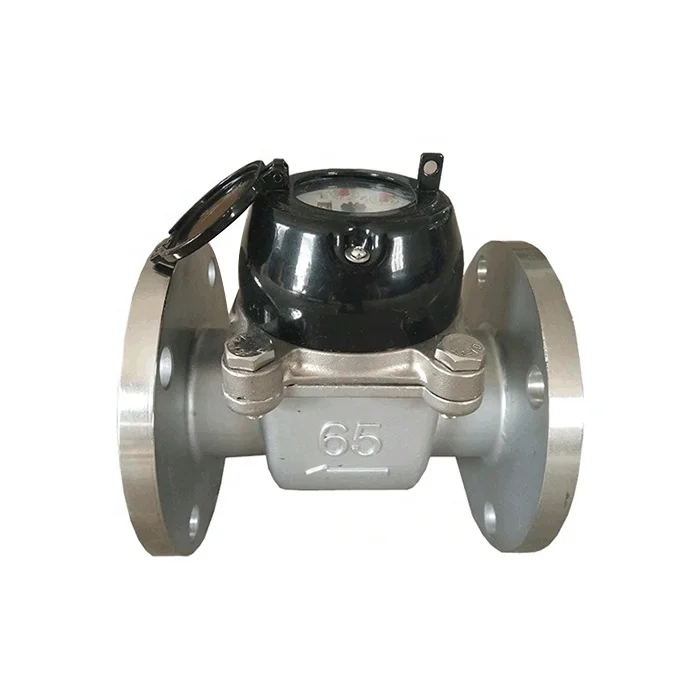

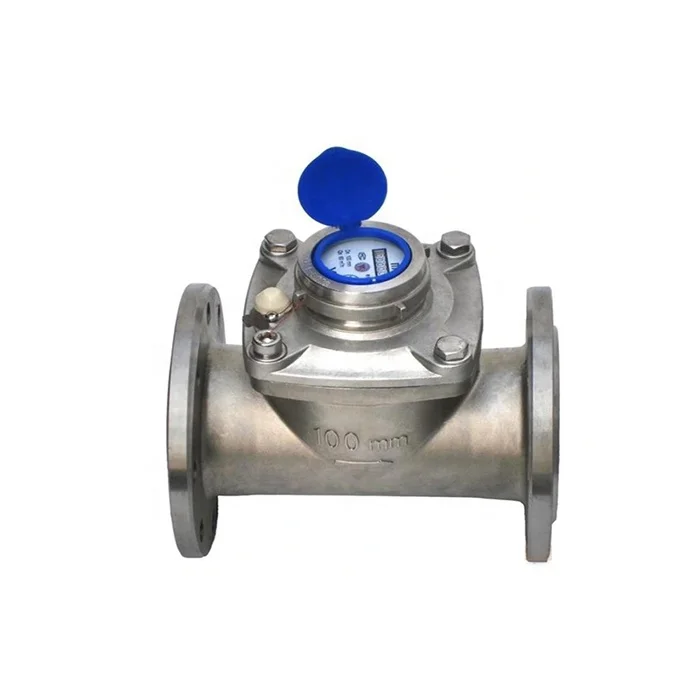

Заводской фланцевый счетчик воды большого диаметра из нержавеющей стали SS304
- Категория товара: Water Meters >>>
- Поставщик (Оптовый магазин): Shanxi,Solid,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Factory Large Diameter Stainless Steel SS304 Woltmann Type Flanged Water Meter
Why choose us
Product Description
Application:
--Measuring the volume of cold (hot) water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance;
--Dry-dial, Magnetic drive;
--Large flow capacity, small pressure loss;
--Resist water hummer and pollution;
--Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
--Selected high quality materials for steady and reliable characteristic;
--Technical data conform to international standard ISO 4064.Class B
The meters can be equipped with a kind of remote transmission device, the pulse generating volume could be 10,1000 or 10000 L/pulse.
Water temperature: 0.1ºC~50ºC (0.1ºC~90ºC for hot water meter)
Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum permissible errors:
in the lower zone from qmin inclusive up to but excluding qt is ±5%
in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
Type | Size(mm) | Class | Qs overload flow | Qp permanent flow | Qt transition flow | Qmin min flow | Mini reading | Max reading |
| m3/h | m3 | |||||||
| LXLC-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.002 | 999,999 |
| B | 3.0 | 0.45 | 0.002 | 999,999 | ||||
| LXLC-80 | 80 | A | 80 | 40 | 12.0 | 3.2 | 0.002 | 999,999 |
| B | 8.0 | 1.2 | 0.002 | 999,999 | ||||
| LXLC-100 | 100 | A | 120 | 60 | 18.0 | 3.8 | 0.002 | 999,999 |
| B | 12.0 | 1.8 | 0.002 | 999,999 | ||||
| LXLC-150 | 150 | A | 300 | 150 | 45.0 | 12.0 | 0.002 | 999,999 |
| B | 30.0 | 4.5 | 0.002 | 999,999 | ||||
| LXLC-200 | 200 | A | 500 | 250 | 75.0 | 20.0 | 0.002 | 999,999 |
| B | 50.0 | 7.5 | 0.002 | 999,999 | ||||
| LXLC-250 | 250 | A | 800 | 400 | 120.0 | 32.0 | 0.002 | 999,999 |
| B | 80.0 | 12.0 | 0.002 | 999,999 | ||||
| LXLC-300 | 300 | A | 1200 | 600 | 180.0 | 48.0 | 0.002 | 999,999 |
| B | 120.0 | 18.0 | 0.02 | 9,999,999 | ||||
Detailed Images
Factory Overview
Related products
Our Services
------SAMPLE ROOM------
------CERTIFICATIONS------
FAQ
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
