Product Description
Chocolate, Pulp Buffer Storage Tank
Applicable range:
1. Pulp storage tank can be used as fluid storage tank, temporary storage tank, sterilize tanks, etc.
2. Buffer storage tank is suitable for food, dairy, ade, and biological engineering etc.
3. The price of chocolate storage tank is based on tank material we choose, configuration's brands, etc.
4. We are real manufacturers for all kinds of stainless steel tank. And our factory is located in Jiangsu Province.

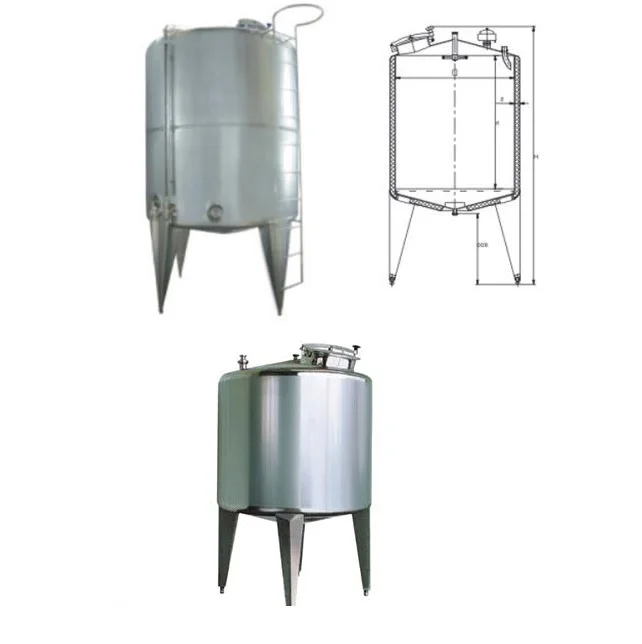

Pulp storage tank structure characteristics | ||

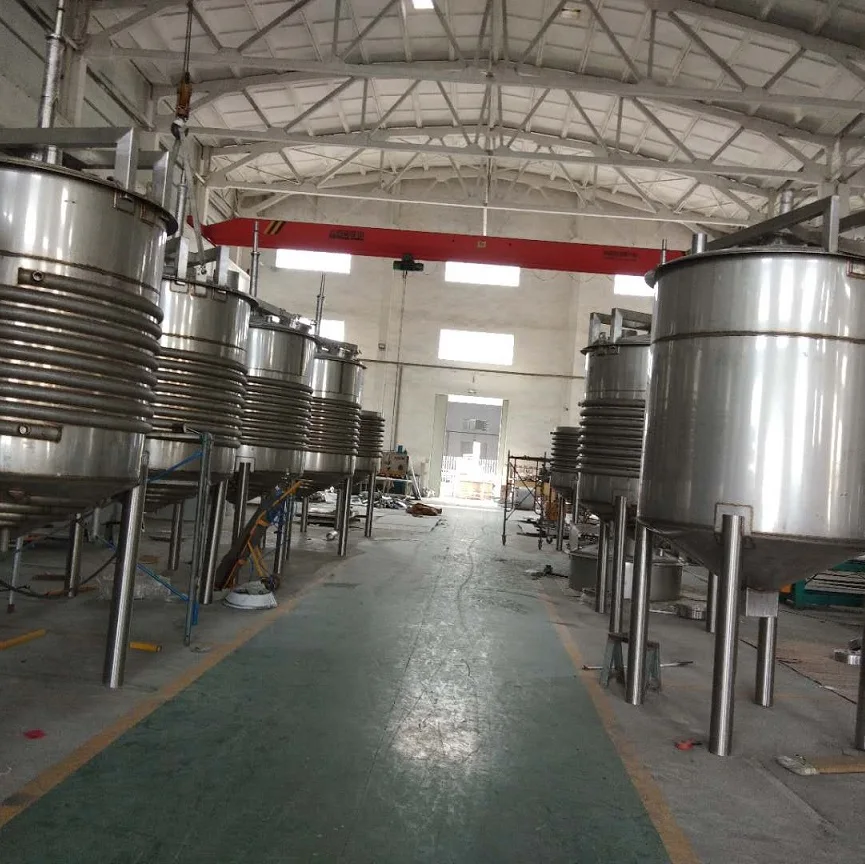

1 | Inner shell, jakcket plus clad, middle insulation (tracing pipe jacket, miller jacket, full jacket) | |

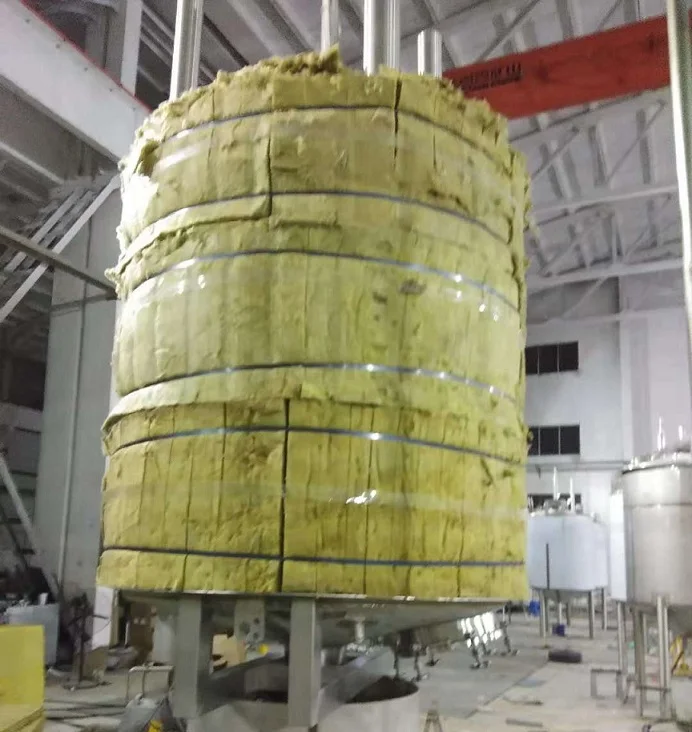

2 | Insulation material can be rock wool, glass wool, PU. | |
3 | All mateial should be sanitary stainless steel. | |
4 | Inner wall is arc transition, no dead corner. | |

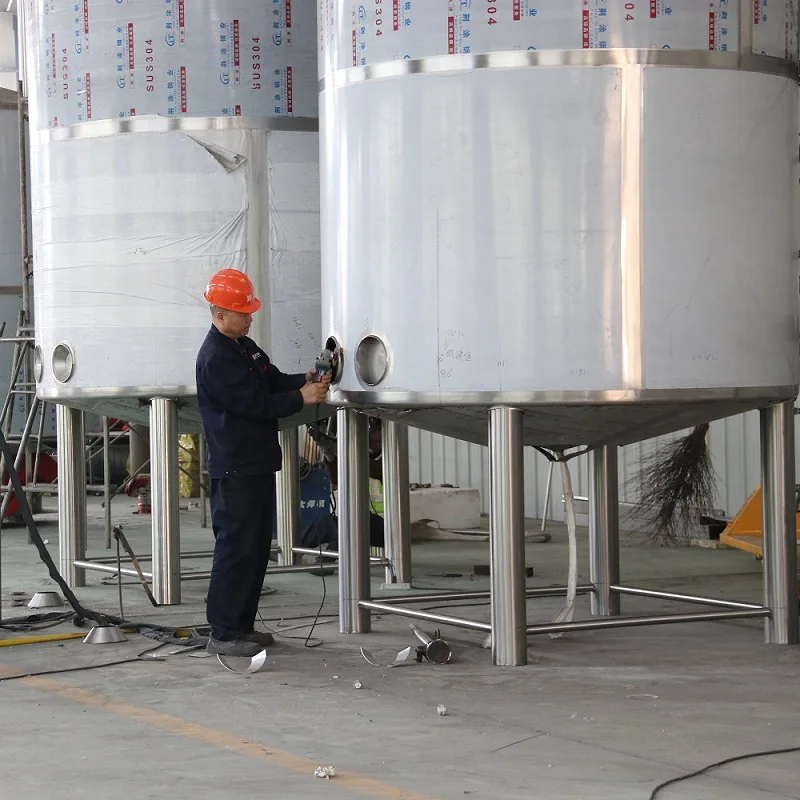

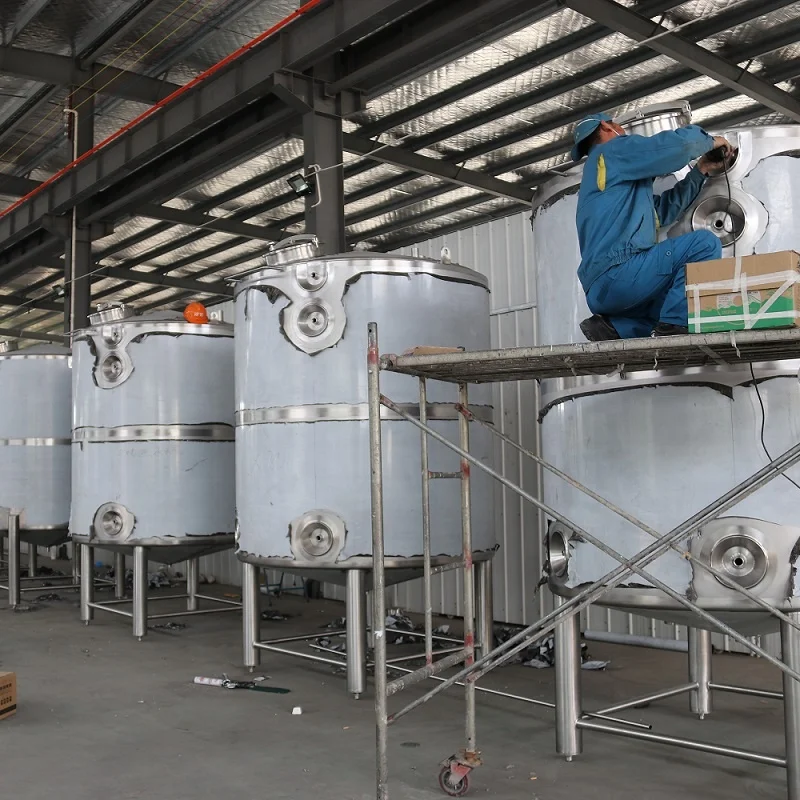

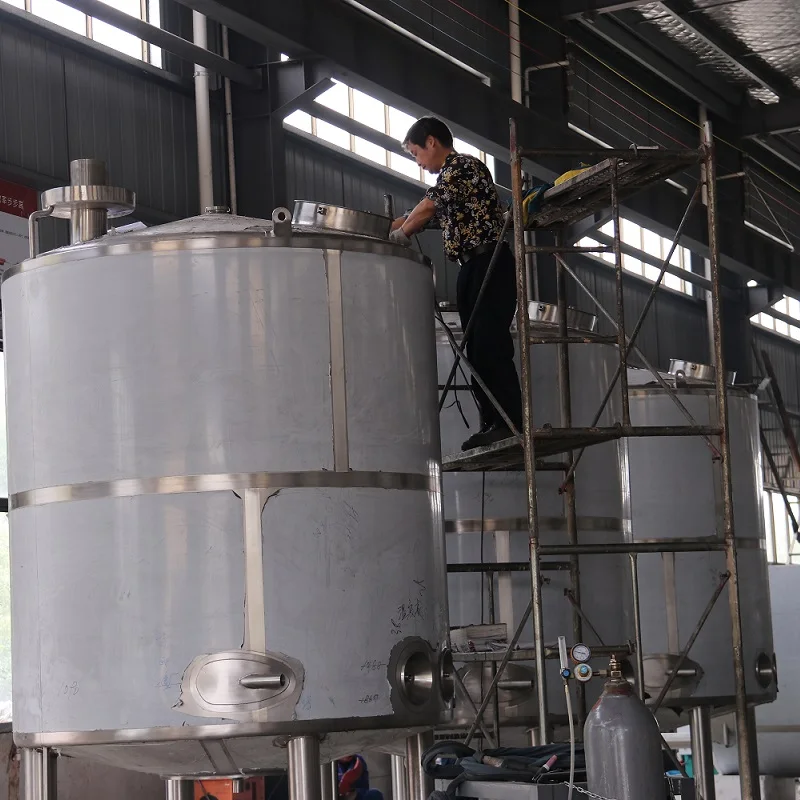

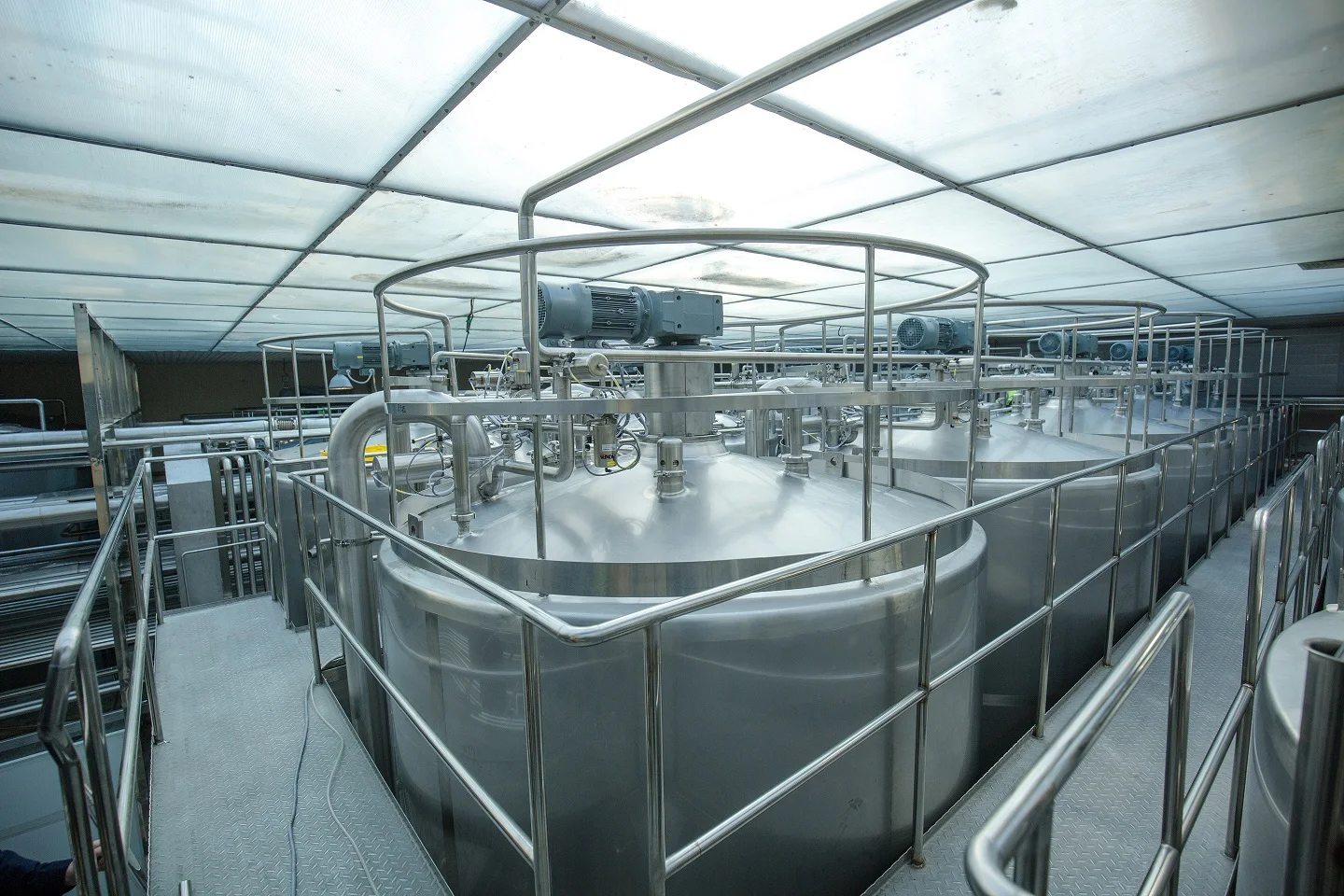

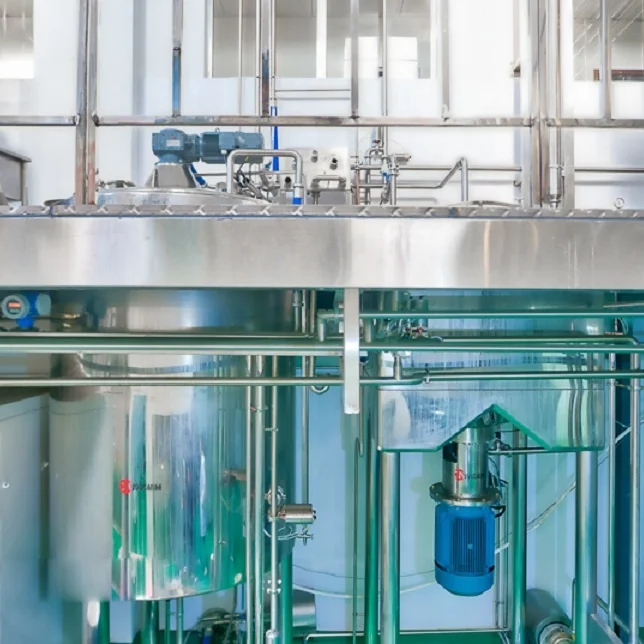

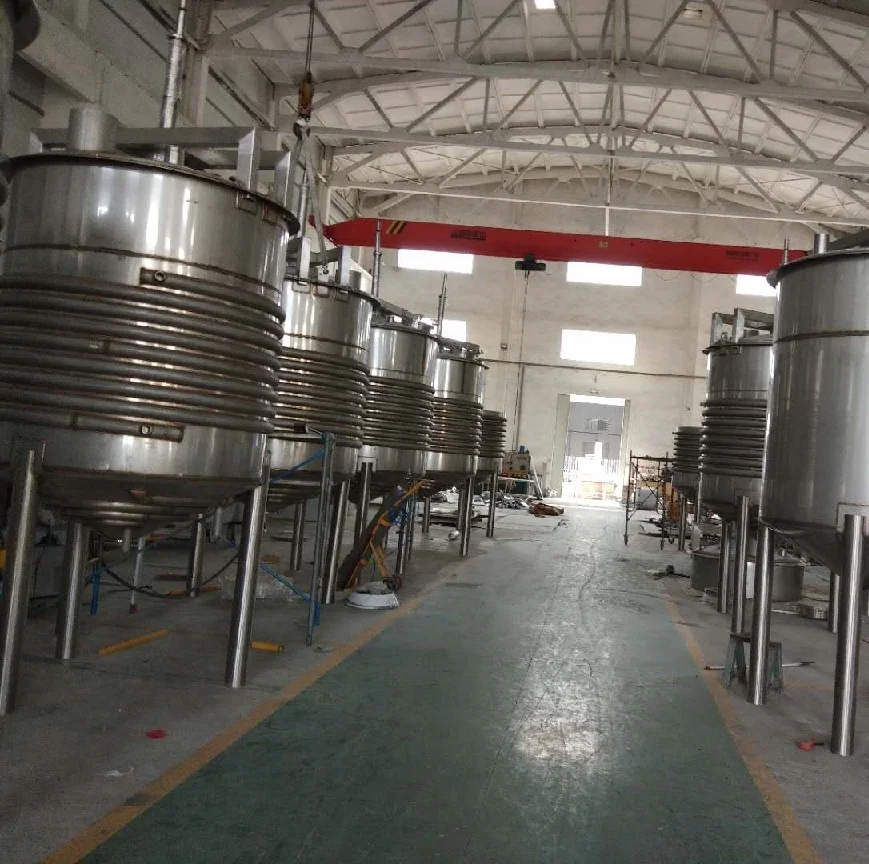

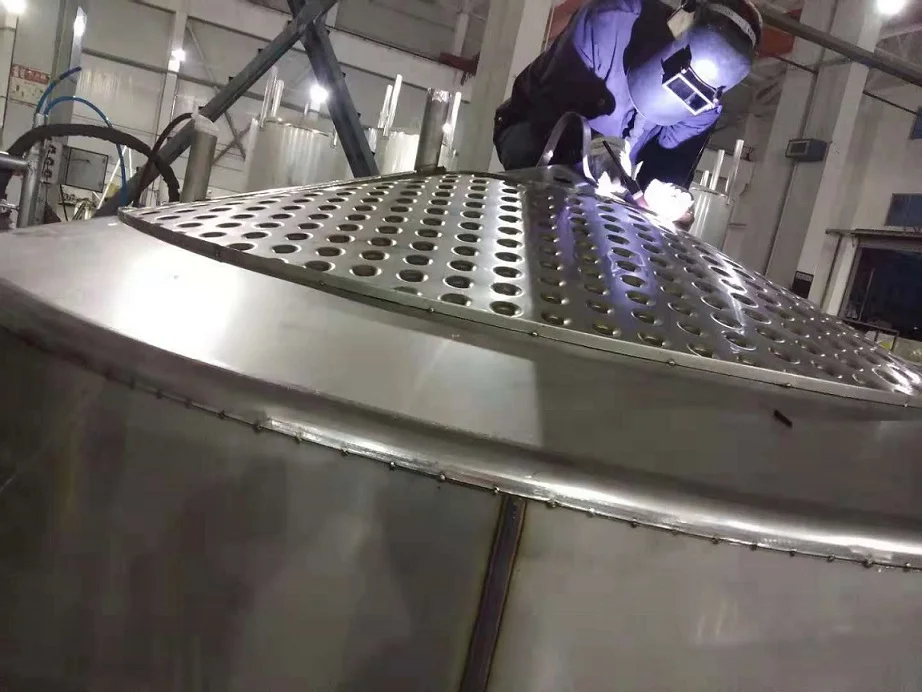

Detailed Images
Chun Nobel Machinery Co., Ltd poduce all kinds of tanks used in dairy/beverage/beer and other food industry. For agitation speed and methods are chose by the product characterisitcs. The inner,outer wall thickness and insulation layer thickness are different based on the tank volume.
Buffer storage tank configuration | ||
1 | Quick open manhole | |
2 | Different kinds of CIP cleaner | |
3 | Different kinds of vents. | |
5 | Adjustable triangle legs and cylinder legs. | |
6 | Thermometer (optional) | |
7 | Liquid level gauge and level control (optional) | |
8 | Ladder (according to the requirements of customer) | |
Manufacture Standard:
1. Standard: All the tanks of this series should adheer to GMP, Stainless Steel Pressure Vessel(GB150-2012),Stainless Steel Welding Pressure Vessel (JB4735-1997).
2. Surface treatment:mirror, matte, 2B, follow customers' requriement.
Size Information
Chocolate storage tank technical data
Model | Volume (L) | Size (mm*mm) | Height (mm) | Inlet Diameter (mm) | Insulation layer (mm) |
CNCG-0.5 | 500 | 840*1000 | 2250 | 38 | 60 |
CNCG-1 | 1000 | 1060*1220 | 3500 | 51 | 60 |
CNCG-5 | 5000 | 1810*2000 | 3500 | 51 | 60 |
CNCG-10 | 10000 | 2300*2440 | 4050 | 51 | 60 |
CNCG-15 | 15000 | 2530*3000 | 4700 | 51 | 60 |
CNCG-20 | 20000 | 2640*3660 | 5400 | 51 | 60 |
