Dc Supply Poe 48v/0.5a 48vdc Injector 5v 12v 24v Switching 48v Power Adapter
Product Description
Technology Specification
Model | EW-PSE101F-DC-AF |
Product Name | 10/100M Single Port DC PoE Injector Adapter. |
Port Description | 2x copper cable RJ45 ports, 1x DC input port. |
PoE Power Supply | mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized). |
Network Medium | 100BASE-TX: 5Cat and more UTP (≤100 meters) |
Thermal Protection | >100°C |
Performance | Working Rate:10/100Mbps; Network port protection: meet with IEC61000-4-2(ESD); MTBF: 100,000 hours; |
PoE Standards | IEEE 802.3af |
LEDs Indicator | PoE working status |
Power | Total power: 18W(IEEE802.3af); PoE port power: 15.4W(IEEE802.3af); DC input voltage: 12~32V, DC output voltage: 44V-57V; |

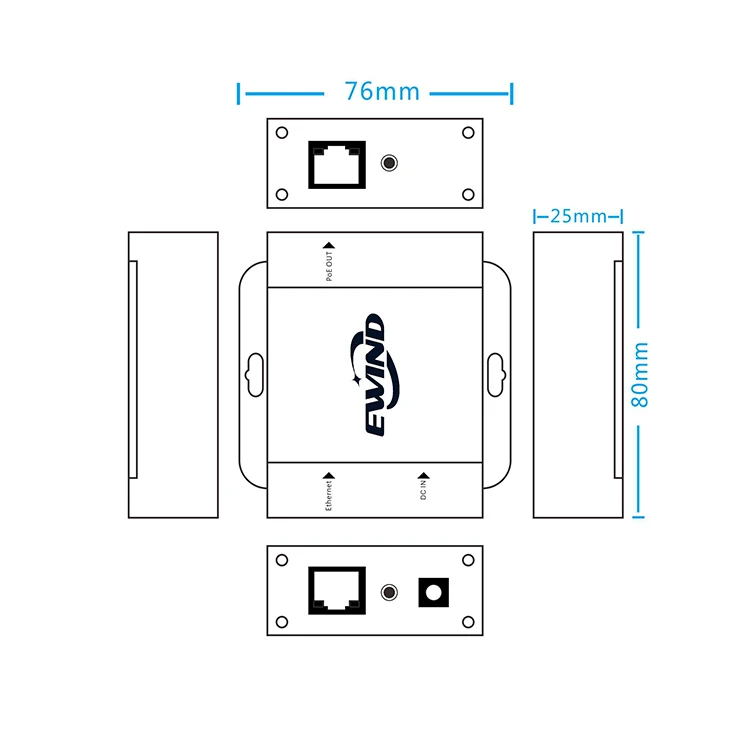

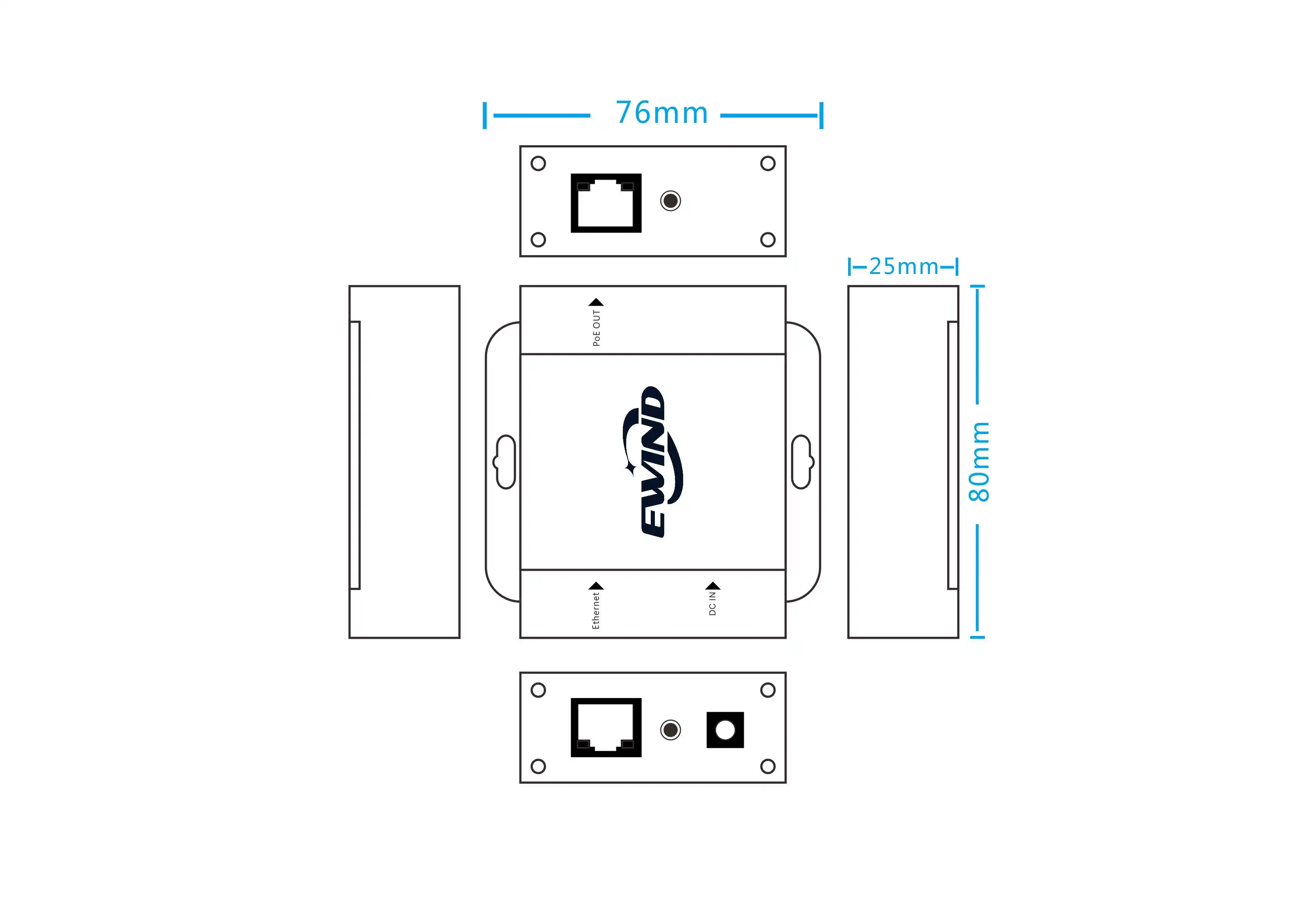

Dimensions/Weight | LxWxH: 80x77x25(mm), 0.13kg; |
Working Environment | Operating Temperature: -20°～ 55°C , Storage Temperature: -20°～ 75°C; Working Humidity: 10%～90%, non-condensing; Storage Humidity: 10%～95%, non-condensing; |
Warranty | 3 years warranty |
Model | Description | Units |
EW-PSE101F-DC-AF | 100M Single Port DC POE Injector with each port 15.4W； | 1PCS |
EW-PSE101F-DC-AT | 100M Single Port DC POE Injector with each port 30W； | 1PCS |
EW-PSE101G-DC-AF | 1000M Single Port DC POE Injector with each port 15.4W； | 1PCS |
EW-PSE101G-DC-AT | 1000M Single Port DC POE Injector with each port 30W； | 1PCS |
CONTENT | QTY | UNIT |
10/100M Single Port DC PoE Injector Adapter (EW-PSE101F-DC-AF) | 1 | SET |
User Guide | 1 | PC |
Warranty Card | 1 | PC |
