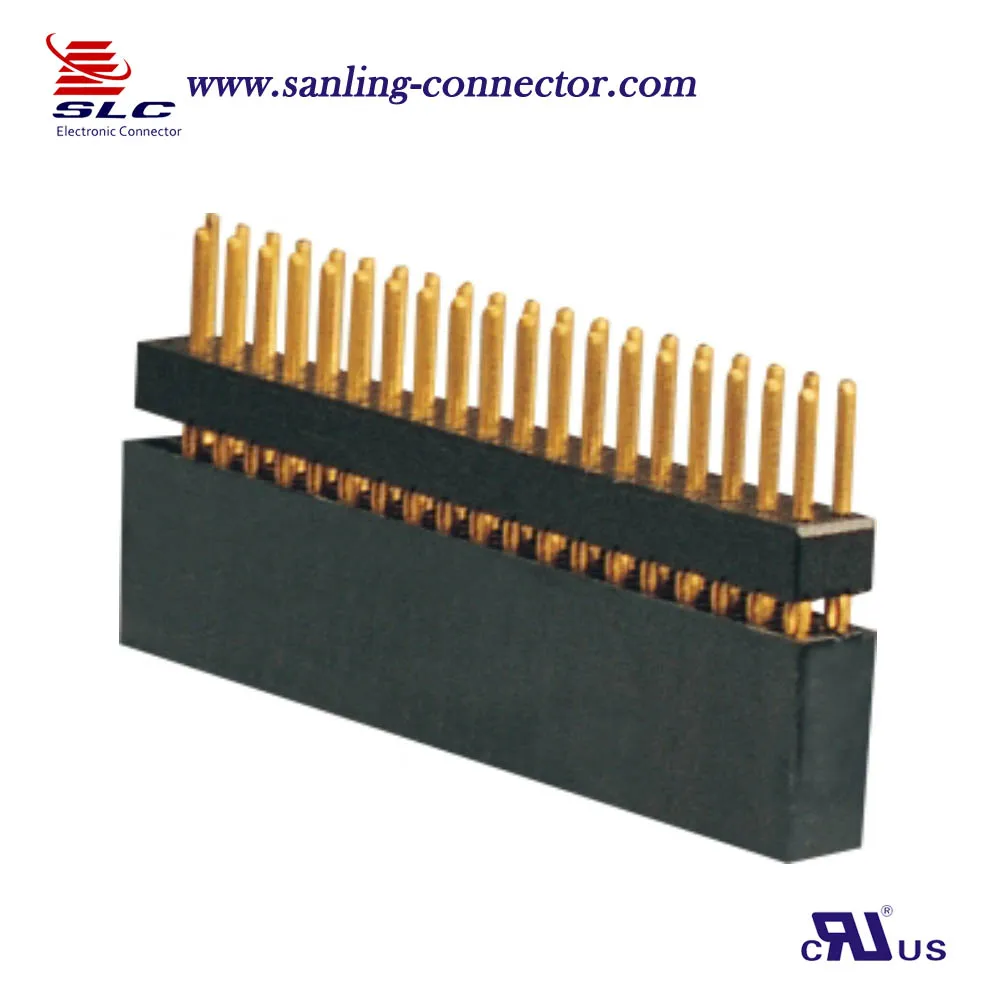

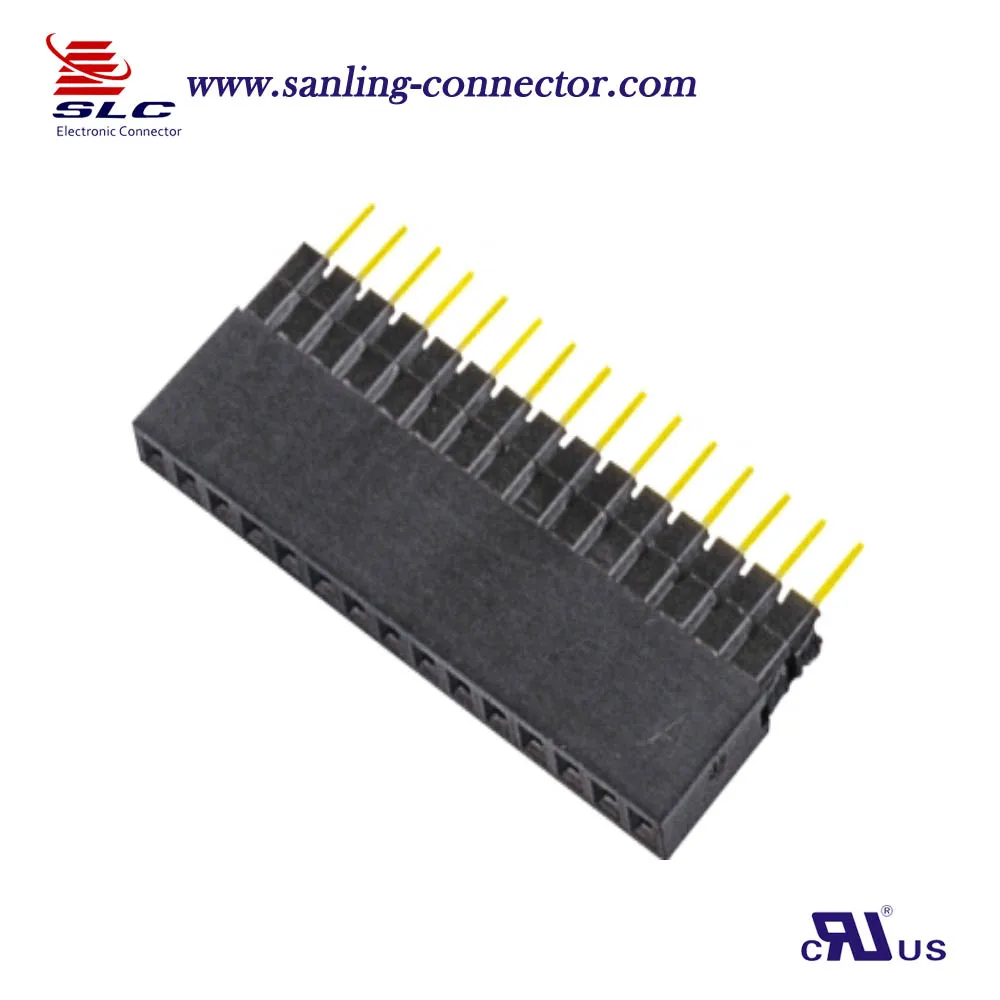

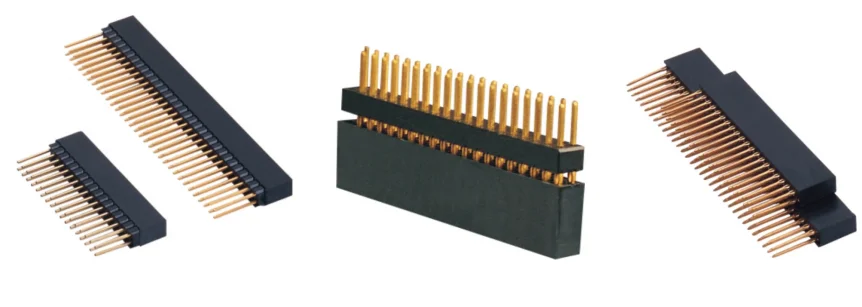

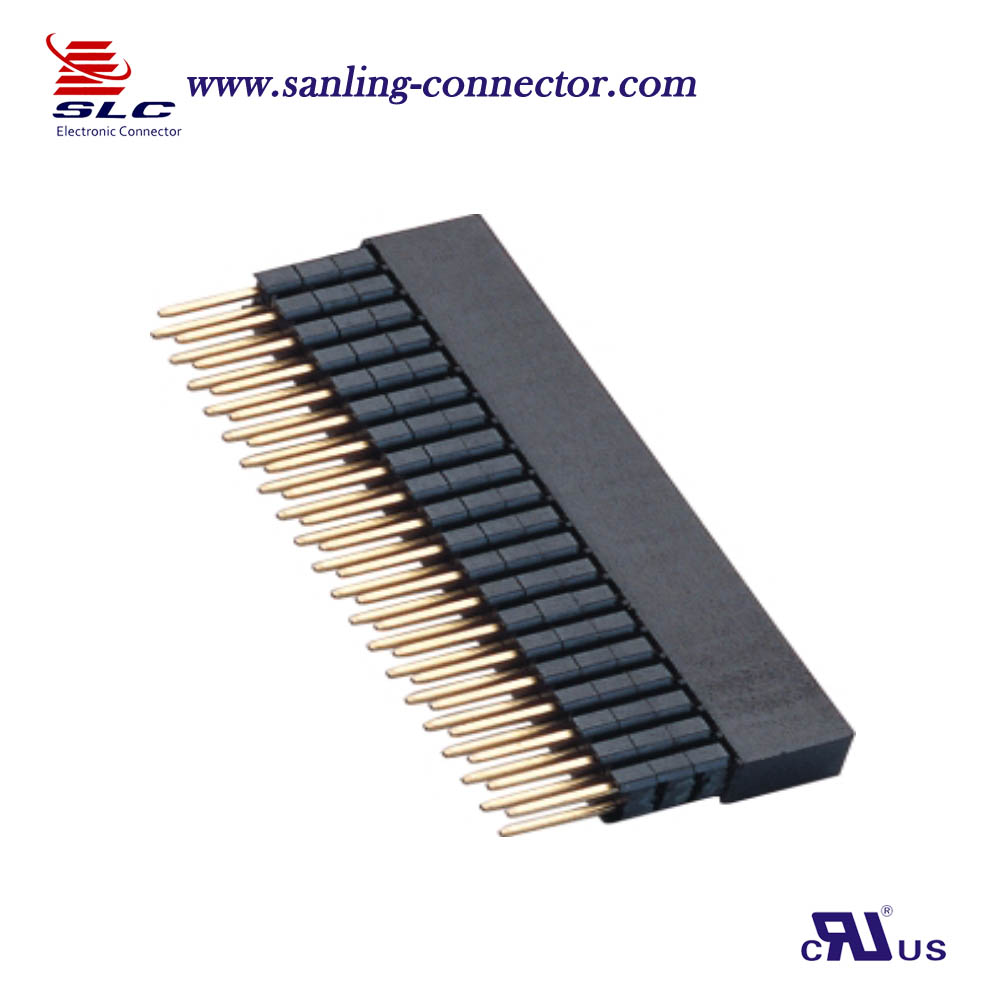

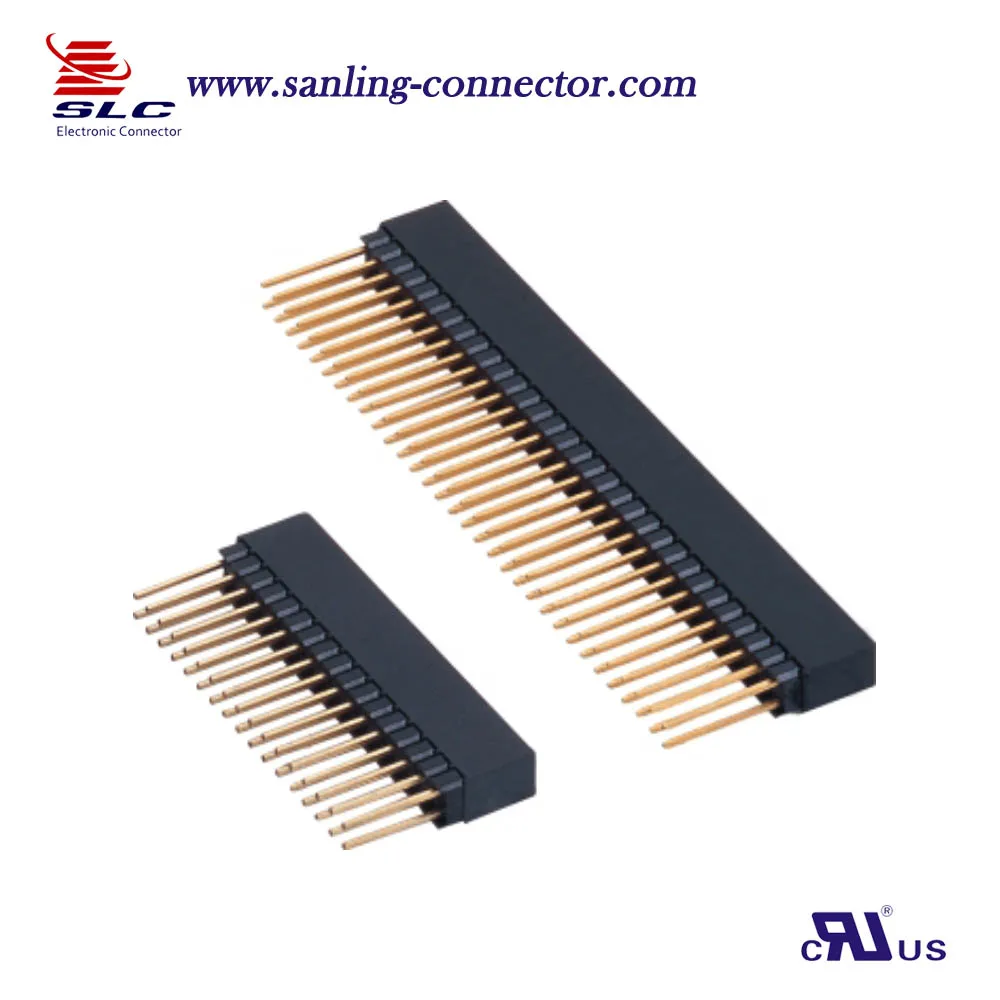

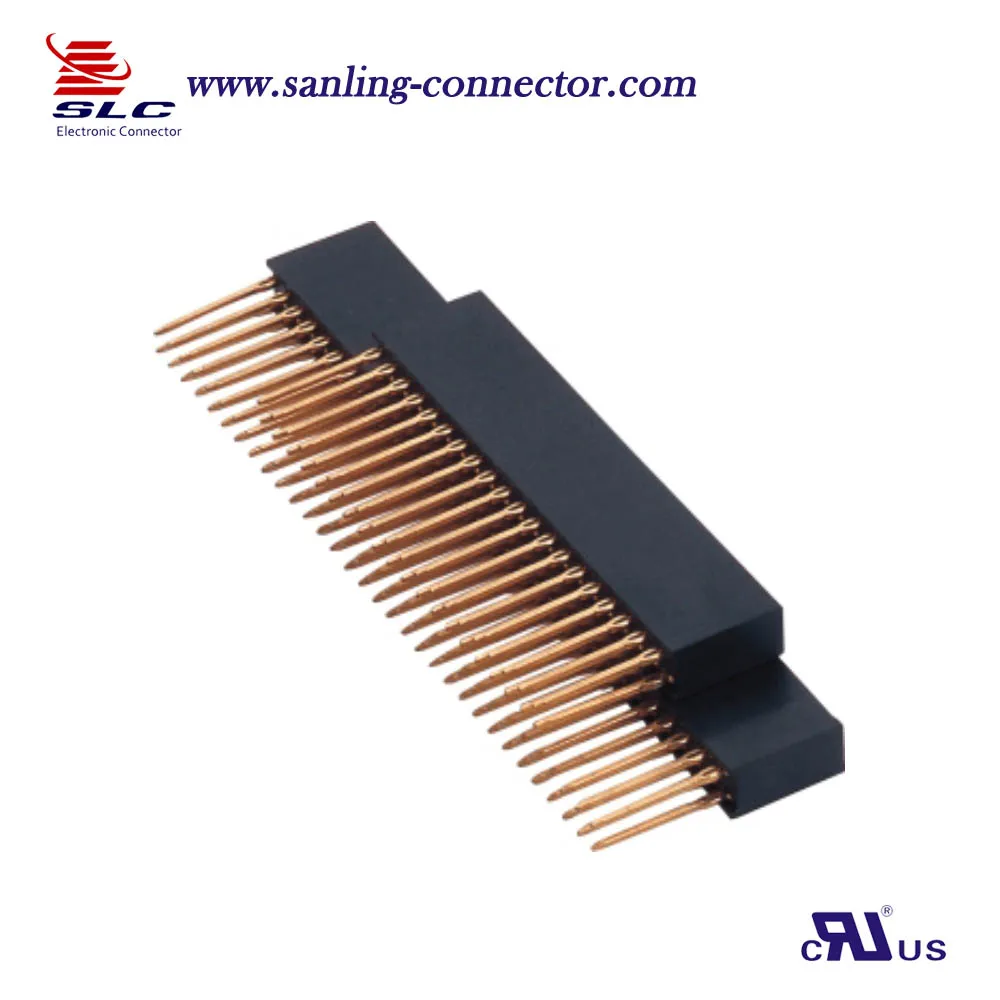

2,54 мм 16 Pin стекируемые Заголовок для Длинные pin гнездовой разъем
- Категория товара: >>>
- Поставщик (Оптовый магазин): Dongguan,Sanling,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Advantages:
1. Rich selection of connector ,terminal block,pin header, pin socket and more
2. Free Sample, take up to 3~5 working days.
3. High quality with attractive price.
4..Custom orders welcome,Happy deal.
5.Our Professional Engineer free design 3D for your special projects and solution your customer problem.
Product Description
Certificate:ISO9001:2015
If there is any products that you couldn't find on our alibaba store, pls feel free to contact with us to confirm.tks.we will check, confirm and reply you asap.
All the products accord with the environmental protecition requirements of ROHS.
| Series No. | FH2585D1-2XXXNXXSYX02 | |||

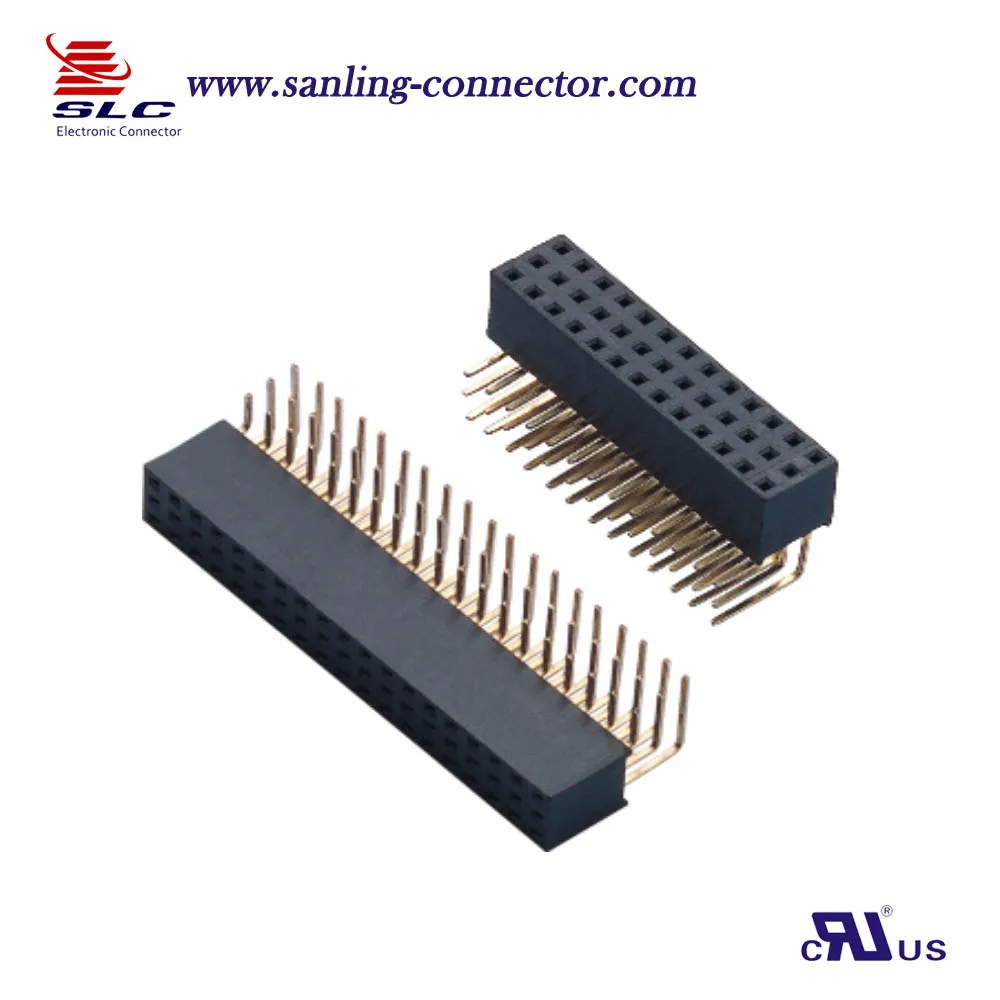

| Description | 2 row pin header,2*20pin Right Angle electrical Connector ,black. | |||
| Standard Dimension | PA | PB | W | Length |
| 4.00 | 2.5 | 4.8 | 9.8/13.8 | |
| Custom Dimension | ||||
| Pin ways | 02~80P | |||
| Alternative Plating | G/F | Tin | Sel. Gold/Tin | |
| GO | SN | S0 | ||
| Packing way | PE Bag /Tube/ Plastic box | |||
| MOQ | 500PCS | |||
| Delivery time | 1-2weeks after confirm order | |||
| Engineering Specifications | Rated Current:1.5AMP | |||
| Contact Resistance:20MΩ Max | ||||
| Withstand Voltage:500V AC/minute | ||||
| Insulation Resistance:1000MΩ Min | ||||
| Operation Temperature: -40°c to +105°c | ||||
| Contact material:Brass | ||||
| Contact plated: Au or Sn over Ni | ||||
| Insulator material:Polyester(UL94V-0) | ||||
| Standard: PA6T | ||||
| Max.Processing Temp: 230°c for 30-60 Seconds / (260°c for 10 Seconds) | ||||

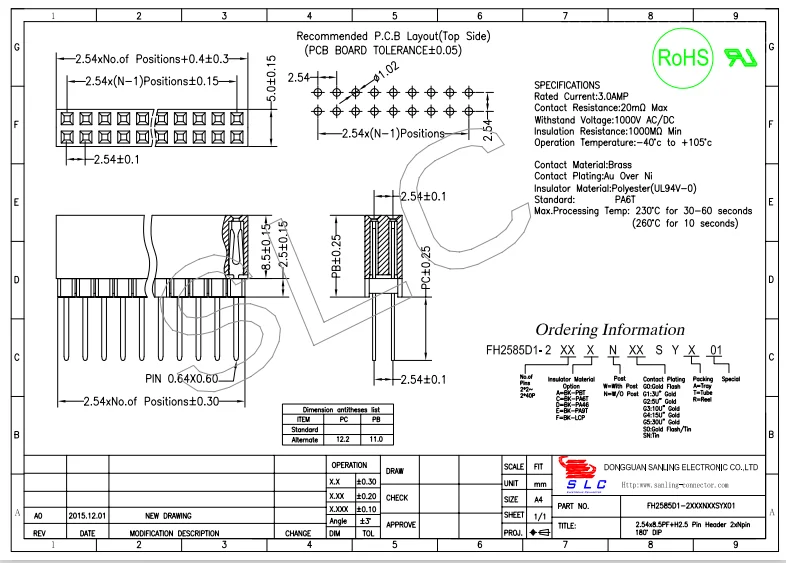

Drawings details
FAQ
1. What's MOQ ?
MOQ 500 pcs.
2. What's samples quantity you can get with free ?
You can get 30 pcs free samples.
3. What's samples lead time ?
3~5 working day.
4. What's mass production delivery date ?
2 Weeks.
5. What's PCB Connector can provide ?
Pin Header/Female Header/Box Header/Ejecot Header/IDC/DIP/Machine(Round) Pin/
DIN41612/MiNi Jumper/Wafer/Micro Match/SIM Card/SATA/D_SUB/USB/
IEEE1394/IC-Sockets/FFC/FPC/PLCC/SCSI/POGO Pin/IDC TO IDC Flat cable/
Micro match Flat Cable.
6. Why you can buy high quality PCB connector with attractive price from us ?
A. Products development and design of metal and plastic mold,precision high-speed punch molding,plastic injection molding and automatic assembly with the support of skilled R&D also all process are done in house that can save cost and control quality of each production process by ourself.
B. We have own electroplating factory can save our cost,other supplier has not it yet,It's our advantage.
C. Our production equipment are Auto-Assemblies Machine instead of worker.Highly efficient production capacity.
For Example: 2.54 mm pin header Dual row Straight.
Auto-Assemblies Machine capacity: 20 pcs/1minute.
7. What's your feature ?
Monthly capacity of 30 million pieces of connecors.
Low MOQ with Rapid delivery date.
All Products comply with ROHS requirements.
Products with UL Certification.
Various of connectors for you selection to get one-stop service.
Complete testing equipments are the gurarantee of the good products quality.
Advanced production equipments are the basis of the best products quality.
8. What's your service policies ?
Honesty to customers and partners.
Professional Sales and reply your inquiry within 12 times.
Technical Engineer to design drawing per your request.
Promise repid delivery date.
9. Why you buy from us ?
A. We respect the customer terms to protect customer privacy projects.
B. High quality with attractive price.
C. Fast lead time.
D. Happy deal.
E. Our Professional Engineer free design 3D for your special projects and solution your customer problem.
