6x2 литра 6x2000 мл клеточный культиватор

Описание и отзывы

Характеристики

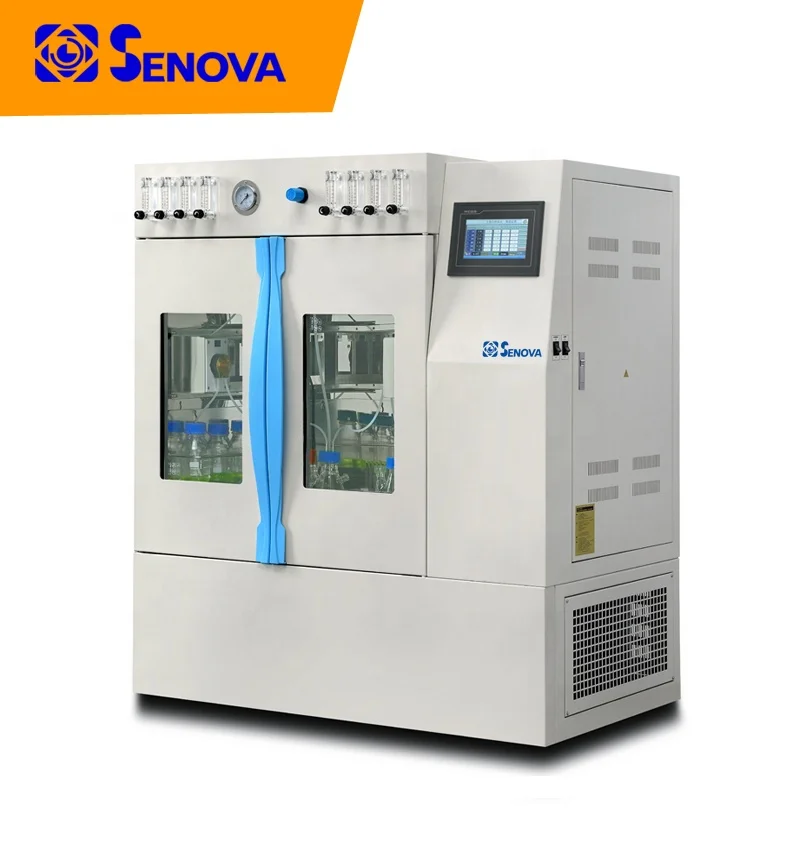

6x2Liter 6x 2000ml Cell Culture Orbitally Shaken Shaking Fermenter

6x2L Capacity Orbital Shaking Fermenter/Bioreactor with PH & Feeding Control

Model:HB-8(6x2L)

Applications:

√Cell culture & Strain screening

√Fermentation, yeast yield

√Microorganism and gene engineering

Features

• Max. capacity 6x2000ml(Optional: 6x1000ml)
• Combined functions of shaker and biological reactor
• Stainless steel chamber
• Powder-coated steel construction
• Large toughened glass window
• P.I.D controller with acoustic & visual alarm
• Floor type double door structure
• Speed range 40-300rpm
• 10” touch screen LCD display of set and working parameters
• CFC-free refrigeration system
• Operating parameter memory
• Maintenance-free AC inductive brushless motor
• Over-temperature audio and visual alarming
• Automatic power cut-off in case of motor overheating, temperature out of control or abnormal over-temperature
• Soft start function
• All the data can be monitored and displayed with quick access

Other features

• History curve, report, speed and temperature
• Information on the batch number can be written into the menu. Data of this batch number can be output into a USB flash disk
• pH setting with shift of acid/alkaline pumps ,accessible to volume setting of peristaltic pump and fed-batch setting.
• History Curve: All the curves of the present parameters including temperature, speed and pH value can be checked to see the previous page and the next page.
• pH Automatic Calibration allows entry into DO calibration mode.
• DO Automatic Calibration: Zero point, slope and standard value are defaulted by the system before calibration

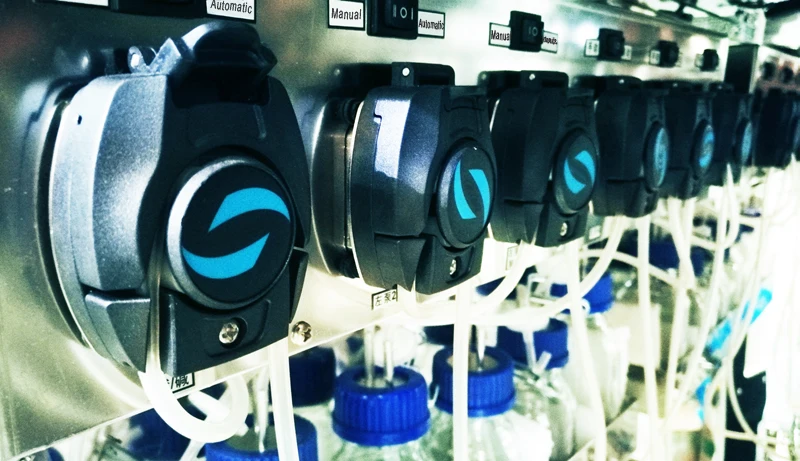

• Peristaltic Pump Calibration: It allows all the peristaltic pumps to input flow rate and accumulate additive volume on automatic running mode so as to calibrate the flow speed.
• Batch number before start of fermentation: It can monitor real-time pH curve and automatic status. It can also enter into independent real-time pH curve and the real-time pH curve in the adjacent biological reactors.
• Real-time Setting: 1 minute/10 minutes/60 minutes real-time report, history curve, batch number information
• Speed and Temperature: Besides calibration of speed and temperature, control mode (automatic and tracking) can also be set.
• Temperature Multi-section Control: It can control the recipe with multiple sections
• Temperature Real-time curve and pH Real-time Curve: It can read data (for drawing real-time curve) from buffer. And it also allows to set X-axis and Y-axis of the curve.
• Present Alarm:The upper half part is the real time alarm at present, and the lower half part is history alarm. High/low limit of each parameter and control’s dead area can be set.

Technical parameter
