Машина для производства печенья для собак разных размеров и форм
US $40000-$60000
SINOBAKE Автоматическая Мягкая формовочная машина для печенья маленькой
- Категория товара: Машина для изготовления печенья >>>
- Поставщик (Оптовый магазин): Guangdong,Shunde,Huaji,Machinery,Industrial,Co.,Ltd.Guangdong,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
SINOBAKE Automatic Small Capacity Soft Oreo Biscuit Moulding Machine
It is suitable for the clients who are just starting biscuit business and have a small spaces.
It is suitable for the clients who are just starting biscuit business and have a small spaces.
SINOBAKE Automatic Small Capacity Soft Biscuit Moulding Machine
1.50kg horizontal dough mixer
2.Rotary moulder
3.Oven drive and belt tension machine
4.Electric oven(gas,diesel ovens are available. The length depends on the capacity you need)
5.Out oven machine
For standard one, trolley for dough feeding,tilting machine,auto dough feeding system,enter oven machine,sugar&salt sprinkler,cooling conveyor, stacker,packing table are suggested to added, if your space is available.
The following description of each machine are based on standard one:

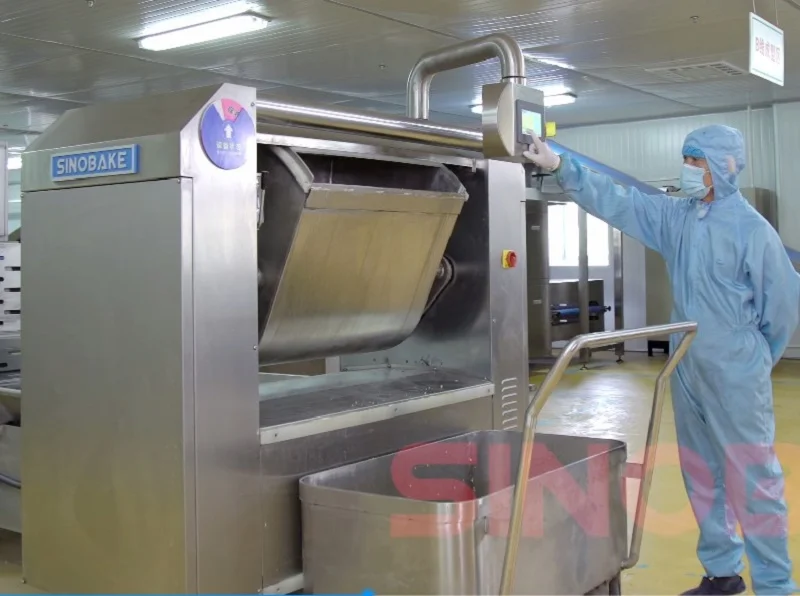

Dough mixer
Horizontal dough mixer is suitable for mixing soft biscuit dough.
50kg,150kg,250kg,350kg,550kg,750kg are provided to choose according to your requirement. Usually a trolley is suggested to convey the dough into the hopper of auto dough feeding system.
Tilting machine
Tilting machine is used to pour the dough from trolley into the hopper of the dough feeding system. We have 500kgs/time and 1000kgs/time for your choice.
Auto dough feeding system
Auto Dough feeding system is used for breaking the dough into small pieces and sending them to the rotary moulder.

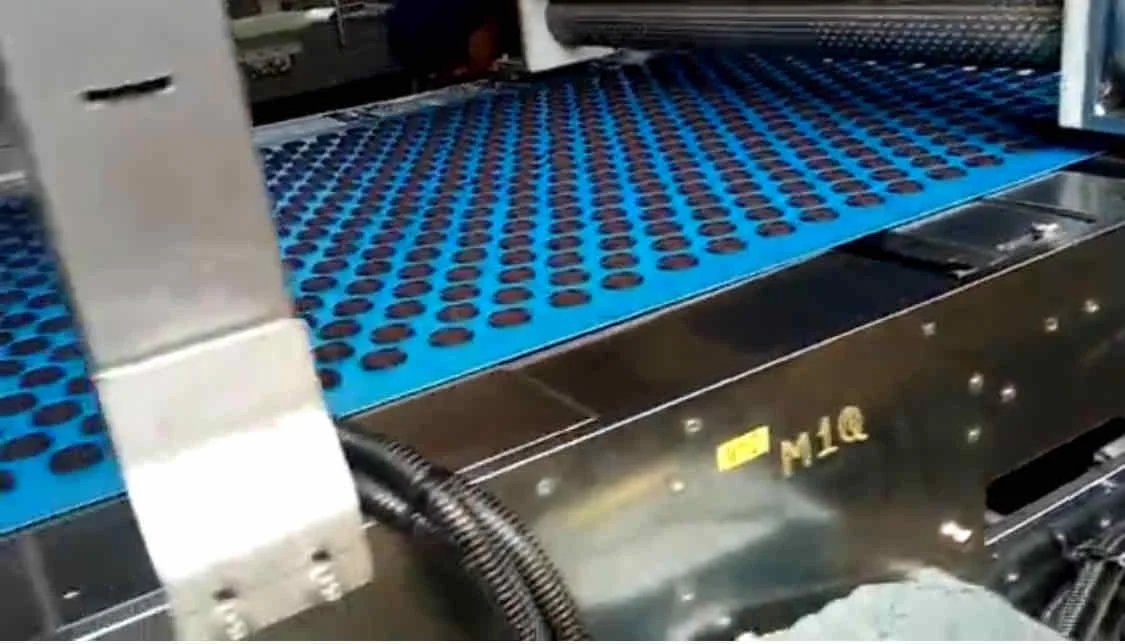

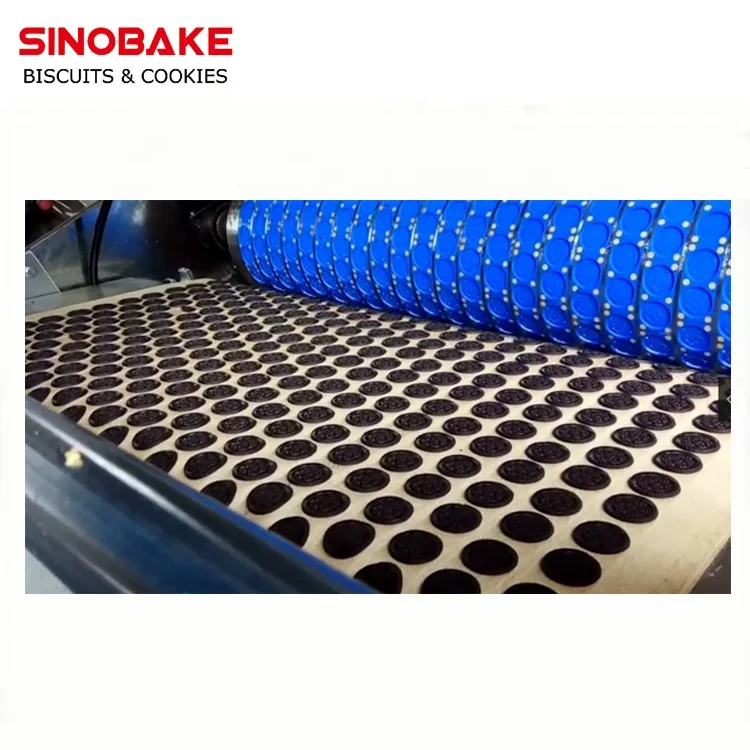

Rotary moulder
Rotary Moulder is used for forming soft biscuit, which contains much oil and fat. The dough would form as the shape of biscuit and drop on the conveyor belt to the next machine.
We have 400,600,1000,1200,1500mm model for your choice.
Changing the moulds can make different shaped biscuits.
Enter oven machine
Enter Oven Machine is used to send the formed biscuits into the oven, recycling the sugar, salt or reject biscuits.
Oven drive and tension system
mainly provide motive power to oven belt,drive the mesh belt,the mesh belt can be tensioned manually, pneumatic offset adjustment,the belt has brush cleaning device.
For the steel band oven, the oil device is suggested.
Tunnel oven
It is the baking equipment of the biscuit line,baking biscuit by indirect thermal radiation, making biscuit with fine color and flavour. For soft biscuits, convection oven is suggested. The oven heating source can be gas, electricity, diesel.
Out oven machine
it is used for conveying baked biscuit out of oven smoothly.
Cooling part
After out oven machine, 180 degree plane turning conveyor or 90 degree plane turning conveyor,cooling conveyor,stacker,packing table are needed.
Materials:
1. Q235 carbon steel sideboard, thickness of 28mm. 2. chromed surface, hardness of HRC58-62
3. frame board of Q235 carton steel, thickness of 15mm,
4. chromed surface, hardness of HRC58-62
5. Supporting plate of SUS304.
6. 1.5mm SUS304 cover
7. SEW motor and speed reducer, frequency control of speed.
8. Digital display of speed and space
9. No cornerns for cleaning, safe and healthy.
10. Emergency switch intalled
11. Perfect cable arrangement with aluminium alloy cable boxes.
12. SIEMENS control apparatus 20. NSK bearing
Contact us
Send your email, get the best quotation:
Atom Lin
whatsApp/wechat/Tel:0086 137 9464 0490
Email:atom@sinobake.net
Kunzhou Industrial Zone, Beijiao, Shunde, Foshan City,
Guangdong Province, China
Guangdong Province, China
Finished products
Company Introduction
SINOBAKE (Guangdong Shunde Huaji Machinery Industrial Co.,Ltd) has been supplying equipments and process technology to biscuit industry since 1994. We have been exporting our production lines and machines all over the world for more than 60 countries. Thanks for the well professional staffs and engineers, with their experience and know-how, we can meet your requirements when supplying either single machines or complete production lines and the turn-key projects. Our company operates the production and assembly in strict compliance with ISO 9001 and CE standards to provide reliable and safety products for customers all over the world.
SINOBAKE welcomes you to be a partnership to find the best solution in producing your biscuit products. Join and profit from our international experience and the knowledge we gained over the past two decades. Customer specific innovations in our Technology Department are combined with the application of the latest technology in building flexible production lines and turn-key solutions. We believe that SINOBAKE Workgroup will inspire you to come to the profitable and practical solution for your challenges.
SINOBAKE welcomes you to be a partnership to find the best solution in producing your biscuit products. Join and profit from our international experience and the knowledge we gained over the past two decades. Customer specific innovations in our Technology Department are combined with the application of the latest technology in building flexible production lines and turn-key solutions. We believe that SINOBAKE Workgroup will inspire you to come to the profitable and practical solution for your challenges.
We sincerely hope to have a fruitful partnership with you.
Our Services & Strength
(1)We have more than 20 year's experence in manufacturing food processing machine.
(2)Professional technical team,Company own's reasearch and development team ,Top quality ,Reasonable price,Timely delivery and first-class service.
(2)Professional technical team,Company own's reasearch and development team ,Top quality ,Reasonable price,Timely delivery and first-class service.
FAQ
1.Are you manufacturer? Yes, we are professional biscuit and cookie machinery manufacturer. We have professional engineers and manufacturing technologist to help you make a suitable solution.
2.Why SINOBAKE can do better than other factories?
Our company specialize in this industry for 26 years. Quality first is our tenet. We study Europe technology and improve our machinery. We provide the best service for all of clients. We do long-term cooperation with our clients.
3.How is the package?
We pack almost all machines with plywood,except oven.
4.How is the delivery time?
It depends on the line you purchased. Normally for whole 1000mm model soft and hard biscuit production line, the delivery time is within 120 working days. If you purchase single/stand-alone machine, we need to check if it's in stock first. Pls contact us to know the detailed time.
5.How is the installation and commissioning?
Supervision of Installation and commissioning work will be carried out by technical staff together with the technical staff from Huaji Industrial Co, Ltd ; the buyer will provide round-trip tickets, food and hotel for about 2 to 3 technical persons. The buyer will pay each technician 100USD per day as installation fee.
2.Why SINOBAKE can do better than other factories?
Our company specialize in this industry for 26 years. Quality first is our tenet. We study Europe technology and improve our machinery. We provide the best service for all of clients. We do long-term cooperation with our clients.
3.How is the package?
We pack almost all machines with plywood,except oven.
4.How is the delivery time?
It depends on the line you purchased. Normally for whole 1000mm model soft and hard biscuit production line, the delivery time is within 120 working days. If you purchase single/stand-alone machine, we need to check if it's in stock first. Pls contact us to know the detailed time.
5.How is the installation and commissioning?
Supervision of Installation and commissioning work will be carried out by technical staff together with the technical staff from Huaji Industrial Co, Ltd ; the buyer will provide round-trip tickets, food and hotel for about 2 to 3 technical persons. The buyer will pay each technician 100USD per day as installation fee.
