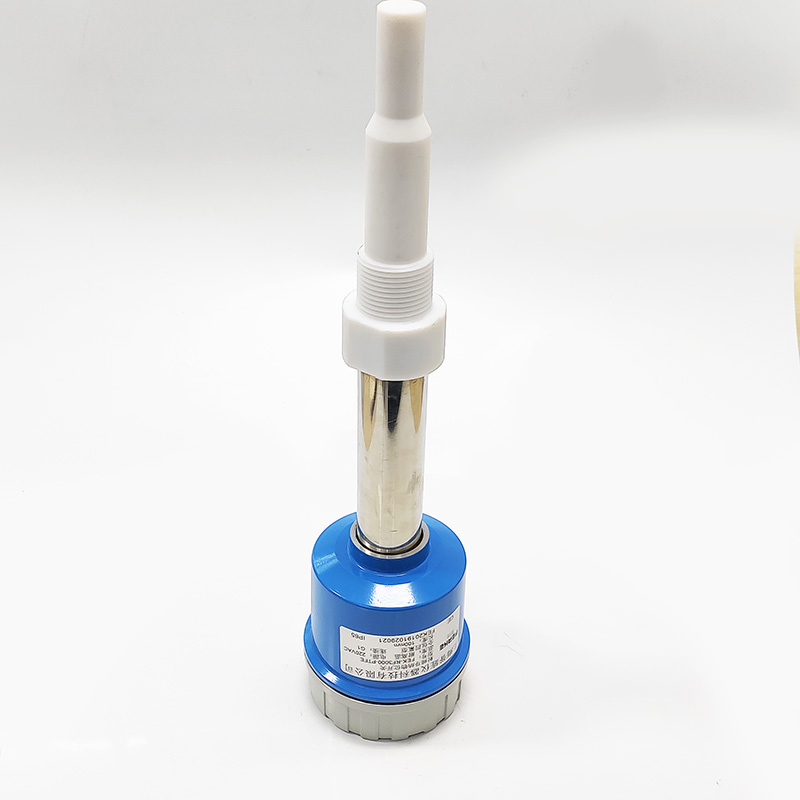

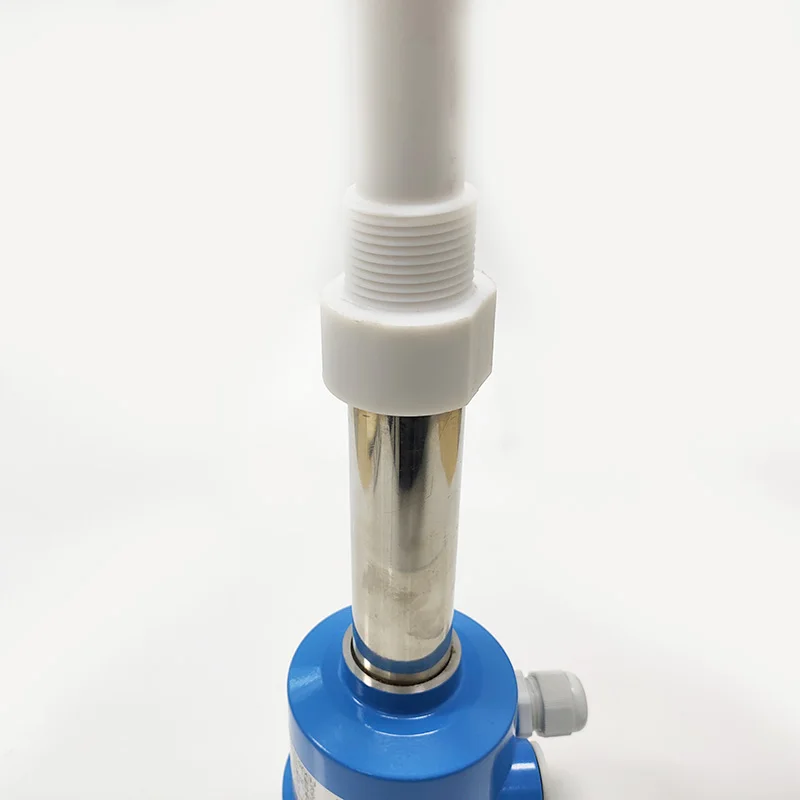

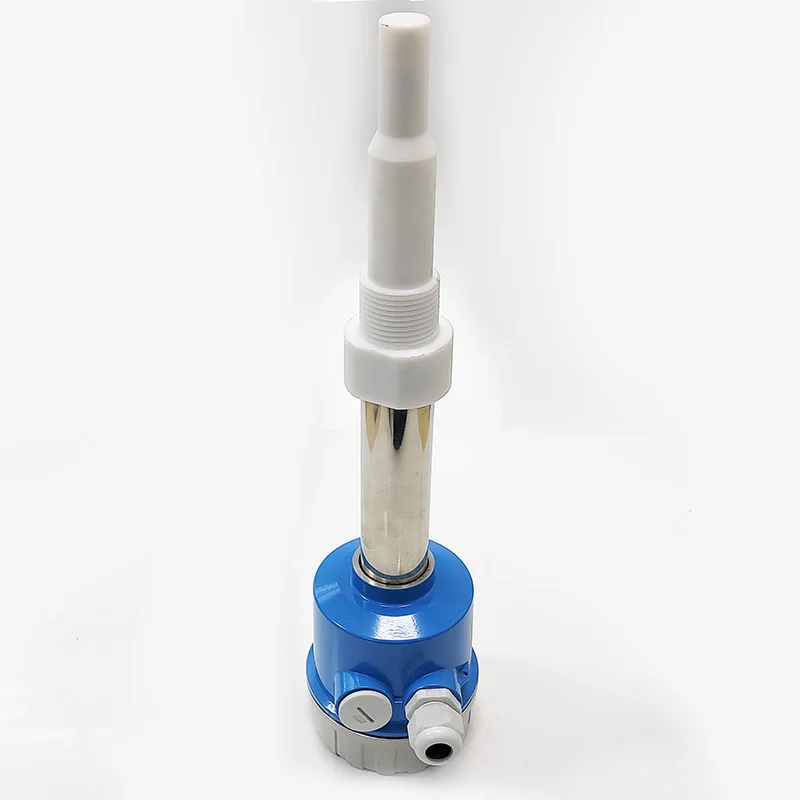

ПТФЭ радиочастотный датчик уровня, датчик уровня бака
- Категория товара: Уровни >>>
- Поставщик (Оптовый магазин): Ji,Rui,Instrument,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

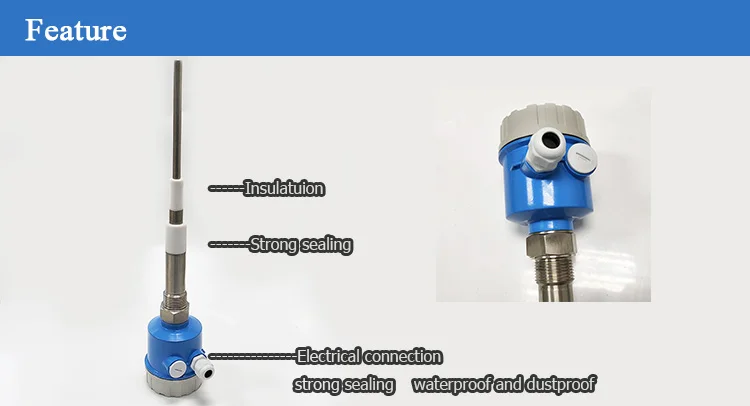

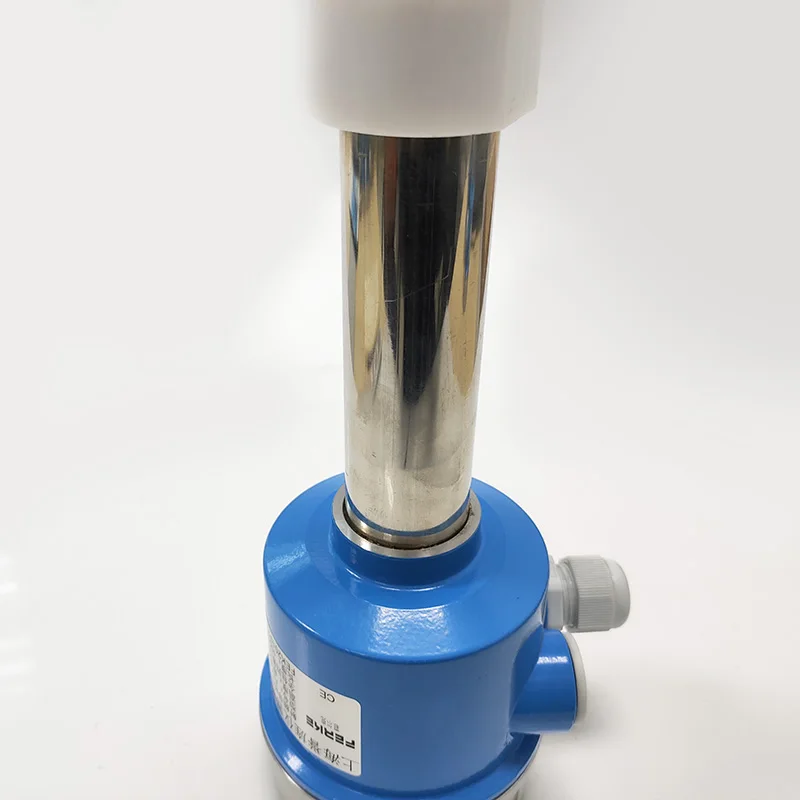

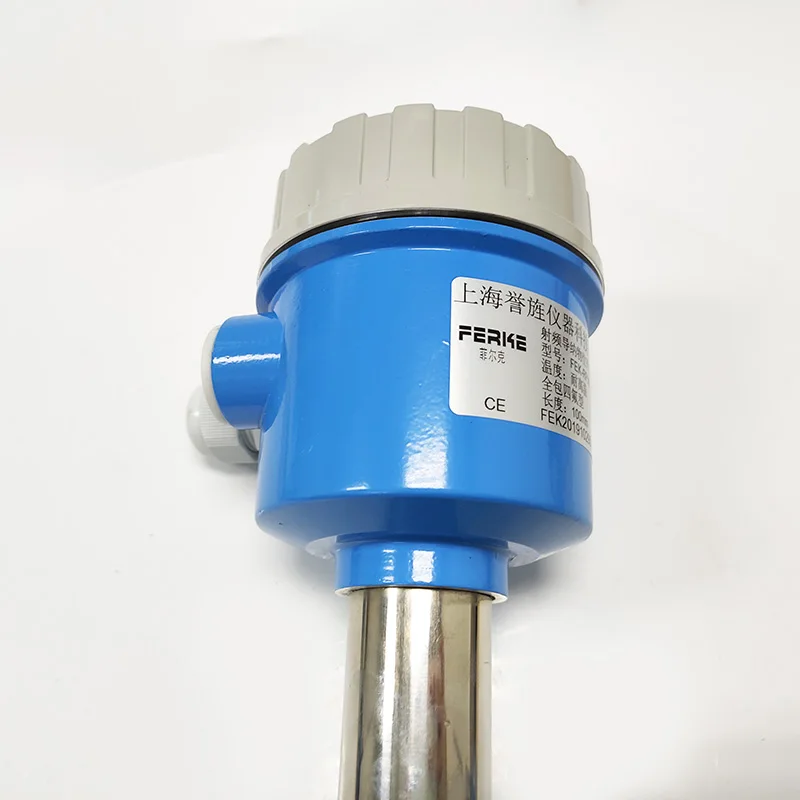

FEK-RF3000-PTEF
FEK-RF3000-PTEF RF admittance level switch is a new generation of capacitive level switch, which solves the problem of material adhesion and has higher system stability than other similar products. It can work reliably even under extremely bad site conditions, and is not affected by the change of hanging material,
temperature, pressure, material density, humidity, or even material chemical characteristics.
Power supply | 220VAC or 24VDC |
Delay | 0-30 "s continuously adjustable |
Sensitivity | 0.5pf |
Material temperature | - 184c to 380 ° C |
Circuit temperature resistance | - 40 C to 80 C |
Power loss protection | high and low mode, adjustable on site |
Shell | IP65, heavy-duty cast aluminum shell |
1. Strong universality: it is widely used in the detection of various materials, such as fly ash, particles, powder, liquid, viscous, conductive and non-conductive materials; it can meet the measurement requirements of the same temperature and pressure, with the maximum temperature of 800m and the maximum pressure of 5MPa; the river is used in corrosion, impact and other harsh places.
2. Anti adhesion: the unique circuit design and sensor structure make the measurement ignore the materials on the probe and automatically correct. It does not need to be cleaned regularly to avoid mismeasurement and Missignal. (anti hanging material)
3. Maintenance free: there is no movable part in the measurement process, no damage of mechanical parts, and no maintenance is required.
4. Powerful function: output contact capacity is large, and there is a status indicator to show the work, 0.30 seconds delay can eliminate the impact of material fluctuations.
5. anti-interference: contact measurement, strong anti-interference ability, can overcome steam, foam, stirring, and impact on measurement.
6. Power off protection: normally open or normally closed (can be switched on site).
2. Anti adhesion: the unique circuit design and sensor structure make the measurement ignore the materials on the probe and automatically correct. It does not need to be cleaned regularly to avoid mismeasurement and Missignal. (anti hanging material)
3. Maintenance free: there is no movable part in the measurement process, no damage of mechanical parts, and no maintenance is required.
4. Powerful function: output contact capacity is large, and there is a status indicator to show the work, 0.30 seconds delay can eliminate the impact of material fluctuations.
5. anti-interference: contact measurement, strong anti-interference ability, can overcome steam, foam, stirring, and impact on measurement.
6. Power off protection: normally open or normally closed (can be switched on site).
7. Accuracy and reliability: the measurement is diversified, making the measurement more accurate, not affected by environmental changes, with high stability and strong service life.
Model | FEK-RF3000 RF admittance level switch | ||||||
11 standard type 12 flat type | |||||||
Connection mode | |||||||
F | Flange connection | ||||||
S | Threaded connection | ||||||
T | Clamp connection | ||||||
Power Supply | |||||||
A | 220VAC | ||||||
B | 24VDC | ||||||
Wetted material | |||||||
4 | 304SUS | ||||||
6 | 316SUS | ||||||
L | 316SUS | ||||||
S | PTFE | ||||||
working temperature | |||||||
N | 80℃ | ||||||
T | 200℃ | ||||||
S | 400-800℃ | ||||||
advantage
Fek-rf3000 RF admittance level switch is a new generation of capacitive level switch, which solves the problem of material adhesion and has higher system stability than other similar products. It can work reliably even under extremely bad site conditions, and is not affected by the change of hanging material, temperature, pressure, material density, humidity, or even material chemical characteristics.

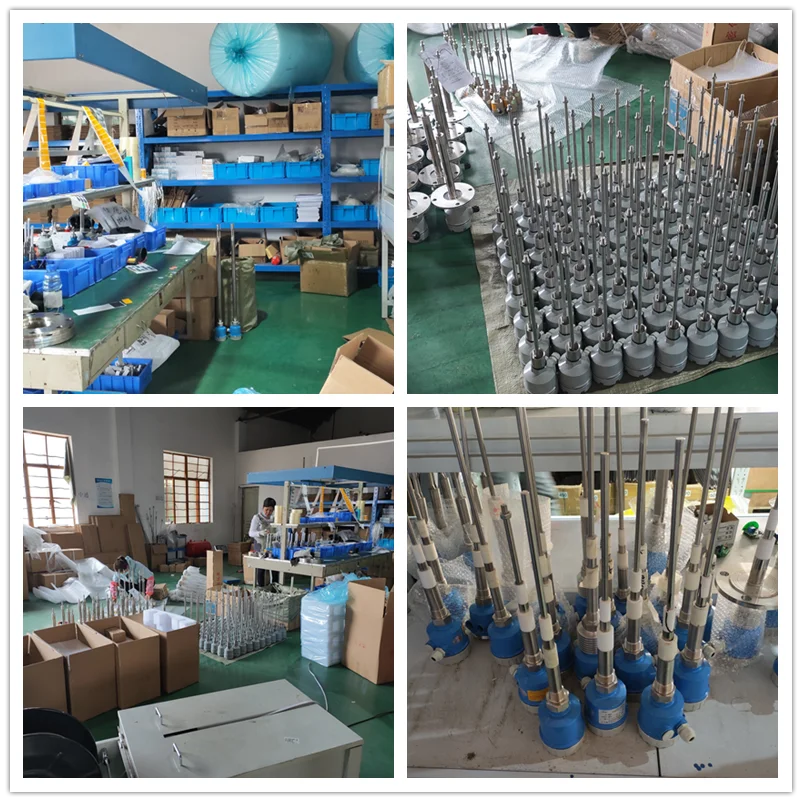

Company Profile
FAQ
Q1: What's your business range?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water pump, pressure instrument, flow meter, level meter and dosing system.
Q2: May I visit your factory?
A: Of course, our factory is located in Shanghai, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water pump, pressure instrument, flow meter, level meter and dosing system.
Q2: May I visit your factory?
A: Of course, our factory is located in Shanghai, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to help you
Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to help you
05：About warranty：
We are very confident to our products ,and we pack them very well ,so you will receive them in good condition .the warranty is 12 months.
06: About MOQ:
The MOQ of diffenent kinds of level gauge is 1unit .
Похожие товары

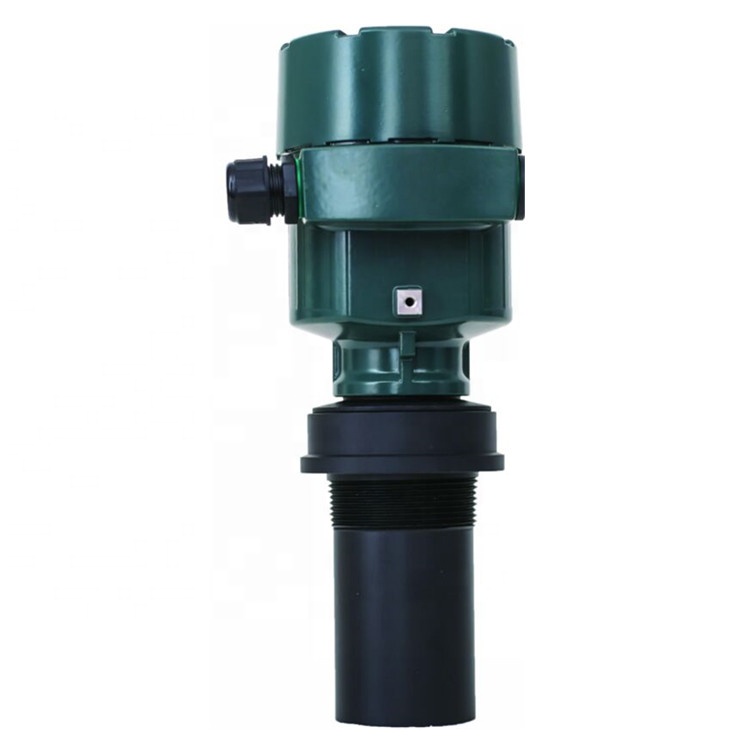

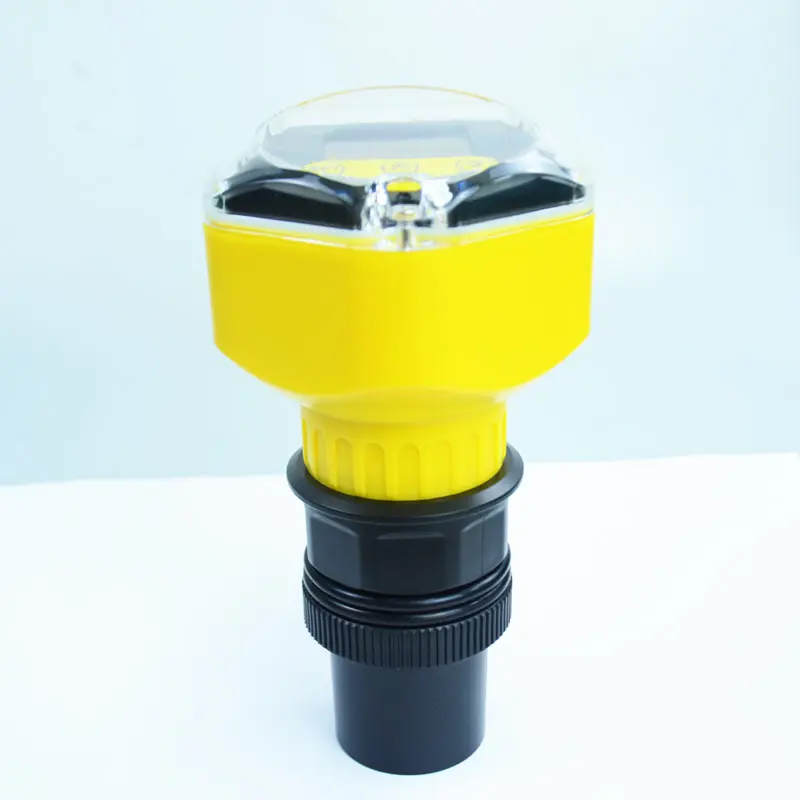

4-20 мА ультразвуковой датчик уровня для измерения резервуара для воды
