Плоская одноосная солнечная система слежения с наклонным солнечным модулем, длинная одноосная солнечная система слежения
- Категория товара: Улавливателя солнечной энергии >>>
- Поставщик (Оптовый магазин): Shandong,Zhaori,New,Energy,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
\t\t\t\t\t\t\t\t\tSpecifications \t\t\t\t\t\t\t
Product name: | ZRPT flat single axis solar tracker + Tilted solar panels |
Control mode: | Time + GPS Control |
Tracking accuracy: | 0.1°-2° (Adjustable) |
Motor: | 24V gear motor |
Power consumption: | 3 kwh/set/year |
Output torque: | 5000NM |
Azimuth angle tracking range: | ±50° |
Brackets material: | Hot-dipped galvanized steel, Zinc layer thickness≥65μm |
Max. wind resistance: | 24m/s in running state, 40m/s in wind protect state |
System guarantee: | 3 years |
Working temperature: | －40℃ － +75℃ |
Weight: | 200kgs - 500kgs |
Mount solar panels: | 10 - 60 pieces per set |
Total power: | 2.5kW－30.0kW |
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

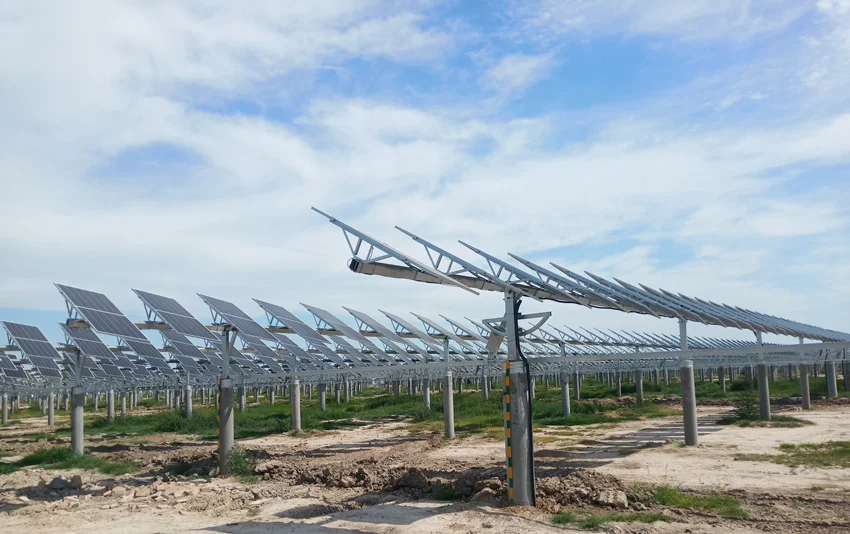

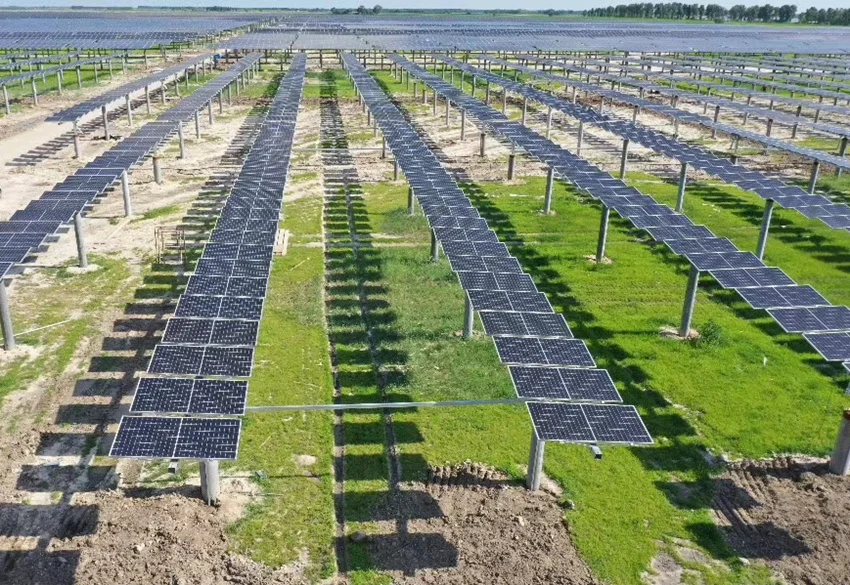

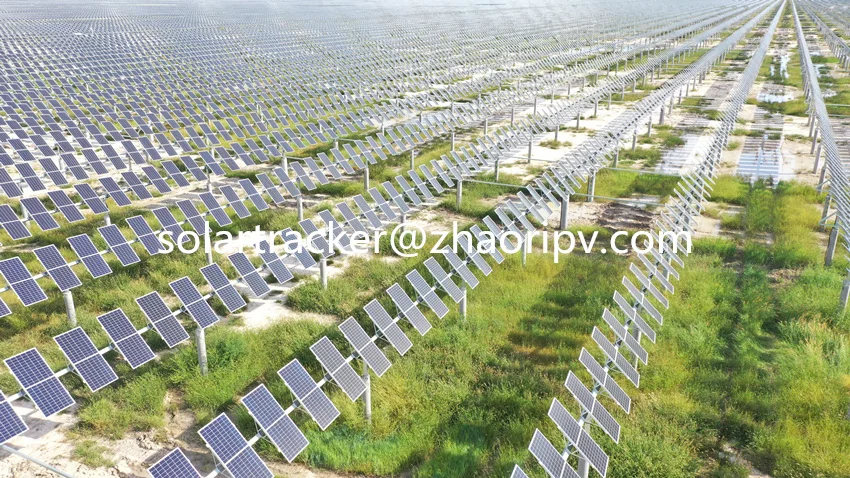

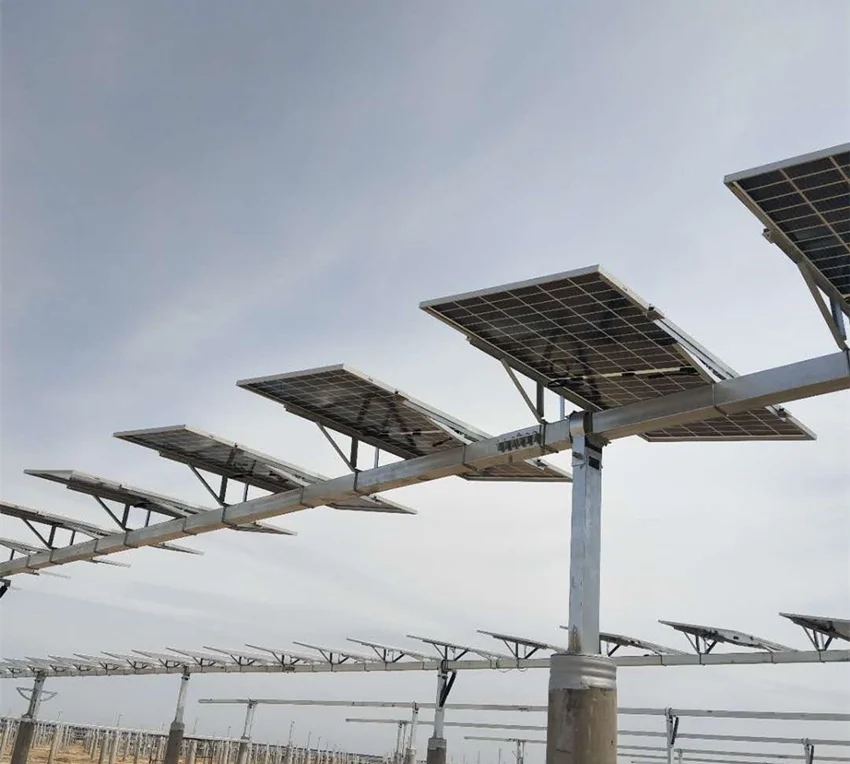

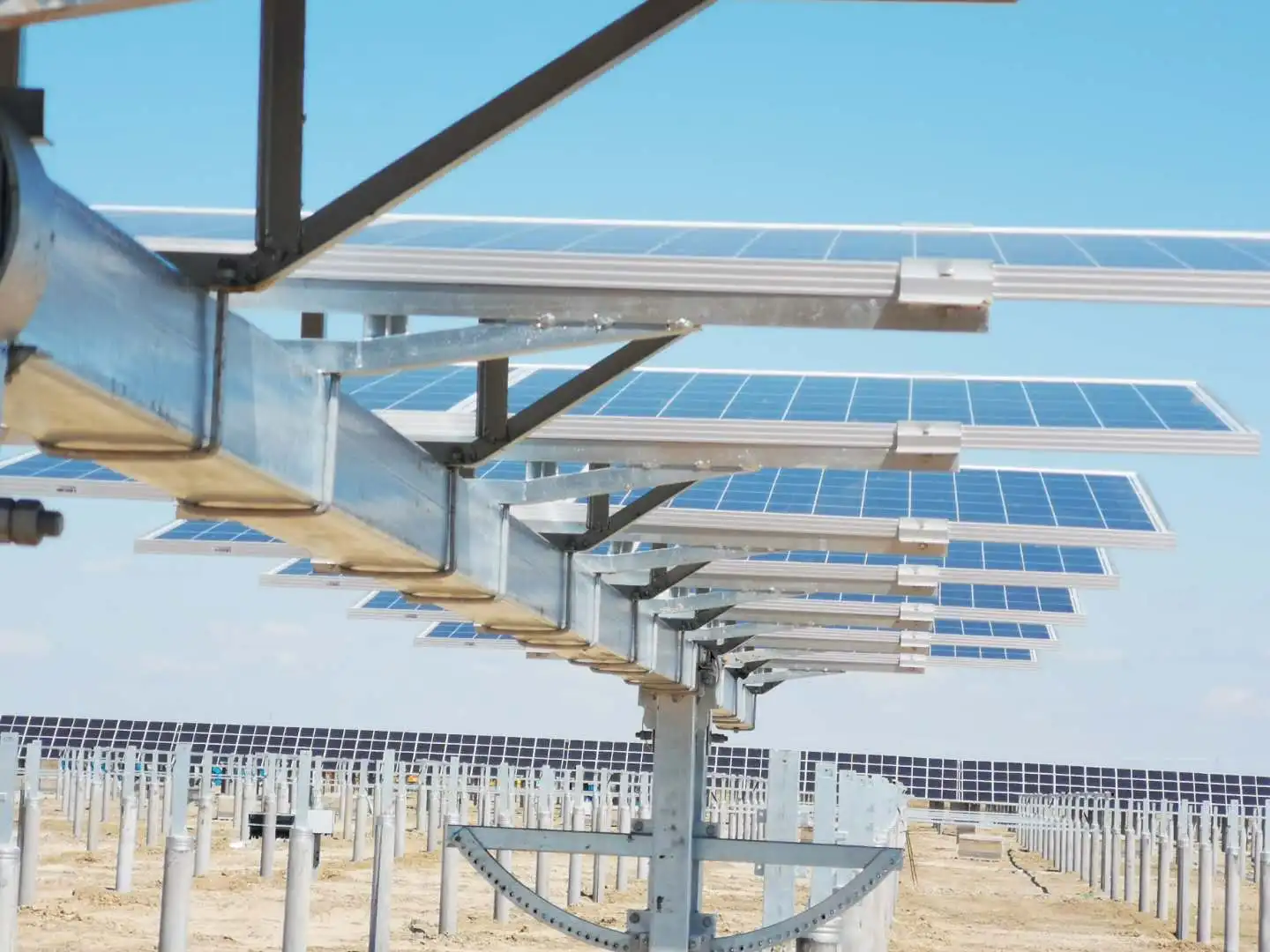

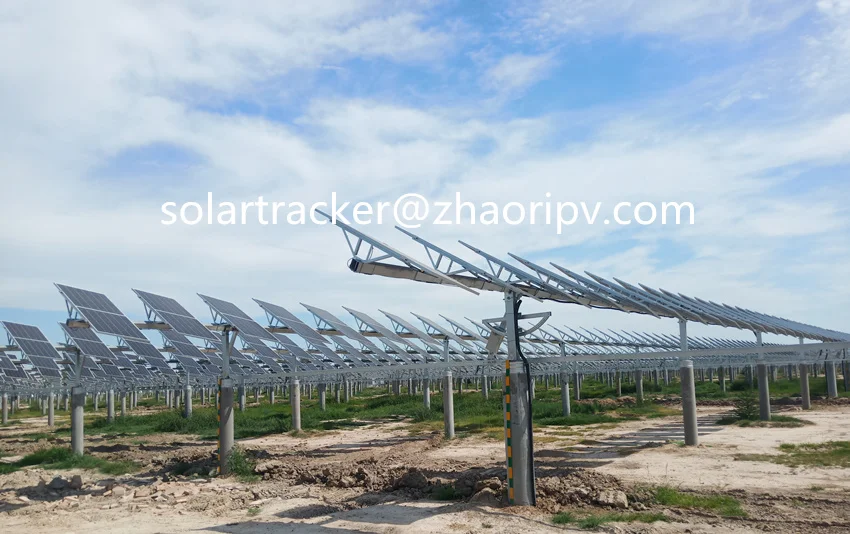

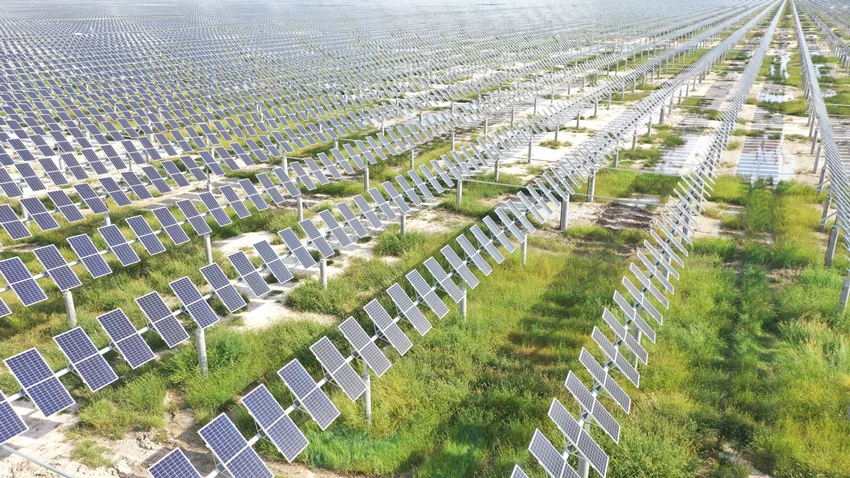

ZRPT flat single axis solar tracking system with 5° - 10° tilted solar modules. It continuously track the sun and hence results in higher generation due to better angular alignment with the sun position.
With the rising project costs and falling tariff prices, it is the constant endeavor and challenge to the project developers and solar designers to achieve lowest LCoE and ensure reasonable ROI from the Solar Plants. The new technologies in the Solar Modules and the Balance of Systems continuously strive to increase the efficiency and yield from the solar plants. Bifacial Modules and Solar Trackers remain the most significant developments in the current times that has resulted in higher yields of more than 20~25% depending upon the geo-location of the plants.
\t\t\t\t\t\t\t\t\tOur Advantages \t\t\t\t\t\t\t
★ Patent technology, simplest structure, low cost.
★ Conveniently and quickly installation, no need for big machinery.
★ Less power consumption, only totally about 3kWh/set/year.
★ High strength brackets, good wind resistance performance, auto wind protection.
★ Solar panels can be adjusted to a tilt angle for snow proof purpose.

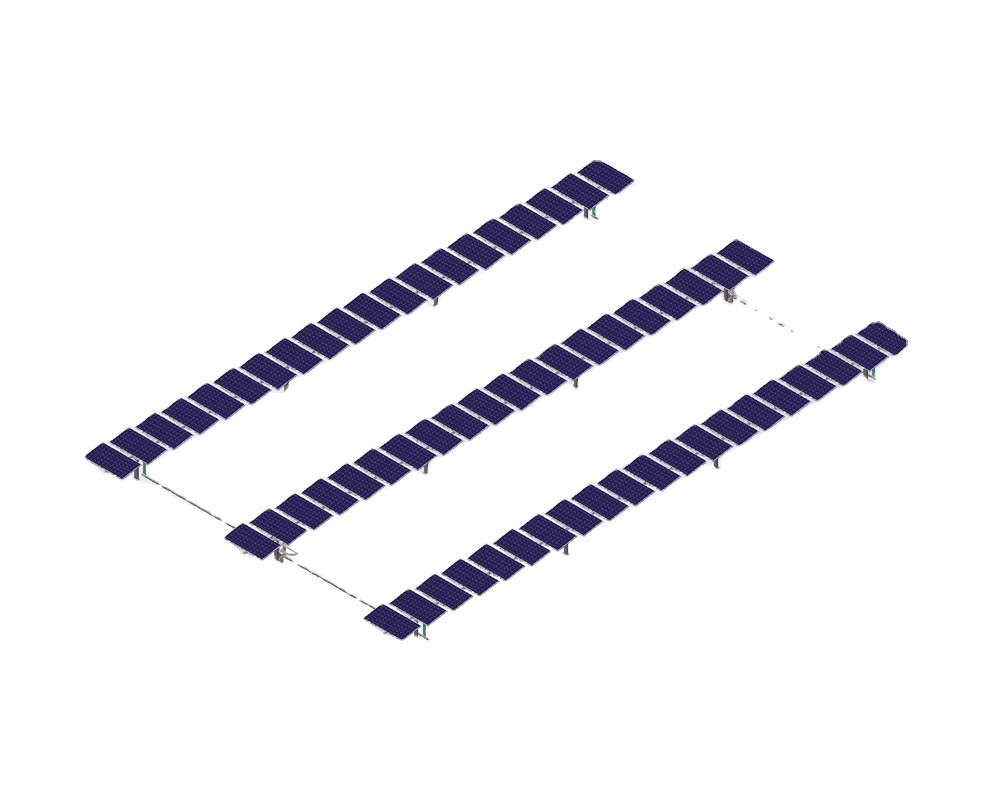

★ Single row type structure, better terrain adaptability.
★ No fixed coverage to sunshine or raining, no affection to plants growing.
★ Effectively reduce your solar panels washing times.
★ Less components, light single part weight, convenient transportation.
★ Intelligent control, self-correction & self-positioning, easy maintenance.
★ Mature and reliable technology, low failure rate, high tracking accuracy.
★ High efficiency, increase 20% to 25% power generation!
\t\t\t\t\t\t\t\t\tCompany profile \t\t\t\t\t\t\t
Shandong Zhaori New Energy Tech. Co., Ltd. locates in Weicheng Economic and Technological Development Zone of Weifang City, Shandong Province. The company registered capital comes to 7 million US dollars, it is a high-tech & new energy company based on independent intellectual property rights, committed to researching and producing most simple and best cost performance smart solar tracking systems, promoting power generation capacity by 15%-40%, with TUV & CE certificates and patent of invention from many countries.
Our Goal: more simple, more reliable, more efficient
Our Aim: excellent products, excellent service
Our Wish: share the solar future with you
