Поделиться:


Цена:1 000,00 $ - 1 280,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Description







Why choose us?

※Hardware
Technically-advanced cutter with outstanding quality and durability.
※Controller
Controller of our own with advanced algorithm, it is powerful, trustable and user friendly.
※Software
We develop software by ourselves, we supply software development kit for more possibilities.






Performance Features:
◎Auto feeding system can cut sheet continuously
◎Special patent in feeding way, maximum put 30 pcs in one time, hands-free design
for quantity label cutting work
◎Repeat function: 2000 times maximum.
◎ Support work with Flash drive directly. U disk for offline working, No need to bring the computer everywhere
◎High precision steel axis to ensure accuracy cutting
◎Performs half cutting and perforation cutting .

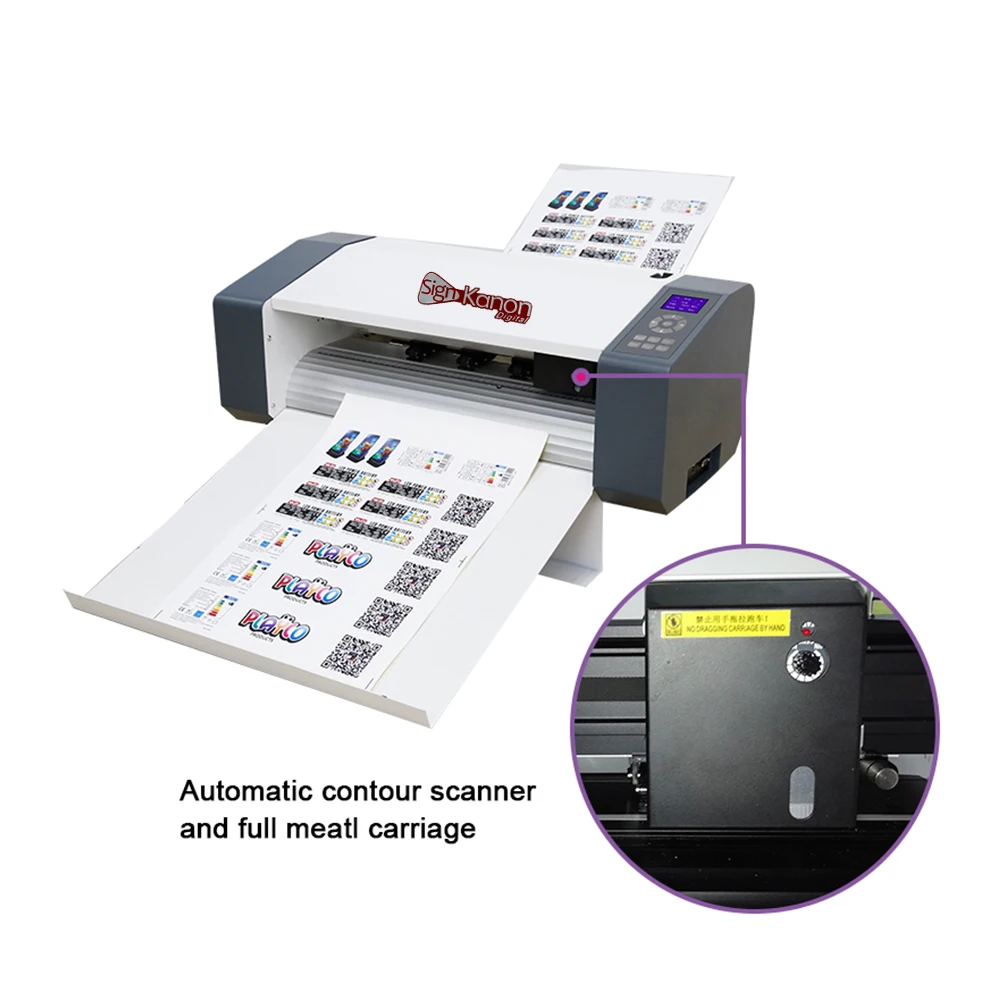

◎High precision sensor for mark detection, and also contour cutting for printed labels sensor
◎The second material can be feed automatically from the feeding tray after first material cutting job finished.


Specifications
Model Name
AN3
Media Way
Auto sheet feeding system with automatic contour cutting
Maximum Cutting Area
310*480mm
Maximum Cutting Speed
1000mm/s
Control Panel
4.3inch Full touch screen
Driver
High speed, big power step motor, micro-step driver
Cutting Force
10-1000g (adjustable)
Package Size
810*540*340 mm

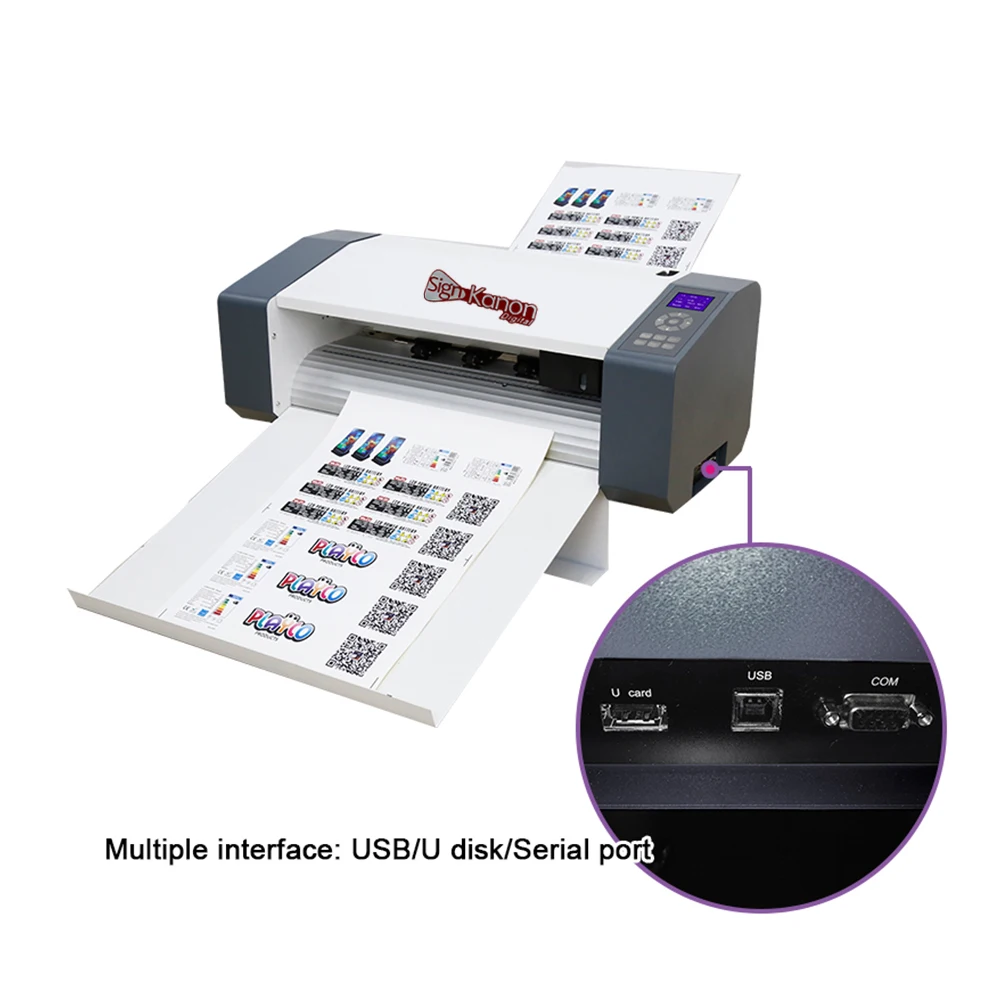

Interface
U disk , serial port , USB
Main Board
32-bit ARM7 CPU ,128Mb,high-speed cache memory
Mechanical Precision
0.025 mm
Min sheet size
10mm width* length is unlimited
Max sheet size
330mm width* length is unlimited

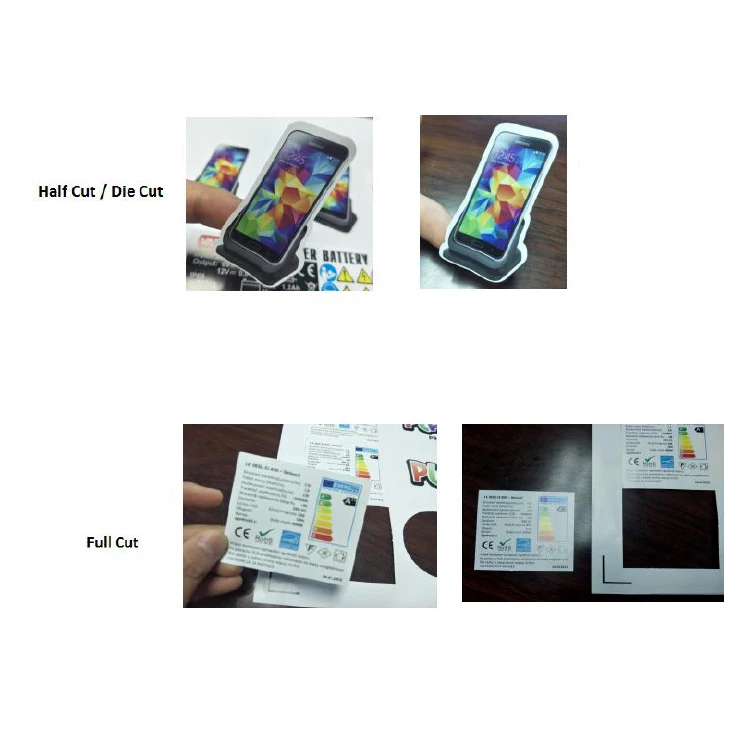

Cutting function
die cut and full cut (according to cutting force )


Remark::
1. All machie with professional software
2. WIFI function is optional
3. Consumable parts are not in the maintenance list. (Blade, blade holder, cutting stripe, pinch roller)




Installation Instructions








Packing&Shipping


1.Double carton packing

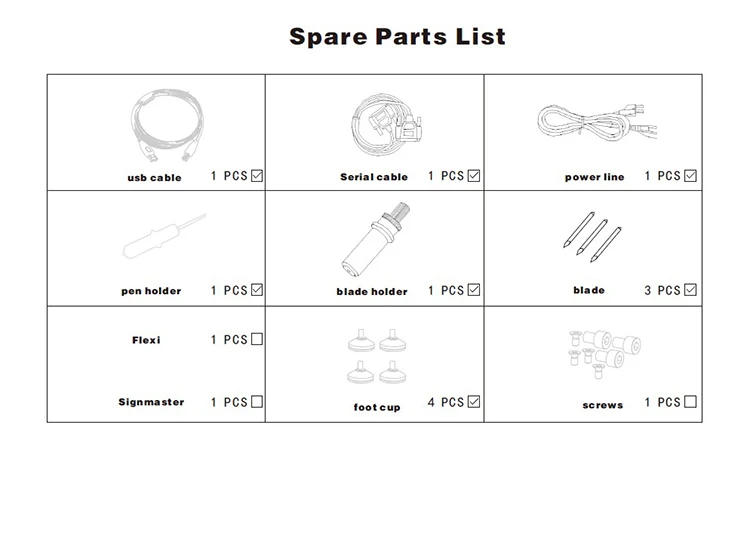

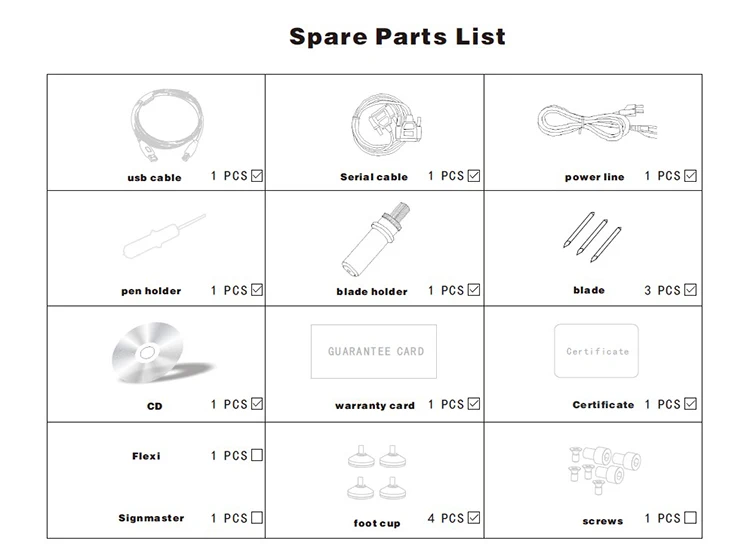

Spare Part


Standard accessory box:
Three blades, one blade holder, one pen holder, USB cable, Serial port cable, power cable, one year warranty card.
