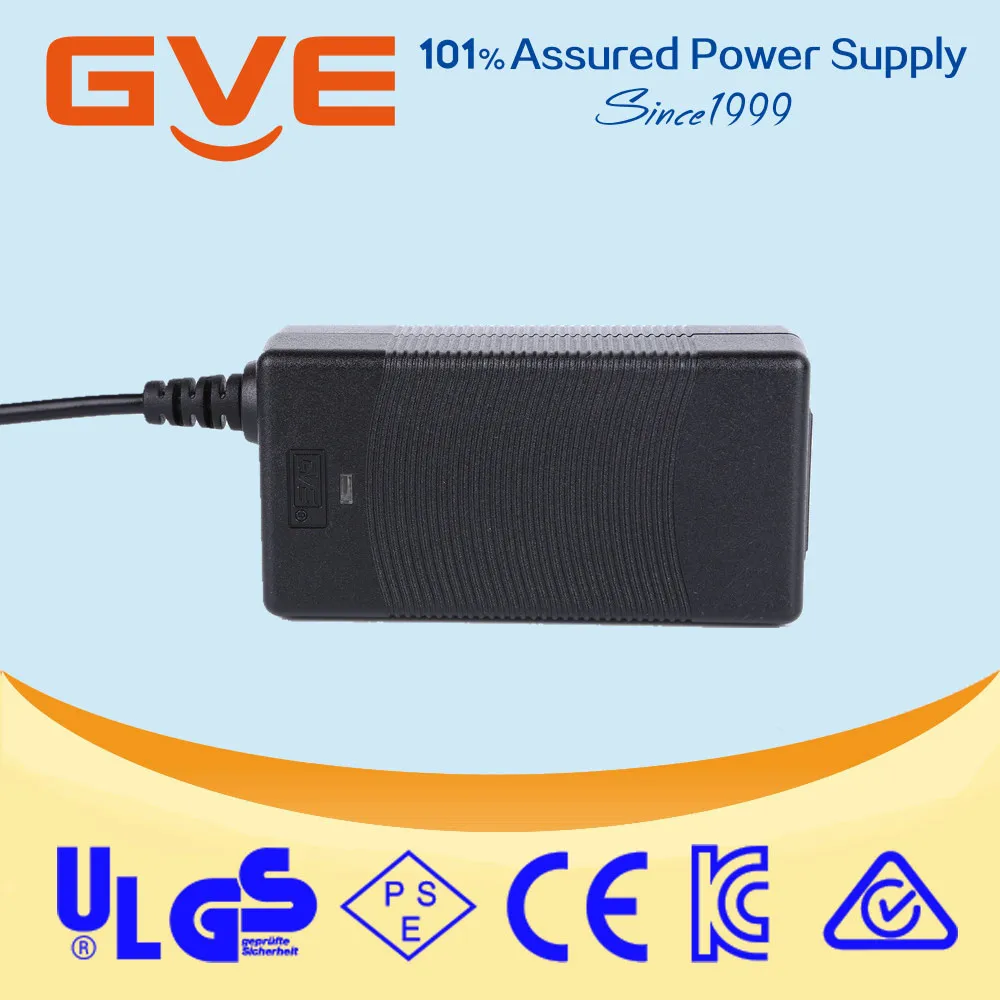

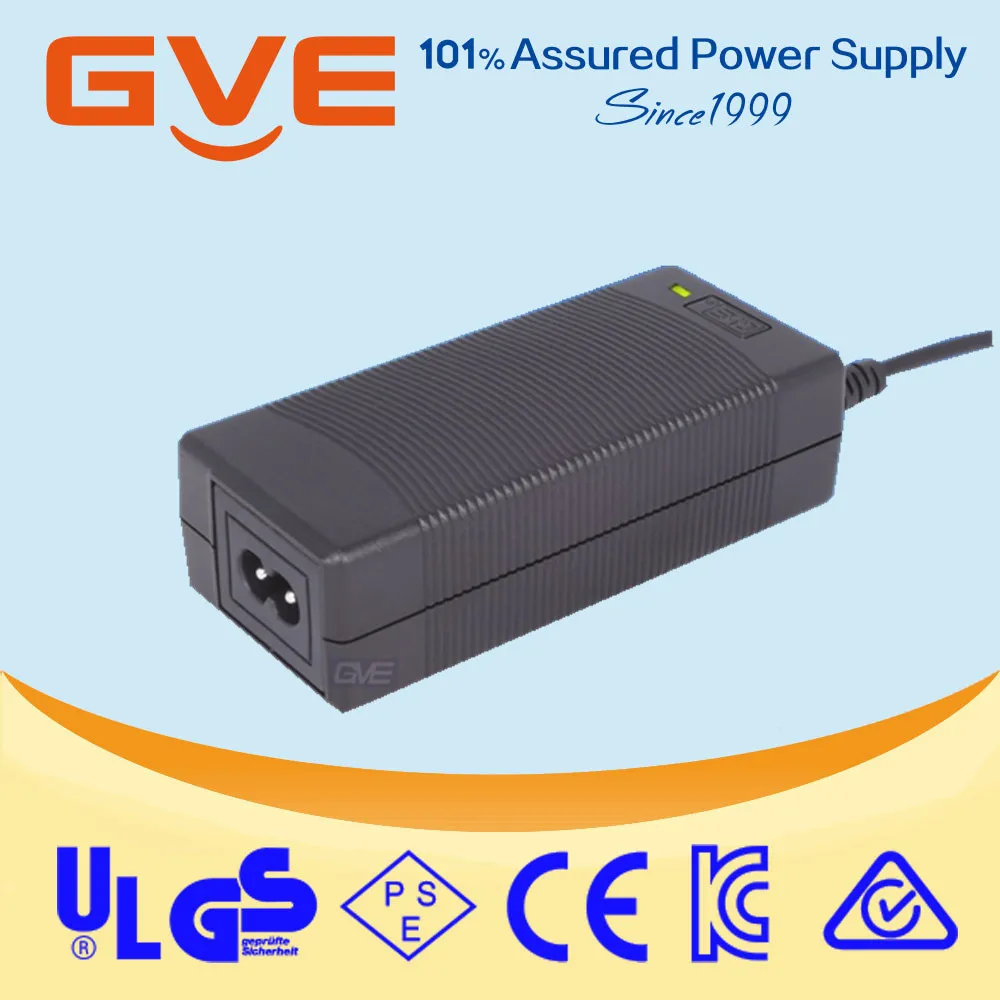

63W 42V 1.5A Электрический баланс скутер зарядное устройство с CE UL

Features

Universal AC input/Full range

No load power consumption<0.3W

High efficiency and reliability

Pass LPS

Plastic Case,2 Color LED loading indicator

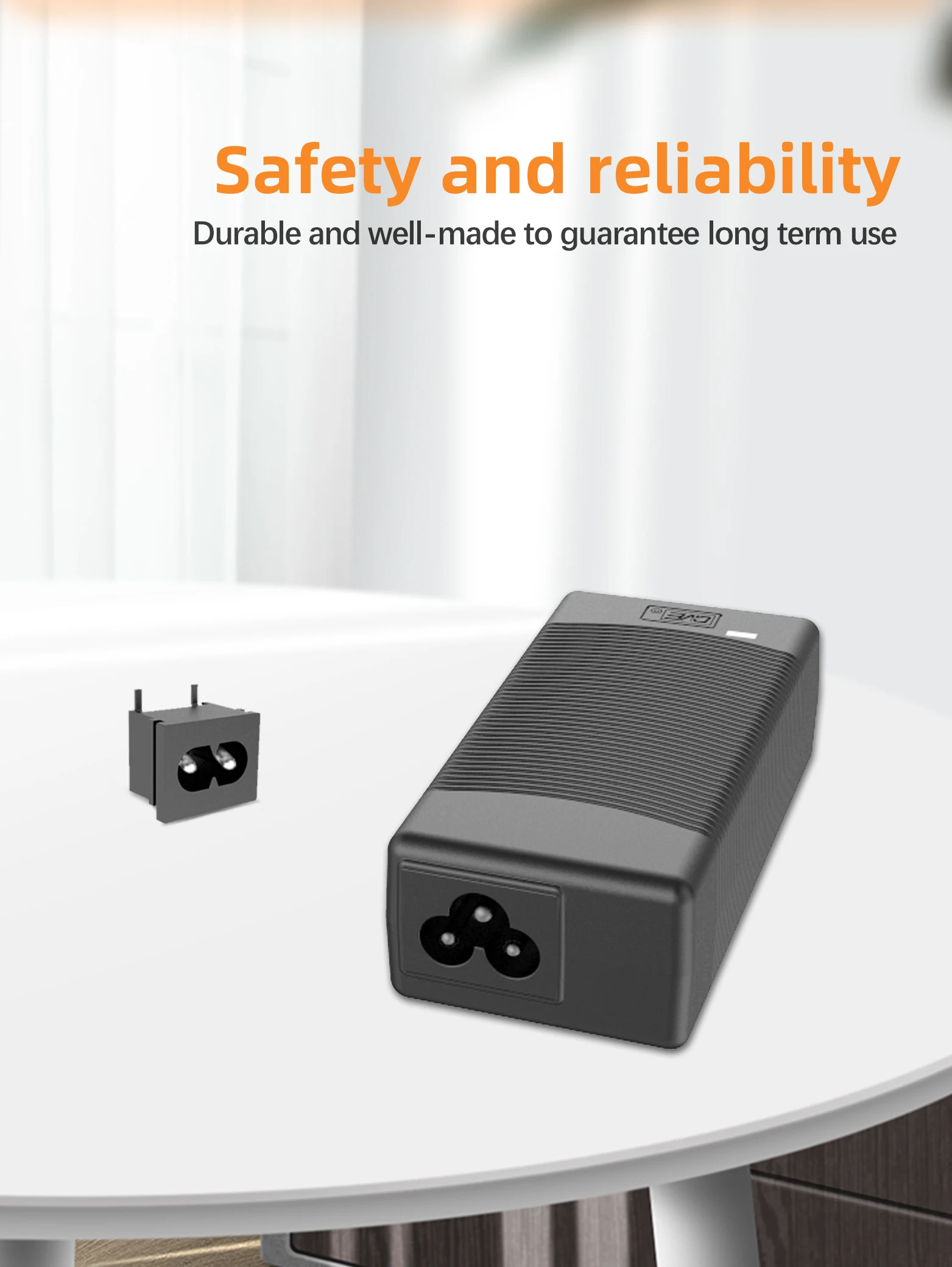

Durable and well-made to guarantee long term use

ERP step 2 complaint

Certification: CE GS TUV RoHS CQC UL FCC SAA CCC PSE KC

     Model

Input Voltage Range

Output Voltage Range

Output Current Range

GM65-420150-D

AC100~240V

3~48V

0.1~5A

Input Characteristics

Input Voltage Range

AC100~240V

Rated Input Frequency

50~60HZ

Input Current

0.5a max at low line input and DC output full load

Output Characteristics

Rated Voltage

42V

Efficiency

73% Min. At 100vac input and output Max.Load

73% Min. At 240vac input and output Max.Load

OverShoot

15% Max.When power supply at turn on or turn off

Protection

Over Voltage Protection

The self balance scooter charger will not be auto recovered when faults remove

Over Current Protection

The self balance scooter charger will be auto recovered when over current faults remove

Short Circuit

The self balance scooter charger will be auto recovered when short circuit faults remove

Environment

Operating temperature

       0℃~40℃ Full load Normal operation

Storage temperature

       -20℃~85℃

Relative Humidity

        5%~90%
