Пластиковая машина для литья под давлением с мобильным зарядным устройством 15T ~ 20T изготовления мобильного зарядного устройства
- Категория товара: Injection Molding Machines >>>
- Поставщик (Оптовый магазин): Dongguan,Min-Hui,Plastic,Manchinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details

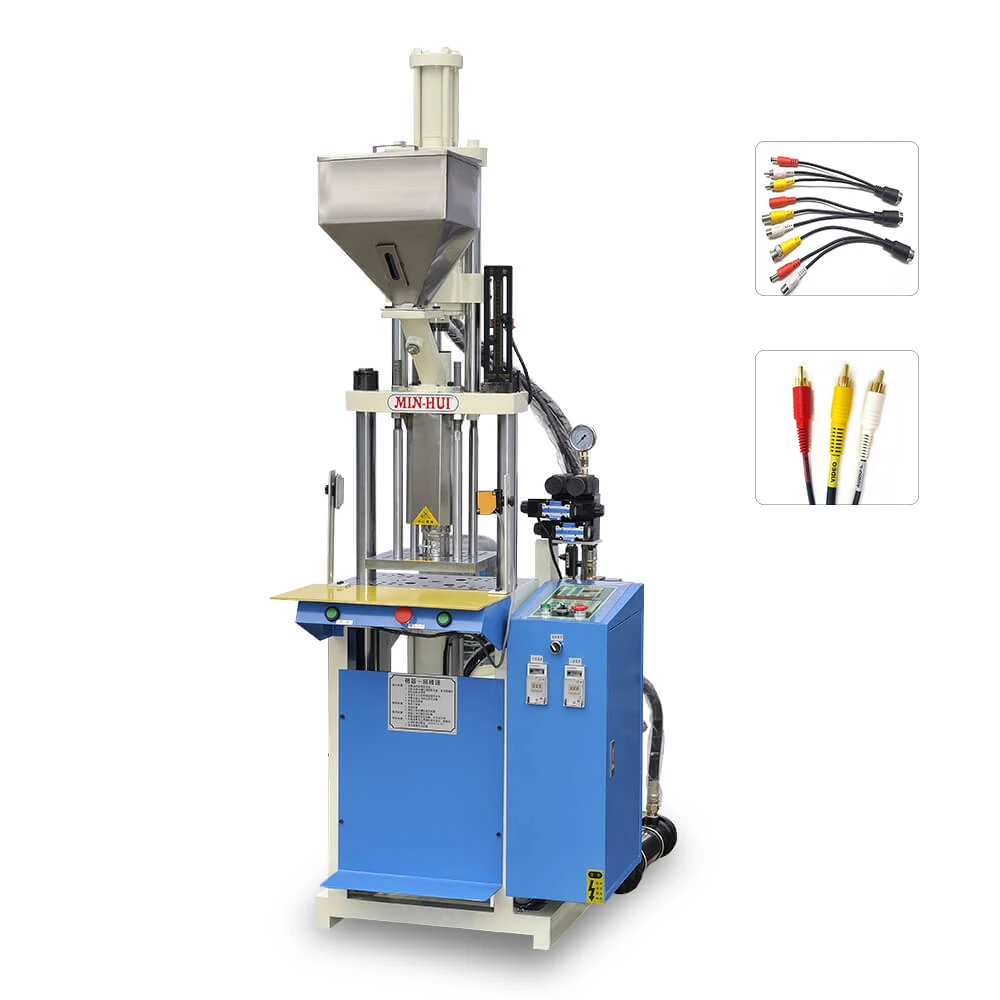

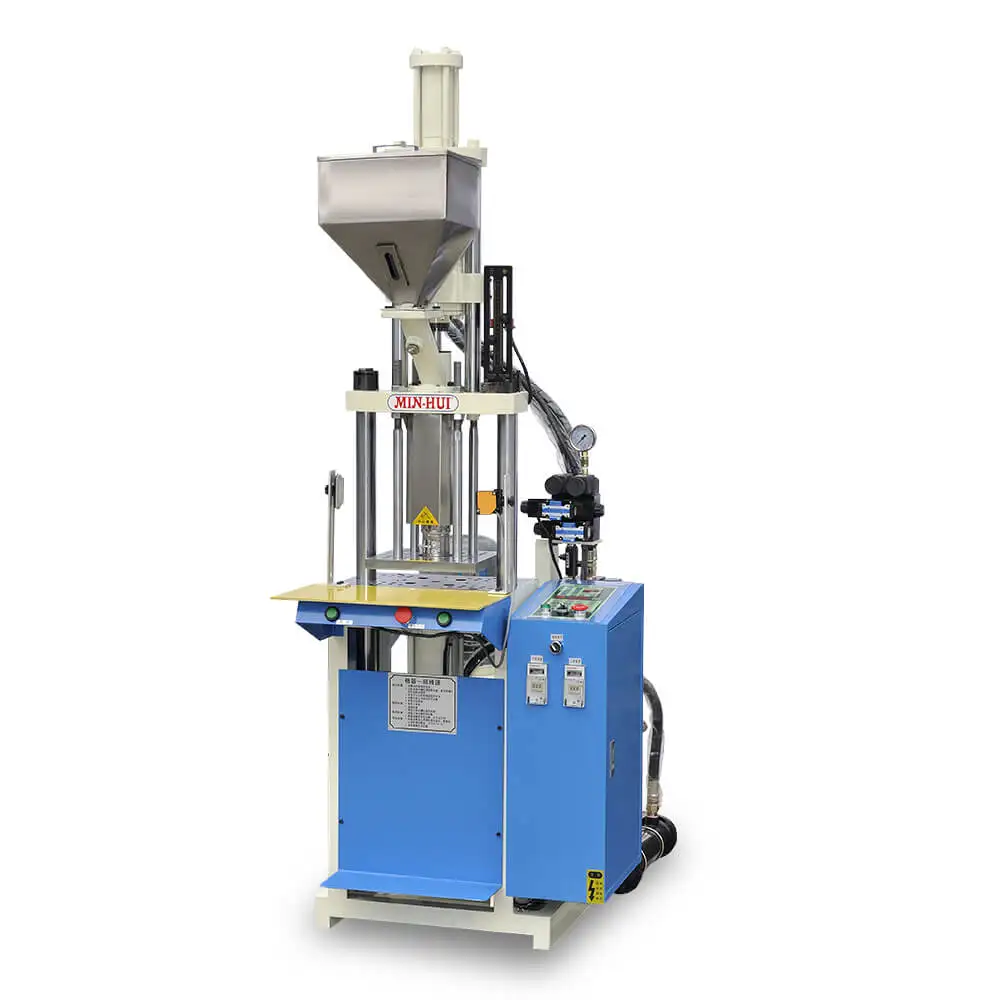

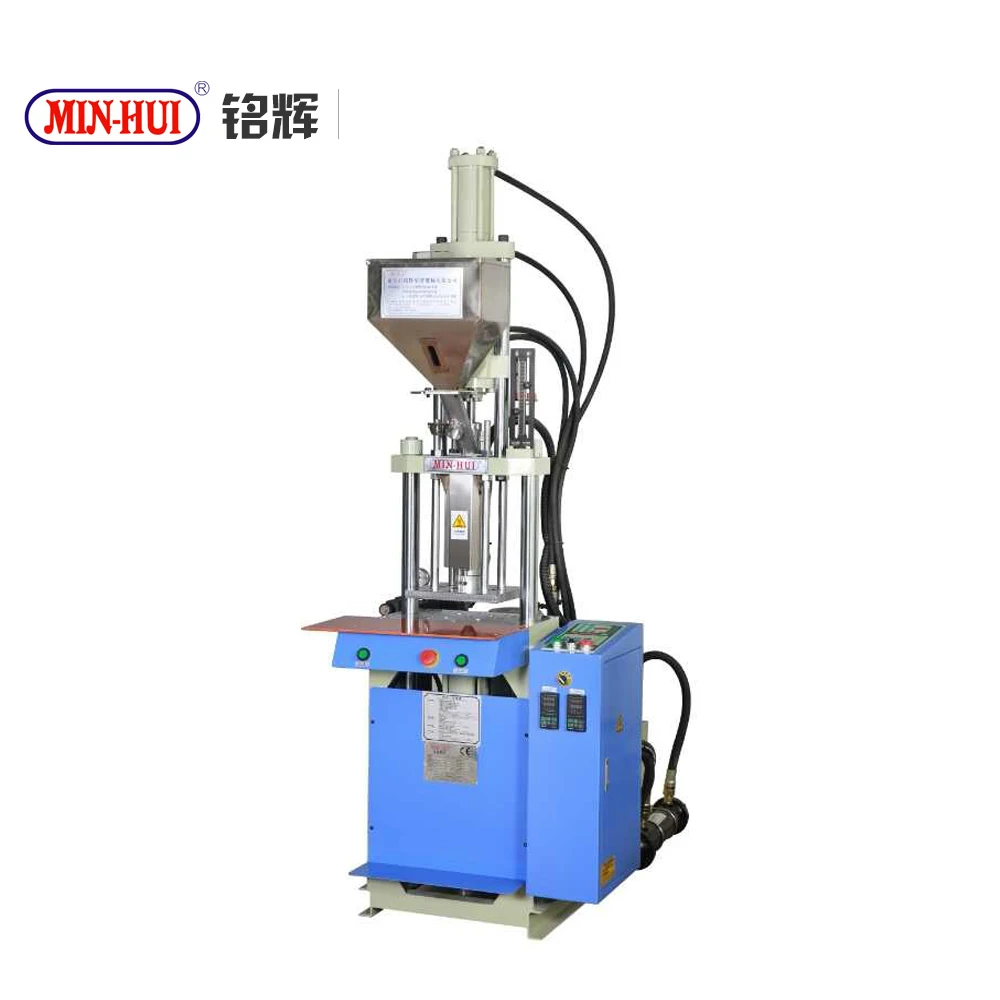

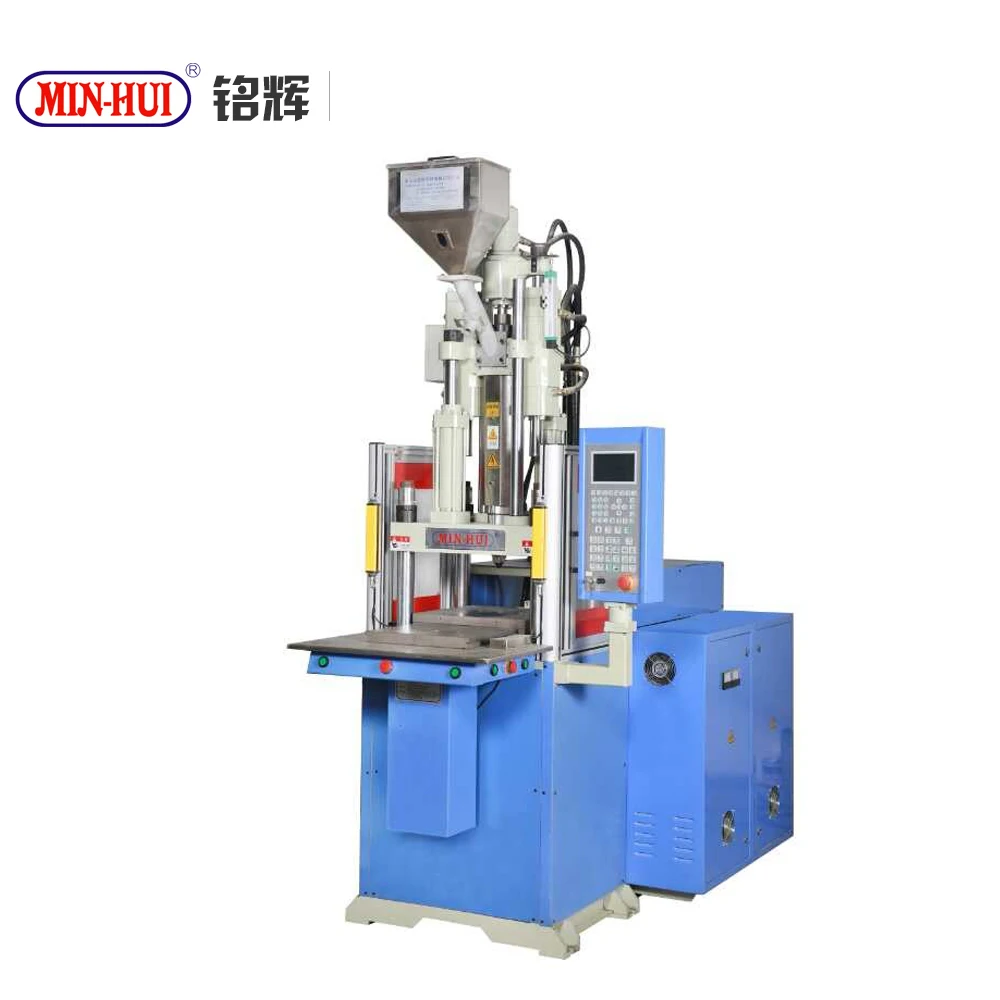

Standard Injection Molding Machine 15T
1. MH standard machine, suitable for insert molding of available electrical plugs and electronic parts.
2. Two-stage or three-stage temperature control, step-less adjustment of injection speed, back pressure, etc., are more suitable for precision plastic parts molding.
3. Fast mold clamping/low-pressure, slow mold closing. When the mold lock is abnormal, the mold will be opened automatically. This particular safety design can protect the mold.
4. The lower mold is fixed, the upper mold is movable, which has a good positioning of the molded insert in the mold. The finished product has a hydraulic ejector device, which is very convenient and easy to take out.

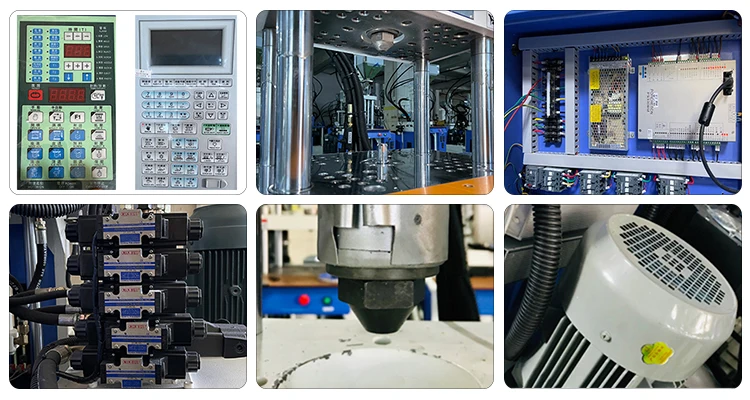

Details Images
Product Paramenters
MODEL | UNIT | MH-15T | ||||
INJECTION UNIT | Screw Diameter | mm | Φ26 | Φ28 | ||
Injection Pressure | Kgf/cm2 | 1715 | 1098 | |||
Theoretical shot Volume | cm3 | 55 | 65 | |||
Max.Shot Weight | g/oz | 51.2/1.8 | 59.4/2 | |||
Injection Rate | cmls | 50 | 59 | |||
Screw Stroke | mm | 105 | ||||
Screw Rotation Speed | rpm | 0-215 | ||||
Nozzle Contact Force | Tons | ﹍ | ||||
Nozzle Retraction Stroke | mm | ﹍ | ||||
Stages of temperature control | 2 | |||||
CLAMPING UNIT | Clamping Force | Tons | 15 | |||
Platen Size | mm | 280*250 | ||||
Distance between columns | mm | 310 | ||||
Min. mould thickness | mm | 35 | ||||
Opening Stroke | mm | 198 | ||||
Max. mould Opening Distance | mm | 233 | ||||
Ejector force | Tons | 1.3 | ||||
Ejector stroke | mm | 35 | ||||
OTHERS | Max.Hydaulic Pressure | Kgf/cm2 | 140 | |||
Oil pump output | cc/rec | 23 | ||||
Cooling Water Consumption | L/h | 400-600 | ||||
Motor Power | Kw | 2.2(3HP) | ||||
Barrel heating power | Kw | 2 | ||||
Total wattage | Kw | 4.2 | ||||
Machine Weight Net | Kg | 650 | ||||
Machine Dimensions(LxWxH) | m | 1.15*0.75*2.15 | ||||
Shipping Weight Gross | Kg | 650 | ||||
Shipping dimensions(LxWxH) | m | 1.4*1.0*2.3 | ||||

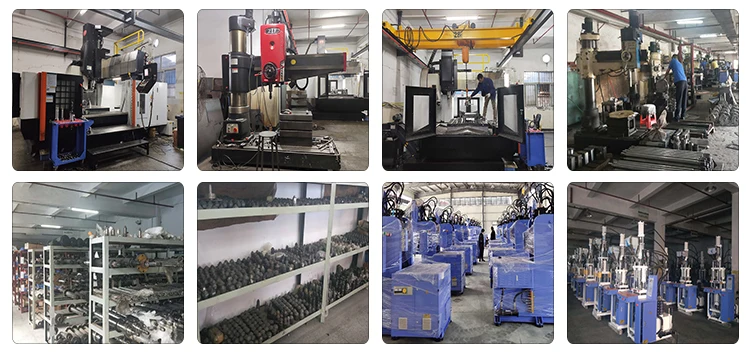

Our Factory

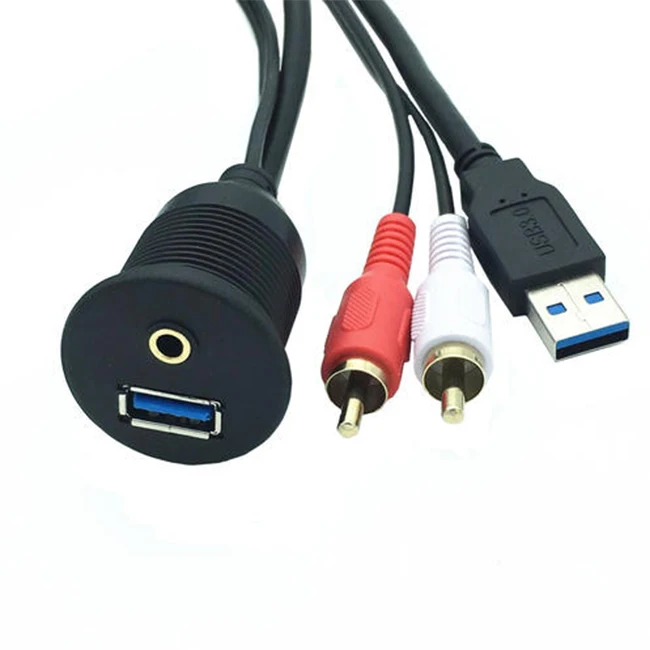

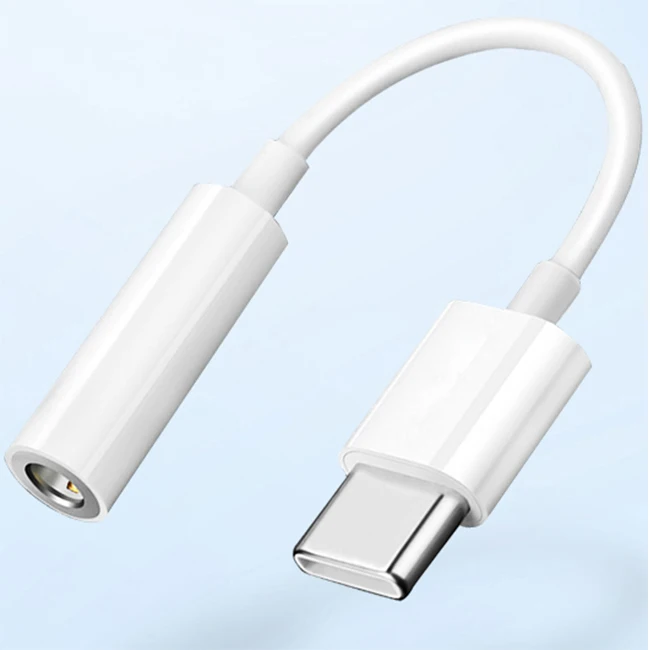

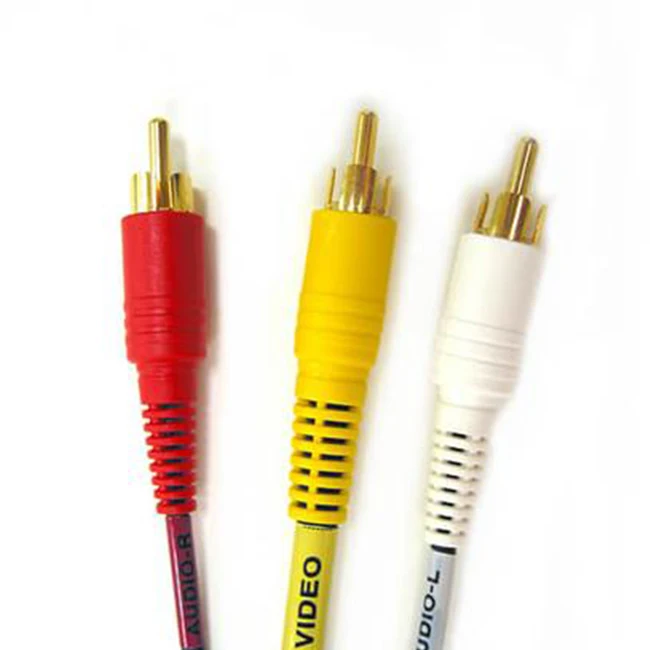

Industry Applications
Exhibition
PACKAGING LOGISTICS
FAQ
Are you a manufacturer or Trade Company?
We are a professional vertical injection machinery manufacturer
We are a professional vertical injection machinery manufacturer
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine,
and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and
thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
What is the clamping force of Min-Hui vertical injection molding machines?
The clamping force of the product ranges from 15 tons to 500 tons.
What industries can use Min-Hui vertical injection molding machines?
Automobile manufacturing, medical equipment industry, cosmetics industry, knives, sanitary ware, furniture, toys, daily
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
