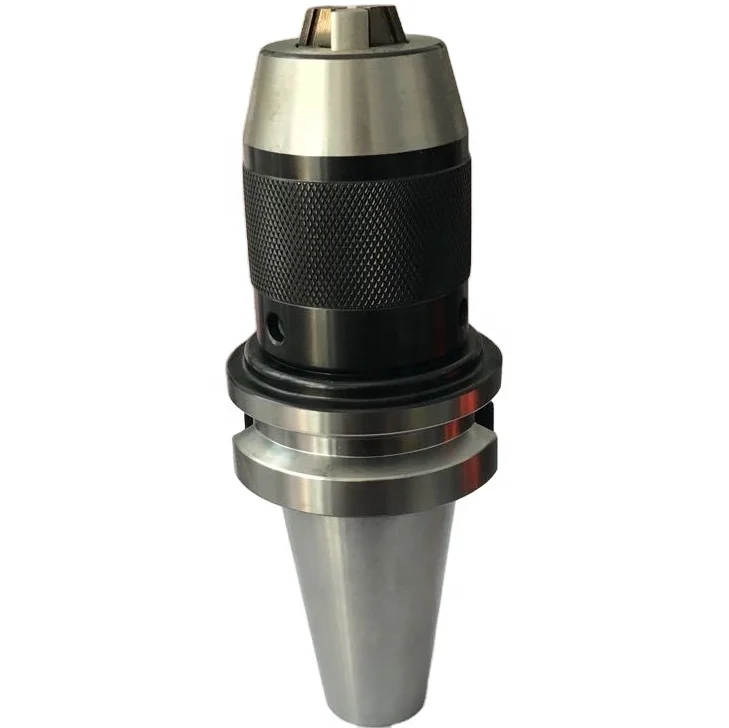

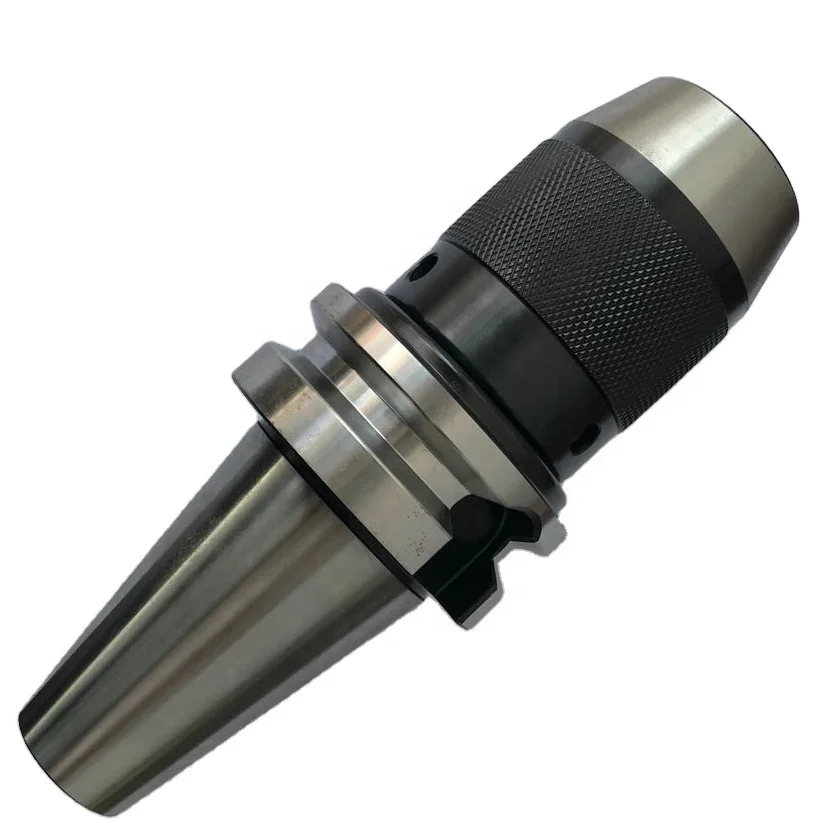

Интеграл быстрозажимный сверлильный патрон с BT,DIN69871 конических фрез, таких как BT30-APU13,BT40-APU13,BT40-APU16 и т. д.
- Категория товара: Machine Tools Accessories >>>
- Поставщик (Оптовый магазин): Dezhou,Zhongyi,Industry,And,Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
integral keyless drill chuck with BT,DIN69871 standard:
They are mainly used for heavy duty and high speed drilling.
1.This integrated design can prevent drill chuck separate accidently with arbor.
2.High precision,big grip force,high Reliability.
3.Flimsy parts are shaped by quenching.
4.Self-tighting feature automatically increase gripping proportional to incrased torque to prevent tool shank sliping.
| model | L1 | L | L2 | D | d1 | d2 | R |
| BT30xAPU8-80 | 80 | 137.4 | 55 | 46 | 37 | 6 | 0.04 |
| BT30xAPU13-110 | 110 | 170.4 | 75 | 46 | 50 | 13 | 0.04 |
| BT30xAPU16-110 | 110 | 180.4 | 80 | 46 | 57 | 16 | 0.04 |
| BT40xAPU8-85 | 85 | 159.4 | 55 | 63 | 37 | 6 | 0.04 |
| BT40xAPU13-100 | 100 | 177.4 | 75 | 63 | 50 | 13 | 0.04 |
| BT40xAPU16-105 | 105 | 187.4 | 80 | 63 | 57 | 16 | 0.04 |
| BT50xAPU8-90 | 90 | 200.8 | 55 | 63 | 37 | 6 | 0.04 |
| BT50xAPU13-110 | 110 | 213.8 | 75 | 100 | 50 | 13 | 0.04 |
| BT50xAPU16-105 | 105 | 223.8 | 80 | 100 | 57 | 16 | 0.04 |
| Model No. | L1 | L | L2 | D | d1 | d2 | R |
| DIN69871.30xAPU8-80 | 80 | 139.8 | 55 | 50 | 37 | 6 | 0.04 |
| DIN69871.30xAPU13-120 | 120 | 179.8 | 75 | 50 | 50 | 13 | 0.04 |
| DIN69871.30xAPU16-125 | 125 | 179.8 | 75 | 50 | 57 | 16 | 0.04 |
| DIN69871.40xAPU8-75 | 75 | 155.4 | 55 | 63.55 | 37 | 6 | 0.04 |
| DIN69871.40xAPU13-100 | 100 | 180.4 | 75 | 63.55 | 50 | 13 | 0.04 |
| DIN69871.40xAPU16-115 | 115 | 195.4 | 80 | 63.55 | 57 | 16 | 0.04 |
| DIN69871.50xAPU8-75 | 75 | 188.75 | 55 | 63.55 | 37 | 6 | 0.04 |
| DIN69871.50xAPU13-100 | 100 | 213.75 | 75 | 97.50 | 50 | 13 | 0.04 |
| DIN69871.50xAPU16-105 | 105 | 218.75 | 80 | 97.50 | 57 | 16 | 0.04 |
:
