oil and water separate filter machine

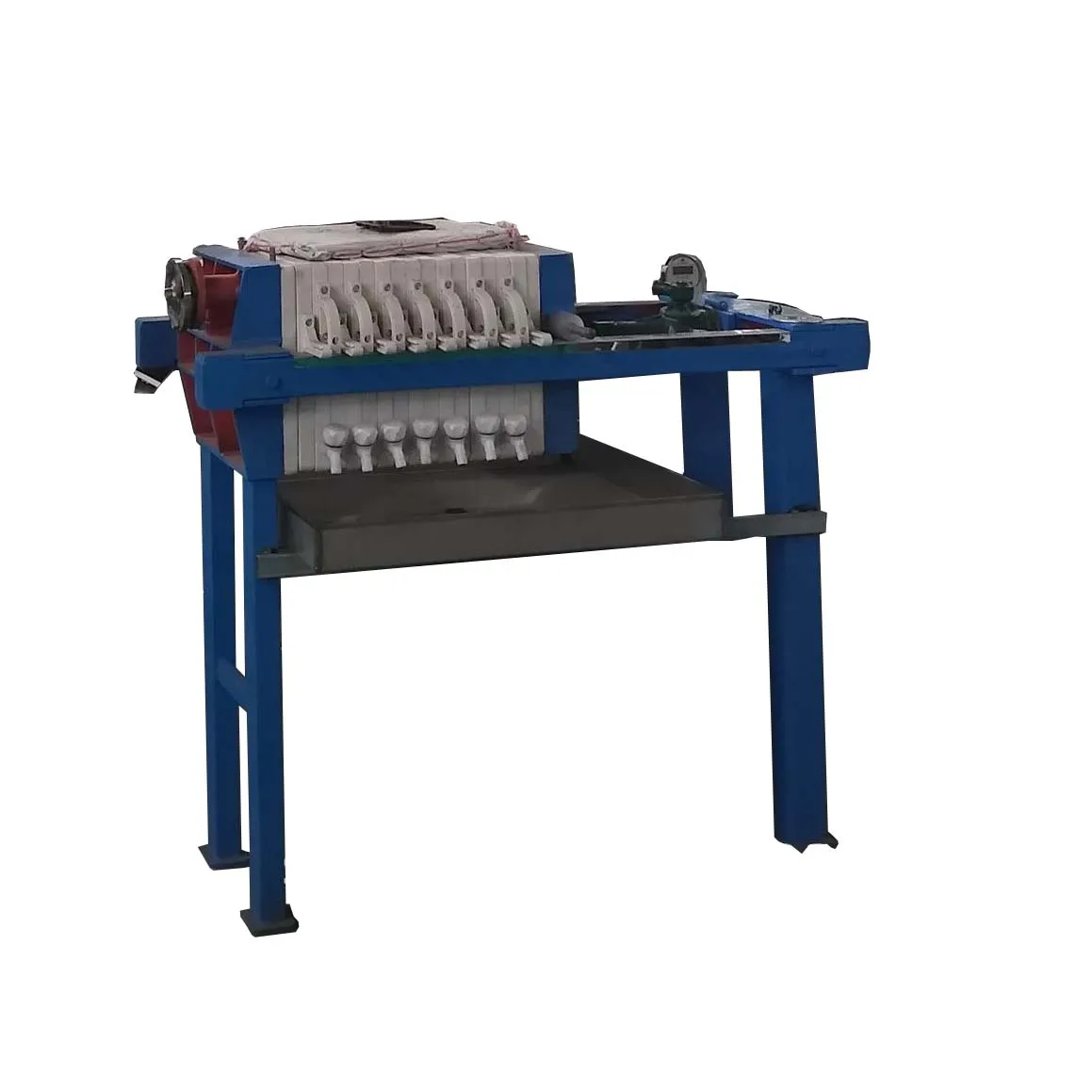

JX plate pressure oil filtering machine is mainly used to separate the impurities and water from the oil.

JX series plate pressure oil purifier is mainly used to separate the impurities and water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on. There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering cloth packed between the filter board and filter frame will play a role of filtering. It's characterized by simple structure,easy operation,low cost,ect.

Technical parameters

models		JX-30	JX-50	JX-100	JX-125	JX-150	JX-200	JX-300
flowL/min		30	50	100	125	150	200	300
working pressure MPa		00.5
filtration area		≥0.3	≥0.39	≥1.3	≥1.54	≥1.89	≥2.01	≥3.1
mm		280×280			320×320
compress mode
Frame amout		11	13	17	11	13	19	25
Plate amount		12	14	18	12	14	20	26
Power supply		380V 50HZ
Total power (KW)		0.75	1.1	2.2	2.2	3	4	5.5
Rotate speedr/min		1440
Filtration precision μm		≤5			≤3
Filtering cloth size mm		285×290			325×330
Inlet diameter mm		φ32	φ32	φ42	φ50	φ50	φ60	φ60
Outlet diameter mm		φ25	φ25	φ38	φ42	φ42	φ50	φ50
dimension	L mm	750	800	850	800	850	920	1000
	Wmm	530	530	530	600	600	600	600
	Hmm	930	930	930	1100	1100	1100	1100
Total weight kg		80	95	130	180	210	250	300

Dimension and weight will be changed with changing the technical specification
