Горизонтальный Токарный станок с плоской платформой CKE6150Z Dalian DMTG
- Категория товара: CNC Lathe >>>
- Поставщик (Оптовый магазин): Dalian,Mach,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

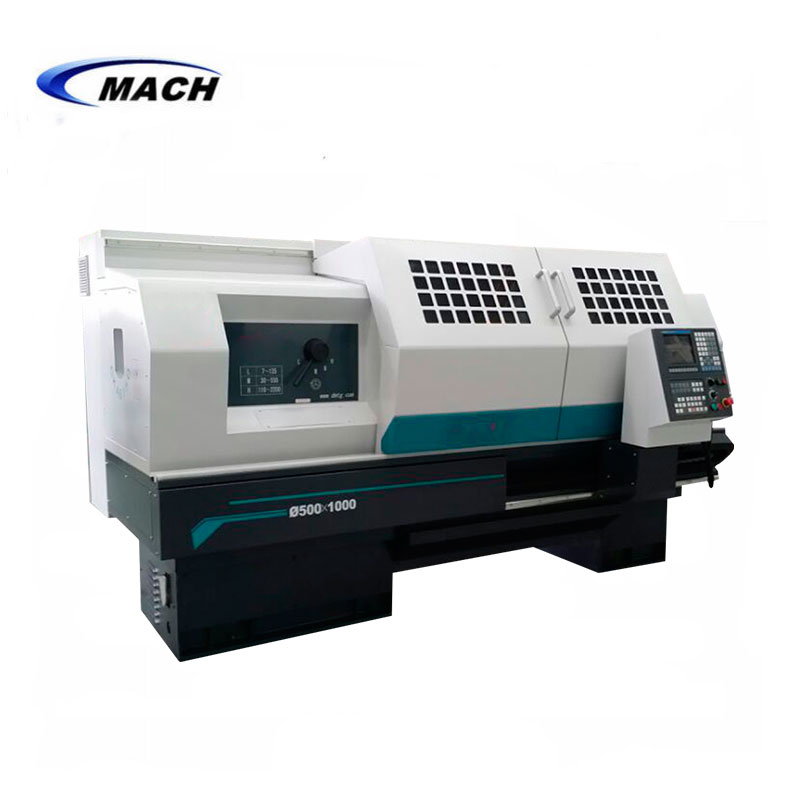

CKE6150Z Dalian DMTG Flat Bed Horizontal
Lathe Machine Torno CNC Torno
Product Description
( CKE6150Z Lathe Machine CNC Torno )
Main Specification of Lathe Machine CNC Torno
Capacities | Metric |
Maximum Swing Over Bed | 500mm |
Width of Bed | 400mm |
Maximum Swing Over Cross Slide | 280mm |
Maximum Workpiece Length | 750/1000/1500/2000mm |
Travel | Metric |
X Axis | 280mm |
Z Axis | 680/930/1430/1930mm |
Spindle | Metric |
Chuck Size | 250mm |
Spindle Through Bore | 82mm |
Spindle Nose | D8 |
Spindle Speed Steps | 3 |
Spindle Speed Range 1 | 7 – 135rpm |
Spindle Speed Range 2 | 30 – 550rpm |
Spindle Speed Range 3 | 110 – 2200rpm |
Spindle Motor Power | 7.5kw |
Tool Post (Standard) | Metric |
Number of Tool Stations | 4 |
Axis | Vertical |
Index Time (Adjacent Tool) | 2.4 s |
Tool Post (Optional) | |
Number of Tool Stations | 6 |
Axis | Horizontal |
Index Time (Adjacent Tool) | 3 s |
Accuracy | Metric |
Positioning Accuracy, X axis (JIS) | 0.0112mm |
Positioning Accuracy, Z axis (JIS) | 0.0147mm |
Repeatability, X axis (JIS) | 0.0043mm |
Repeatability, Z axis (JIS) | 0.0058mm |
Repeatability of Tool Post (VDI) | 0.008mm |
Rapid Traverse Rates | Metric |
X Axis | 6m/min |
Z Axis | 10/min |
Tailstock | Metric |
Quill Diameter | 75mm |
Quill Travel | 150mm |
Quill Inside Taper | MT5 |
Machine Dimensions | Metric |
Machine Length | 2580/2830/3330/3830mm |
Machine Width | 1750mm |
Machine Height | 1620mm |
Total Weight | 2550/2600/2700/2800 kg |
Power Requirements | 24KVA |

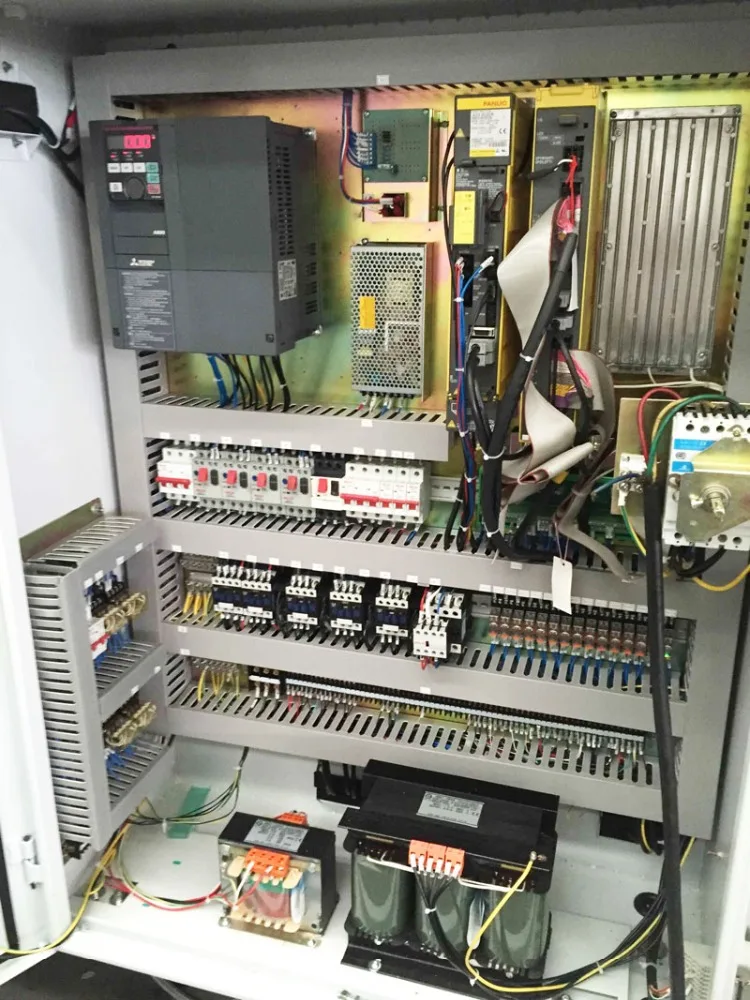

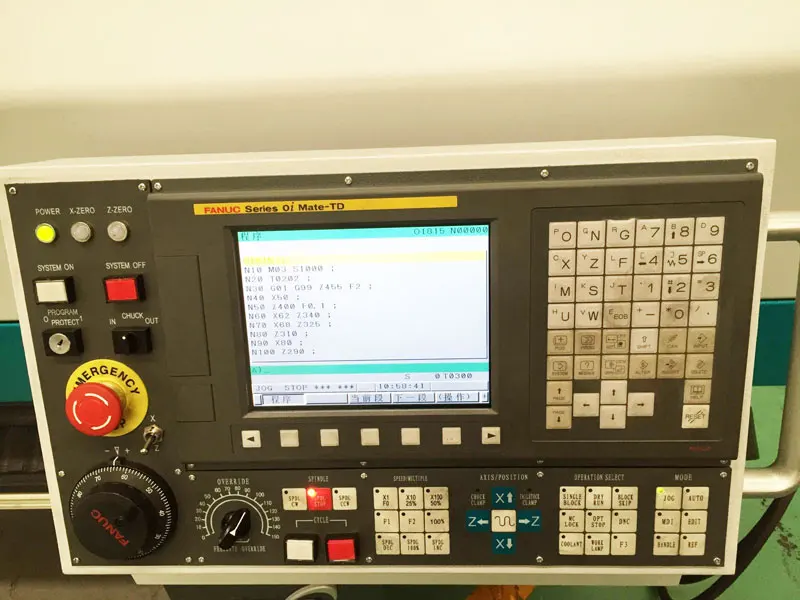

( Detail of CKE6150Z Lathe Machine CNC Torno )

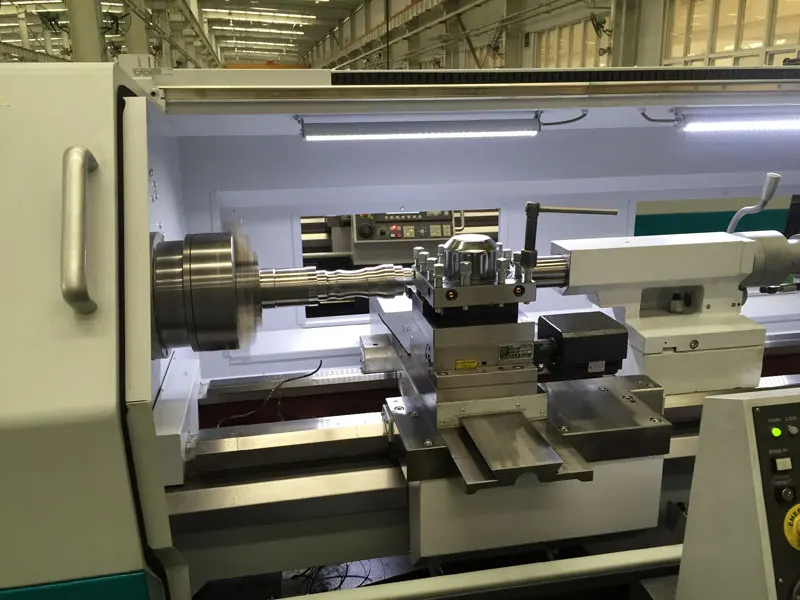

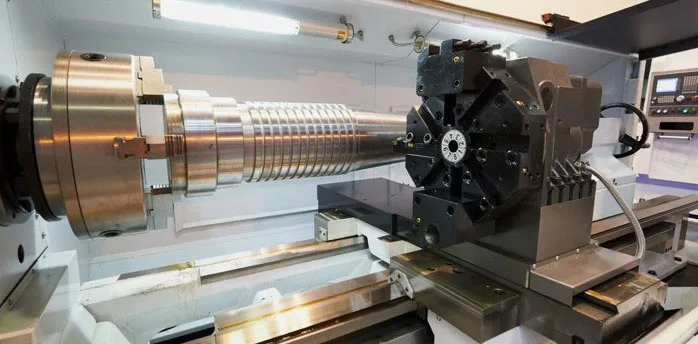

8-position Toolpost of CKE6150Z Lathe Machine CNC Torno
Certificate
CE certificate & ISO9001 certificate of Lathe Machine CNC Torno
Our Services
Quality Guarantee
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
- Our Lathe Machine CNC Torno are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When lathe machine CNC torno are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills
- During this period of one year warranty , if lathe machine cnc torno were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with lathe machine cnc torno, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the cnc lathe machines within three years.
- Other after-sale terms can be agreed by buyer and seller in addition
Company Information
About our company
We have a group of professional engineers in charge of technology, manufacturing, installing, testing of lathe machine cnc torno. So we can guarantee that our cnc lathe will be runned on good performance based on high quality.
Founded in 1948, Our factory entered the top 8 lathe machine cnc torno and lathe machine builders in the world. Turly a leader in the cnc lathe machine and lathe machine industry worldwide. Our lathe machine cnc torno sell to more than 100 countries and regions worldwide. Our main products are lathe machine CNC torno, Gap-bed Lathe, Milling Machine, Vertical Machining Centers,etc.
FAQ
Q:Why choose our lathe machine cnc torno?
A: 1 . High quality with competitive price
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE ( Whatsapp , Wechat, Viber,etc )
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE ( Whatsapp , Wechat, Viber,etc )
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
Q:Can we start with small quantity? What's the MOQ?
A: We can accept orders with any quantity. The MOQ is 1 unit.
Q: Do you have QC or any safety standards for your lathe machine CNC Torno ?
A: yes,we have established a highly strict quality control department to guanrantee good quality.
Q: How can we learn to operate lathe machine CNC Torno ?
A: Operation teaching video and instructions even engineer are available.
