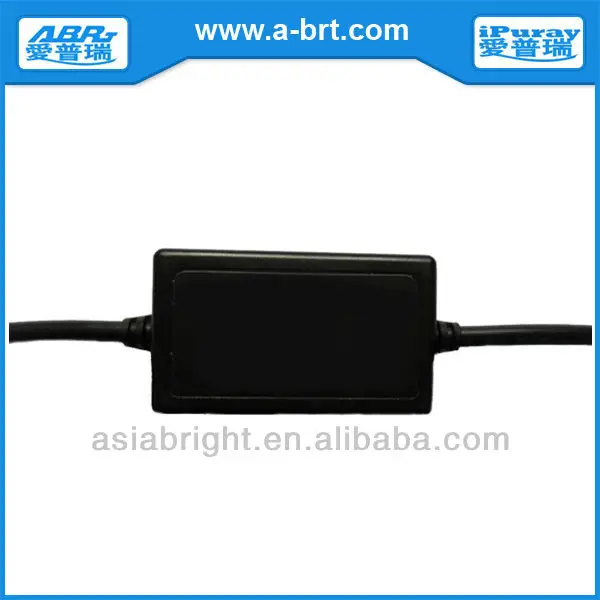

PWM LED Dimmer Driver Enhanced Version

Описание и отзывы

Характеристики

BRT-D281 is a universal LED dimmer driver which is suitable for general dimmers and LED lights. There is no flicker during the brightness adjustment. And the brightness adjustment ranges from 3% to 100%.

Specification:



(1) Input
Input Voltage(V)	90~265V(50Hz/60Hz)	Modulation System	Pulse Width Modulation(PWM)
(2) Output
Output Voltage(V)	DC12V	Output Wattage(W)	10W
Max Current(A)	850mA	Conversion Efficiency	> 80%
(3) Feature
Withstand Voltage (KV)	AC 1.5KV/3mA 3S	Short Circuit Protection	yes
Temperature Rise(°C)	≤30°C	Temperature Protection	yes
Ingress Protection	IP65	Overload Protection	yes
Weight	100g	Working Temperature (°C)	-25°C-45°C
(4) Dimension	L*W*T   60*35*28 mm



 Installation



Caution: Installation must be done by qualified personnel only.

1. Supply Voltage should be the same as network voltage;

2. Don't use with usual loads. The power supply should match the loads.

3. Choose easily dissipating heat installation modes or installation environment and make sure it's ventilated.

4. Wire connections should be strong and reliable. Please add insulation protection in case electricity leaking.

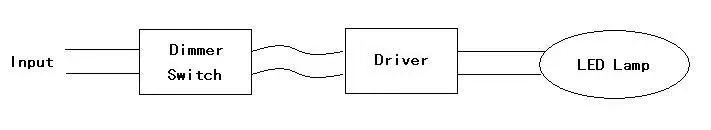

Wiring Diagram
