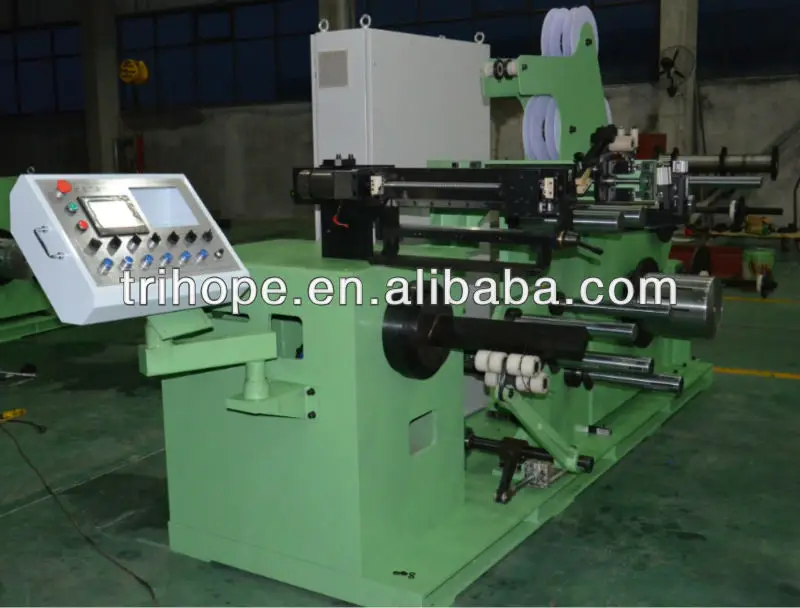

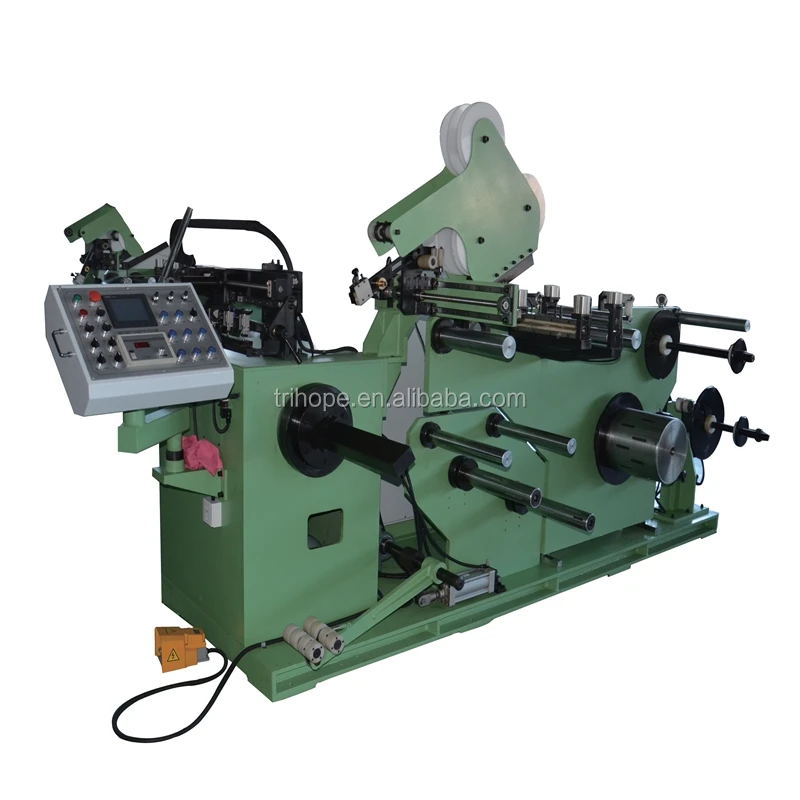

ZBRJ-I350 медные опоры для трансформатора и алюминиевый станок для намотки фольги
- Категория товара: Станок для намотки фольги >>>
- Поставщик (Оптовый магазин): Shanghai,Trihope,International,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT INTRODUCTION
| S.N | ITEM | SPECIFICATION | REMARK |
| 1 | Coil range | ||
| 1.1 | Axial length | Max:350 mm | |
| 1.2 | External diameter(mm) | Φ200--Φ600mm | |
| 1.3 | Inner diameter(min) | No limited | |
| 1.4 | Coil weight Kg | ≤ 200 kg | |
| 2 | Coil material | ||
| 2.1 | aluminum foilCopper foil | Width ≤ 300mmThickness of aluminium Al foil : 0.5-2.0 mmCu foil : 0.5-1.0 mmCoil inside diameter: Φ305mm,Coil outside diameter≤Φ800mm | |
| 3 | Conduct foil decoiling device | ||
| 3.1 | Width of the decoiler | 320mm | |
| 3.2 | Diameter range of the decoiler | Φ301mm-Φ309mm | |
| 3.3 | Load the decoiler(max) | 800KG | |
| 3.4 | pull force | Max:1000N.M | Stepless adjustable |
| 3.5 | Tension working expressure | 0~0.6 Mpa | |
| 3.6 | Decoil press force | Pneumatic press unit | |
| 4 | Winding device | ||
| 4.1 | winding speed | 0~25rpm | |
| 4.2 | Working torque(max) | ≥ 1000 N.M | |
| 4.3 | Power Main Moter | 5.5 KW | |
| 4.4 | Speed regulation | Frequency stepless speed regulation | |
| 5 | Layer insulation decoiler device | 2sets | Main expanding fore when back up |
| 5.1 | Installation axil of Layer insulation | 2sets | |
| 5.2 | outer diameter of insulation Layer coil | ≤Φ400 mm | |
| 5.3 | Inner diameter of insulation Layer coil | Φ76 mm | |
| 5.4 | Width of Layer insulation coil | Max:350mm | |
| 5.5 | tensioning way of decoiling roller | Pneumatic and Mechanical damping | |
| 5.6 | tension torque of decoiling roller | ≤50 N.M | |
| 6 | deviatin Rectifying device | ||
| 6.1 | Counterdeviating method | Automatic counterdeviation by servo motor | |
| 6.2 | Counterdeviating precision | 0.5mm/1000mm | |
| 9 | shearer | 1 set | Manual electric shears |
| 10 | Electrical system | PLC auto control | |
| 10.1 | Count digits | 5 digits(0.0-9999.9) | Count precision:0.1 turn |
| 102 | Basic function | Step input, revisable, power off memory | |
| 10.3 | Work interface | Color touch panel | Chinese and English |
| 10.4 | Total power | 6kW | |
| 10.5 | Electric power | 3 phases 380V/50Hz | Or as per customer requirements |
