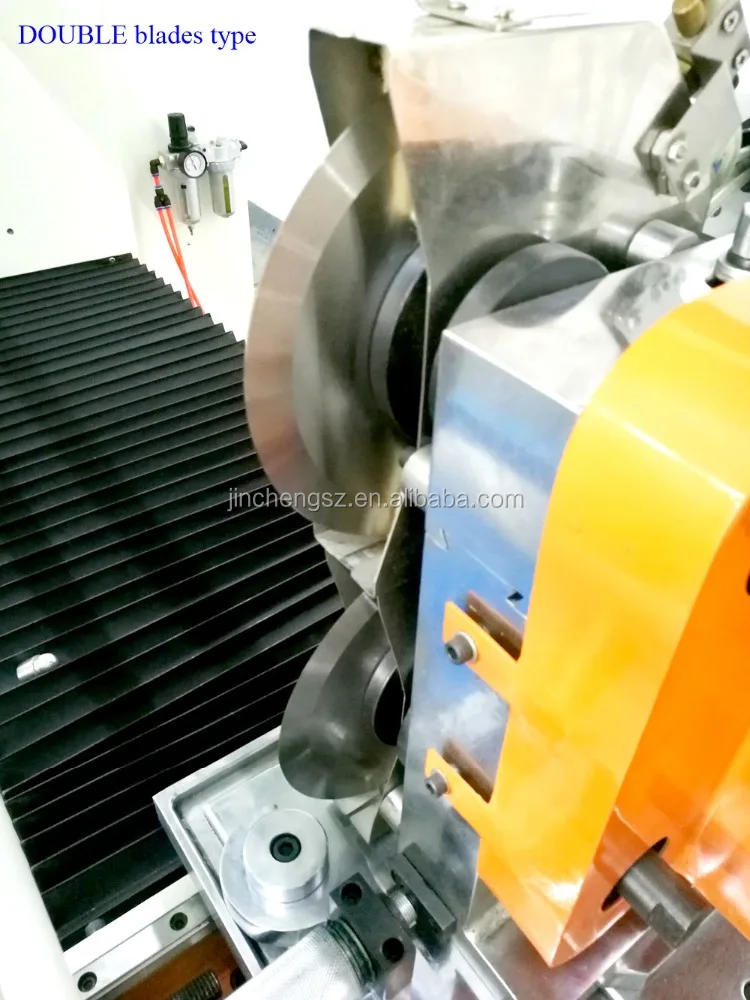

Автоматическая Машина Для Резки Рулонов ПВХ изоляционной ленты и двухсторонней ленты
- Категория товара: Other Packaging Machines >>>
- Поставщик (Оптовый магазин): Shenzhen,Jcd,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description

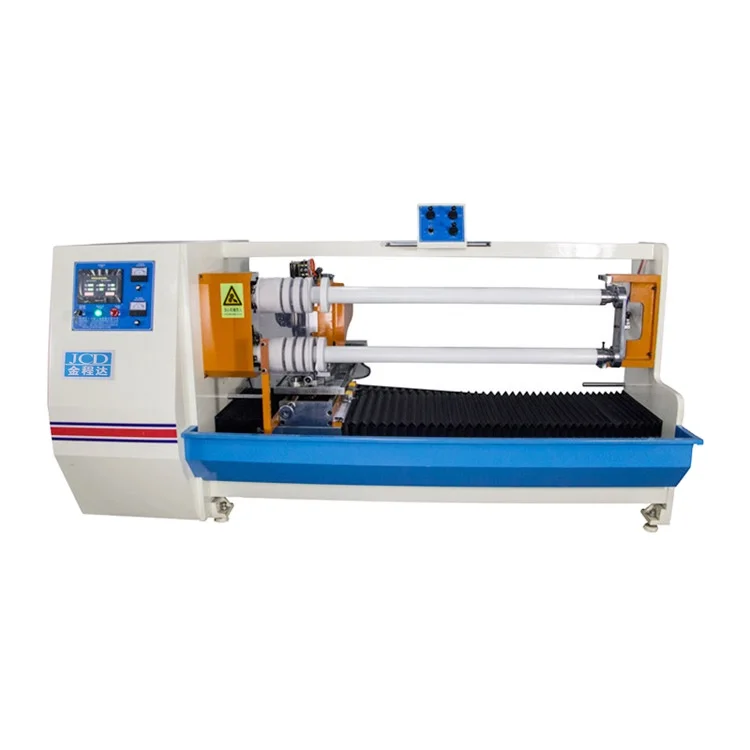

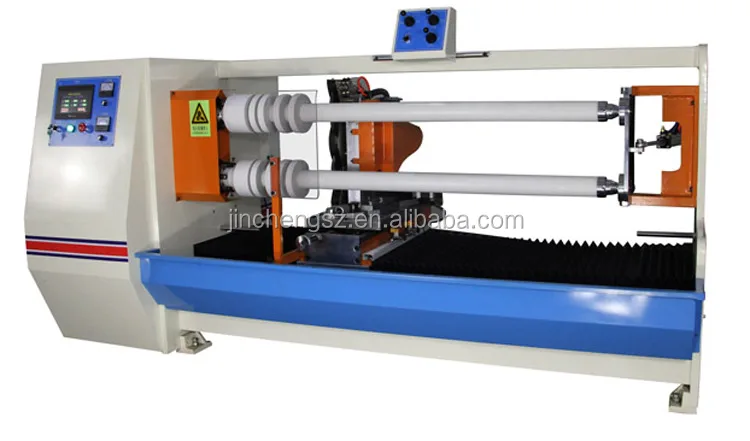

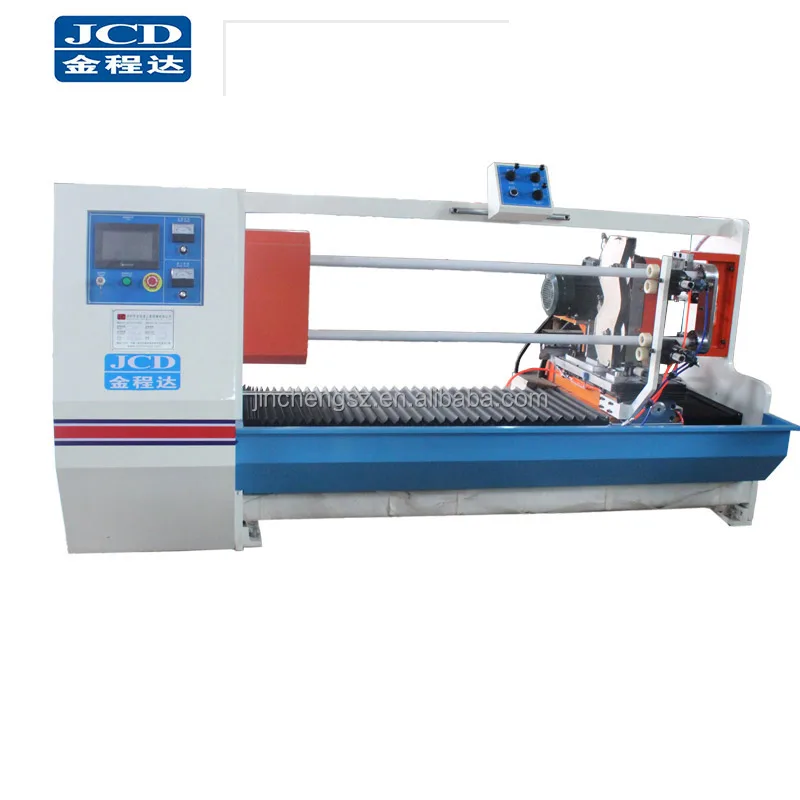

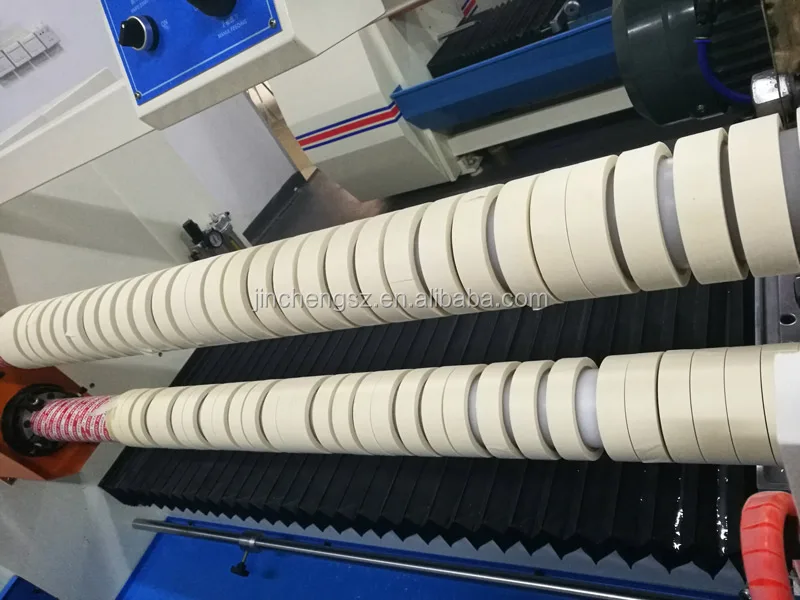

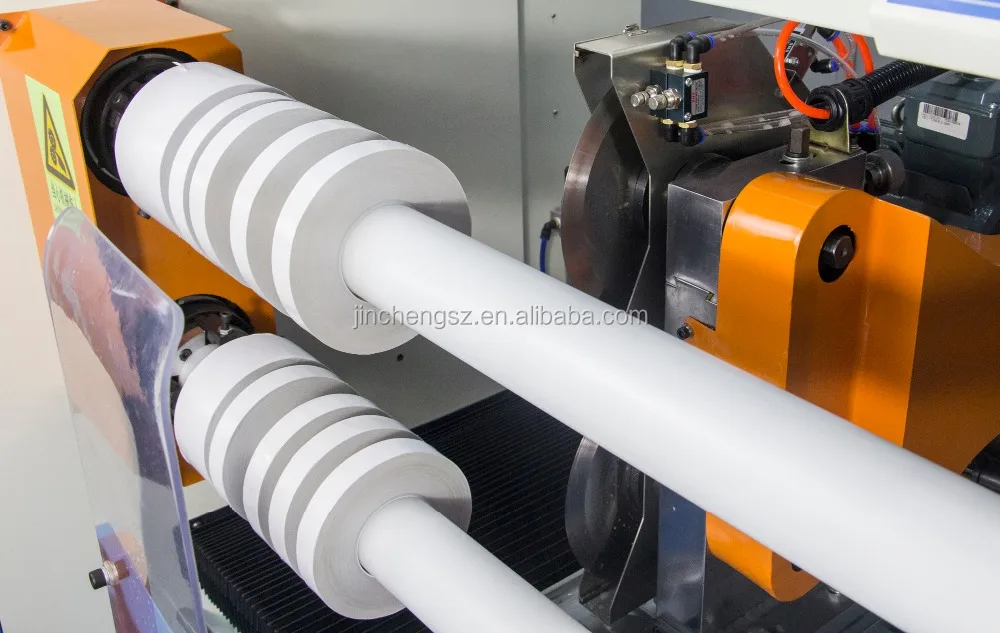

Automatic Single shaft cutting machine

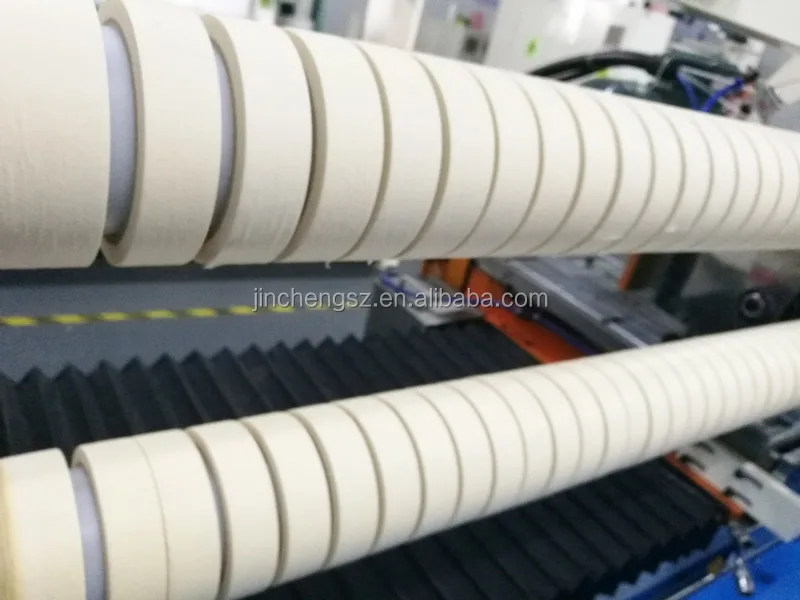

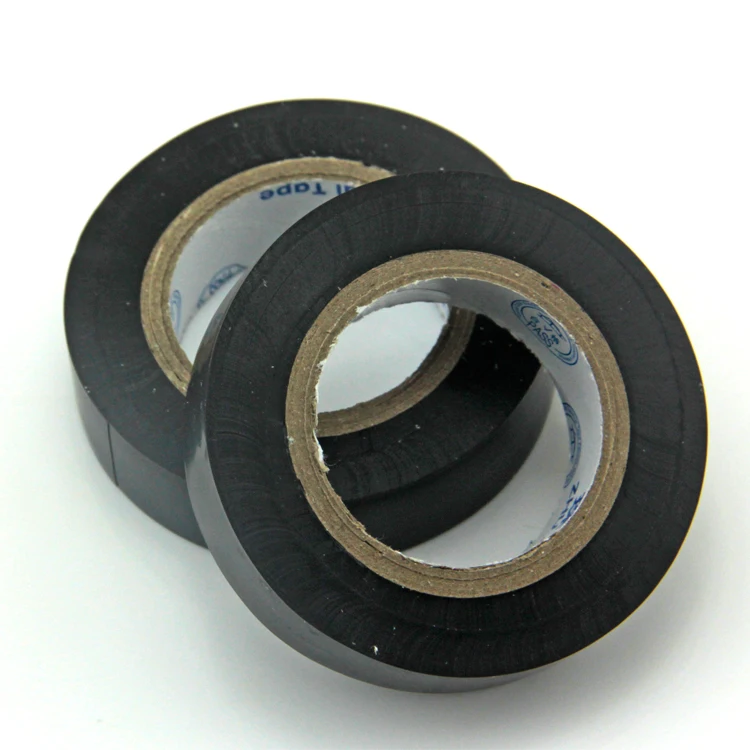

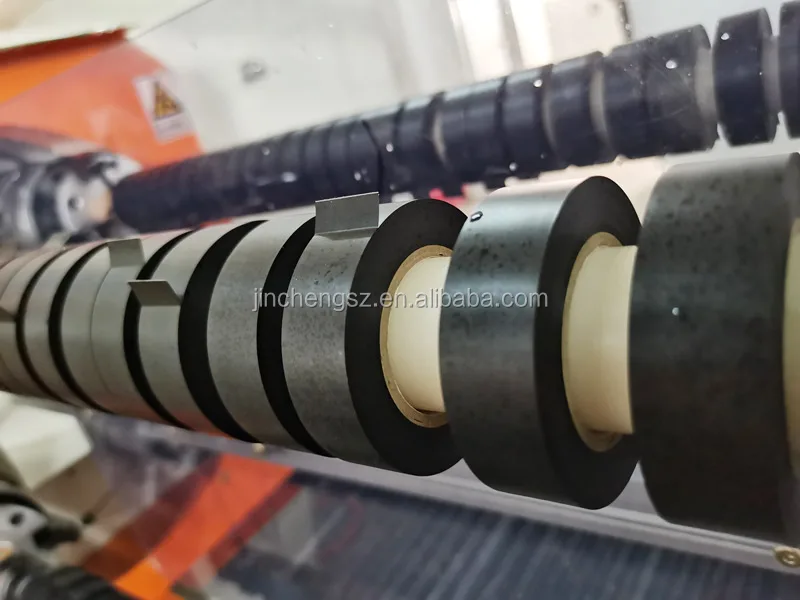

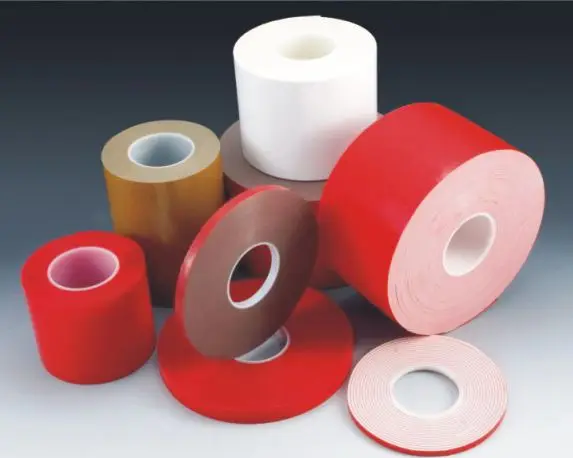

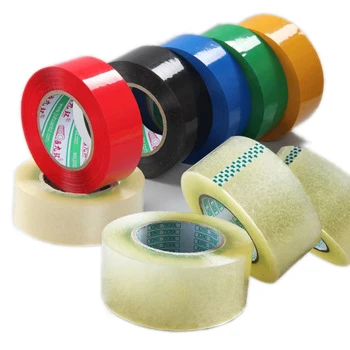

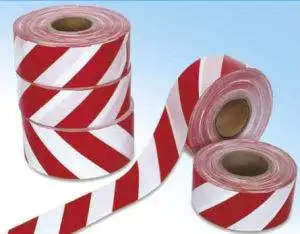

Suitable material: Foam tape, PVC electrical tape, cloth tape, PET tape, double sides tape, PET tape, masking tape, paper tape, medical tape and so on.
Specification
Type | JC-C02-1300 | JC-C02-1600 |
Valid width | 1300mm | 1600mm |
Max cutting diamter | 160mm/210mm | 160mm/210mm |
Min Cutting diameter | 1mm | 1mm |
Blade diameter | 200mm, 250mm | 200mm, 250mm |
Size | 2800*1250*1300mm | 3100*1250*1300mm |
Weight | 1500KG | 1500KG |
Detailed Images
PLC control
Mitsubishi PLC control.
High quality control system than the other brand, stable operation
Servo motor control.
Mitsubishi servo motor control the cutting width and blade moving. Make the high precision cutting effect. Mini cutting width 1mm and precision ±0.1mm.
The machine can be controlled by servo motor or hydraulic motor for cutting blade feeding system.

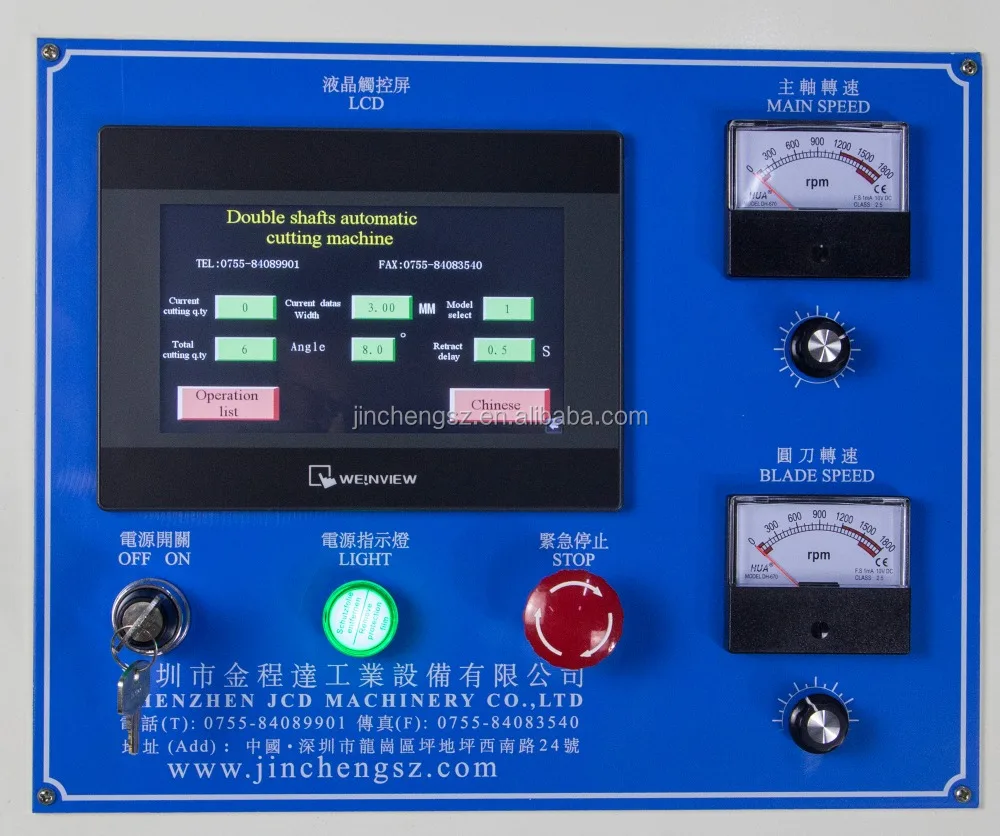

LCD Panel.
Name: LCD panel.
Brand: WEINVIEW/SIEMENS
Original: TAIWAN/JAPAN
Size: 7''/ 10 ''
Language: Normal in Chinese & English.
Other languages are optional, such as Spanish,Portuguese, Russian etc.
Cutting shaft size:
Standard size : 76mm
Optional size: 25mm, 32mm, 38mm, 50mm etc.
If the shaft size is below 50mm, machine will need the cutting supporter together.

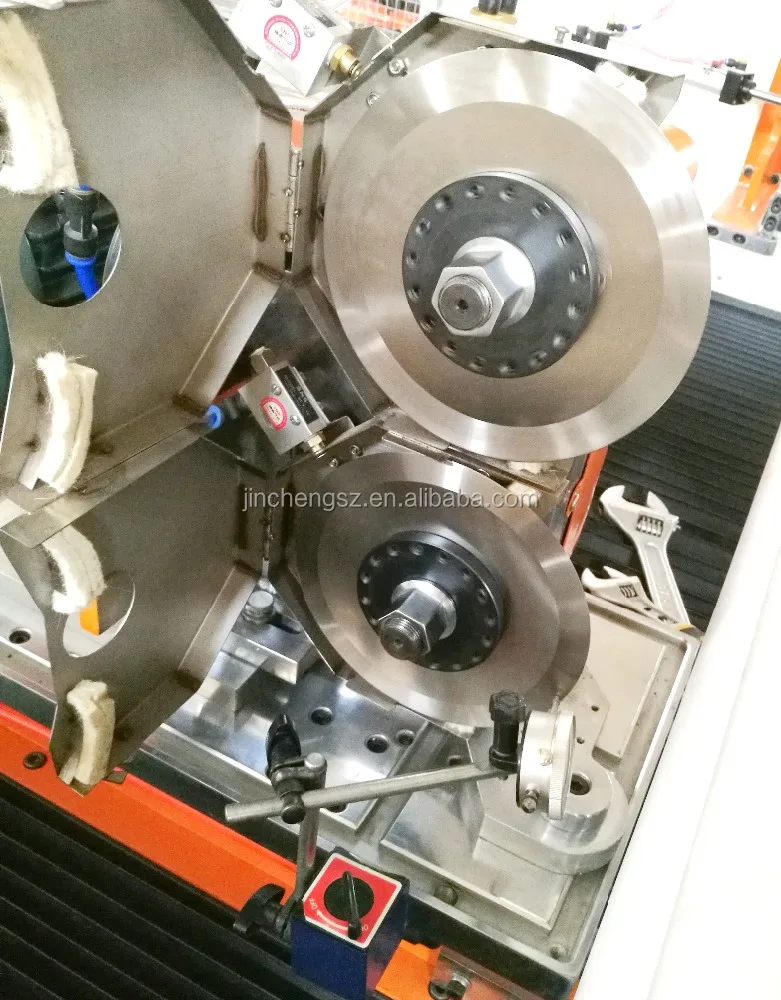

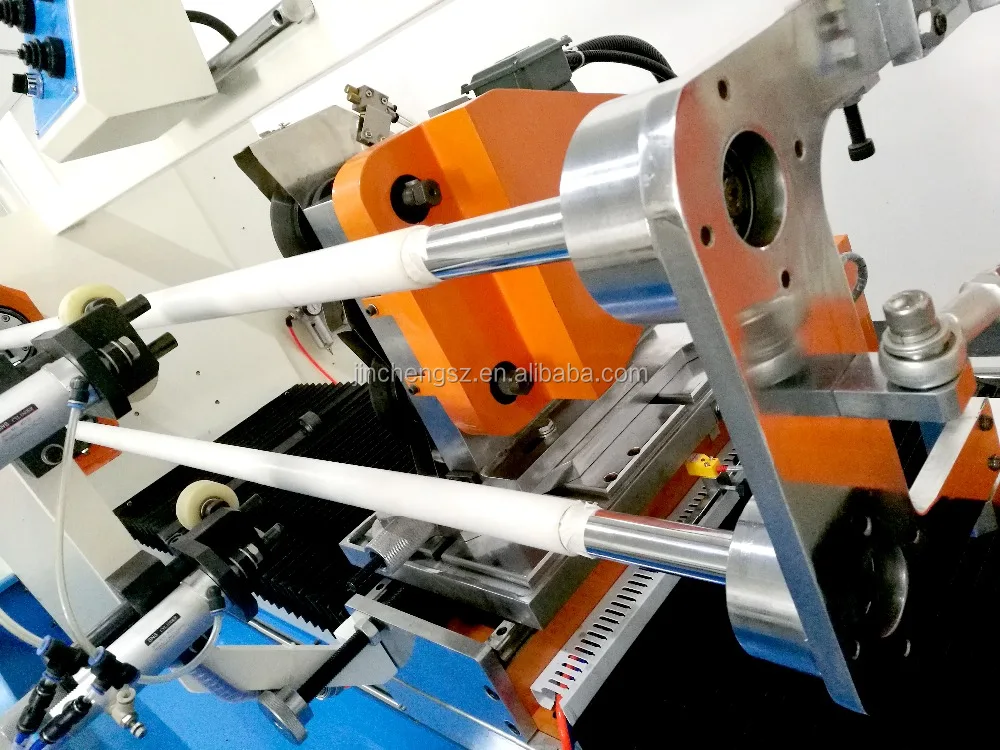

Cutting supporter.
Name: This is special for small sizes cutting shafts.
In case any shake during cutting.
To improve the cutting quality of the products.
We will give 1 pcs cutting blade for free.
The blade size should be O.D=200MM
Or O.D=250MM.
1 | Main driving system | AC motor with frequency inverter. Make sure the steady cutting speed. |
2 | Operating panel | Big size color LCD touched panel with English language.You can set up various cutting mode and monitor the cutting job directly in it. |
3 | Motor control system | The PLC programmable controller. You can cutting various sizes in same log roll. |
4 | Cutting size system | Mitsubishi servo motor and high accuracy ball screw and linear slide rail. To make sure the accurate cutting size. |
5 | Blade feeding system | Mitsubishi servo motor and hydraulic motor for optional. It can be anthropomorphized as three-step feeding speed of the cutter. To improve cutting efficiency and get best quality. |
6 | Blade angle system | Mitsubishi servo motor control. To calculate the blade angle, according to different type materials. No need change blade. (angle range: + / -8° ) .That will increase the production efficiency. |
Optional device
1\tDifferent sizes cutting shafts: Supply according to your core I.D.
2\tCutting shaft supporter: For supporting smaller size shaft.
3\tAuto blade grinding: Keeping blade sharp for good cutting.
4\tSafety cover: To protect operator during cutting, which is accord with the CE regulation.
5\tLaser knife system for feeding position.
6\tDifferent sizes blade for cutting.
7\tFront/rear frame design so that 2 machines face to face: one person can operate both machines for bulk production.
8\tDust proof sliding door.
9. Different operation language.

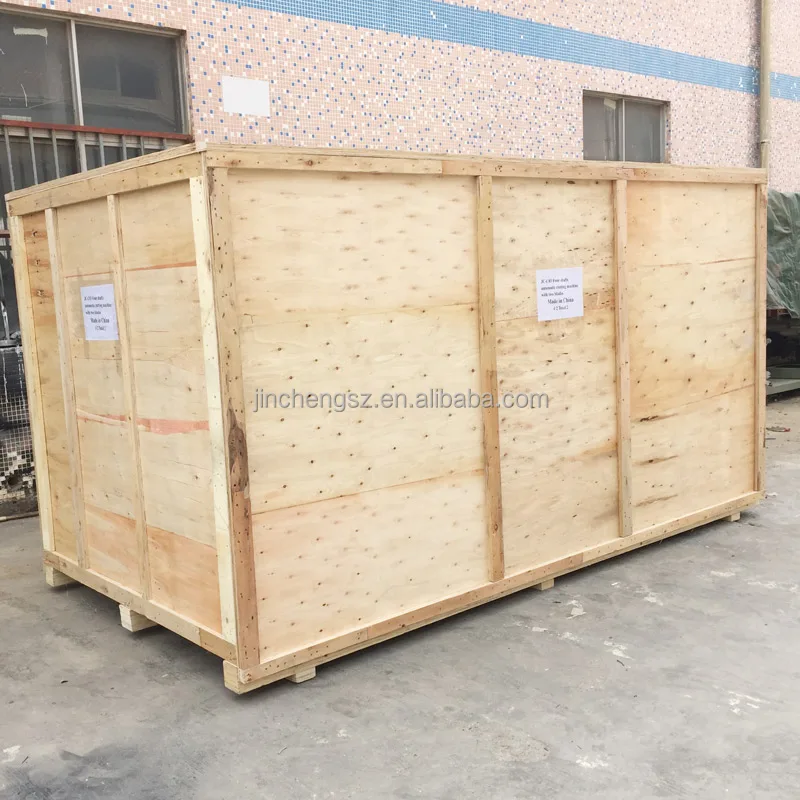

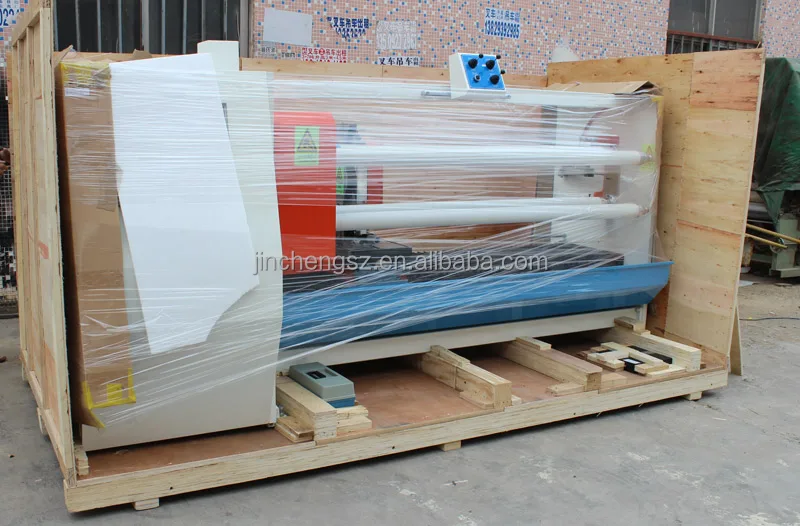

Good package by wooden case
Suggestion products
Model | Type | Max.cut diameter | Blade size | Shaft size |
JC-C01 | 1 shaft with 1 blade | 300 mm | Φ250 mm | 25.4-76mm |
JC-C02 | 2 shafts with 2 blades | 200 mm | Φ200 mm/Φ250 mm | 25.4-76mm |
JC-C02A | 2 shafts with 1 blade | 250 mm | Φ250 mm/Φ300 mm | 25.4-76mm |
JC-C03 | 4 shafts with 2 blades | 200mm | Φ200 mm/Φ250 mm | 25.4-76mm |
JC-C01A | 1 shaft with 1blade | 400mm | Φ500 mm/Φ550 mm | 25.4-76mm |
