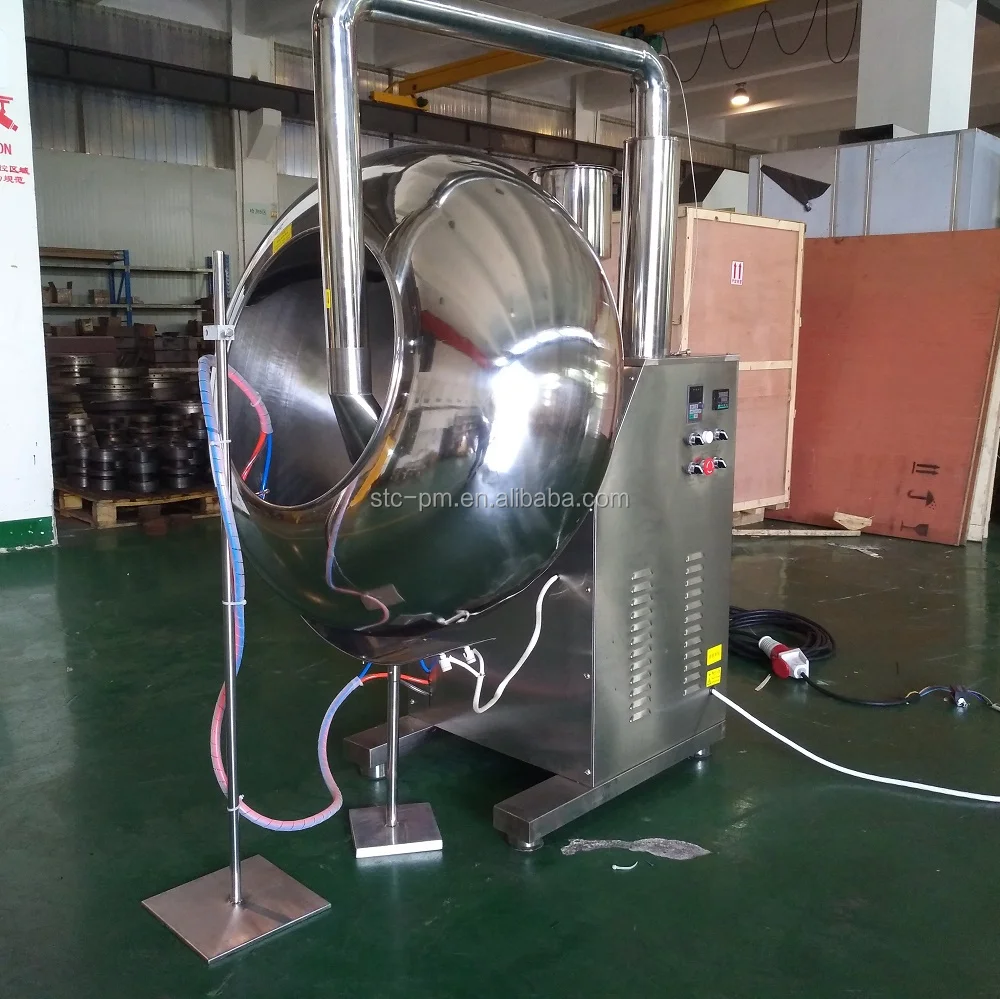

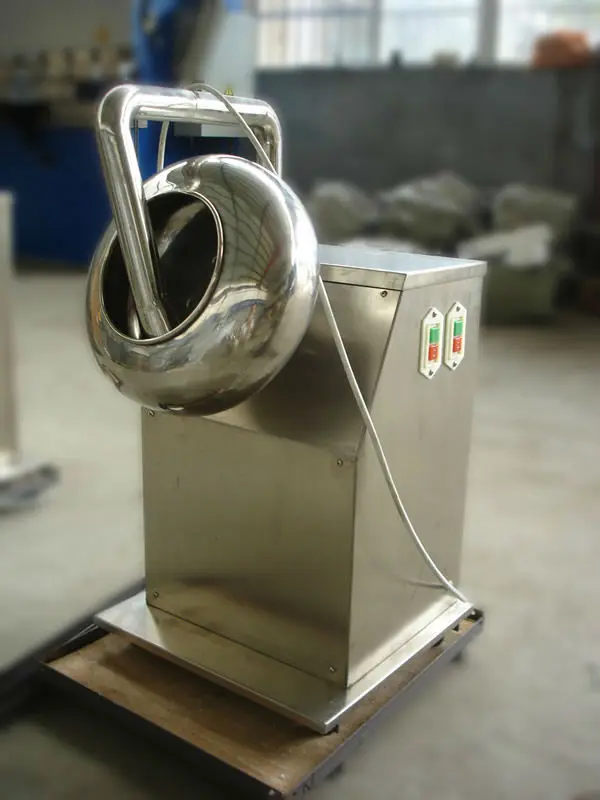

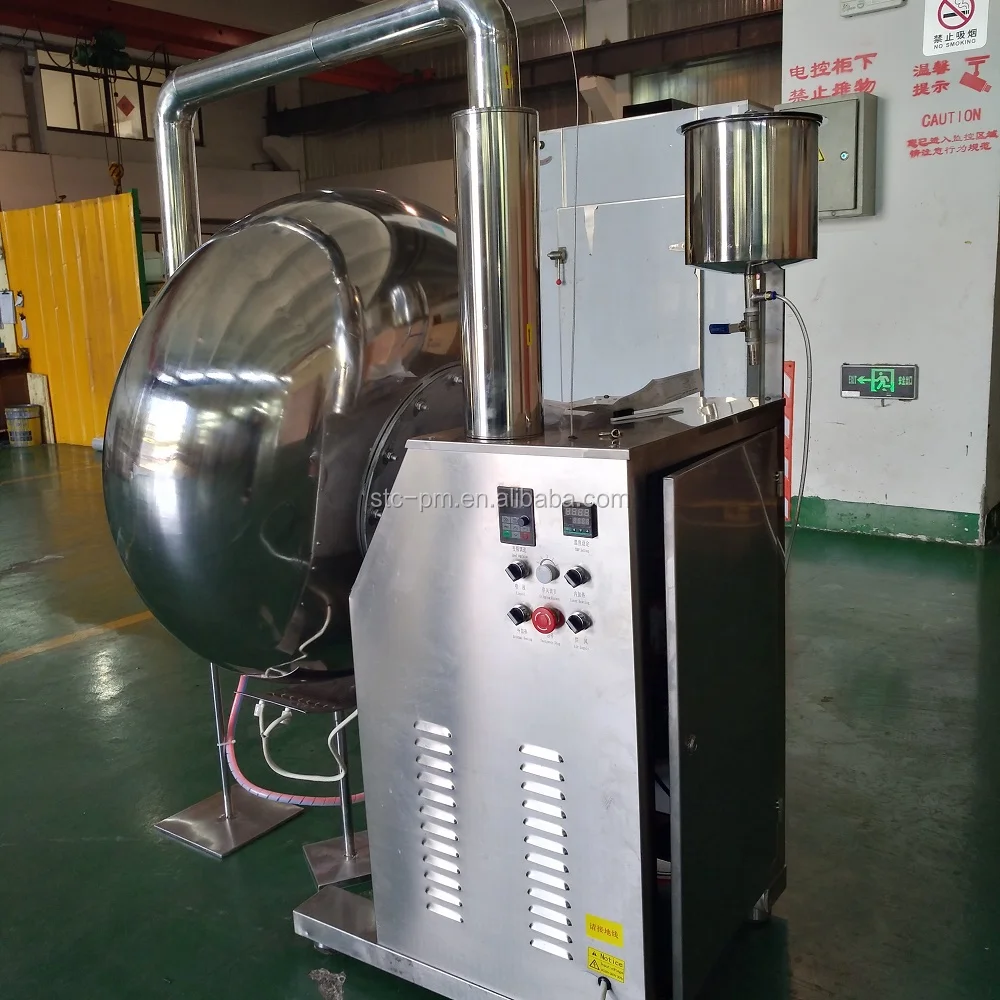

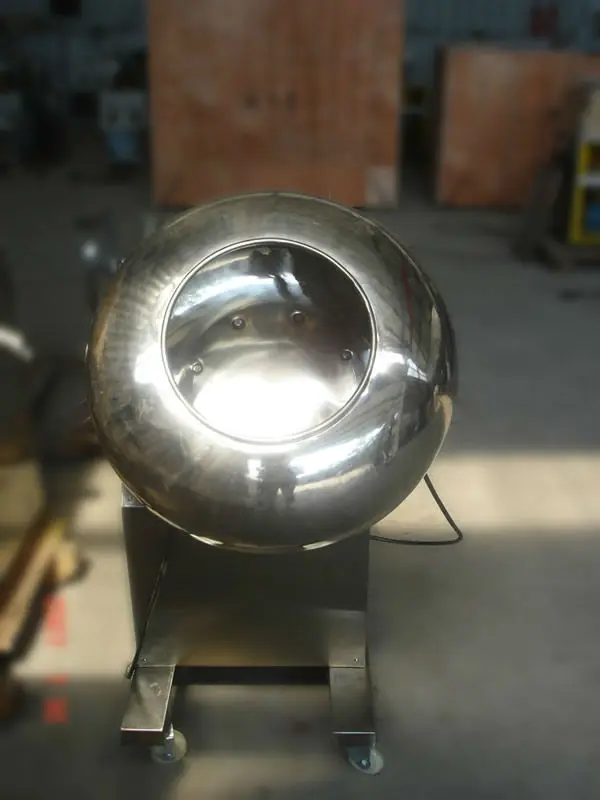

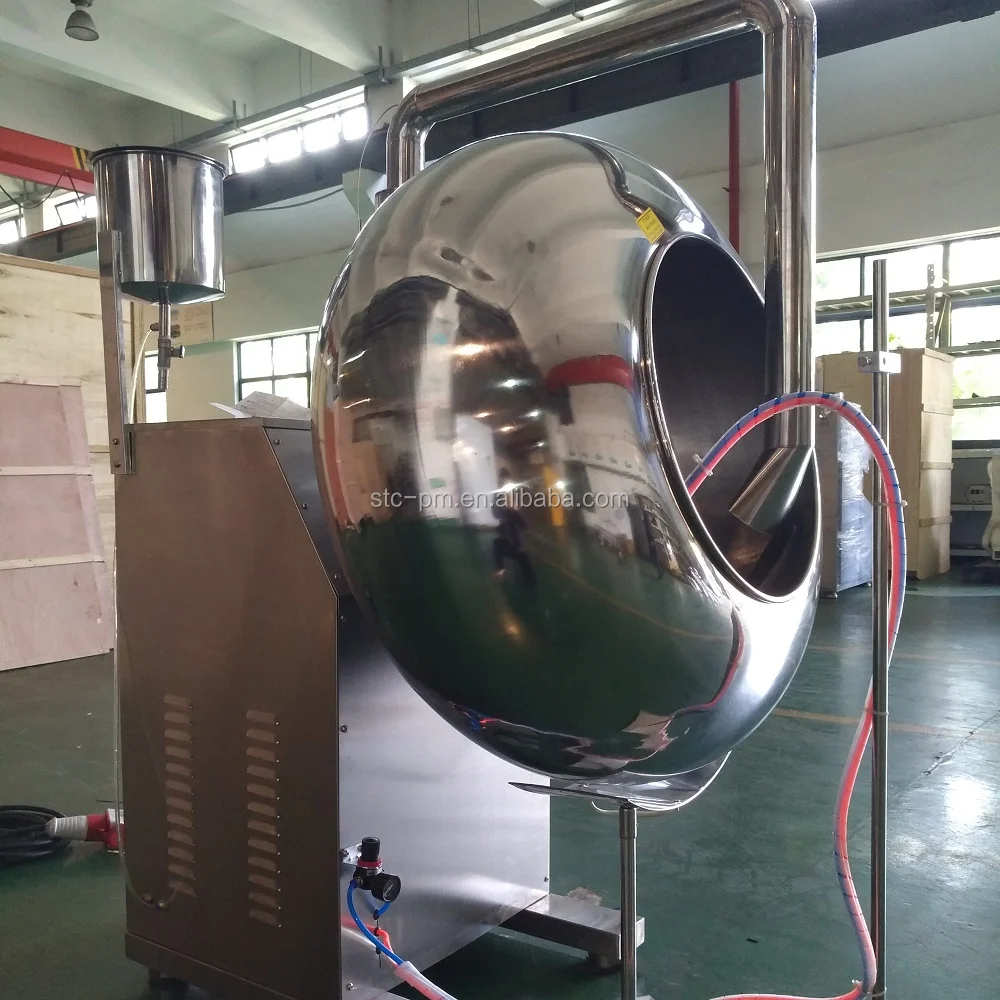

BY300 sugar coating machine
These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature. The sugarcoating round pot is elevated with a elevation 30`to the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electrical heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.
Main technical Data :
ITEM | TYPE | ||||
BY300(A) | BY400(A) | BY600 | BY800 | BY1000 | |
Dia. of by 1000 series sugar coating machine Dish mm | 300 | 400 | 600 | 800 | 1000 |
Rotation Speed of by 1000 series sugar coating machine Dish r/min | 46/5-50 | 46/5-50 | 42 | 30 | 30 |
Production Capacity of by 1000 series sugar coating machine kg/time | 2 | 5 | 15 | 36 | 45 |
by 1000 series sugar coating machine Motor kw | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 |
by 1000 series sugar coating machine Overall Size mm | 520*360*650 | 540*360*700 | 930*800*1420 | 980*800*1480 | 1070*1000*1580 |
candy sugar coating machine Net weight kg Net weight kg | 46 | 52 | 120 | 180 | 320 |
