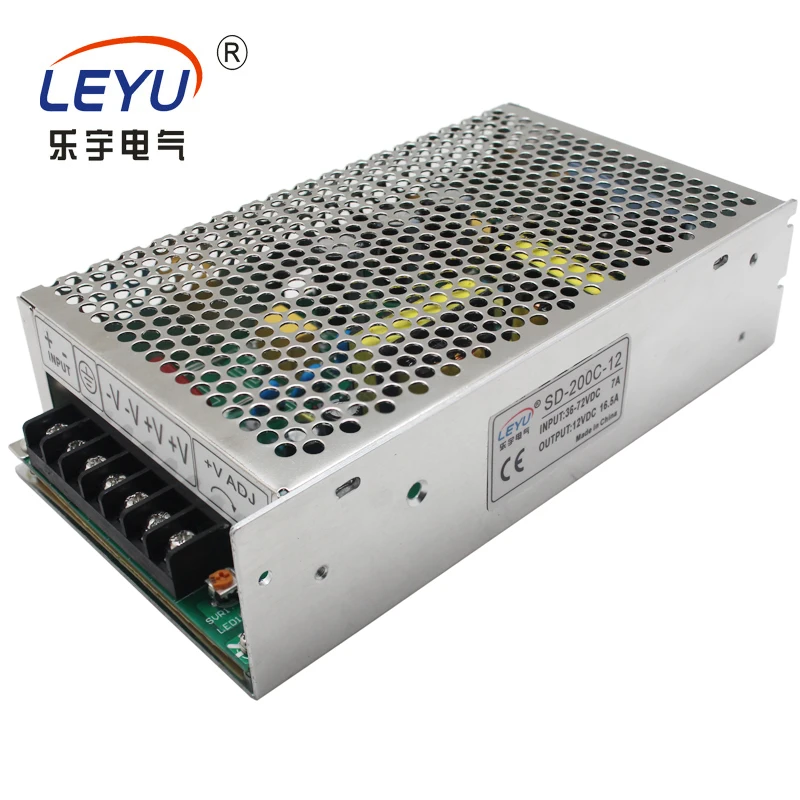

Преобразователь постоянного тока с 48 в на 12 В преобразователь высокого качества 200 напряжения по заводской
Преобразователь постоянного тока с 48 в на 12 В преобразователь высокого качества 200 напряжения по заводской
Преобразователь постоянного тока с 48 в на 12 В преобразователь высокого качества 200 напряжения по заводской
Преобразователь постоянного тока с 48 в на 12 В преобразователь высокого качества 200 напряжения по заводской
Преобразователь постоянного тока с 48 в на 12 В преобразователь высокого качества 200 напряжения по заводской
Преобразователь постоянного тока с 48 в на 12 В преобразователь высокого качества 200 напряжения по заводской
Преобразователь постоянного тока с 48 в на 12 В преобразователь высокого качества 200 напряжения по заводской

Преобразователь постоянного тока с 48 в на 12 В преобразователь высокого качества 200 напряжения по заводской

Поделиться:


Цена:26,10 $ - 27,70 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Description




Specification


SPECIFICATION
OUTPUT
Model
SD-200B
SD-200C
DC Voltage
5V
12V
24V
48V
5V
12V
24V
48V
Rated Current
34A
16.7A
8.4A
4.2A
40A
16.7A
8.4A
4.2A
Current Range
0~34A
0~16.7A
0~8.4A
0~4.2A
0~40A
0~16.7A
0~8.4A
0~4.2A
Rated Power
170W
200.4W
201.6W
201.6W
200W
200.4W
201.6W
201.6W
Ripple & Noise
100mVp-p
120mVp-p
150mVp-p
200mVp-p
100mVp-p
120mVp-p
150mVp-p
200mVp-p
Voltage Adj. Range
4.5 ~ 5.5VDC
11 ~ 16VDC
23 ~ 30VDC
43 ~ 53VDC
4.5 ~ 5.5VDC
11 ~ 16VDC
23 ~ 30VDC
43 ~ 53VDC
Voltage Tolerance
±2.0%
±1.0%
±1.0%
±1.0%
±2.0%
±1.0%
±1.0%
±1.0%
Line Regulation
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Load Regulation
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
Setup, Rise Time
300ms, 50ms at full load
Voltage Range
B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC
Efficiency
79%
82%
85%
86%
81%
84%
86%
86%
DC Current
10.8A/24V
10.6A/24V
10.4A/24V
10.4A/24V
5.4A/48V
5.2A/48V
6.7A/48V
5A/48V
Inrush Current
C:45A/48VDC D:45A/96VDC
Over Load
105 ~ 135% rated output power
Protection type: Shut down o/p voltage, re-power on to recover
Over Voltage
5.75 ~ 6.75V
16.8 ~ 20V
31.5 ~ 37.5V
53 ~ 65V
5.75 ~ 6.75V
16.8 ~ 20V
31.5 ~ 37.5V
53 ~ 65V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature
95℃±5℃(100℃±5℃ for SD-200B-12 only) TSW1 detect on main power transistor
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
Working Temp.
-20 ~ +60℃(Refer to “Derating Curve”)
Working Humidity
20 ~ 90% RH non-condensing
Storage Temp., Humidity
-40 ~ +85℃, 10 ~ 95% RH
Temp. Coefficient
±0.03%/℃ (0 ~ 50℃)
Vibration
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety Standards
UL60950-1approved (for SD-200C-24 type only), IEC60950-1 CB approved by TUV (for D type only)
Withstand Voltage
I/P-O/P: 1.5KVAC I/P-FG: 2.0KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission
Compliance to EN55022 (CISPR22) Class B
EMC Immunity
Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A
Dimension
215*115*50mm (L*W*H)
Weight
1.1Kg
Packing
12pcs/14.4Kg/0.92CUFT
NOTE
1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

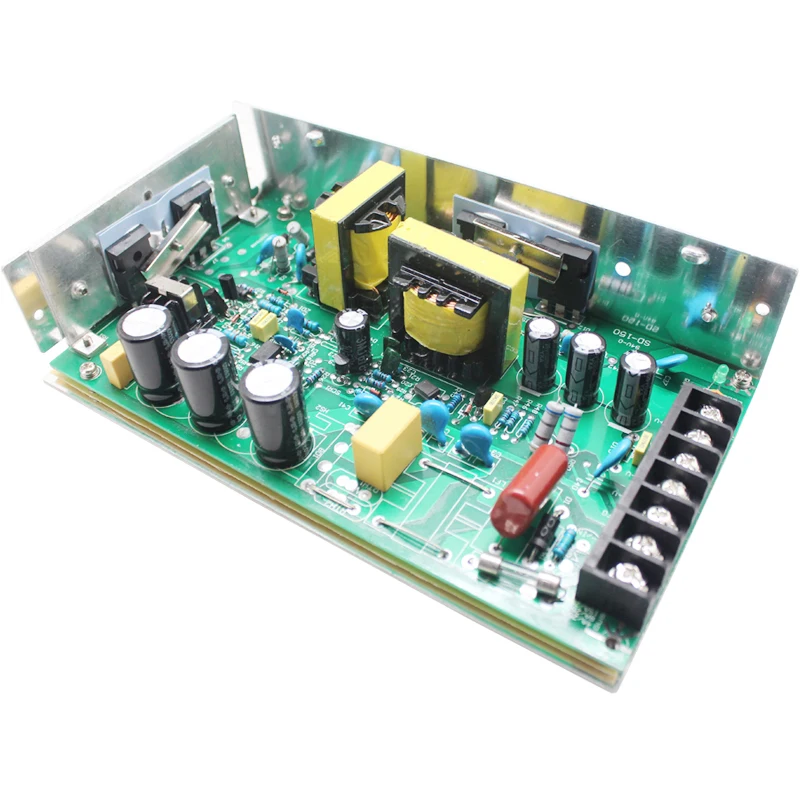

Details Images
