Product Description
WC67Y-63T/2500
Product description of WC67Y series hydraulic plate bending machine
WC67Y hydraulic bending machine , Heavy Duty Induction
The performance of our this type of hydraulic press brake( metal sheet bending machine)
Model: serialWC67Y
1. The frame is steel-welded construction, vibrating to eliminate stress, with high strength and good rigidity.
2. Forcing-torsion shaft maintains the synchronization of both cylinders with high precision.
3. Mechanic stop nuts ensure stable and reliable positioning accuracy.
4. The ram is driven by hydraulic system with two cylinders. Working pressure could be adjusted stepless and the noise of machine is lower.

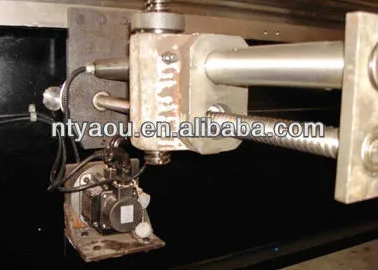

5. The stroke of ram and back gauge could by adjusted through motor; Also it could be adjusted by hand wheel for fine position. The value adjusted could be displayed on numerator.
6. Main sliding parts such as cylinders, piston rod, guide way, are all treated with wear-resistance.

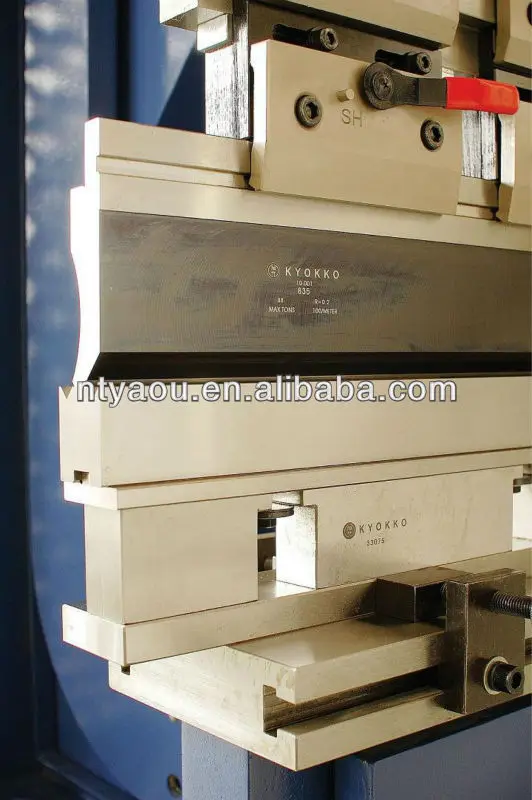

7. There are slanting wedges (compensation units) installed on the top of tools. They could be adjusted by hand to meet the accuracy requirements of work piece.
8. Deflection compensation unit is adopted under worktable for the machine above 250Tons.
9. Full machine is guarded with safety guard with interlocker to prevent the operator from injured.
OPTIONAL of WC67Y series hydraulic plate bending machine
1 two-hand control foot pedestal device.
2.it is possible for special tooling with different lengths to bend the closed frame workpiece
3.any tailor-made are available on request.
WE67K 63T/2500 press brake WC67Y hydraulic machine Steel Plate
Product Detail
| Name | CNC Hydraulic Press Brake Machine |
| Color | RED |
| Application | Steel Plate Sheet Bending |
| Type | Press Bending Brake |
| Usage | Sheet Folding |
| Warranty | 5 Years |
| Material | Stainess Steel |
| Model | WE67K-100T3200 |
| Voltage | 220V/380V/415V/440V/customized |
| Product name | Hydraulic Cnc Bending Machine |
| Product Keywords | WE67K 63T/2500 press brake,WC67Y hydraulic press brake machine,Steel Plate press brake |

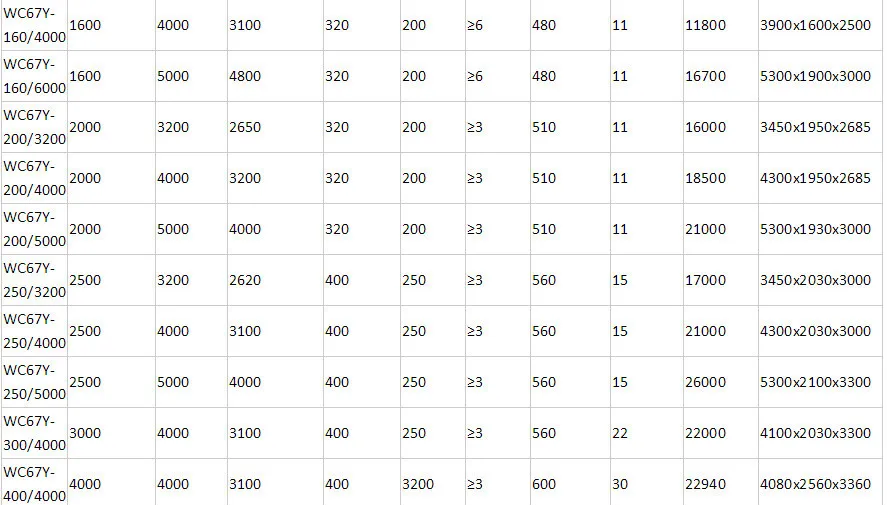

Parameter of WC67Y series hydraulic plate bending machine

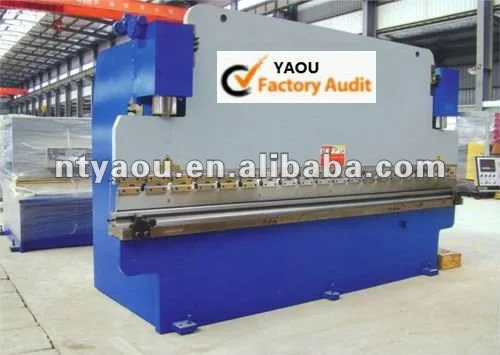

Product photo view of WC67Y series hydraulic plate bending machine

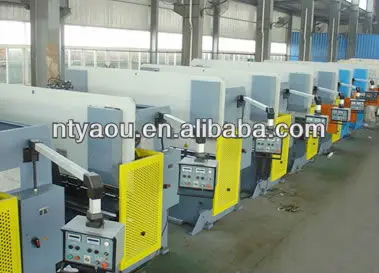

Company view of Rugao Yaou
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Packaging & Shipping
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine.
...
